ETCR3200 Double Clamp Earth Resistance Tester

Main Functions
Earth Resistance Measurement,DC Resistance Measurement,Soil Resistivity Measurement,Earth Voltage Measurement,Earth Current Measurement
Earth Resistance Measurement Range:0.00Ω~30.00kΩ
DC Resistance Measurement Range:0.00Ω~30.00kΩ
Soil Resistivity Measurement Range:0.00Ωm~9000kΩm
Earth Voltage Measurement Range:AC 0.0V~100.0V
Earth Current Measurement Range:0.00mA~600.0A
Clamp Jaw Size:Φ50mm
Memory:200 sets of data storage
Alarm Function:Alarm threshold can be set
USB Interface
    Product Introduction
    ETCR3200 Double Clamp Earth Resistance Tester, also known as multi-function earth resistance tester and precision earth resistance tester, which is used for measurement of on-site measurement of earth resistance, soil resistivity, earth voltage, down lead leakage current, AC current, and DC resistance.The tester adopt digital processing technology, precision 4-wire method, 3-wire method, simple 2-wire method, selection method, and double clamp method to measure the earth resistance, which can flexibly and accurately measure any earth resistance value of various complex grounding conditions such as single-point and mesh grounding. No need to disconnect any parallel grounding electrode during parallel earth measurement, which maximize the convenience of measurement. Introducing FFT (fast Fourier transform) technology and AFC (automatic frequency control) technology, it has unique anti-interference ability and environmental adaptability, and strong consistency in repeated tests to ensure high precision, high stability and high reliability of long-term measurement.It is widely used in electric power, telecommunication, meteorology, construction, lightning protection and industrial electrical equipment industries.

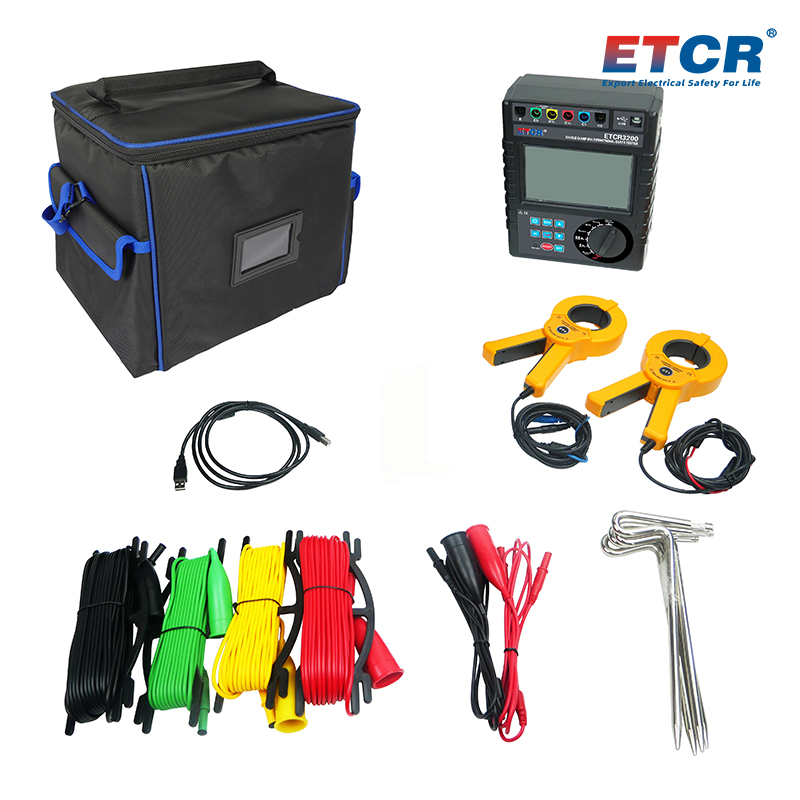

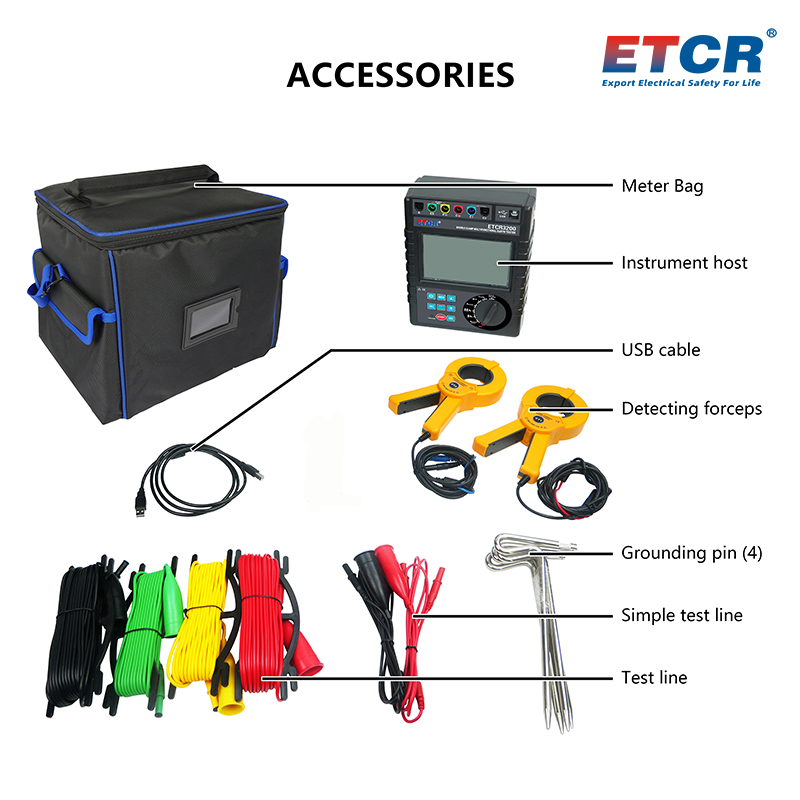

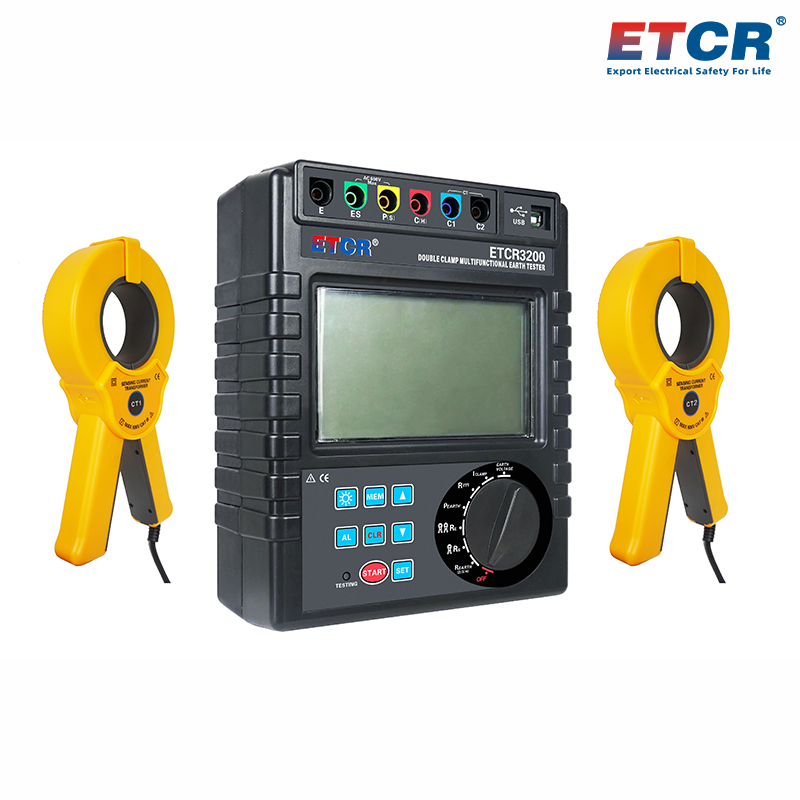

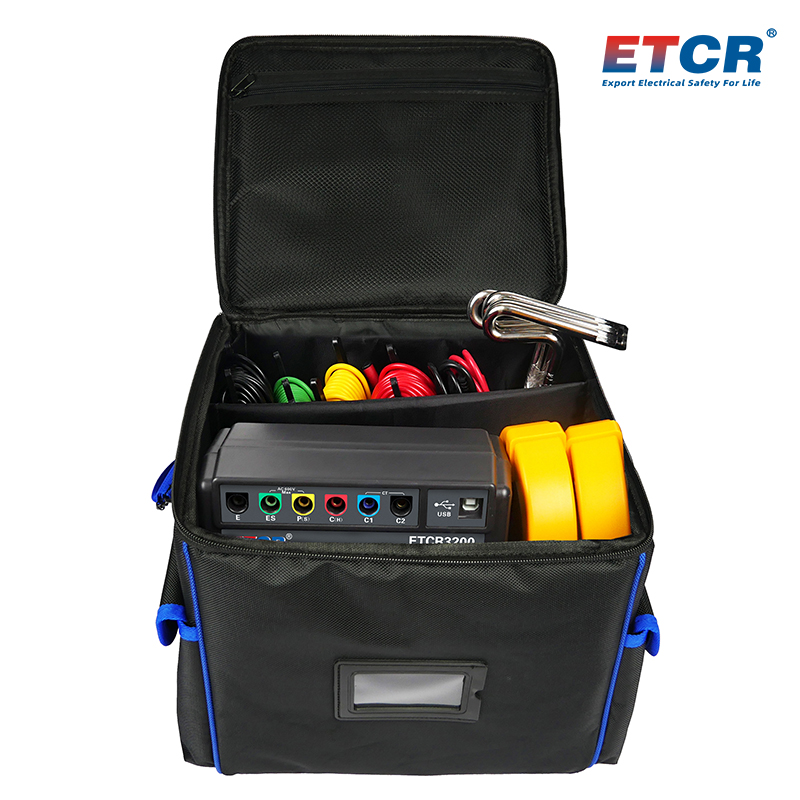

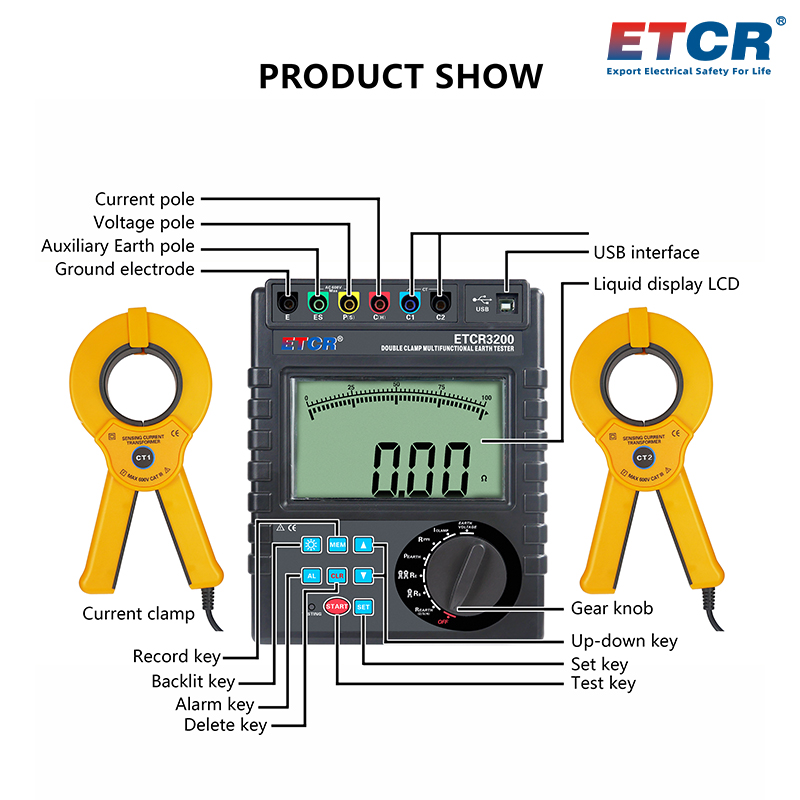

    ETCR3200 Double Clamp Earth  Resistance Tester consists of  a host, a current clamp (double clamp), data software, a test line, an auxiliary earth rod, and a communication line, etc.The large LCD display of host, with backlight and bar chart indication, data result is clear.At the same time, it can store 2000 sets of data, and through the USB interface data software, historical data can be read, consulted, saved, reported, printed and other functions.
    1. The two-, three- and four-wire,selection method, and double clamp method to measure earth resistance
    2.The tester adopt FFT (fast Fourier transform) technology and AFC (automatic frequency control) technology. It has unique anti-interference ability and environmental adaptability, and has strong consistency in repeated tests.

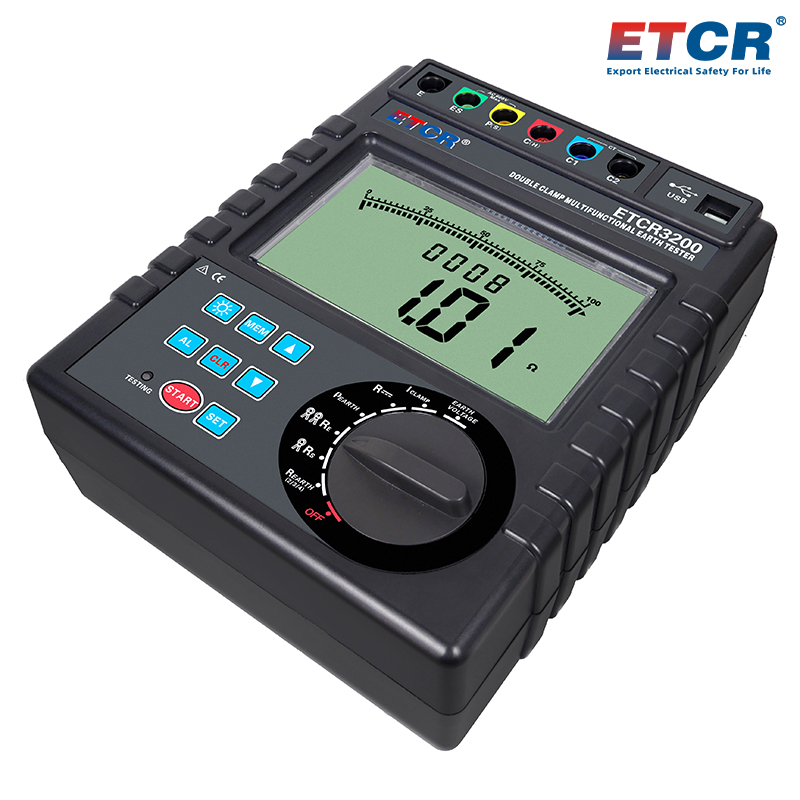

    3.The host has a large LCD display, white screen backlight, and bar chart indication, which is clear.
    4.Alarm function, the alarm threshold can be set.
    5.Memory, 200 sets of data storage.
    6.USB interface, data upload function.
    Technical Parameter
    1.Basic Error & Performance Indicator Under Reference Condition
    Measurement Function Measuring Range Accuracy Resolution
    Two-three-four-wire Method To Measure Earth Resistance (Re) and DC resistance (R—) 0.00Ω~29.99Ω ±2%rdg±5dgt 0.01Ω
    30.0Ω~299.9Ω ±2%rdg±3dgt 0.1Ω
    300Ω~2999Ω ±2%rdg±3dgt
    3.00kΩ~30.00kΩ ±4%rdg±3dgt 10Ω
    Selection Method To Measure Earth Resistance (Re) 0.00Ω~29.99Ω ±2%rdg±5dgt 0.01Ω
    30.0Ω~299.9Ω ±2%rdg±3dgt 0.1Ω
    300Ω~3000Ω ±2%rdg±3dgt
    Double Clamp Method To Measure Earth Resistance (Re) 0.01Ω~0.99Ω ±10%rdg±5dgt 0.01Ω
    1.0Ω~29.9Ω 0.1Ω
    30Ω~100Ω
    Soil Resistivity(ρ) 0.00Ωm~99.99Ωm Depending on the measurement accuracy of R(ρ=2πa Ra:1 m~100m;π=3.14) 0.01Ωm
    100.0Ωm~999.9Ωm 0.1Ωm
    1000Ωm~9999Ωm 1Ωm
    10.00kΩm~99.99kΩm 10Ωm
    100.0kΩm~999.9kΩm 100Ωm
    1000kΩm~9000kΩm 1kΩm
    Earth Voltage 50Hz/60Hz AC 0.0V~100.0V ±2%rdg±3dgt 0.1V
    AC Current 50Hz/60Hz AC 0.00mA~600.0A ±2%rdg±3dgt 0.01mA

    2.General Specification
    Power Supply DC 9V (alkaline dry battery LR14 1.5V 6 sections)
    Display Mode 4-digit max LCD display, white screen backlight
    Measurement Instruction LED flashing indication during measurement, LCD countdown display
    LCD Size 128mm×75mm;LCD Display Domain 124mm×67mm
    Backlight Controllable white screen backlight, suitable for use in dim place
    Measurement Precision four-wire, three-wire measurement, simple two-wire, selection method, double clamp method to measure earth resistance
    Measuring Method Two-three-four-wire measurement: pole changing method
    Selection method measurement: pole changing method
    Double clamp method: non-contact mutual inductance measurement method
    Soil resistivity: quadrupole method (Wenner method)
    DC resistance: pole changing method
    AC current: average value rectification (clamp type)
    Earth voltage: average value rectification (between P(S)-ES interface)
    Test Voltage Waveform Sine wave
    Test Frequency 128Hz/111Hz/105Hz/94Hz(Automatic frequency-selecting)
    Test Current >20mA(Sine wave)
    Open Circuit Test Voltage AC 15V max
    Electrode Spacing Range 1m~100m
    Test Line 4 PCS: red 20m, black 20m, yellow 10m, green 10m each 1 piece
    Simple Test Line 2 PCS: red 1.6m, black 1.6m each 1 piece
    Auxiliary Earth Rod 4 PCS:φ9mm×230mm
    Current Clamp 2 PCS:blue and black plug, 1 red and black plug each
    Current Clamp Caliber φ50mm
    Current Clamp Size 200mm×103mm×39mm
    Measurement Time AC current: about 2 times/second; earth voltage: about 2 times/second; earth resistance: about 7 seconds/time
    Line Voltage Measurement below AC 600V
    Communication Interface With USB interface, the stored data can be uploaded to the computer through software
    Data Hold Data holding function: “HOLD" symbol display
    Memory 2000 groups, flashing "FULL”symbol indicates that the storage is full
    Data Access Data access function: “READ" symbol display
    Overflow Display Over-range overflow function: “OL" symbol display
    Interference Test Automatically identify the interference signal, and the “NOISE” symbol indicates when the interference voltage is higher than 5V
    Auxiliary Earth Test With auxiliary earth resistance value test function,0.00KΩ~30kΩ(100R+rC<50kΩ,100R+rP<50kΩ)
    Alarm Function When the measured value exceed the alarm set value,“Du-Du-Du-" Alarm prompt
    Alarm Threshold Setting Range Resistance: 0Ω~9999Ω, voltage: 0.0V~100.0V, current: 0.000A~9.9999A
    Battery Voltage When the battery voltage drop to about 7.5V, the low battery voltage symbol is displayed to remind that the battery need to be replaced.
    Automatic Shutdown Automatically shut down after 15 minutes of power on
    Working Current Backlight: 25mA Max (separate backlight power consumption); standby: 25mA Max (the backlight is turned off after the tester turning on); measurement: 150mA Max (the backlight turn off)
    Tester Size 215mm×178mm×83mm
    Weight Tester: About 1220g(include battery);total weight: about 5.8kg(include packing)
    Overload Protection Measuring earth resistance: AC 280V/3 seconds between C(H)-E、P(S)-ES ports
    Insulation Resistance Above 20MΩ(500V between the circuit and the housing)
    Withstand Voltage AC 3700V/rms(Between the circuit and the housing)
    Electromagnetic characteristics IEC61326(EMC)
    Suitable Safety Regulation IEC61010-1(CAT Ⅲ 300V、CAT IV 150V、pollution level 2);IEC61010-031;
    IEC61557-1(Earth resistance);IEC61557-5(Soil resistivity);JJG 366-2004(Earth Resistance Tester);JJG 1054-2009(Clamp Earth Resistance Tester)
    Working Temperature & Humidity -10℃~40℃; below 80%RH
    Storage Temperature & Humidity -20℃~60℃; below 70%RH
    Model comparison
    Product Picture Product Model Name Resistance Range Soil Resistivity Range Current Range Voltage Range Clamp Jaw Size Alarm Function Memory Others
    ETCR3200 Double Clamp Earth Resistance Tester 0.00Ω~30.00kΩ 0.00Ωm~9000kΩm 0mA~600A 0~100V Φ50mm Yes 2000
    ETCR3200C Double Clamp Earth Resistance Tester 0.00Ω~300.00kΩ 0.00Ωm~9000kΩm 0mA~600A 0~200V Φ70mm Yes 2000 Bluetooth Communication
    Lithium Battery
