ETCR3200C Double Clamp Earth Resistance Tester

Main Functions
Earth Resistance Measurement, DC Resistance Measurement, Soil Resistivity Measurement, Earth Voltage Measurement, Earth Current Measurement
Earth Resistance Measurement Range:0.00Ω~300kΩ
DC Resistance Measurement Range:0.00Ω~300kΩ
Soil Resistivity Measurement Range:0.00Ωm~9000kΩm
Earth Voltage Measurement Range:AC 0.0V~100.0V
Earth Current Measurement Range:0.00mA~600.0A
Clamp Jaw Size:Φ70mm
Memory:2000 sets of data storage
Alarm Function:Alarm threshold can be set
USB Interface
Bluetooth Communication
Large Capacity Lithium Battery
    Product Introduction
    ETCR3200C Double Clamp Earth Resistance Tester, also known as multi-function earth resistance tester and precision earth resistance tester, which is used for measurement of  on-site measurement of earth resistance, soil resistivity, earth voltage, down lead leakage current, AC current, and DC resistance.
    The tester adopt digital processing technology, precision 4-wire method, 3-wire method, simple 2-wire method, selection method, and double clamp method to measure the earth resistance, which can flexibly and accurately measure any earth resistance value of various complex grounding conditions such as single-point and mesh grounding. No need to disconnect any parallel grounding electrode during parallel earth measurement, which maximize the convenience of measurement. Introducing FFT (fast Fourier transform) technology and AFC (automatic frequency control) technology, it has unique anti-interference ability and environmental adaptability, and strong consistency in repeated tests to ensure high precision, high stability and high reliability of long-term measurement.It is widely used in electric power, telecommunication, meteorology, construction, lightning protection and industrial electrical equipment industries.

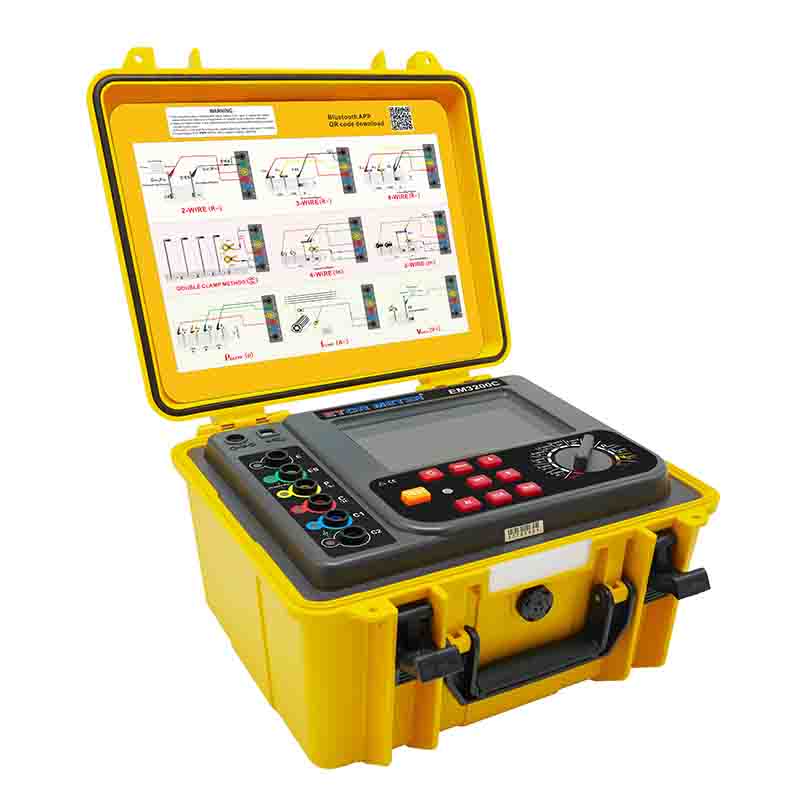

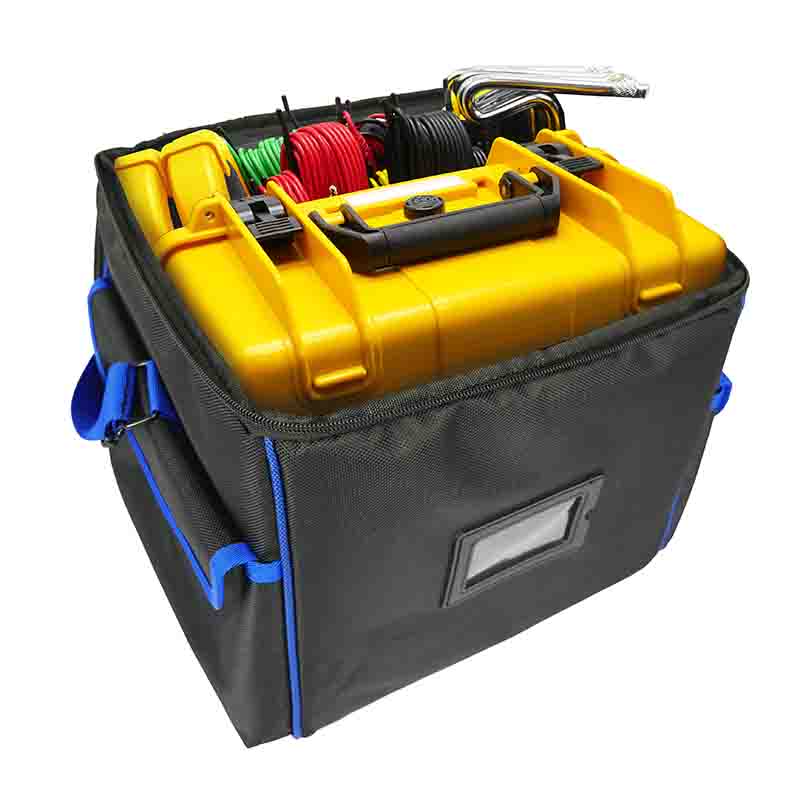

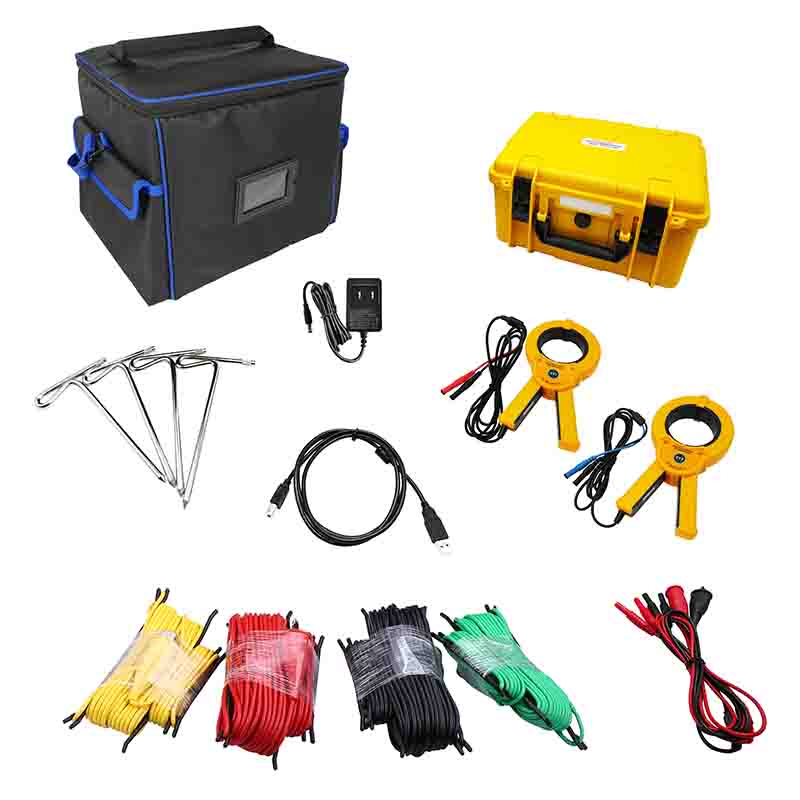

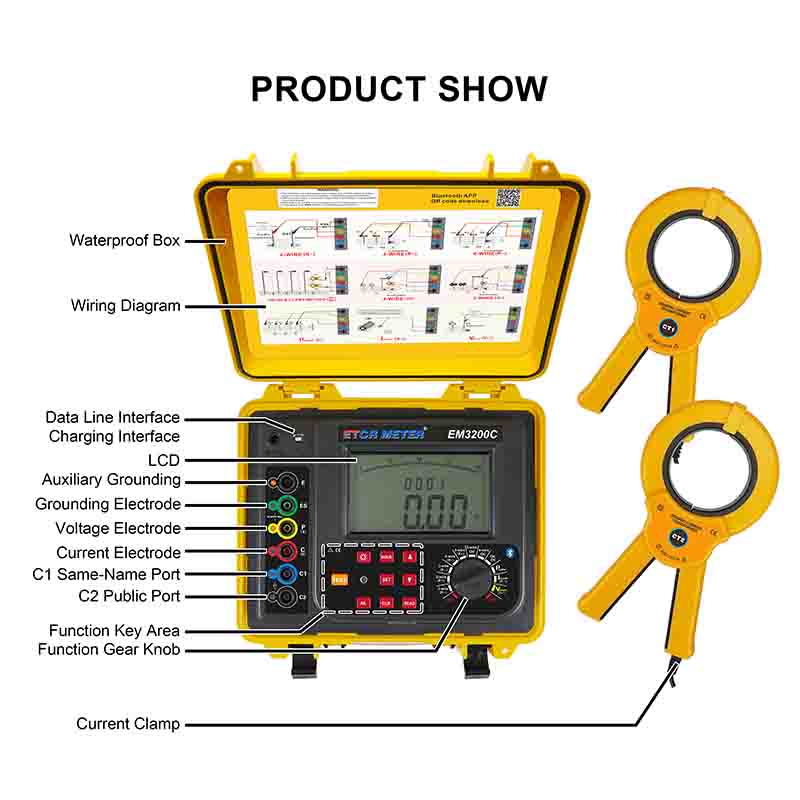

    ETCR3200C Double Clamp Earth  Resistance Tester consists of  a host, a current clamp (double clamp), data software, a test line, an auxiliary earth rod, and a communication line, etc. The tester adopt the design of large-caliber current clamp, which can meet the test need of various occasions, and can measure the earth resistance value of a large size earth down lead. The host has large LCD display with backlight and bar chart indication, which is clear.The tester has a Bluetooth communication function that support the Android system. After installing the APP, it can be tested on the mobile terminal or read the test record, bringing you a new experience.The tester has a storage function, a clock function, and automatically stores 2000 sets of test results containing date and time.Through the USB interface data software, historical data can be read, consulted, saved, reported, printed and other functions.
    1.The two-, three- and four-wire,selection method, and double clamp method to measure earth resistance

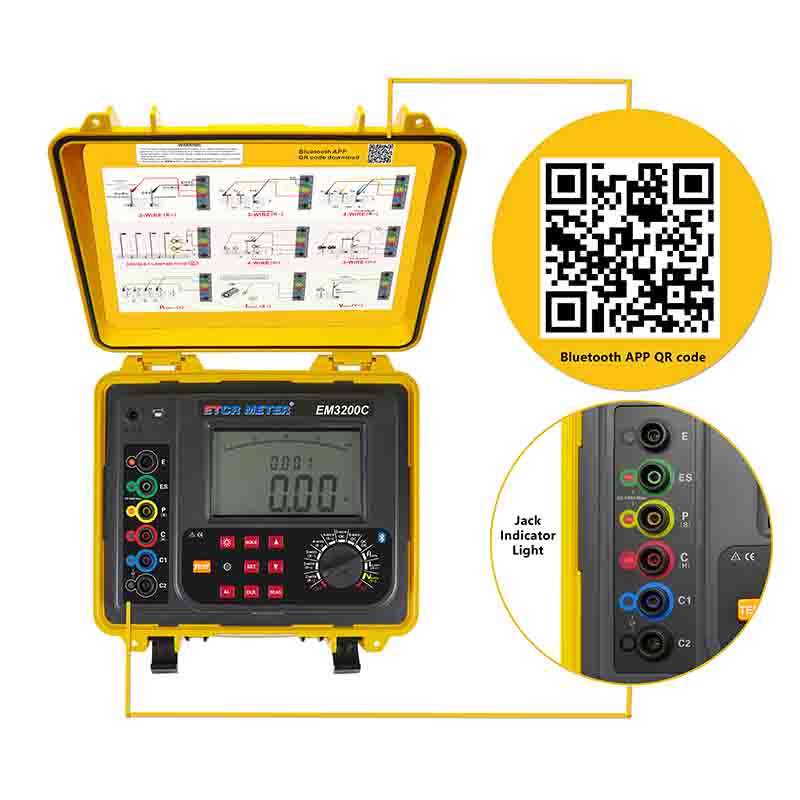

    2.The uniquely designed socket indicator light accurately indicate the position of the socket to avoid operating error.
    3.The 12 gear function selection knob,various testing methods are shown in detail, making operation simple and fast.
    4.The tester adopt FFT (fast Fourier transform) technology and AFC (automatic frequency control) technology. It has unique anti-interference ability and environmental adaptability, and has strong consistency in repeated tests.
    5.The host has max LCD display, white screen backlight, and bar chart indication, which is clear.
    6.Alarm function, the alarm threshold can be set.
    7.Memory, 200 sets of data storage.
    8.USB interface, data upload function.
    9.Bluetooth Communication
    10.Large Capacity Lithium Battery
    Technical Parameter
    1.Basic Error & Performance Indicator Under Reference Condition
    Measurement Function Measuring Range Accuracy Resolution
    Two-Three-Four-wire Method To Measure Earth Resistance (R~) & DC Resistance (R—) 0.000Ω~9.999Ω ±2%rdg±0.05Ω 0.001Ω
    10.00Ω~29.99Ω ±2%rdg±5dgt 0.01Ω
    30.0Ω~299.9Ω ±2%rdg±3dgt 0.1Ω
    300Ω~2999Ω ±2%rdg±3dgt
    3.00kΩ~300.00kΩ ±4%rdg±3dgt 10Ω
    Selection Method To Measure Earth Resistance (R~) 0.000Ω~9.999Ω ±2%rdg±0.05Ω 0.001Ω
    10.00Ω~29.99Ω ±2%rdg±5dgt 0.01Ω
    30.0Ω~299.9Ω ±2%rdg±3dgt 0.1Ω
    300Ω~3000Ω ±2%rdg±3dgt
    Double Clamp Method To Measure Earth Resistance (R~) 0.01Ω~0.99Ω ±10%rdg±5dgt 0.01Ω
    1.0Ω~29.9Ω 0.1Ω
    30Ω~100Ω
    Soil Resistivity(ρ) 0.00Ωm~99.99Ωm Depending on the measurement accuracy of R (ρ=2πaR a:1 m~100m; π=3.14) 0.01Ωm
    100.0Ωm~999.9Ωm 0.1Ωm
    1000Ωm~9999Ωm 1Ωm
    10.00kΩm~99.99kΩm 10Ωm
    100.0kΩm~999.9kΩm 100Ωm
    1000kΩm~9000kΩm 1kΩm
    Earth Voltage (V~) 50Hz/60Hz AC 0.0V~100.0V ±2%rdg±3dgt 0.1V
    Earth Current (A~) 50Hz/60Hz AC 0.00mA~600.0A ±2%rdg±3dgt 0.01mA

    2.General Specification
    Power Supply DC 7.4V 2600mAh rechargeable lithium battery, the battery is fully charged about 8.4V
    Display Mode 4-digit max LCD display, white screen backlight
    Measurement Instruction LED flashing indication during measurement, LCD countdown display
    LCD Size 128mm×75mm;LCD Display area: 124mm×67mm
    Backlight Controllable white screen backlight, suitable for use in dim place
    Measurement Method DC Resistance DC resistance bipolar method
    DC resistance quadrupole method
    Earth Resistance

    Earth resistance bipolar method
    Earth Resistance Three-electrode method
    Earth resistance Quadrupole method
    Earth resistance single clamp Three-electrode method (selection method)
    Earth resistance single clamp quadrupole method (selection method)
    Earth resistance double clamp method
    Soil resistivity (Wenner method)
    Earth Current Current clamp measurement
    Earth Voltage Average value rectification
    Test Frequency 128Hz/111Hz/105Hz/94Hz(AFC)
    Short  Circuit Test Current AC 250mA max
    Open Circuit Test Voltage AC 40V max
    Electrode Spacing Range 1m~100m

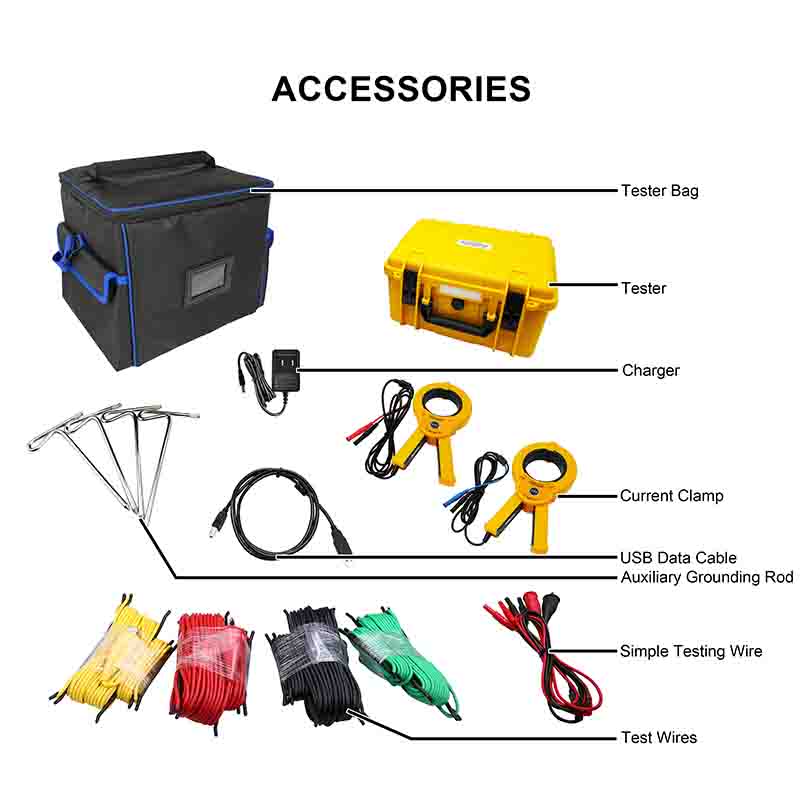

    Test Line 4 PCS: red 20m, black 20m, yellow 10m, green 10m each 1 piece
    Simple Test Line 2 PCS: red 1.6m, black 1.6m each 1 piece
    Auxiliary Earth Rod 4 PCS:φ9mm×230mm (about 696g)
    Current Clamp 2 PCS:blue and black plug, 1 red and black plug each
    Current Clamp Caliber φ70mm
    Current Clamp Size 223mm×120mm×39mm
    Measurement Time AC current: about 2 times/second; earth voltage: about 2 times/second; earth resistance: about 7 seconds/time
    Line Voltage Measurement below AC 600V
    Communication Method Bluetooth module, USB interface, storage data can be uploaded to the computer through software
    Data Hold When Data holding : “HOLD" symbol display
    Memory 2000 groups, flashing "FULL”symbol indicates that the storage is full
    Data Access Data access function: “READ" symbol display
    Overflow Display Over-range overflow function: “OL" symbol display
    Interference Test Automatically identify the interference signal, and the “NOISE” symbol indicates when the interference voltage is higher than 5V
    Auxiliary Earth Test With auxiliary earth resistance value test function,0.00KΩ~30kΩ(100R+rC<50kΩ,100R+rP<50kΩ)
    Alarm Function When the measured value exceed the alarm set value,“Du-Du-Du-" Alarm prompt
    Alarm Threshold Setting Range Resistance: 0Ω~9999Ω, voltage: 0.0V~100.0V, current: 0.000A~9.9999A
    Automatic Shutdown Automatically shut down after 15 minutes of power on
    Working Current Backlight: 25mA Max (separate backlight power consumption); standby: 25mA Max (the backlight is turned off after the tester turning on); measurement: 150mA Max (the backlight turn off)
    Tester Size 280mm×260mm×160mm
    Weight Tester: About 1799g(include battery);total weight: about 6.13kg(include accessory)
    Battery Voltage When the battery voltage drop to about DC 7.2V±0.1V, the low battery voltage symbol is displayed to remind that the battery need to be replaced.
    Protection Level IP65(closed)
    Overload Protection Measuring earth resistance: AC 280V/3 seconds between C(H)-E、P(S)-ES ports
    Insulation Resistance Above 20MΩ(500V between the circuit and the housing)
    Withstand Voltage AC 3700V/rms(Between the circuit and the housing)
    Electromagnetic characteristics IEC61326(EMC)
    Suitable Safety Regulation IEC61010-1(CAT Ⅲ 300V, CAT IV 150V, pollution level 2);IEC61010-031;
    IEC61557-1(Earth resistance);IEC61557-5(Soil resistivity);JJG 366-2004(Earth Resistance Tester);JJG 1054-2009(Clamp Earth Resistance Tester)
    Working Temperature & Humidity -10℃~40℃; below 80%RH
    Storage Temperature & Humidity -20℃~60℃; below 70%RH
