ETCR1600 Wireless High Voltage Phase Detector

Main Functions

Used in nuclear phase, phase test, frequency test, phase sequence judgment and power inspection of power lines, high-voltage switchgear or substations below 220kV
Nuclear phase voltage: 220V～220kV
Core-to-core distance: 60m
Phase range: 0.0°～360.0°
Frequency range: 45.0Hz～65.0Hz
Voice broadcast function
Sound and light indication function
USB communication interface

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR1600 Wireless High Voltage Phase Detector, also known as wireless high-voltage nuclear phase meter, voice high-voltage nuclear phase meter, 10kV nuclear phase device, 35kV nuclear phase device, nuclear phase meter can be in the high-voltage line, can also be in the high-voltage switchgear (central cabinet, ring network cabinet, etc.) nuclear phase, to achieve automatic nuclear phase, phase test, frequency test, phase sequence judgment, power test and voltage level display functions from 220V to 220kV voltage level.When the line voltage exceeds 110kV, a non-contact nuclear phase must be used. During the nuclear phase, the metal probe hook of the detector is gradually approached to the wire. When the electric field signal is sensed, the nuclear phase can be completed without direct contact with the high-voltage wire, which is safe and fast.When used for the nuclear phase of the ring network cabinet, the detector must use a probe and a ring network cabinet test line.

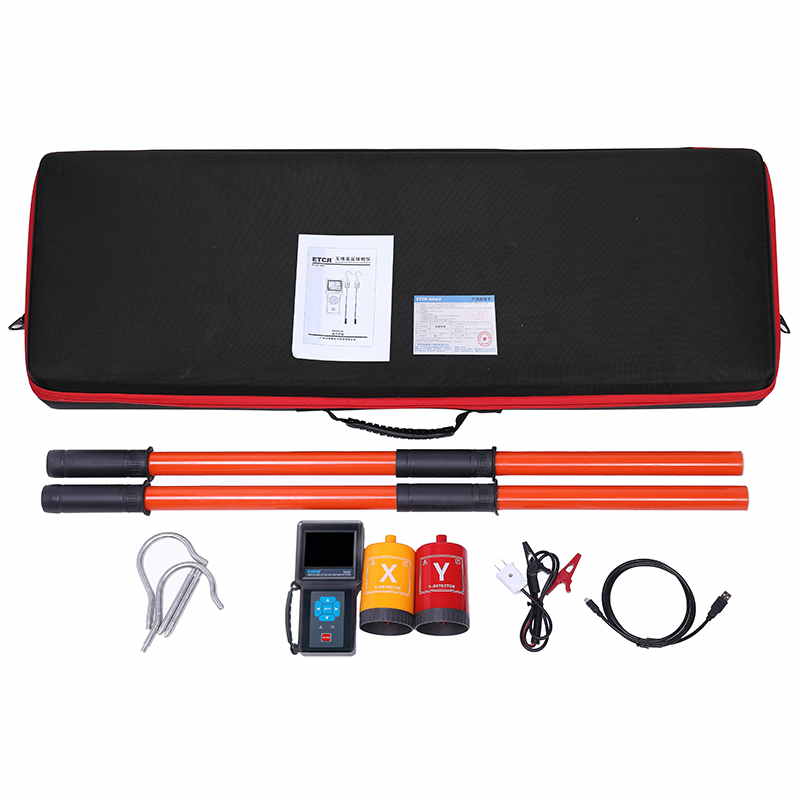

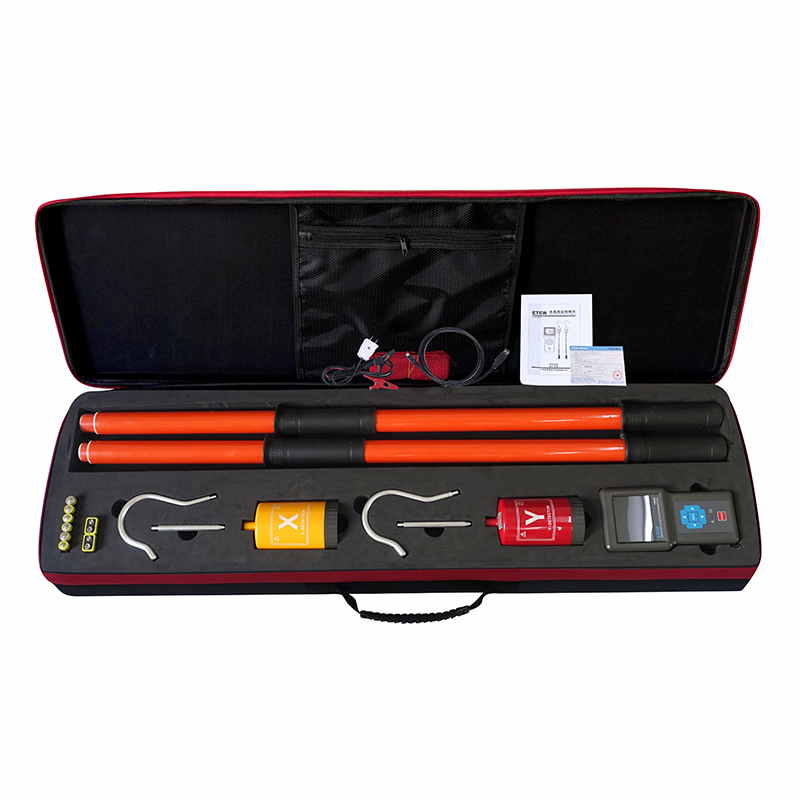

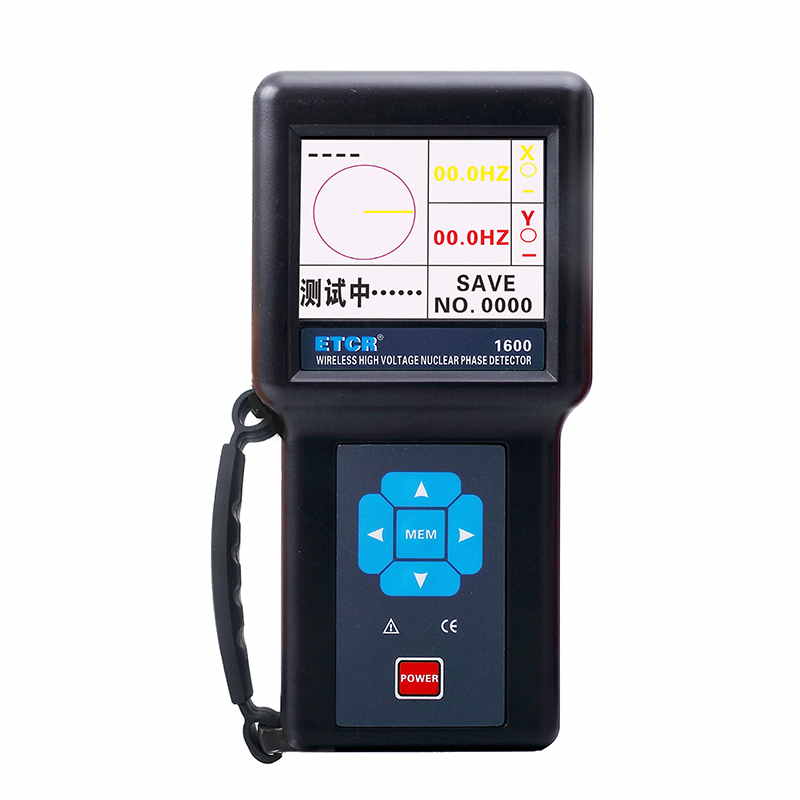

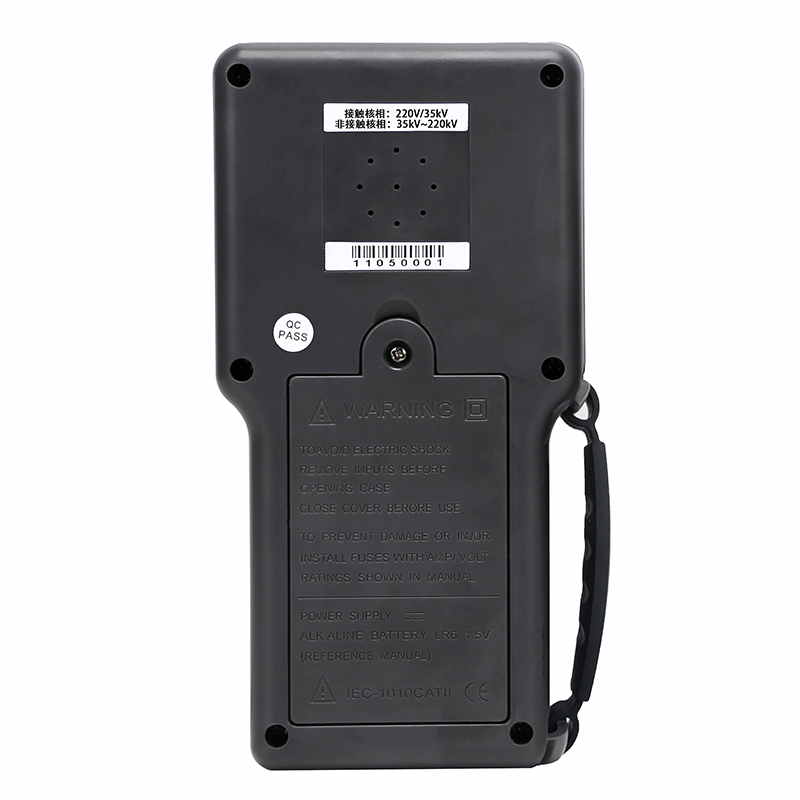

ETCR1600 Wireless High Voltage Phase Detector consists of a host, 2 detectors, telescopic insulating rods, data upload software, USB communication cable, etc. The host adopts a 3.5-inch true-color LCD screen, which can display the phase, frequency, phase sequence and nuclear phase results on the same screen. The vector diagram indication and phase indication are clear and intuitive, and it has voice prompt functions such as “normal X signal, normal Y signal, normal Z signal, normal phase sequence, reverse phase sequence, in-phase, out-of-phase” to make the test easier and easier.The instrument has a USB communication interface, and the stored data can be uploaded to the computer for historical data reading, viewing, saving, and printing.
1. Wireless transmission technology is used, the nuclear phase is separated by 200 meters, and the nuclear phase is accurate and easy to operate.
2. Voice broadcast function, voice prompt: “X signal is normal, Y signal is normal, Z signal is normal, positive phase sequence, inverse phase sequence”.

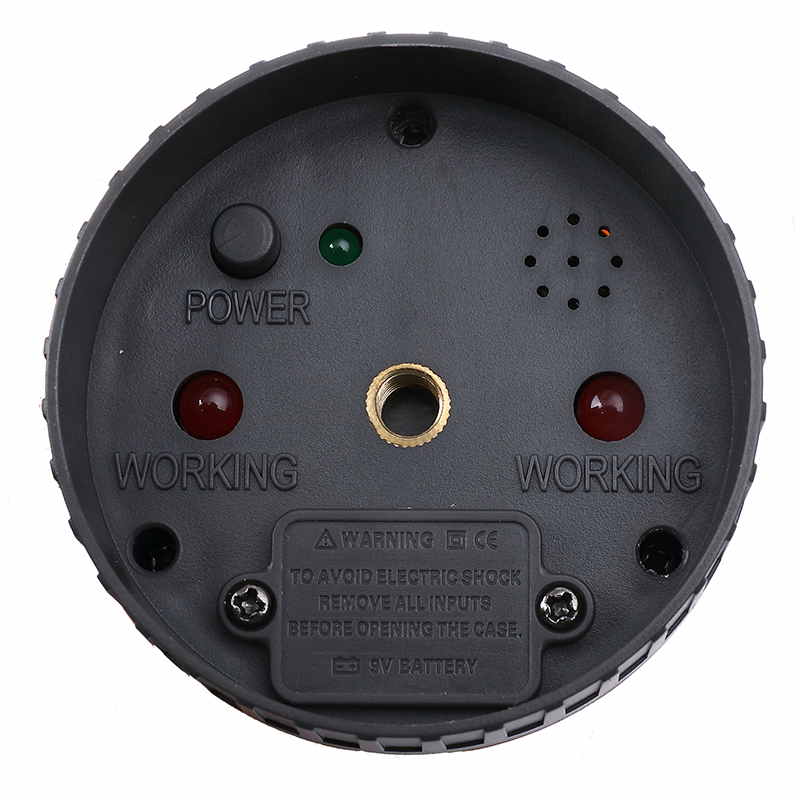

3. Sound and light indication function: The detector emits sound and light indication during the nuclear phase.
4. Using a 3.5-inch LCD color screen, the phase, frequency, phase sequence, and nuclear phase results can be displayed on the same screen, and the vector diagram indication and phase indication are clear and intuitive.
5. Storage function, 9999 groups of data storage.
6. USB communication interface.

Technical Parameter

Power Supply	Host: DC9V, alkaline battery LR6X 6PCS; Detector: zinc-manganese drybattery 6F22, 9V
LCD Size	3.5 inch Color Display; Display area:71mmx53mm
Phase Detecting Mode	1. Contact mode phase detecting:Power line below 35KV 2.Non-Contact mode phase detecting: thepower line voltage exceeds35kV, must adopt non-contact mode to testing
Phase Detecting Voltage	220V～220kV
Phase Detecting Distance	60 meters
Phase Qualitative	In phase:－25°～25°;out phase: 95°～145°and 215°～265°
Range	Test phase:0.0°～360.0°
Range	Test frequency: 45.0Hz～65.0Hz
Accuracy	phase detecting：≤±12°
Accuracy	frequency：≤±2Hz
Resolution	phase ：0.1° frequency：0.1Hz
Transmitting Frequency	433MHz、315MHz
Phase Indication	Vector graphics and numbers are displayed at the same time
Power Indication	The detector has a green power indicator
Work Indication	The phase detecting time detector has a sound and light indication function, a red double flashing light indication and a ”beep-beep-beep" beep.
Display Rate	2 times/second
Memory	9999 groups (no data will be lost if the battery is powered down or replaced)
LCD Backlight	Adjustable brightness, adapt to different environments
Automatic Shutdown	The meter will automatically turn off after about 15 minutes of power-on
Battery Voltage	When the battery voltage drops to 7.2V±0.1V, the low battery voltage symbol is displayed to remind the battery to be replaced. At this time, the measured data is also accurate.
Rated Current	Detector: 30mA max; host: 150mA max
Instrument Size	Host: about 195mm×100mm×45mm; detector: about 290mm×250mm×80mm
Instrument Weight	Receiver: About 500g (including battery); detector: about 257g×2 (including battery); total mass: about 6.85kg (including accessories)
Length Of Telescopic Insulating Rod	4300mm
Insulation Test	After the insulating rod is stretched, both ends: AC 220kV/rms host, detector: AC3700V/rms (between exposed metal and plastic shell)
External Interference	No extra-strong electromagnetic field; no 433MHz co-frequency interference
Protection Level	IP63
Suitable Safety Standaerd	GB13398-92, GB311.1-311.6-8, 3DL408－91 standards and the newly promulgated national power industry standard "General Technical conditions for 1kV～35kV Portable Nuclear phase Shifters for Live Operation DL/T 971-2017" requirements
Suitable Safety Standaerd	Comply with IEC61481-A2; 2004; IEC 61243-1 ed.2:2003 standard
Working Temperature & Humidity	-10℃～40℃; below 80%RH
Store Temperature & Humidity	-10℃～60℃; below 70%RH

Model comparison

Product Picture	Product Model Name	Phase Detecting Voltage	Voltage Level Display	Statelite Timing Function	Phase Detecting Distance	Catolog Of Power Supply	Others
	ETCR1050 Wireless High Voltage Phase Sequence Detector	10V~500kV	Yes	--	200m	Lithium Battery	Phase Sequence Testing & Phase Detecting
	ETCR1500 Wireless High Voltage Phase Detector	10V~500kV	Yes	--	200m	Lithium Battery
	ETCR1500A Remote Wireless High Voltage Phase Detector	10V~500kV	Yes	Yes	5km	Lithium Battery
	ETCR1500B Satellite Remote High Voltage Phase Detector	10V~500kV	Yes	Yes	500km	Lithium Battery
	ETCR1520 Ring Main Unit Wireless Phase Detector	1V~600V	Yes	--	30m	Lithium Battery
	ETCR1540 Metalclad Withdraw Switchgear Phase Detecor	10kV/35kV	Yes	--	20m	Lithium Battery
	ETCR1560A Multifunction Statellite Remote Wireless Phase Detector	10V~500kV	Yes	Yes	20m/30m/200m/500km	Lithium Battery	Comprehensive
