ETCR4320 Large Caliber Three Phase Digital Phase Voltmeter

Main Functions

Measure three-phase AC voltage, current, phase, frequency, phase sequence, active power, reactive power, apparent power, power factor, current vector and other power parameters
Clamp jaw size: 35mm×40mm
Voltage range: AC 0.00V～600V
Current range: AC 0mA～600A
Phase range: 0.0°～360.0°
Frequency range: 45.00Hz～65.00Hz
Active power: 0.0W～360kW
Power factor: -1.000～1.000
Current vector sum: 0.0A～1800A
Storage function: 500 sets of data storage
USB communication interface

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR4320 Large Caliber Three Phase Digital Phase Voltmeter, also known as three-clamp phase voltammeter, three-phase phase voltammeter tester, handheld phase tester, portable phase meter, vector diagram analyzer, is used to simultaneously measure three-phase AC voltage, current, inter-voltage phase, inter-current phase, voltage-current phase, frequency, phase sequence, active power, reactive power, apparent power, power factor, current vector sum, determine transformer wiring group, inductive, capacitive circuit, test the secondary circuit and the female difference protection system, and read out the phase between the groups of CTS for dynamic protection Relationship, check whether the wiring of the meter is correct or not, overhaul the line equipment, etc., to provide a safe, accurate and convenient new type of power meter for electricity inspectors.It is especially suitable for power billing systems and relay protection systems.

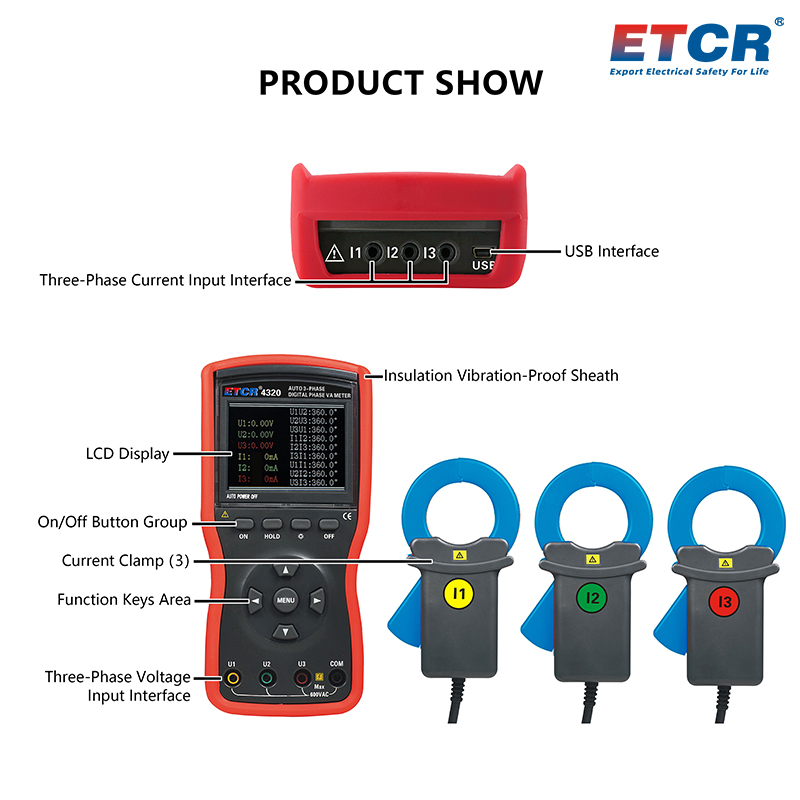

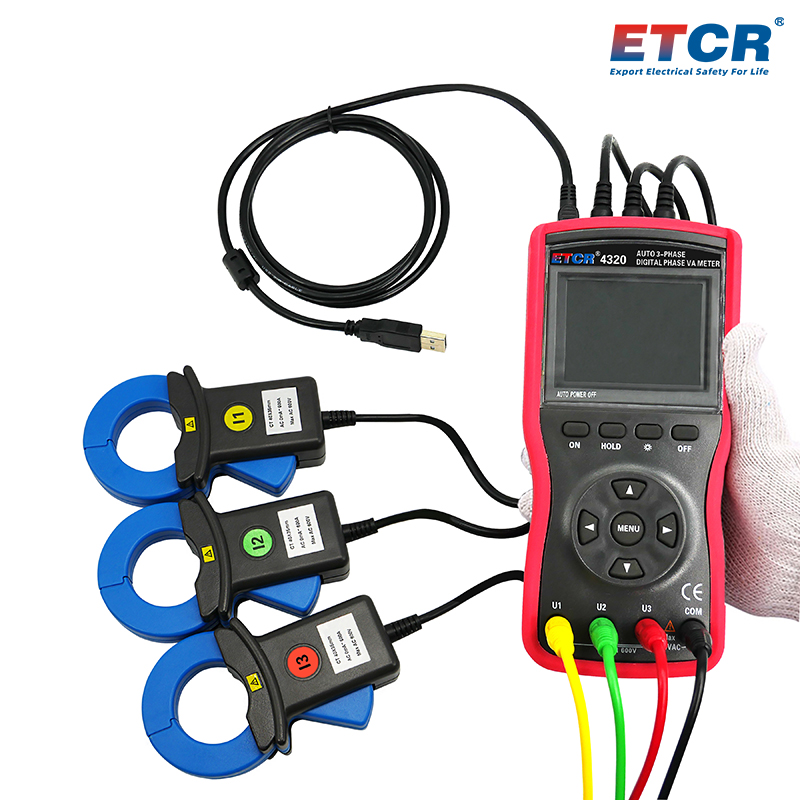

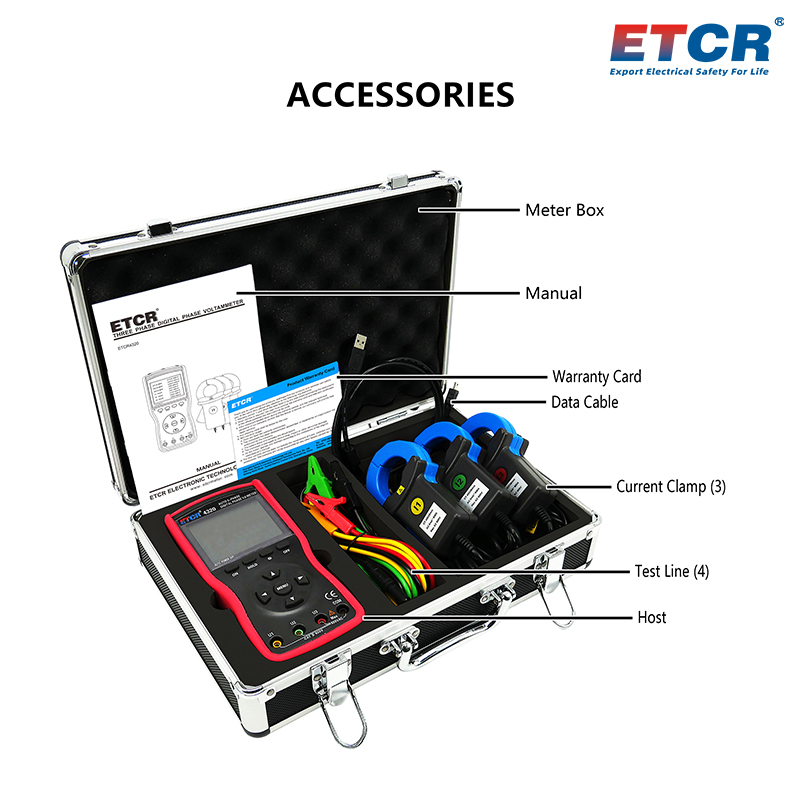

ETCR4320 Large Caliber Three Phase Digital Phase Voltmeter adopts a 2.8-inch TFT color LCD screen with dynamic display and vector diagram indication, which is clear at a glance.Its large-caliber current clamp is suitable for thick cables and high-current places.The intelligent design of the instrument reduces the cumbersome operation, reduces the possibility of misoperation, and has high test accuracy and easy to use.The instrument is equipped with anti-vibration, non-slip, high-insulation sheath, USB communication interface, can store 1200 sets of data, upload the stored data to the computer through the system software, realize online real-time monitoring and historical query, read, save, report, print historical data, etc.
1. Intelligent design reduces the cumbersome operation and reduces the possibility of misoperation. It has the advantages of high precision, high stability, low power consumption, and easy to use.

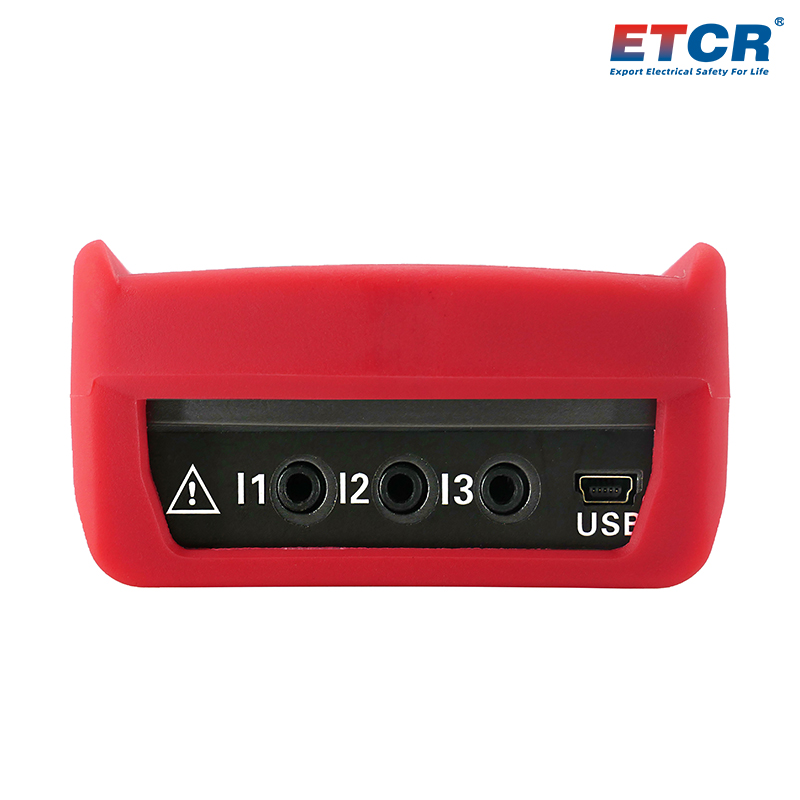

2. Input by voltage transformer and current clamp, there is no high voltage in the machine, and the three inputs are completely isolated, which is safe and reliable.
3. Large-caliber jaws are suitable for thick cables and places with high currents.
4. The test line adopts a special power cable, and the elastic rod plug and alligator clip are insulated and protected.
5. Storage function, 500 sets of data storage.
6. USB communication interface.

Technical Parameter

1. Range & Basic Error

Category	Range	Resolution	Basic Error
Voltage	AC 0.00V～600V	0.01V	±(0.5%range)
Current	AC 0mA～600A	1mA	±(0.5%range)
Phase	0.0°～360°	0.1°	±1°
Active Power	0.0W～360kW	0.1W	±(1.0%range)
Reactive Power	0.0var～360kvar	0.1var	±(1.0%range)
Apparent Power	0.0VA～360kVA	0.1VA	±(1.0%range)
Frequency	45Hz～65Hz	0.01Hz	±(1.0%range)
Power Factor	-1～+1	0.001	±0.03

2.Technical Specifications

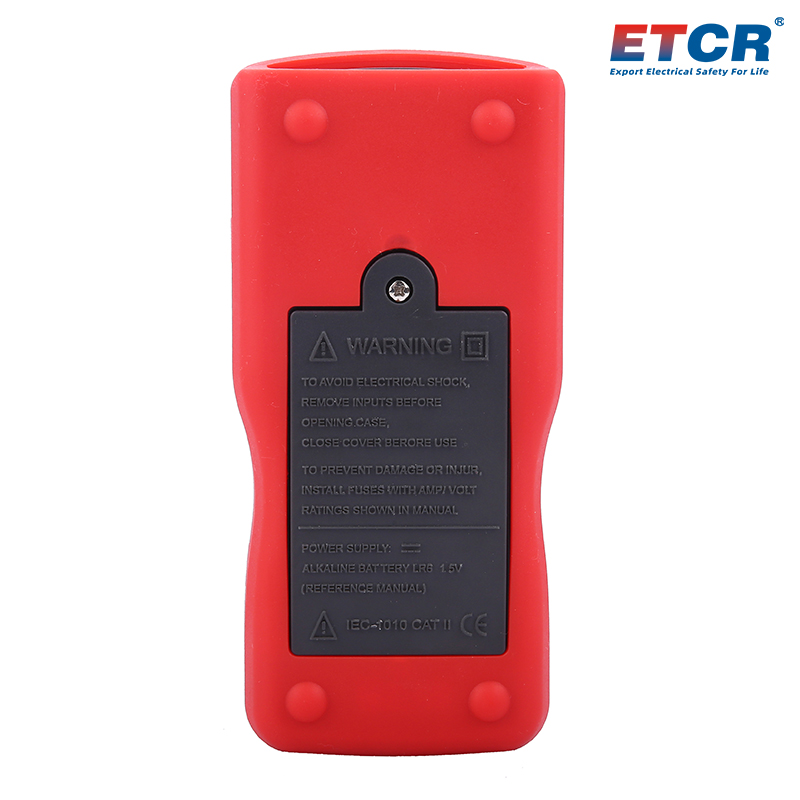

Power Supply	DC9V alkaline dry battery (1.5V LR6×6)
Display Mode	2.8-inch TFT color LCD screen; display area 58mm×44mm
Clamp Jaw Size	35mm×40mm
Voltage Range	AC 0.00V～600V
Current Range	AC 0mA～600A
Phase Range	0.0°～360.0°
Frequency Range	45.00Hz～65.00Hz
Active Power Range	0W～360kW
Reactive Power Range	0var～360kvar
Apparent Power Range	0VA～360kVA
Power Factor Range	-1.000～1.000
Current Vector Sum	0.0A～1800A
Phase Sequence	Positive phase: U1, U2, U3 or I1, I2, I3 cursor flashes sequentially from left to right Reverse phase: U1, U2, U3 or I1, I2, I3 cursor flashes sequentially from right to left
Working Current	Turn on the backlight, the maximum power consumption is 135mA
Working Current	Turn off the backlight, the meter consumes 90mA of power
Detection Rate	2 seconds/time
Data Hold	Press the HOLD key to hold the data during the test, and the ”HD" symbol is displayed
Memory	500 groups
Communication Interface	USB communication interface, upload the stored data to the computer, easy to analyze and manage data
Automatic Shutdown	After about 15 minutes of power-on, the meter automatically shuts down to reduce battery consumption
Backlight Function	Yes, suitable for dim places and night use
Voltage Detection	When the battery voltage is lower than 7.2V, the low battery voltage symbol is displayed to remind the battery to be replaced.
Instrument Size	196mm×92mm×54mm
Weight	Host: 550g (with battery); about 1360g (with battery)
Input Impedance	The input impedance of the test voltage is: 1MΩ
Withstand Voltage	The sine wave AC voltage of 1000V/50Hz is tolerated between the instrument line and the housing for 1 minute
Insulation	≥100MW between the instrument circuit and the sheathed housing
Structure	Double insulation, with insulated anti-vibration sheath
Suitable Safety Standard	IEC61010-1 CAT Ⅲ600V, IEC61010-031, IEC61326, pollution level 2
Working Temperature & Humidity	-10℃～40℃; below 80%RH
Store Temperature & Humidity	-10℃～60℃; below 70%RH

Model comparison

Product Picture	Product Model Name	Clamp Jaw Size	Phase	Voltage Range	Current Range	Power Range	Harmonic	Others
	ETCR4000 Double Clamp Digital Phase Voltmeter	Φ8mm	0~360°	0.00V~600V	0.0mA~20.0A	--	--
	ETCR4000A Double Clamp Digital Phase Voltmeter	Φ8mm	0~360°	0.00V~600V	0mA~600A	0.0W~12kW	--
	ETCR4020 Large Caliber Double Clamp Digital Phase Voltmeter	Φ40mm	0~360°	0.00V~600V	0.0mA~20.0A	0.0W~360kW	--
	ETCR4300 Three Phase Digital Phase Voltmeter	Φ8mm	0~360°	0.00V~600V	0mA~600A	0.0W~12kW	--
	ETCR4320 Large Caliber Three Phase Digital Phase Voltmeter	Φ40mm	0~360°	0.00V~600V	0.0mA~20.0A	0.0W~360kW	--
	ETCR4400 Multifunctional Three Phase Digital Phase Voltmeter	Φ8mm	0~360°	0.00V~700V	0.0mA~20.0A	0.0W~140kW	2~20 times	Lithium Battery , Bluetooth
