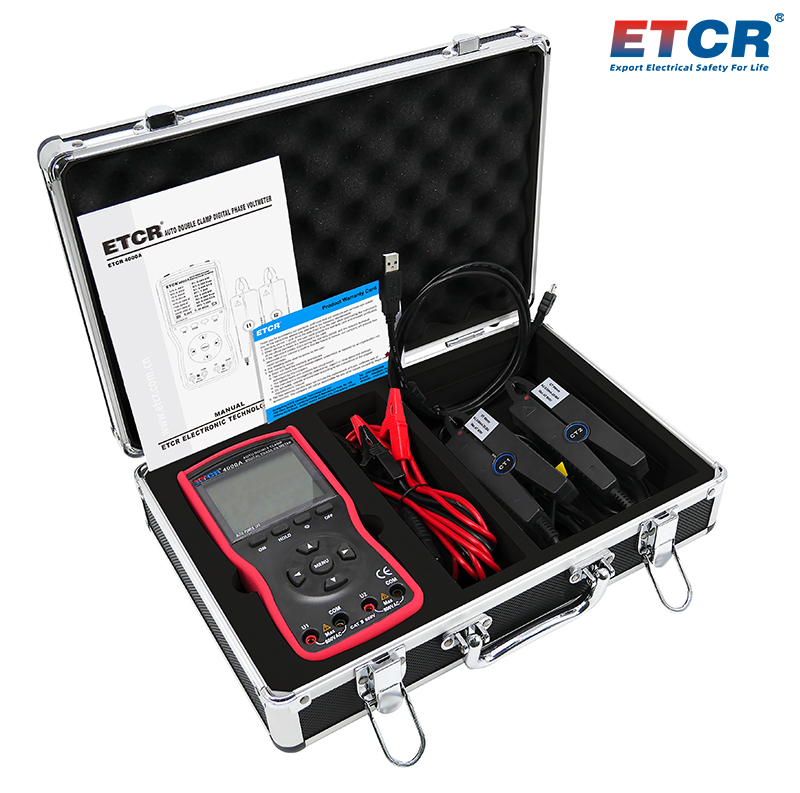

ETCR4000A Double Clamp Digital Phase Voltmeter

Main Functions

Used to measure single-phase AC phase, current, voltage, leakage current, phase sequence, frequency, active power, reactive power, apparent power, power factor and other power parameters
Clamp jaw size: Φ8mm
Voltage range: AC 0V～600V
Current range: AC 0A～20A
Phase range: 0°～360°
Frequency range: 45.00Hz～65.00Hz
Active power: 0.0W～12kW
Power factor: -1～+1
Storage function: 1200 sets of data storage
USB communication interface

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR4000A Double Clamp Digital Phase Voltmeter, also known as single-phase phase voltammeter, digital phase voltammeter, voltammeter, phase measuring instrument, is used to measure two-way AC voltage, current, phase between voltage, phase between current, phase between voltage and current, frequency, phase sequence, active power, reactive power, apparent power, power factor, etc., to determine the transformer wiring group, inductive, capacitive circuit, test the secondary circuit and the female difference protection system, read out the phase relationship between the CT of the mobile protection group, check whether the wiring of the meter is correct or not, and overhaul the line equipment , etc., to provide electricity inspectors with a safe, accurate and convenient new type of power meter.It is especially suitable for electrical energy billing systems and relay protection systems, electrical energy metering, electricity consumption inspection, and power audit in the power supply marketing department, and meter installation and reception, relay protection, differential detection, start-up testing, substation maintenance, or power training, skill competitions, etc. in the biotechnology department.

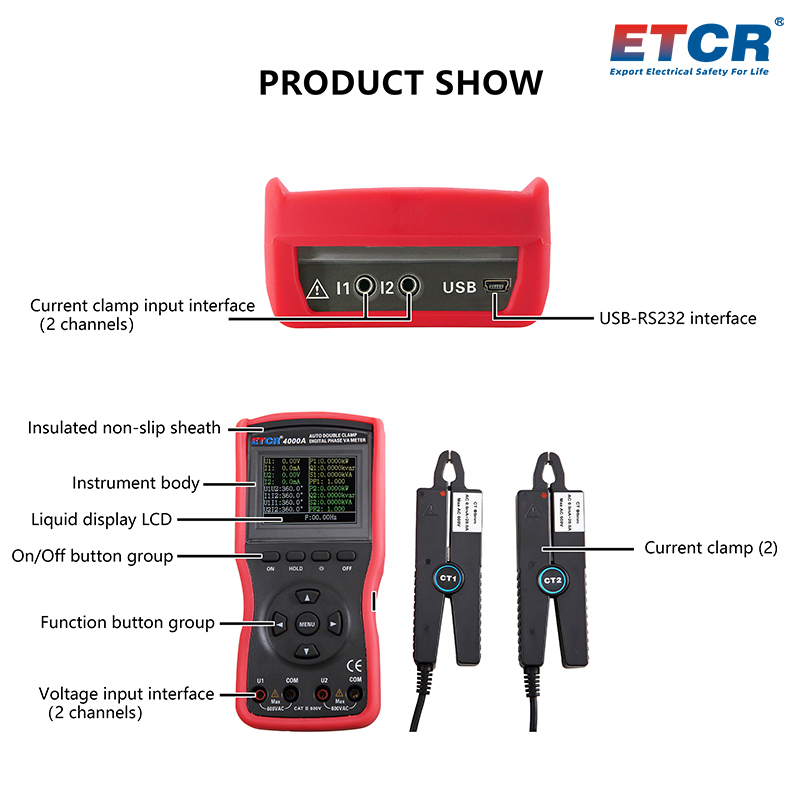

ETCR4000A Double Clamp Digital Phase Voltmeter adopts a 2.8-inch TFT color LCD screen, and all parameters are displayed on the same screen, which is clear at a glance.It is a comprehensive upgrade of the mechanical knob-type phase voltammeter, which reduces the cumbersome operation, reduces the possibility of misoperation, and has high test accuracy and easy to use.The instrument is equipped with anti-vibration, non-slip, high-insulation sheath, USB communication interface, can store 1200 sets of data, upload the stored data to the computer through the system software, realize online real-time monitoring and historical query, read, save, report, print historical data, etc.
1. The intelligent design is a comprehensive upgrade of the mechanical knob-type phase voltammeter, which reduces the cumbersome operation and reduces the possibility of misoperation.

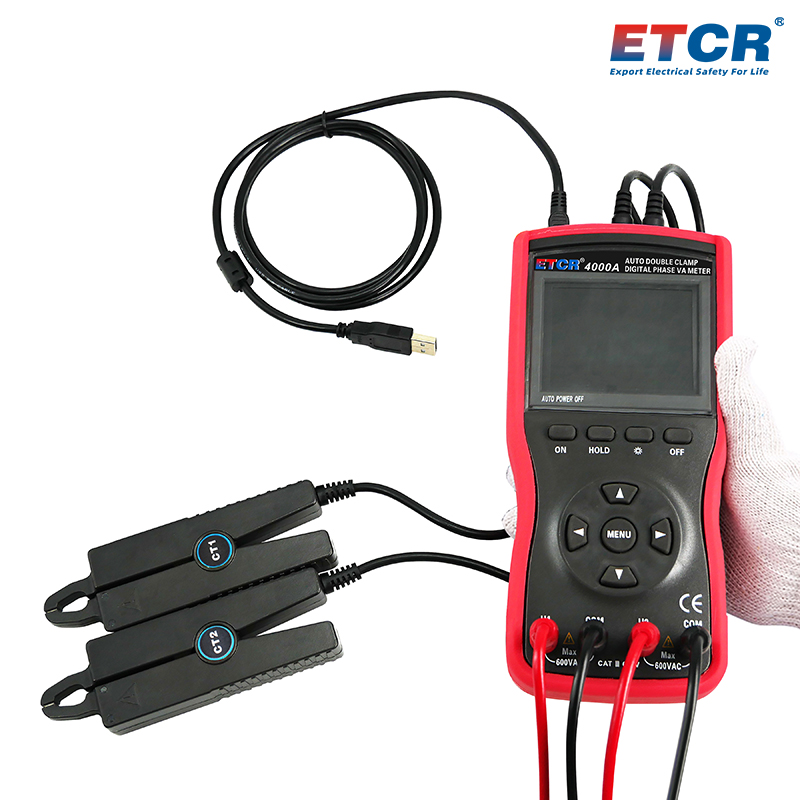

2. Input by voltage transformer and current clamp, there is no high voltage in the machine, and the two inputs are completely isolated, which is safe and reliable.
3. The pointed and small jaws are suitable for places with dense wiring.
4. The test line adopts a special power cable, and the elastic rod plug and alligator clip are insulated and protected.
5. Storage function, 1200 sets of data storage.
6. USB communication interface.

Technical Parameter

1. Range & Basic Error

Category	Range	Resolution	Basic Error
Voltage	AC 0.00V～600V	0.01V	±(0.5%range)
Current	AC 0.0mA～20.0A	0.1mA	±(0.5%range)
Phase	0.0°～360°	0.1°	±1°
Active Power P	0.0W～12kW	0.1W	±(1.0%range)
Reactive Power Q	0.0var～12kVar	0.1var	±(1.0%range)
Apparent Power S	0.0VA～12kVA	0.1VA	±(1.0%range)
Power Factor PF	-1～+1	0.001	±0.03
Frequency F	45Hz～65Hz	0.01Hz	±(1.0%range)

2.Technical Specifications

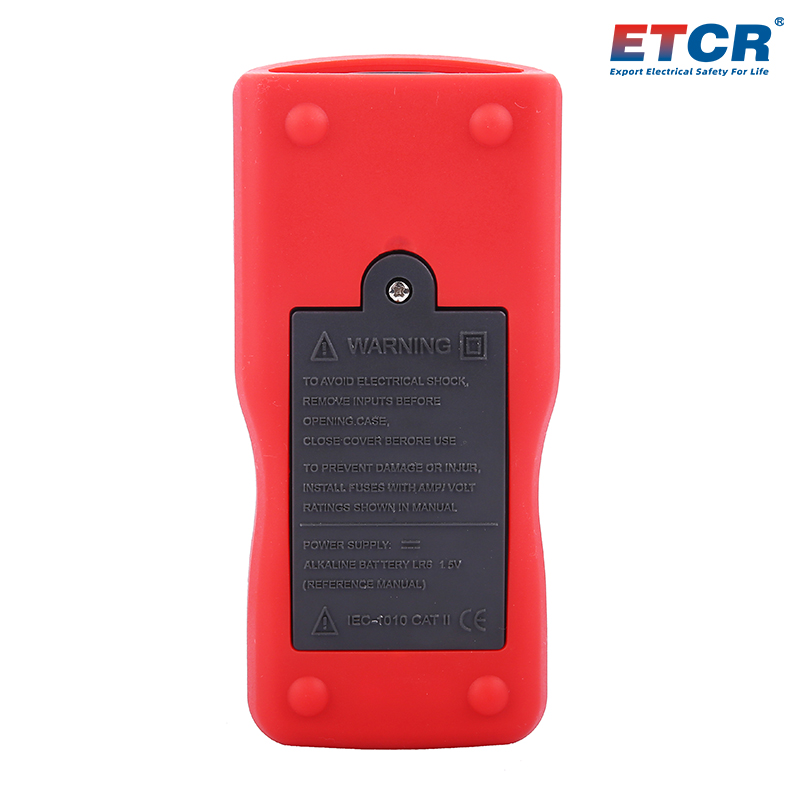

Power Supply	DC9V alkaline dry battery (1.5V AA×6)
Display Mode	2.8inch TFT color LCD screen, display area 58mm×44mm
Range	Voltage: AC 0.00V～600V
	Current: AC 0.0mA～20.0A
	Phase: 0.0°～360.0°
	Frequency: 45.00Hz～65.00Hz
	Active power: 0.0W～12kW
	Reactive power: 0.0var～12kVar
	Apparent power: 0.0VA～12kVA
	Power factor: -1～+1
Clamp Jaw Size	Φ8mm
Memory	1200 groups

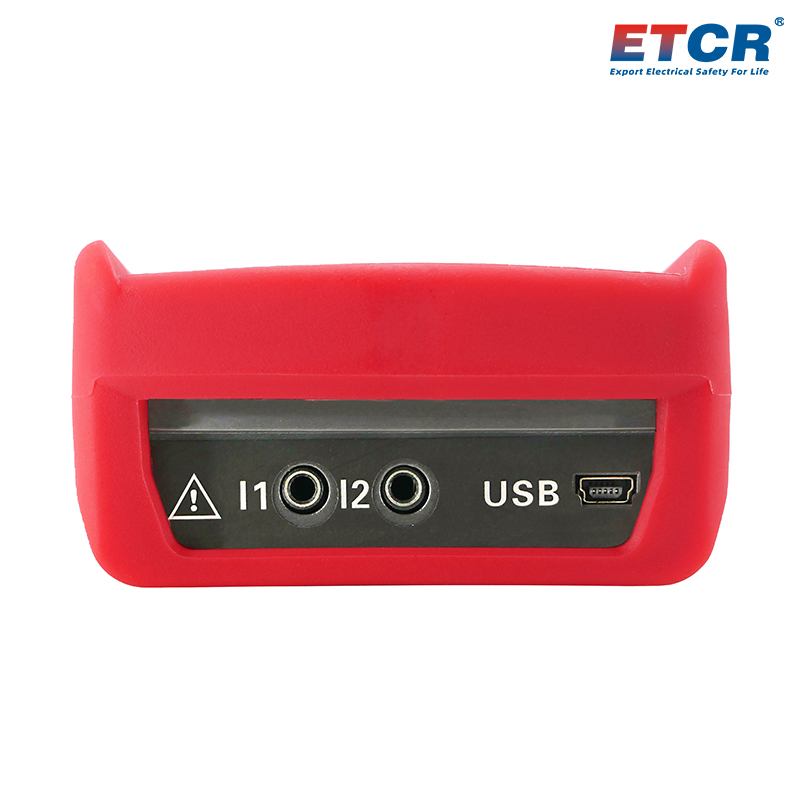

Communication Interface	USB communication interface, upload the stored data to the computer, easy to analyze and manage data
Power Consumption	The maximum power consumption when the backlight is turned on is 135mA; the power consumption of the instrument when the backlight is turned off is 90mA
Detection Rate	2 seconds/time
Data Hold	Press the HOLD key to hold the data during the test, and the ”HD" symbol is displayed
Automatic Shutdown	After about 15 minutes of inoperable, the meter automatically shuts down to reduce battery consumption
Backlight Function	Yes, suitable for dim places and night use; turn off the backlight after five minutes of no operation
Voltage Detection	When the battery voltage is lower than 7.2V, the low battery voltage symbol is displayed to remind the battery to be replaced.
Instrument Size	196mm×92mm×54mm

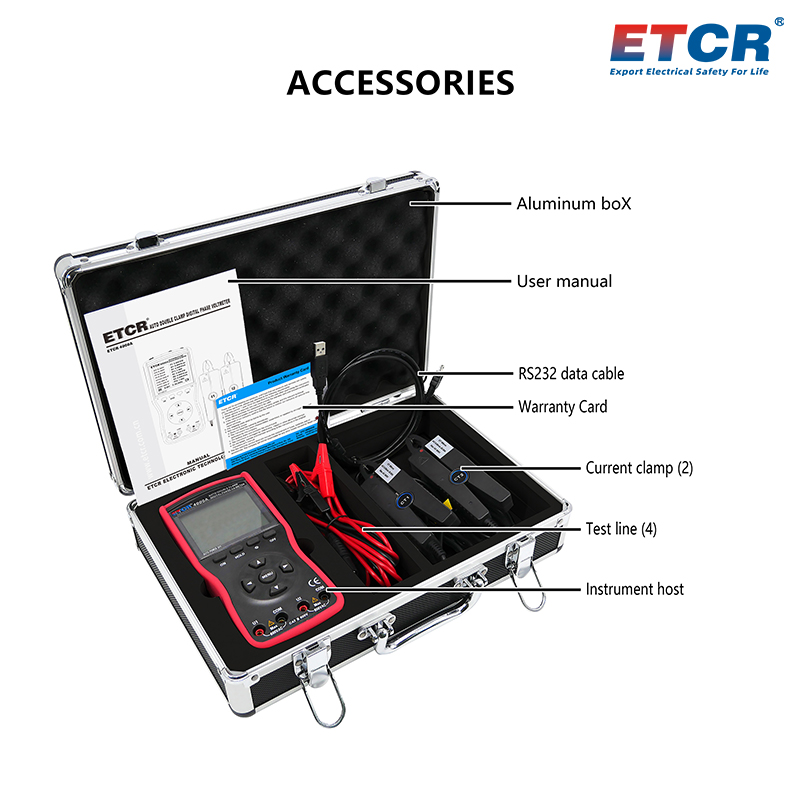

Weight	Host: about 565g (include battery); total weight: about 2.36kg (include accessories)
Input Impedance	The input impedance of the test voltage is: 1MΩ
Withstand Voltage	The sine wave AC voltage of 1000V/50Hz is tolerated between the instrument line and the housing for 1 minute
Insulation	≥100MW between the instrument circuit and the sheathed housing
Structure	Double insulation, with insulated anti-vibration sheath
Suitable Safety Standard	IEC61010-1 CAT Ⅲ600V, IEC61010-031, IEC61326, pollution level 2
Working Temperature & Humidity	-10℃～40℃; below80%RH
Store Temperature & Humidity	-10℃～60℃; below70%RH

Model comparison

Product Picture	Product Model Name	Clamp Jaw Size	Phase	Voltage Range	Current Range	Power Range	Harmonic	Others
	ETCR4000 Double Clamp Digital Phase Voltmeter	Φ8mm	0~360°	0.00V~600V	0.0mA~20.0A	--	--
	ETCR4000A Double Clamp Digital Phase Voltmeter	Φ8mm	0~360°	0.00V~600V	0mA~600A	0.0W~12kW	--
	ETCR4020 Large Caliber Double Clamp Digital Phase Voltmeter	Φ40mm	0~360°	0.00V~600V	0.0mA~20.0A	0.0W~360kW	--
	ETCR4300 Three Phase Digital Phase Voltmeter	Φ8mm	0~360°	0.00V~600V	0mA~600A	0.0W~12kW	--
	ETCR4320 Large Caliber Three Phase Digital Phase Voltmeter	Φ40mm	0~360°	0.00V~600V	0.0mA~20.0A	0.0W~360kW	--
	ETCR4400 Multifunctional Three Phase Digital Phase Voltmeter	Φ8mm	0~360°	0.00V~700V	0.0mA~20.0A	0.0W~140kW	2~20 times	Lithium Battery , Bluetooth
