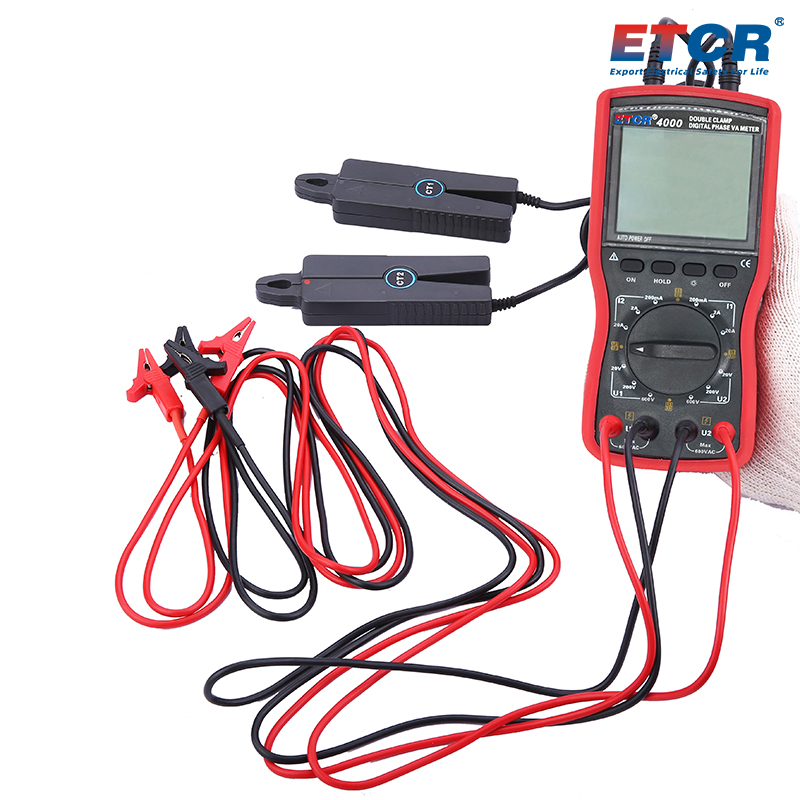

ETCR4000 Double Clamp Digital Phase Voltmeter

Main Functions

Used to measure single-phase AC phase, current, voltage, leakage current, phase sequence and other power parameters
Clamp jaw size: Φ8mm
Voltage range: AC 0V～600V
Current range: AC 0A～20A
Phase range: 0°～360°

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR4000 Double Clamp Digital Phase Voltmeter, also known as single-phase phase voltammeter, digital phase voltammeter, voltammeter, phase measuring instrument, is used for phase, AC current, AC voltage, AC leakage current, and phase sequence measurement.The AC voltage and AC current can be directly measured when the circuit under test is not open, and the phase between the two voltages, the two currents, and the voltage and current can be measured. In addition, the power factor and power of the circuit can be indirectly measured, and the three-phase phase sequence, transformer wiring group, inductive, capacitive circuit, test the secondary circuit and the female difference protection system, read out the phase relationship between the CT of the various groups of mobile protection, check whether the wiring of the meter is correct, and overhaul the line equipment.It is suitable for electric power, petrochemical, metallurgy, railways, meteorology, industrial and mining enterprises, scientific research institutions, metrology departments, etc.

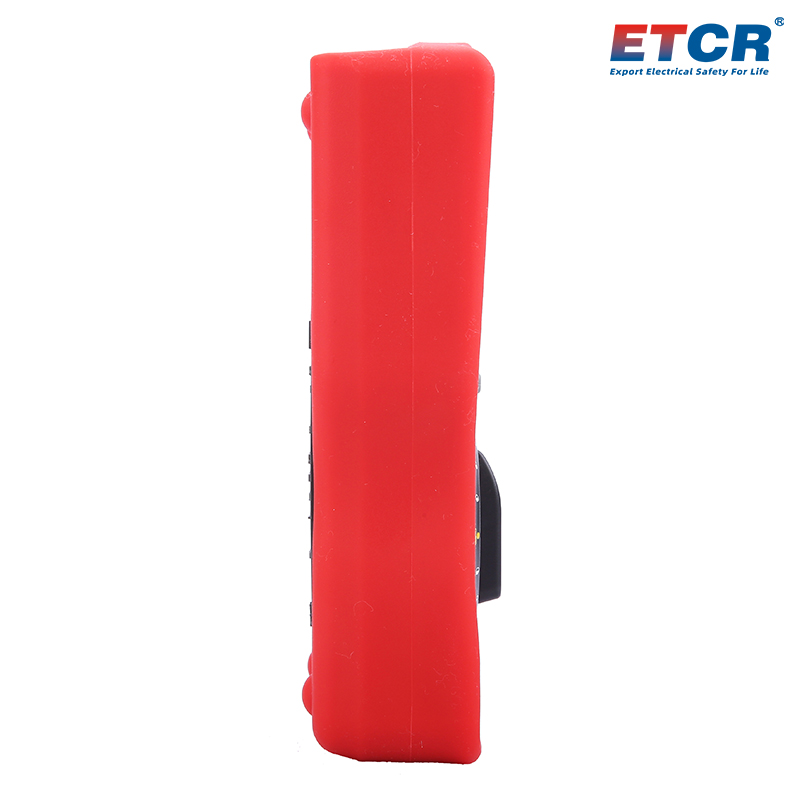

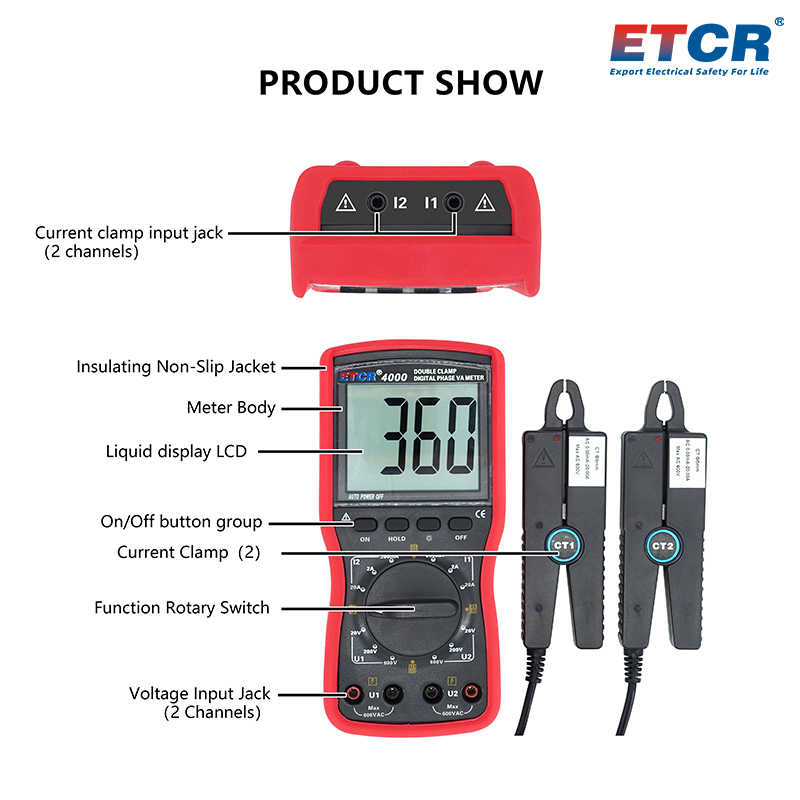

ETCR4000 Double Clamp Digital Phase Voltmeter adopts a large LCD display screen with white screen backlight, and the display is clear at a glance. The instrument adopts an insulated non-slip sheath, has a data retention function, automatic shutdown function, simple operation, reliable and durable.

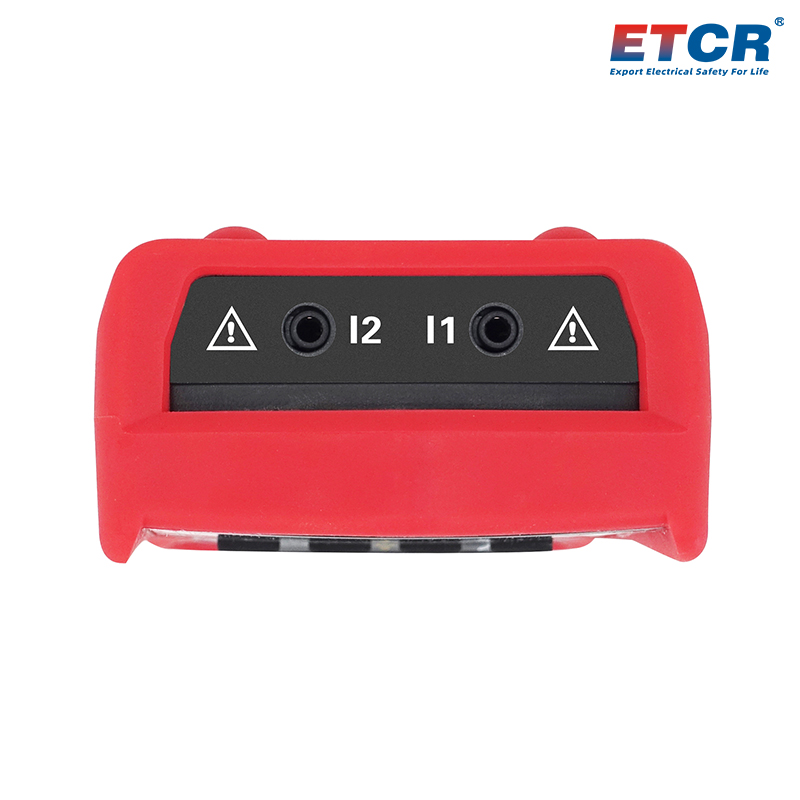

1. Input by voltage transformer and current clamp, there is no high voltage in the machine, and the two inputs are completely isolated, which is safe and reliable.

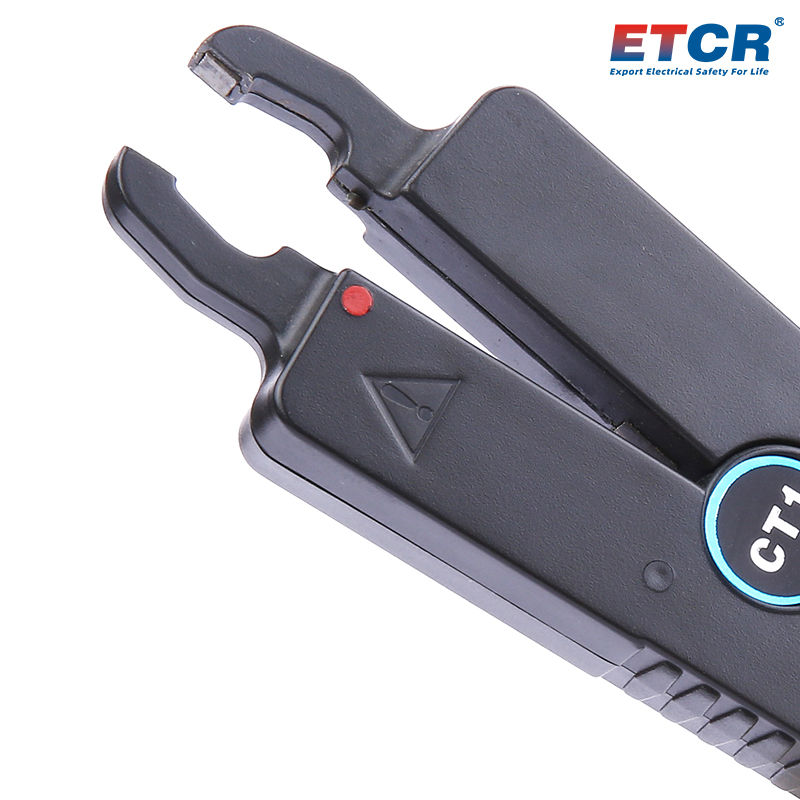

2. The pointed and small jaws are suitable for places with dense wiring.

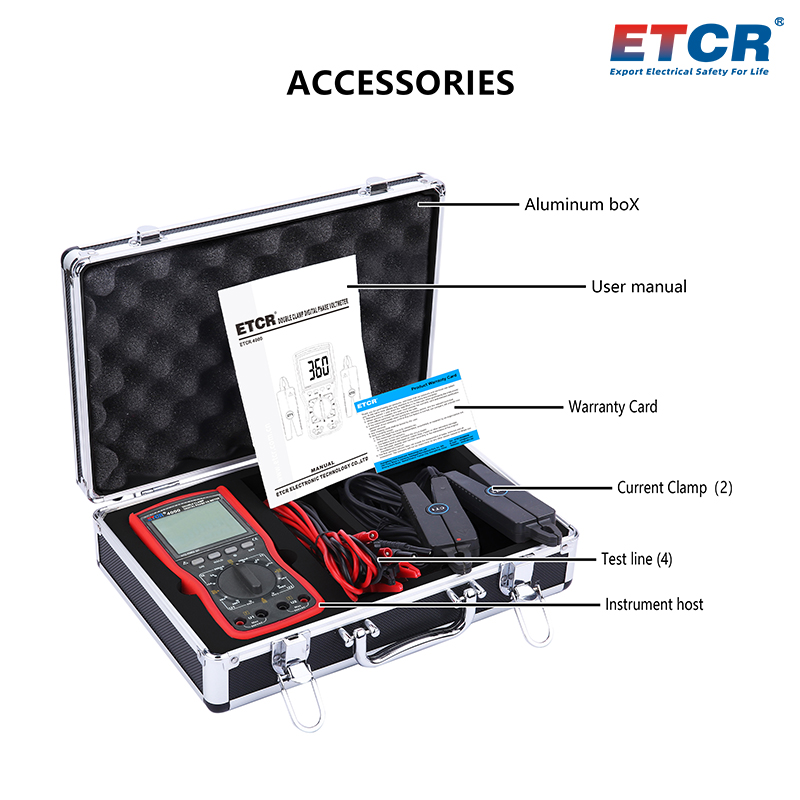

3. The test line adopts a special power cable, and the elastic rod plug and alligator clip are insulated and protected.
4. The use of large LCD display, white screen backlight, the display is clear at a glance.
5. High precision, high stability, low power consumption, and easy operation.

Technical Parameter

1.Range & Basic Error

Category	Range	Resolution	Basic Error
Voltage	20V	0.01V	±(0.5% range)
	200V	0.1V
	600V	1V
Current	200mA	0.1mA	±(0.5% range)
	2A	1mA
	20A	10mA
Phase	0～360°	1°	±1°

2.General Specifications

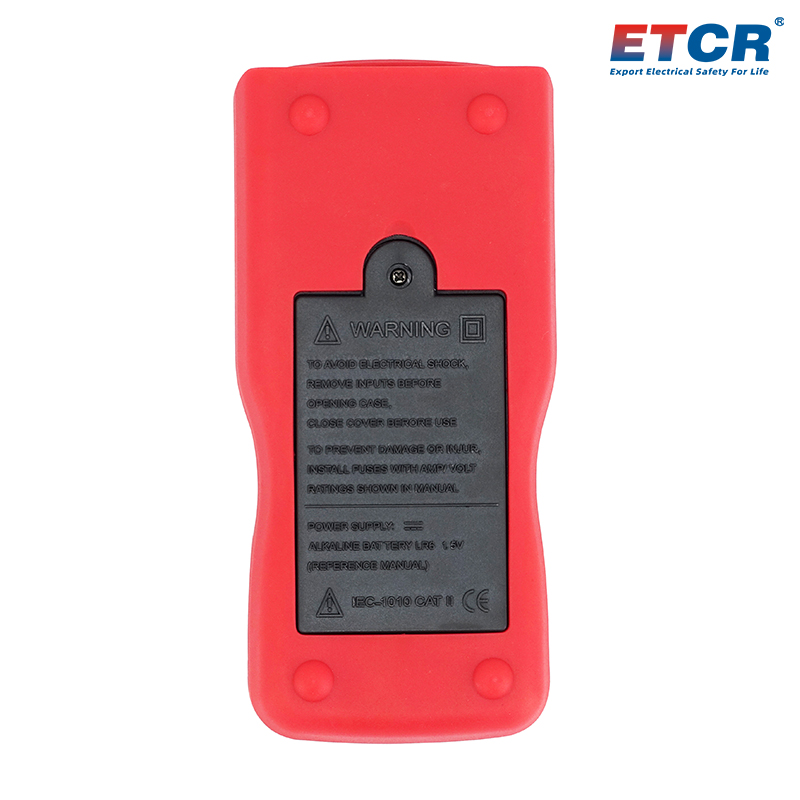

Power Supply	DC9V Alkaline dry battery (1.5V LR6X6)
Display Mode	LCD display, white screen backlight function, suitable for dim places
LCD Size	70mmX62mm; display area: 64mmX54mm
Clamp Jaw Size	Φ8mm
Sampling Rate	3 times/second
Range	AC voltage: 0～20V/200V/600V
	AC current: 0～200mA/2A/20A
	Phase: 0～360°
The Amplitude Range Of The Measured Signal When Measuring The Phase	When measuring the phase of U1-U2: 30V～600V
	When measuring the phase of I1-I2: 10mA～20.00A
	When measuring the phase of U1-I2 or I1-U2: 10V～500V, 10mA～20.00A
Data Hold	Press the HOLD key to hold the data during the test, and the ”DH" symbol is displayed
Automatic Shutdown	After about 15 minutes of power-on, the meter automatically shuts down to reduce battery consumption
Voltage Detection	When the battery voltage is lower than 7.8V～8V, the low battery voltage symbol is displayed to remind the battery to be replaced.
Working Current	Turn on the backlight up to about 35mA
Working Current	Turn off the backlight, the meter consumes about 5mA of power
Instrument Size	196mmX92mmX54mm
Weight	Host: about 565g (include battery); total weight: about 2.24kg (include accessories)
Insulation	≥10MW between the instrument line and the housing, between the two voltage input terminals
Structure	Double insulation
Input Impedance	The input impedance of each gear of the test voltage is: 1MΩ
Input Impedance	When measuring the phase of U1U2, the voltage input impedance is: 40kΩ
Withstand Voltage	The sine wave AC voltage of 1000V/50Hz can be tolerated between the instrument line and the housing for 1 minute; the sine wave AC voltage of 500V/50Hz can be tolerated between the two voltage input terminals for 1 minute.
Working Temperature & Humidity	-10℃～40℃; below80%RH
Store Temperature & Humidity	-10℃～60℃; below70%RH

Model comparison

Product Picture	Product Model Name	Clamp Jaw Size	Phase	Voltage Range	Current Range	Power Range	Harmonic	Others
	ETCR4000 Double Clamp Digital Phase Voltmeter	Φ8mm	0~360°	0.00V~600V	0.0mA~20.0A	--	--
	ETCR4000A Double Clamp Digital Phase Voltmeter	Φ8mm	0~360°	0.00V~600V	0mA~600A	0.0W~12kW	--
	ETCR4020 Large Caliber Double Clamp Digital Phase Voltmeter	Φ40mm	0~360°	0.00V~600V	0.0mA~20.0A	0.0W~360kW	--
	ETCR4300 Three Phase Digital Phase Voltmeter	Φ8mm	0~360°	0.00V~600V	0mA~600A	0.0W~12kW	--
	ETCR4320 Large Caliber Three Phase Digital Phase Voltmeter	Φ40mm	0~360°	0.00V~600V	0.0mA~20.0A	0.0W~360kW	--
	ETCR4400 Multifunctional Three Phase Digital Phase Voltmeter	Φ8mm	0~360°	0.00V~700V	0.0mA~20.0A	0.0W~140kW	2~20 times	Lithium Battery , Bluetooth
