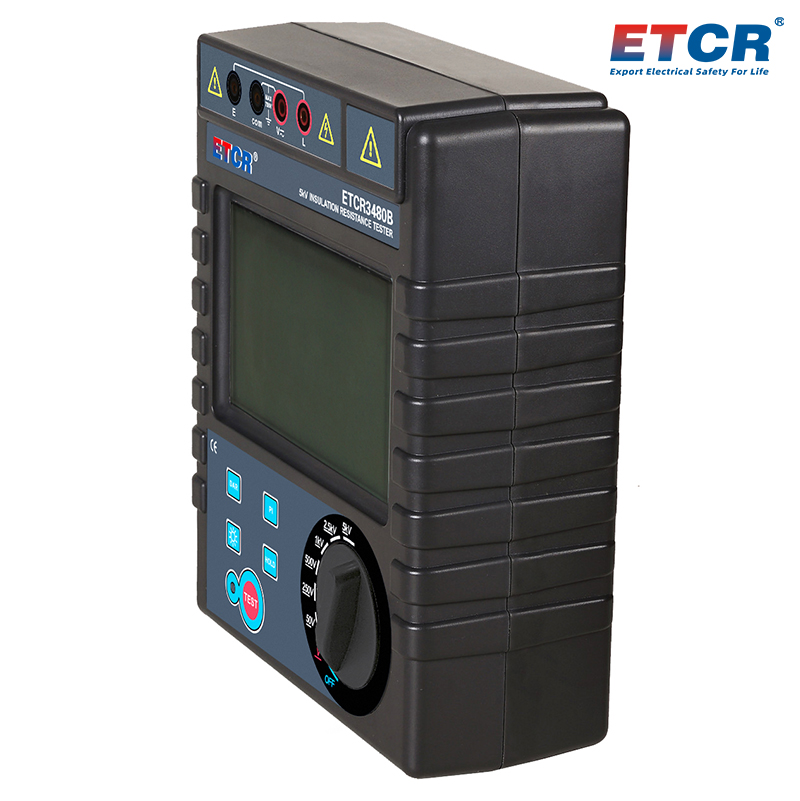

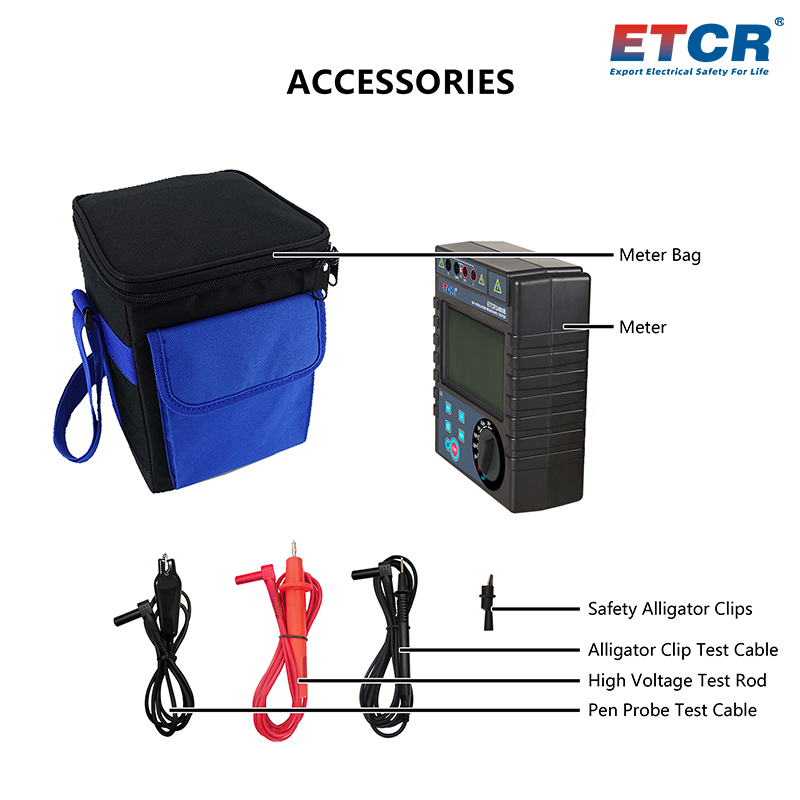

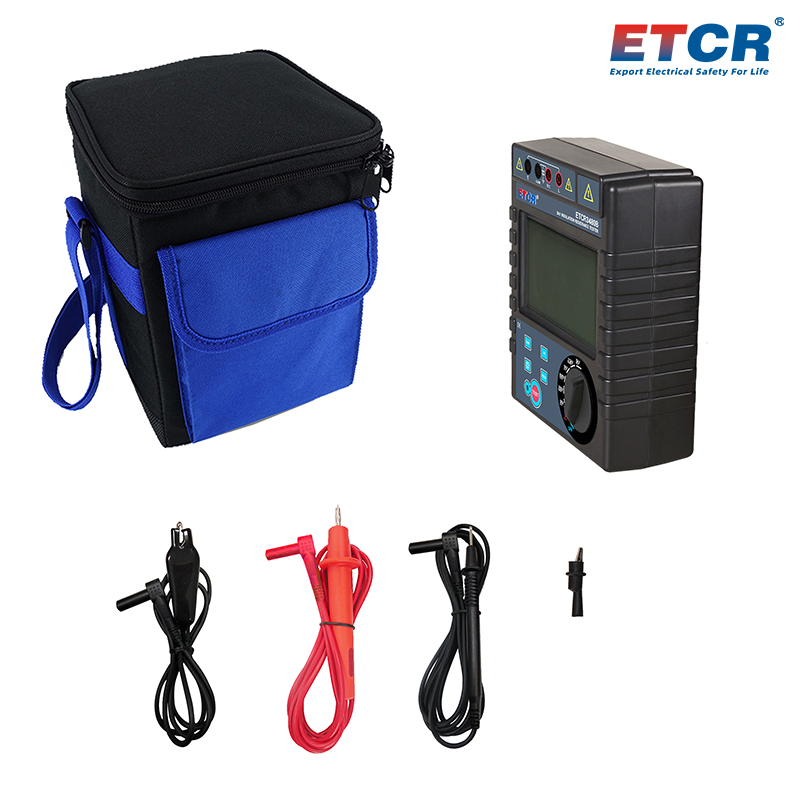

ETCR3480B Insulation Resistance Tester

Main Functions

Suitable for measuring the insulation resistance of electric motor, cable, switch, electrical appliance and other electrical equipment and insulation materials, measurement of polarization index, dielectric absorption ratio and AC & DC voltage.
Output rated voltage: 50V, 250V, 500V, 1000V, 2500V, 5000V
Insulation resistance measurement range: 0.1MΩ~1000GΩ
Short circuit current: 2mA MAX
Voltage measurement range: AC/DC: 0V~750V

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

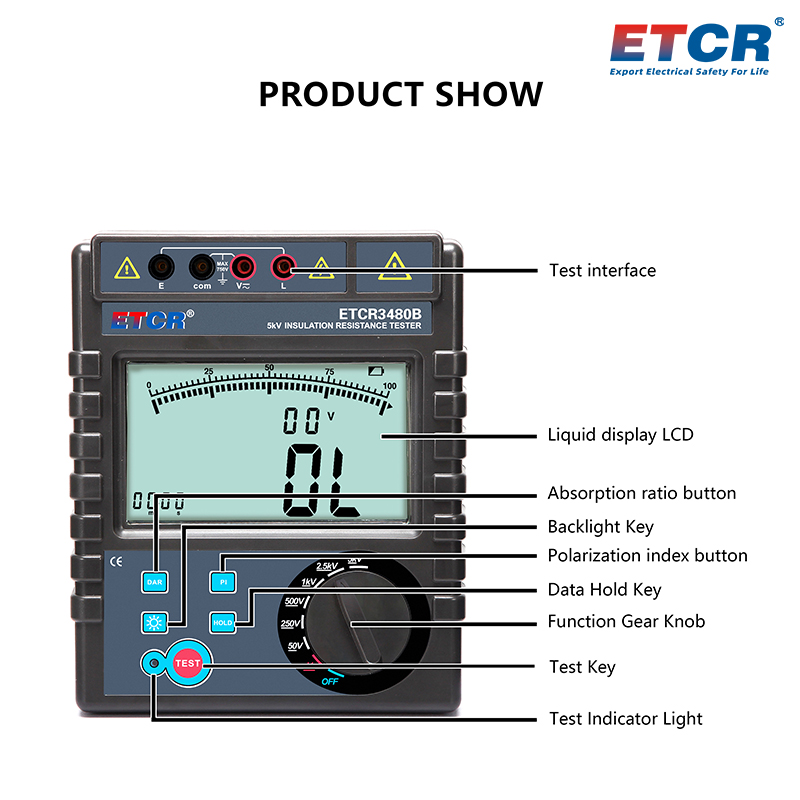

ETCR3480B Insulation Resistance Tester, also known as megohm meter, insulation resistance tester, which is used for insulation resistance testing, dielectric absorption ratio testing, polarization index testing and AC/DC voltage testing. This instrument with LCD large screen with backlight display, data hold automatic discharge, automatic shutdown and other functions. The instrument has the functions of test timing and voltage monitoring. When the loop voltage is higher than 36v. the instrument will forbid tested to protect the safety of the tested objects and personnel. The instrument function is easy to operate, insulation resistance value, test time, output voltage display with the same screen. also have the functions of measuring AC voltage, DC voltage.
ETCR3480B Insulation Resistance Tester complete appliance is beautiful, wide range, high precision, high resolution, easy to operate, convenient to carry, accurate and reliable, stable performance, strong anti-interference ability. And with shockproof, dust proof, moisture-proof structure, and it is suitable for applying to measuring the insulation resistance of electric motor, cable, switch, electrical appliance and other electrical equipment and insulation materials, which is the telecommunication, the electric power, the meteorology, the computer room, the oil field, the mechanical and electrical installation and the maintenance and uses the electric power as the industrial power or the energy industry enterprise department commonly used but essential instrument.
1.50V, 250V, 500V, 1000V, 2500V and 5000V 6 gears in total output voltage, wide measurement range 0.1MΩ~1000GΩ, max. short circuit current 2mA.
2.Insulation resistance value, test time, output voltage display with the same screen.
3.Safe structure and brand-new design of the improved circuit have more complete functions, higher accuracy, and more convenient and reliable operation.
4.Automatic discharge function, perfection protection circuit, effectively prevent damage to the counterattack voltage.
5.The host has large LCD display with white screen backlight display, bar chart indication, which is clear and obvious.
6.Dielectric absorption ratio and polarization index testing function.

Technical Parameter

1. Measurement Range & Accuracy

Measurement Function	Output Voltage	Measurement Range (Ω)	Accuracy	Resolution
Insulation Resistance	50V	0.10M~1M	±3%rdg±5dgt	0.01M
		1M~1G	±5%rdg±5dgt	0.1M
		1G~4G	±10%rdg±5dgt	0.1G
	250V	0.50M~1M	±3%rdg±5dgt	0.01M
		1M~1G	±5%rdg±5dgt	0.1M
		1G~20G	±10%rdg±5dgt	0.1G
	500V	1M~1G	±5%rdg±5dgt	0.1M
	500V	1G~40G	±10%rdg±5dgt	0.1G
	1000V	2M~1G	±5%rdg±5dgt	0.1M
	1000V	1G~80G	±10%rdg±5dgt	0.1G
	2500V	10M~1G	±5%rdg±5dgt	0.1M
		1G~100G	±10%rdg±10dgt	0.1G
		100G~200G	±10%rdg±10dgt	1G
	5000V	50M~1G	±5%rdg±5dgt	0.1M
		1G~100G	±5%rdg±5dgt	0.1G
		100G~1000G	±10%rdg±10dgt	1G
Voltage	AC/DC: 0.0V~750V		±5%rdg±5dgt	0.1V

2. Technical Specifications

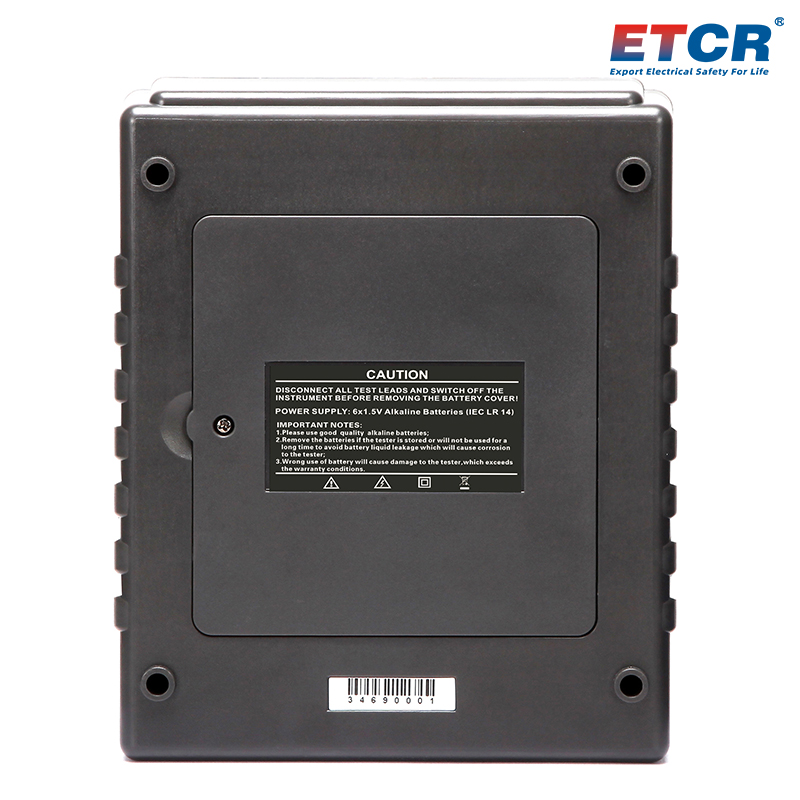

Power Supply	DC 1.5V 6 PCS LR14 dry battery
Display Mode	4digital max. LCD display, the contrast is obvious.
LCD Size	108mm×65mm
Output Rated Voltage	50V, 250V, 500V, 1000V, 2500V, 5000V
Output Voltage Accuracy	(5%~10%)±10V
Insulation Resistance Measurement Range	0.1MΩ~1000GΩ
Voltage Measurement Range	AC/DC: 0V~750V
Short Circuit Current	2mA MAX
Max. Capacitive Load	1uF
Dielectric Absorption Ratio Test (DAR)	Yes
Polarization Index Test (PI)	Yes
Shift Gear	Turn the shift rotary knob to select the appropriate gear
Backlight	Controllable off-white backlight, suitable for dark places
Measurement Indication	LED flicker and buzzer ring in measurement
Test Time	The single test time is 10 min. During the test, the user can stop automatically or automatically stop after 10 min, and the screen display measurement data.
Battery Voltage	Battery voltage symbol display, when battery voltage is low will remind to replace the battery in time
Automatic Discharge	During discharging symbol flash, Discharge completion symbol extinguish
Auto Shutdown Function	15 minutes after boot up, the tester shut down automatically without any operation
Power consumption	Standby: about 40mA(backlight off); measurement: about 100mA(backlight off)
Instrument Size	LXWXH: about 212mm×175mm×76mm
Weight	Tester: about 1360g(include battery); total weight: about 2.4kg(include package)
Suitable Safety Standard	IEC61010-1(CAT Ⅲ 300V, CAT IV 150V, pollution level 2)
Working Temperature & Humidity	-10℃~40℃; below 80%RH
Storage Temperature & Humidity	-20℃~60℃; below 70%RH

Model comparison

Product Picture	Product Model Name	Test Current	Output Voltage	Resistance Range	Voltage Range	Absorption Ratio	Polarization Inde
	ETCR3460A Insulation Resistance Tester	2mA	50V~2500V	0.1MΩ~200GΩ	AC/DC:0V~750V	--	--
	ETCR3460B Insulation Resistance Tester	2mA	50V~5000V	0.1MΩ~1000GΩ	AC/DC:0V~750V	--	--
	ETCR3480A Insulation Resistance Tester	2mA	50V~2500V	0.1MΩ~200GΩ	AC/DC:0V~750V	Yes	Yes
	ETCR3480B Insulation Resistance Tester	2mA	50V~5000V	0.1MΩ~1000GΩ	AC/DC:0V~750V	Yes	Yes

Data download

Download：

ETCR3480B Insulation Resistance Tester
