ETCR3650 Grounding Down Lead Continuity Tester

Main Functions

It is used to measure the on-resistance value between the grounding down lead of power equipment and the grounding down lead(or adjacent equipment).
Resistance measurement range: 200.0uΩ~50.00kΩ
Test current gear: 10A, 5A, 1A, 100mA, AUTO
Output voltage: 24V MAX
Alarm function: setting alarm threshold
Memory: data storage 600 groups
Power supply: AC 220V, built-in lithium battery
5 inch true-color touch screen
Built-in printer
Bluetooth communication
USB interface

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR3650 Grounding Down Lead Conduction Tester is suitable for measuring the on-resistance value between the grounding down lead of power equipment and the grounding down lead(or adjacent equipment). It can effectively detect the increase in resistance caused by various reasons in the lead resistance between electrical equipment and the grounding grid, in order to avoid equipment grounding operation. The power industry standard DL/T475-2017 "Guidelines for the Measurement of Characteristic Parameters of Grounding Devices" stipulates that special instruments should be used for measurement of electrical conductivity, with a resolution of 1mΩ and an accuracy of not less than 1.0.

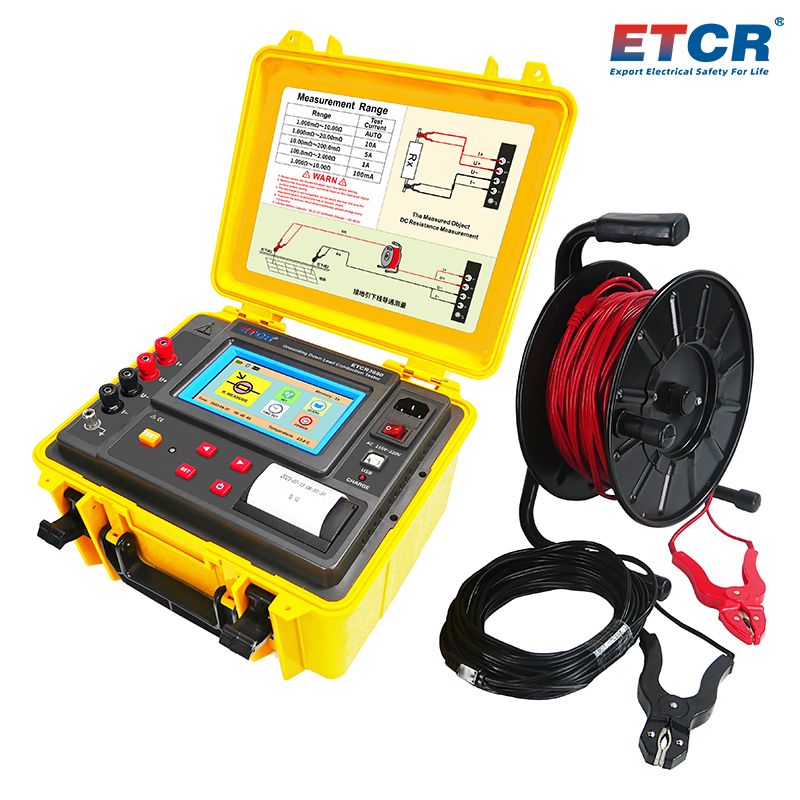

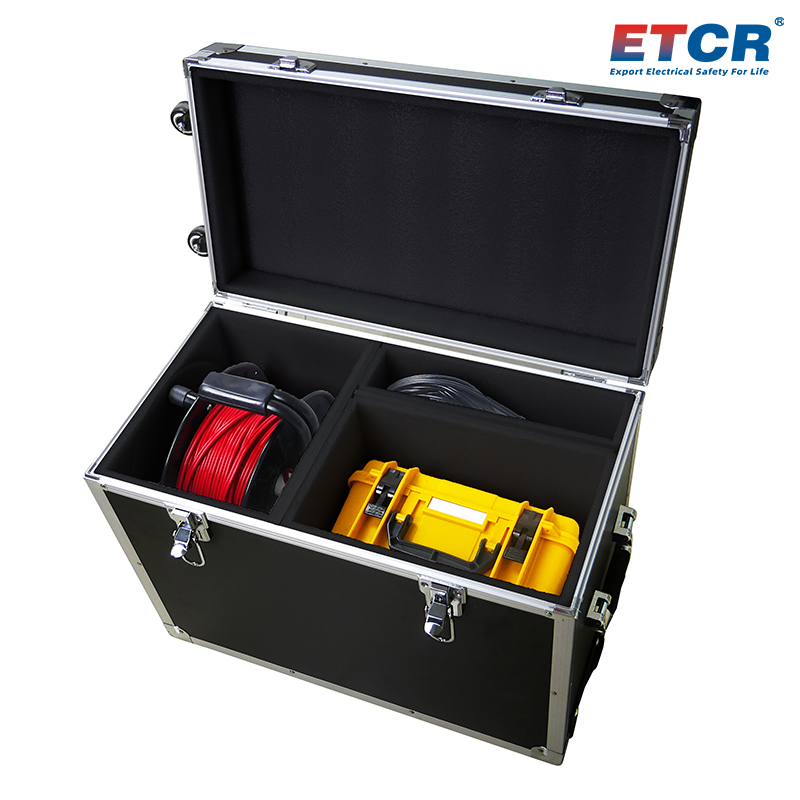

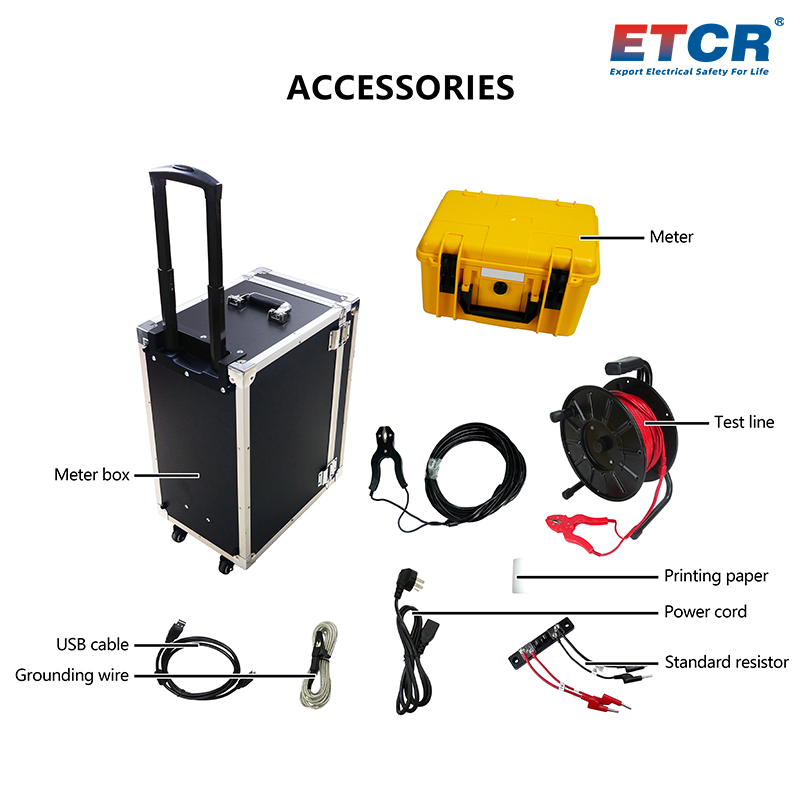

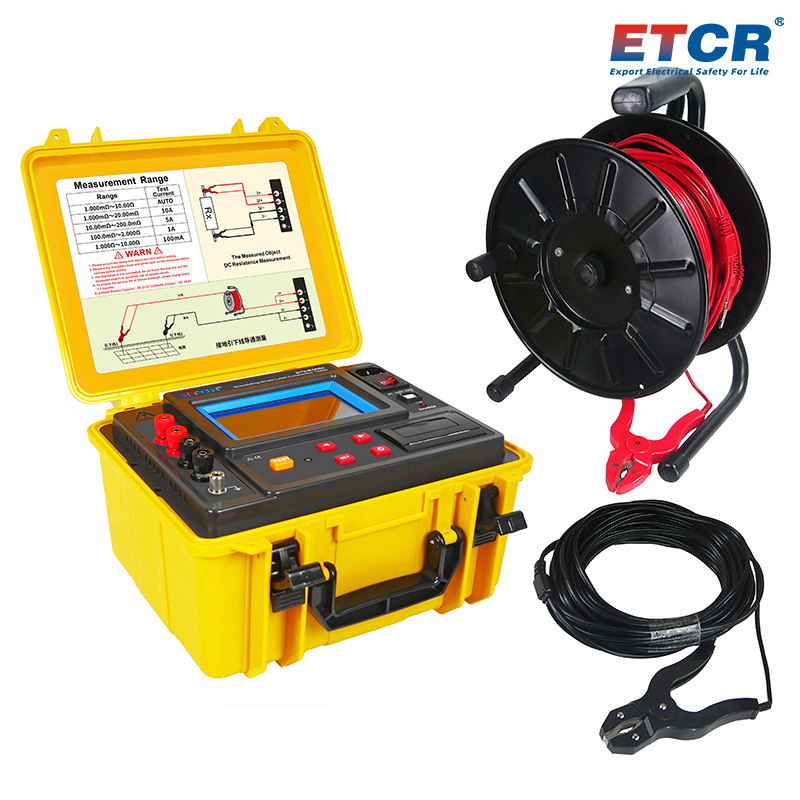

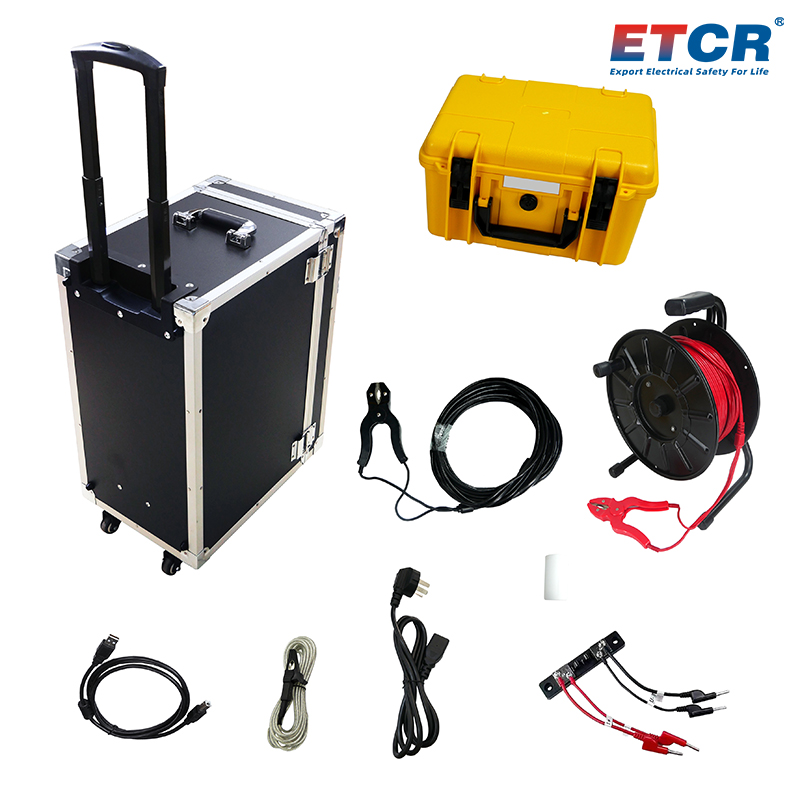

ETCR3650 Grounding Down Lead Conduction Tester is specially used for the electrical integrity test of grounding devices, and its technical indicators meet or exceed the requirements of relevant standards. The instrument consists of host, test line, etc. The instrument adopt with microprocessor technology and precision four-wire method for measuring, which is accurate and reliable. The instrument has two power supply modes: AC220V and large-capacity lithium battery, and two measurement modes: automatic measurement and manual measurement. The instrument adopt with 5 inch true-color high-definition touch screen with backlight adjustment function, which is clear visibility in strong light. The instrument shell adopt with waterproof protective box, which is anti-collision, anti-fall, waterproof, strong, safe and durable. The instrument with a built-in printer, Bluetooth communication and USB interface.
The instrument is simple and convenient to operate, high accuracy, fast-speed in testing, good retestability, and intuitive readings. It is an ideal special instrument that meet the requirements of the regulation, which greatly facilitate the development of test project and improve work efficiency.
1.The instrument has two power supply modes: AC220V and large-capacity lithium battery, meet the requirement of user for various occasions.
2.Two measurement modes: automatic measurement: Automatically select testing current based on load and manual measurement: 4 gears for testing current.
3.Test current gear: AUTO, 10A, 5A, 1A, 100mA
4.Max. output voltage 24V, max. test current 10A, fast-speed test.

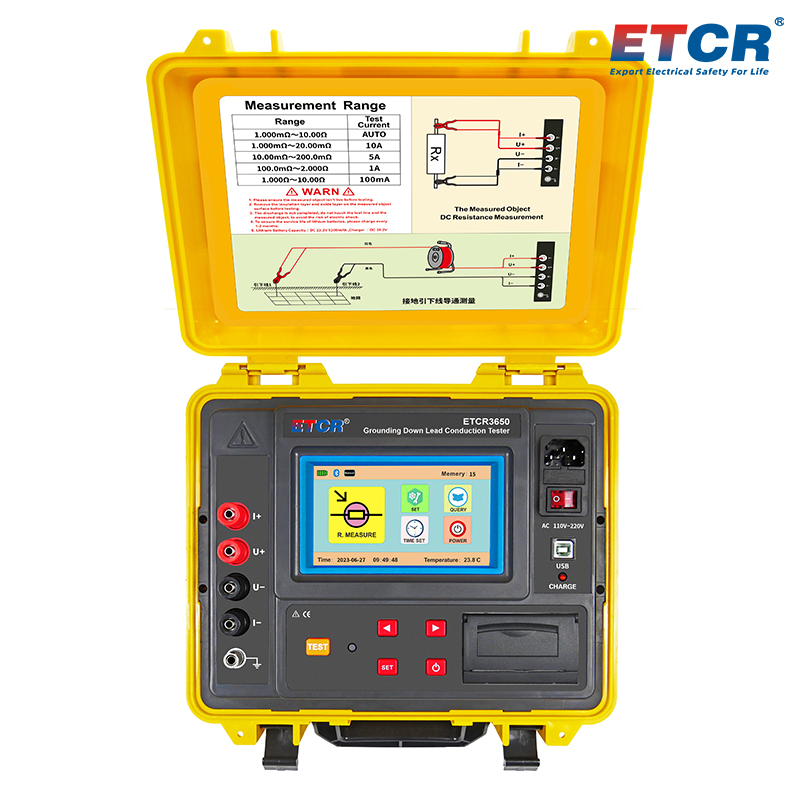

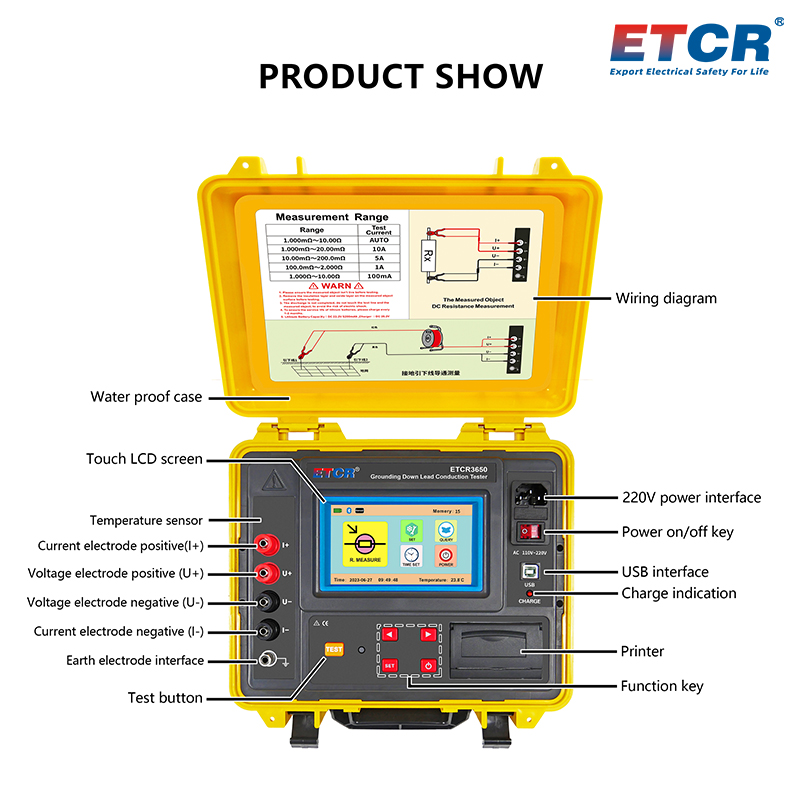

5.Adopt with 5 inch true-color touch screen, dual use: touch screen/button for measuring operation.
6.Built-in printer, can print the test result on site.
7.With Bluetooth communication, can perform testing operation or view test result on your phone after installing App.
8.Alarm function, setting resistance alarm threshold.
9.USB communication interface.
10.Equipped with discharge function, automatically discharge after testing, with clear discharge indication to avoid misoperation.

Technical Parameter

Power Supply	AC 220V
Built-in Lithium Battery	DC 22.2V 5200mAh
Display Mode	5 inch true-color LCD touch screen, resolution 480×854
Backlight Adjustment	Drag the slider to adjust the brightness
Test Range	1.000mΩ~10.00Ω AUTO
Test Accuracy	1.000mΩ~20.00mΩ 10A
	10.00mΩ~200.0mΩ 5A
	100.0mΩ~2.000Ω 1A
	1.000Ω~10.00Ω 100mA
Max. Solution	1uΩ
Accuracy	0.5%FS
Test Current Gear	AUTO, 10A, 5A, 1A, 100mA
Output Voltage	24V MAX
Max. Power	50W
Measuring Radius	50m
Test Method	Precision four-wire method, 2 A/D simultaneous detection
Test Mode	Automatic, manual
Test Time	Sampling AD rate 1 second/time
Alarm Setting	Setting alarm threshold range:1mΩ~10Ω，the alarm function is not activated at 0Ω
Alarm Prompt	When the test value exceed the set value of the alarm, the buzzer will sound and the alarm will prompt
Overflow Display	Overrange overflow function: digital 999999 overrun display
Charging Indication	The indicator light on the charger light up red when charging, and green when fully charged
Low Voltage Indication	When the battery voltage is lower than DC 22.2V, the battery level symbol is displayed in red, reminding charging in time.
Memory	600 groups(no data will be lost if the battery is powered down or replaced)
Data Hold	Automatically keep displaying the tested result after each test
Clock Function	24-hour clock, showing hours, minutes, and seconds
Calculation Of Reduced Resistance	Convert based on the temperature and material of the tested product.
Discharge Function	Automatic discharge after testing, with clear discharge instruction to avoid misoperation
Automatic Shutdown	After setting the automatic shutdown, it will automatically shut down after 15 minutes of no operation
Host Size	280mm×260mm×160mm
Weight	Instrument: about 3250g (include battery); total weight: about 6.4kg (include accessory)
Working Temperature & Humidity	-10℃～40℃; below 80%RH
Storage Temperature & Humidity	-10℃～60℃; below 70%RH
