ETCR2150 Loop Resistance Tester

Main Functions

Loop Resistance Measurement,Loop Leakage Current Measurement,The Indispensable Tool of Lightning Protection Device Detection

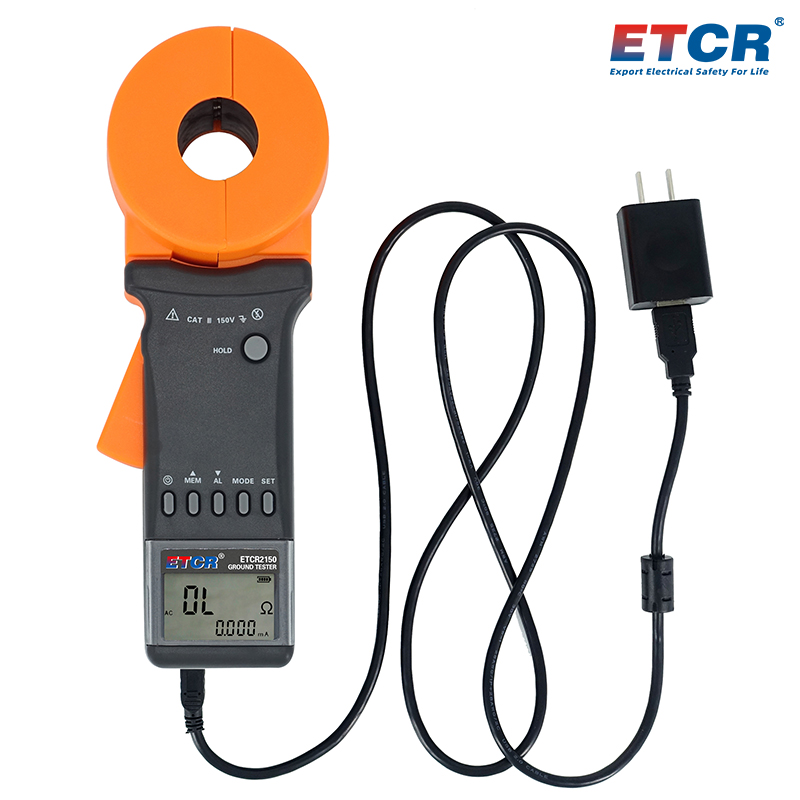

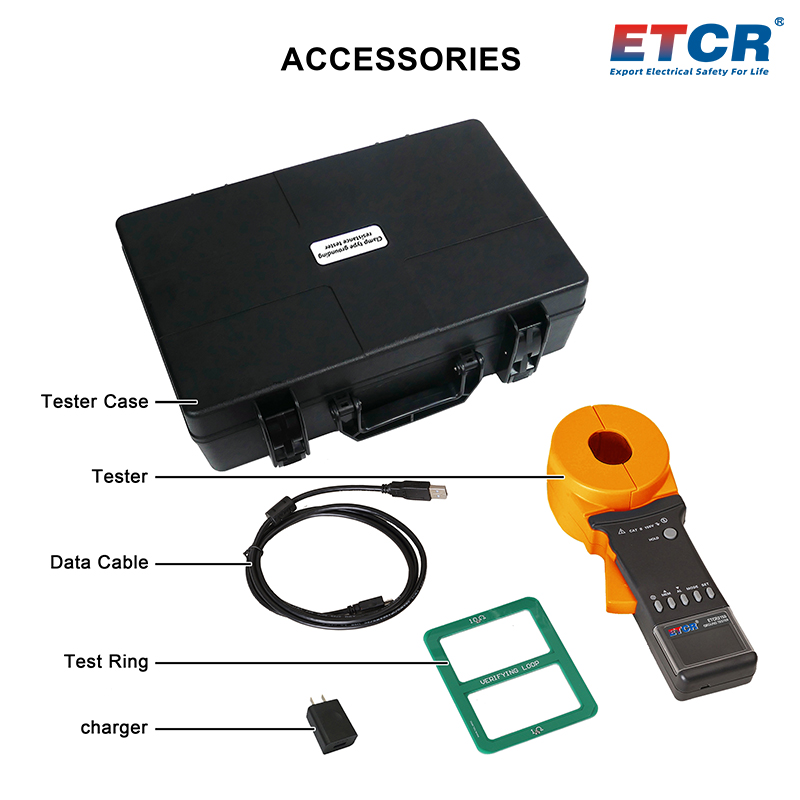

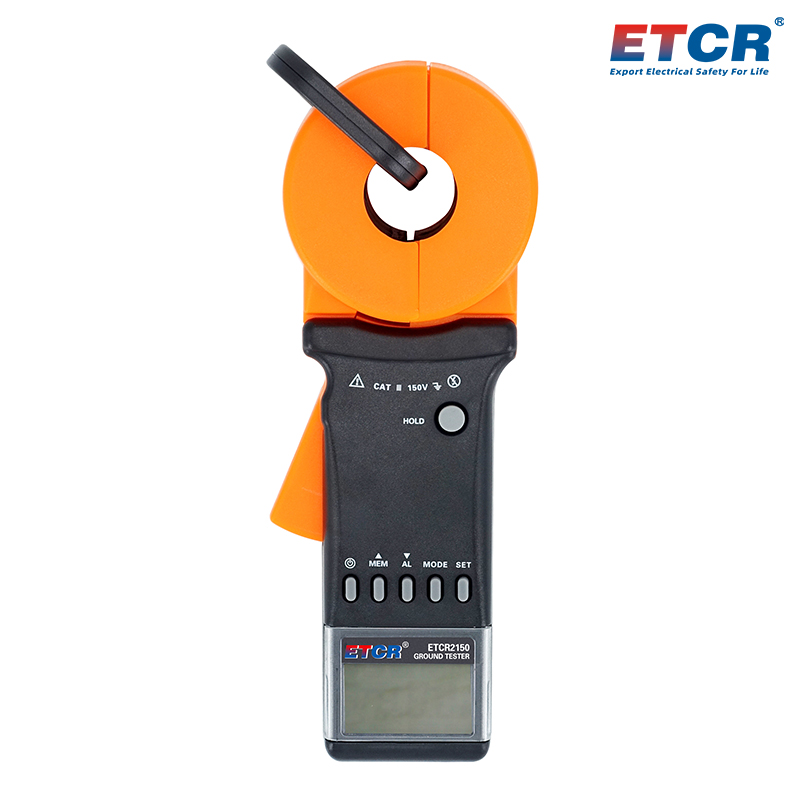

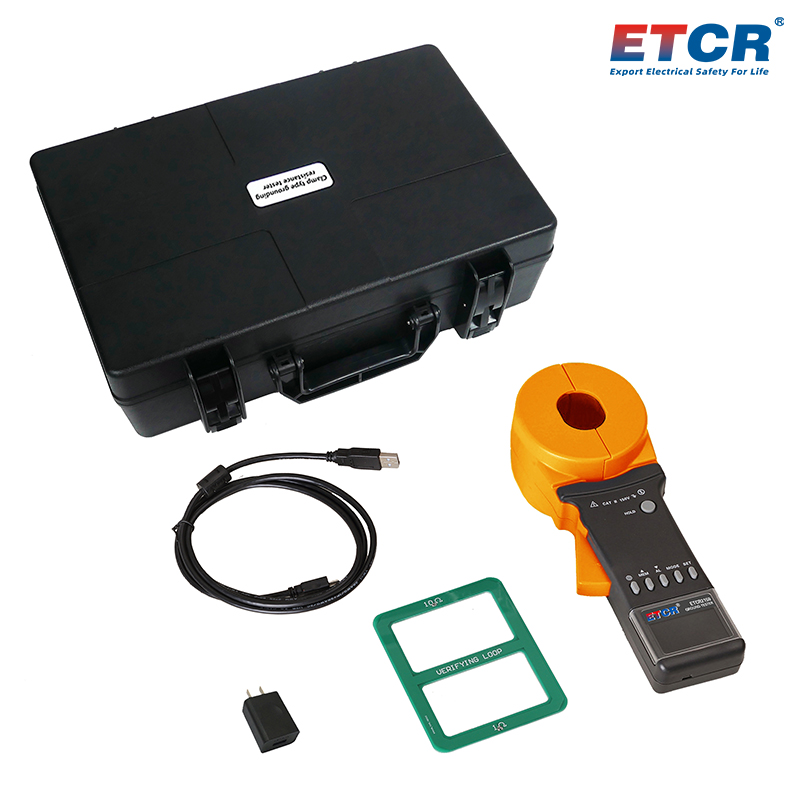

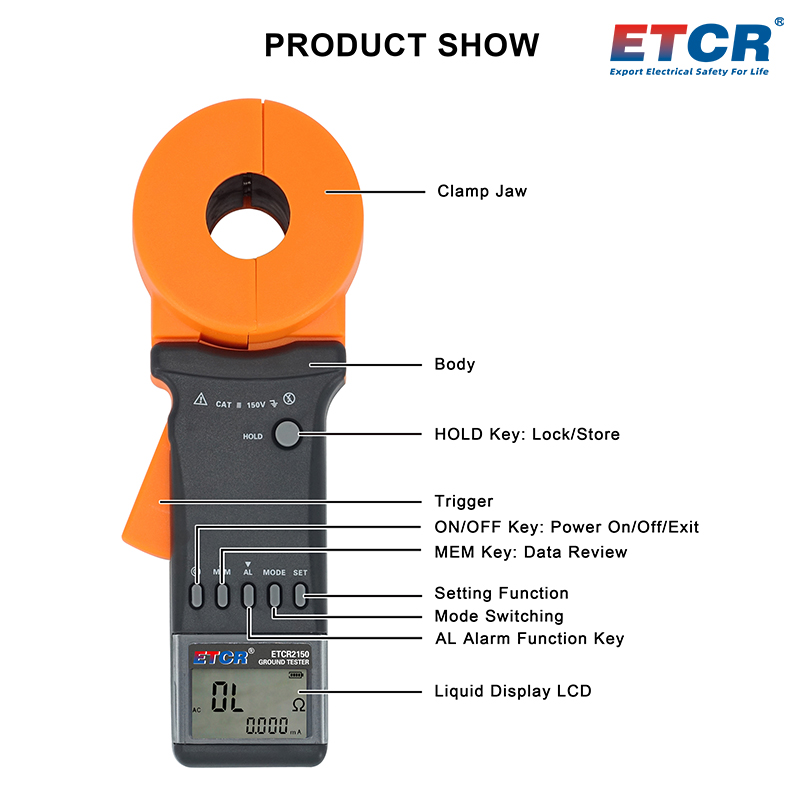

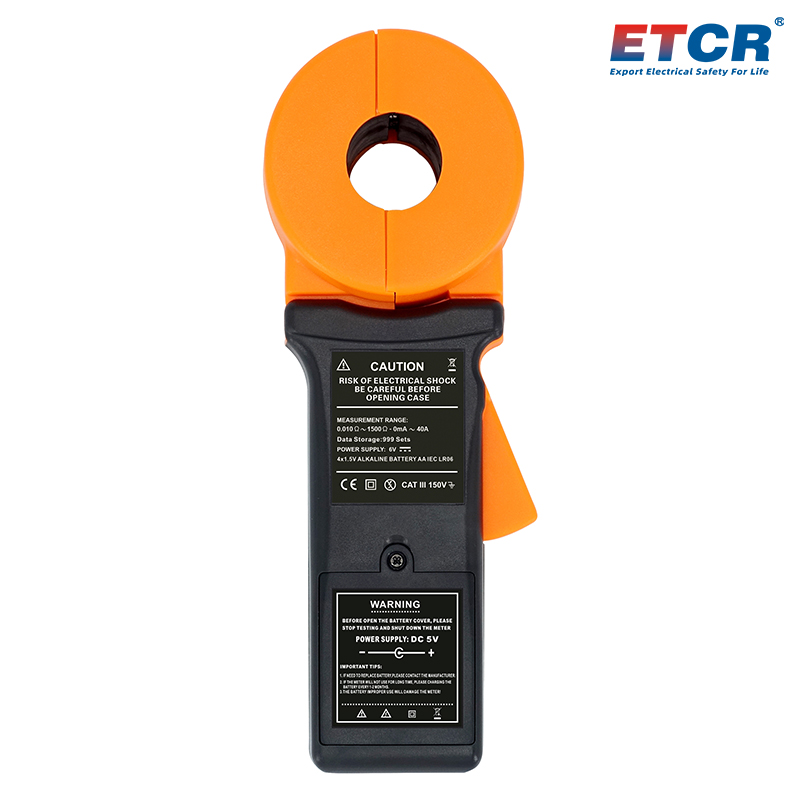

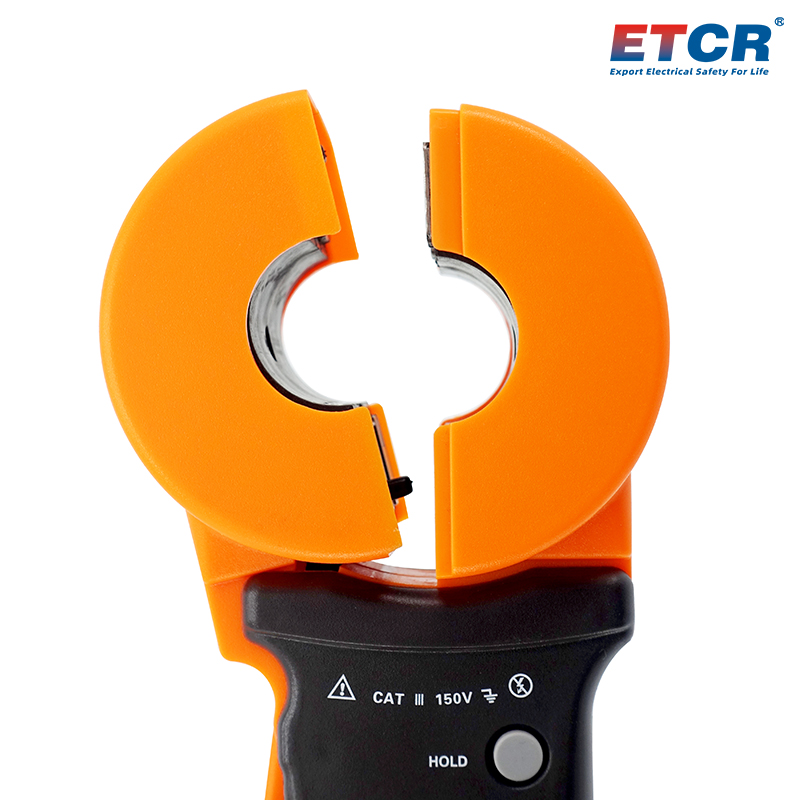

Clamp Jaw Size: Φ32mm
Resistance Range: 0.010Ω~1500Ω;Resolution: 0.001Ω
Current Range: 0.000mA~40.0A;Resolution: 0.001mA
Memory: Data Storage 999 Groups
Alarm Function: Alarm threshold can be set
USB Communication interface
Rechargeable Lithium Battery

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR2150 Loop Resistance Tester, also known as loop circuit Resistance Tester, which is used for measurement of loop resistance of lightning protection Device and leakage current, judging whether the connection of the lightning protection device is reliable and earth current and troubleshooting. In the loop resistance measurement, no need to disconnect the loop down lead, you can measure the loop resistance and the leakage current at the same time by using clamp meter to clamp the line. This clamp meter fully meets the scope stipulated in the National Meteorological Bureau's Order No. 38 [Lightning Protection Device Testing Qualification Management Measures], and is widely used in construction quality inspection stations, supervision companies, construction units, lightning protection companies, electric power departments, etc. The resistance, current, and test time of are displayed on the screen, and the test results are clear.Equipped with rechargeable lithium batteries, it is easy to use.Sound and light alarm function, data storage, data hold function.Clock function, display the current test time.USB interface data upload function.
1. Fully meet the technical parameter requirements of the National Meteorological Bureau's Order No. 38 [Lightning Protection Device Testing Qualification Management Measures], and the Tool of Lightning Protection Device Detection.
2. Resistance, current, and test time are displayed on the same screen, and the test results are clear.
3.With hold function, storage function, clock function.
4.Alarm function: Alarm threshold can be set
5.USB communication interface.
6.Rechargeable lithium battery.

Technical Parameter

1.Measurement Range & Accuracy

Measurement Mode	Measuring Range	Resolution	Accuracy
Resistance	0.010Ω~0.099Ω	0.001Ω	±(1%rdg＋0.01Ω)
	0.10Ω~0.99Ω	0.01Ω	±(1%rdg＋0.01Ω)
	1.0Ω~49.9Ω	0.1Ω	±(1%rdg＋0.1Ω)
	50.0Ω~99.5Ω	0.5Ω	±(1.5%rdg＋0.5Ω)
	100Ω~199Ω	1Ω	±(2%rdg＋1Ω)
	200Ω~395Ω	5Ω	±(5%rdg＋5Ω)
	400Ω~590Ω	10Ω	±(10%rdg＋10Ω)
	600Ω~880Ω	20Ω	±(20%rdg＋20Ω)
	900Ω~1500Ω	30Ω	±(25%rdg＋30Ω)
Current	0.000mA~0.999mA	0.001mA	±(1.5%rdg＋0.5mA)
	0.00mA~9.95mA	0.01mA	±(2%rdg＋1mA)
	10.0mA~99.0mA	0.1mA	±(2.5%rdg＋5mA)
	100mA~300mA	1mA	±(2.5%rdg＋20mA)
	0.30A~2.99A	0.01A	±(2.5%rdg＋0.1A)
	3.0A~9.9A	0.1A	±(2.5%rdg＋0.3A)
	10.0A~19.9A	0.1 A	±(2.5%rdg＋0.5A)
	20.0A~40.0A	0.1 A	±(3%rdg＋1A)

2.Technical Specification

Power Supply	3.7V DC(rechargeable lithium battery 2600mAh)
LCD Displayer	4-digit LCD digital display, 47mm×28.5mm
Resistance Range	0.010Ω~1500Ω
Resistance Resolution	0.001Ω
Current Range	0.000mA~40.0A
Current Resolution	0.001mA
Resistance Measurement Frequency	＞1kHz
Measured Current Frequency	50/60Hz Automatic
Memory	999 groups
Communication Interface	USB interface, software monitoring, data upload to computer, dynamic display
Self-check Time	≤1s，Boot up and quickly enter test mode
Working Current	≤50mA
Operation Button	6 soft buttons, straight-through performance
Communication Line Length	1.5m(USB data cable)
Clock Function	Display hour and minute
Sound & Light Alarm	“Du-Du-Du-" Alarm sound, press the AL Button to turn on and turn off；LCD alarm flashing indication
Alarm Threshold Setting Range	Resistance:1Ω~199Ω; Current:1 mA~499mA
Automatic Shutdown	The tester flashes for 30S after 5 minutes of no operation, and then automatically shuts down
Clamp Jaw Size	Φ32mm
Clamp Opening Size	32mm
Tester Size	260mm×90mm×66mm
Weight	About 955g (include battery)
Protection Level	Double insulation
Structure Feature	Clamp type
Measurement Range Gear Shift	Fully automatic shifting
Single Measurement Time	0.5 second
Working Temperature & Humidity	-20℃~55℃;10％RH~90％RH

Model comparison

Product Picture	Product Model Name	Clamp Jaw Size	Resistance Range	Current Range	Alarm Function	Others
	ETCR2100A+ Clamp Earth Resistance Tester	Φ32mm	0.010Ω~200Ω	--	Yes
	ETCR2100+ Clamp Earth Resistance Tester	Φ32mm	0.010Ω~1200Ω	--	Yes
	ETCR2100C+ Clamp Earth Resistance Tester	Φ32mm	0.010Ω~1200Ω	0.00mA~20A	Yes
	ETCR2150 Loop Resistance Tester	Φ32mm	0.010Ω~1500Ω	0.00mA~40A	Yes	Lithium battery USB interface Clock function

Data download

Download：

ETCR2150 Loop Resistance Tester
