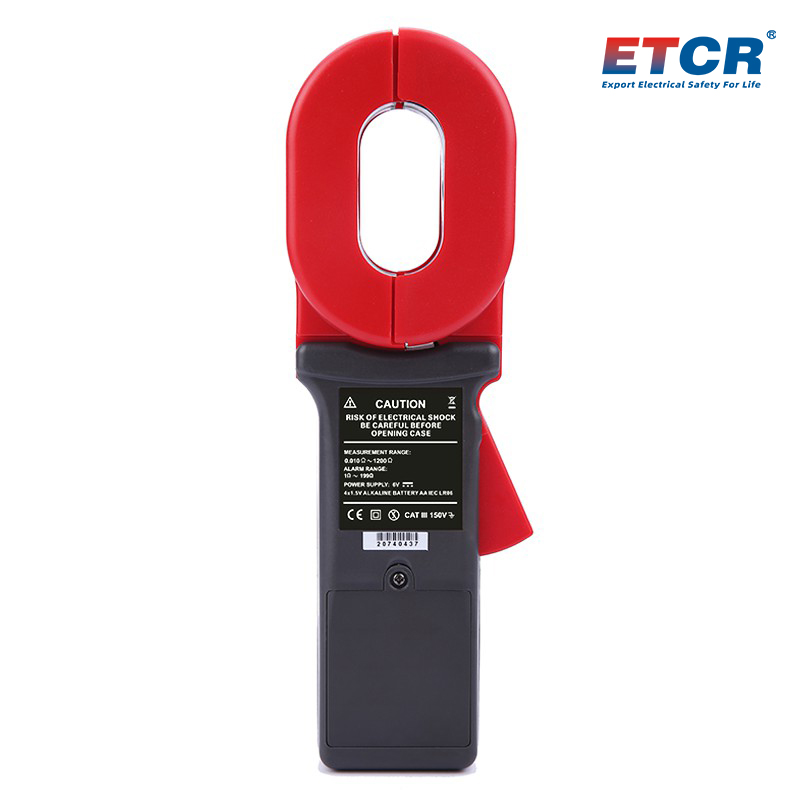

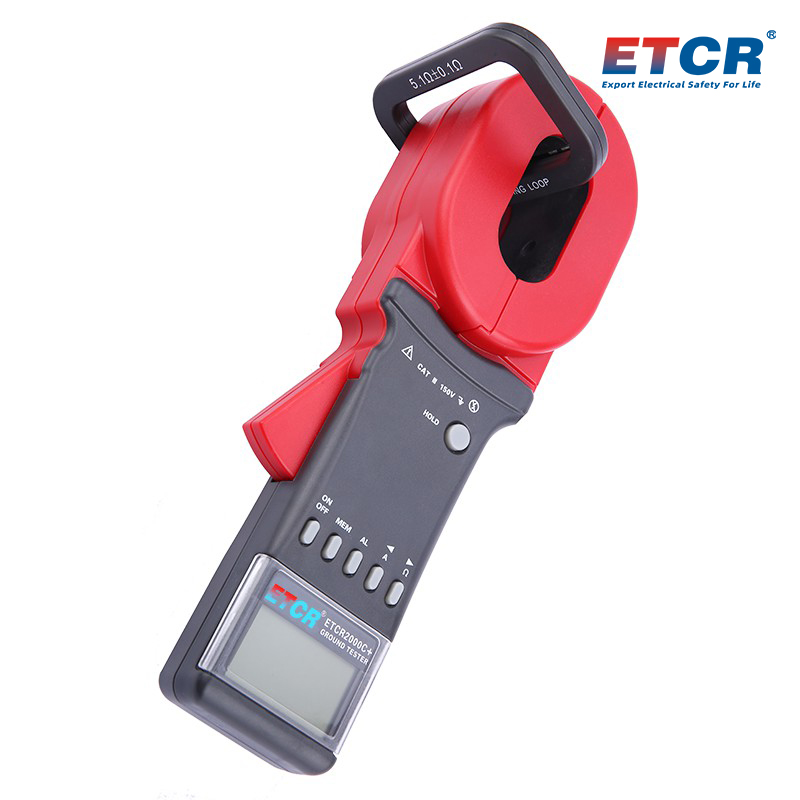

ETCR2000C+ Clamp Earth Resistance Tester

Main Functions
Grounding Resistance Measurement, Loop Resistance Measurement, Grounding Down Lead Leakage Current Measurement, Judge Grounding Fault
Clamp Size: 65mm×32mm
Resistance Range: 0.010Ω~1200Ω
Leakage Current Range: 0.00mA~20.0A
Memory: Data Storage 99 Groups
Alarm Function: Alarm threshold can be set
    Product Introduction
    ETCR2000C+ Clamp Earth Resistance Tester, also known as clamp type earth resistance tester, single clamp earth resistance tester, loop resistance tester, lightning protection earth resistance tester, lightning protection earth resistance tester, which is used for measurement of earth resistance, loop resistance, earth current and grounding fault judgment.
    In the loop grounding system measurement, no need to disconnect the grounding down lead, and not request the auxiliary grounding pole, which is safe, fast and convenient to use.the clamp earth resistance tester is widely used in earth resistance and loop resistance measurement of electric power, telecommunications, meteorology, oil fields, construction and industrial electrical equipment.The long clamp is particularly suitable for flat steel grounding site.
    The tester can measure ground faults that cannot be measured by traditional methods, and can apply to the site which cannot be measured by traditional methods, because the clamp earth resistance tester is measuring the comprehensive value of the grounding body resistance and the grounding lead resistance.
    1.Non-contact measurement is safe and fast. When measuring the loop grounding system, no need to disconnect the grounding down lead, and not request the auxiliary grounding pole, which is saving time and efficient.
    2.The clamp earth resistance tester can measure ground faults that cannot be measured by traditional methods, and can apply to the site which cannot be measured by traditional methods.
    3.With data hold function, storage function, alarm function.
    Technical Parameter
    1.Measurement Range & Accuracy
    Measurement Mode Measuring Range Resolution Accuracy
    Resistance 0.010Ω~0.099Ω 0.001Ω ±(1%rdg+0.01Ω)
    0.10Ω~0.99Ω 0.01Ω ±(1%rdg+0.01Ω)
    1.0Ω~49.9Ω 0.1Ω ±(1%rdg+0.1Ω)
    50.0Ω~99.5Ω 0.5Ω ±(1.5%rdg+0.5Ω)
    100Ω~199Ω ±(2%rdg+1Ω)
    200Ω~395Ω ±(5%rdg+5Ω)
    400Ω~590Ω 10Ω ±(10%rdg+10Ω)
    600Ω~880Ω 20Ω ±(20%rdg+20Ω)
    900Ω~1200Ω 30Ω ±(25%rdg+30Ω)
    Current 0.00mA~9.95mA 0.05mA ±(2.5%rdg+1mA)
    10.0mA~99.0mA 0.1mA ±(2.5%rdg+5mA)
    100mA~300mA 1mA ±(2.5%rdg+10mA)
    0.30A~2.99A 0.01A ±(2.5%rdg+0.1A)
    3.0A~9.9A 0.1A ±(2.5%rdg+0.3A)
    10.0A~20.0A 0.1 A ±(2.5%rdg+0.5A)

    2.Technical Specification
    Power Supply 6V DC(4 PCS 5 alkaline dry batteries)
    LCD Displayer 4-digit LCD digital display, 47mm×28.5mm
    Resistance Measurement Range 0.010Ω~1500Ω
    Resistance Measurement Resolution 0.001Ω
    Current Range 0.00mA~20.0A
    Current Resolution 0.05mA
    Memory 99 groups
    Sound & Light Alarm "Du-Du-Du-" Alarm sound, press the AL Button to turn on and turn off
    Alarm Threshold Setting Range Resistance: 1Ω~199Ω; Current: 1mA~499mA

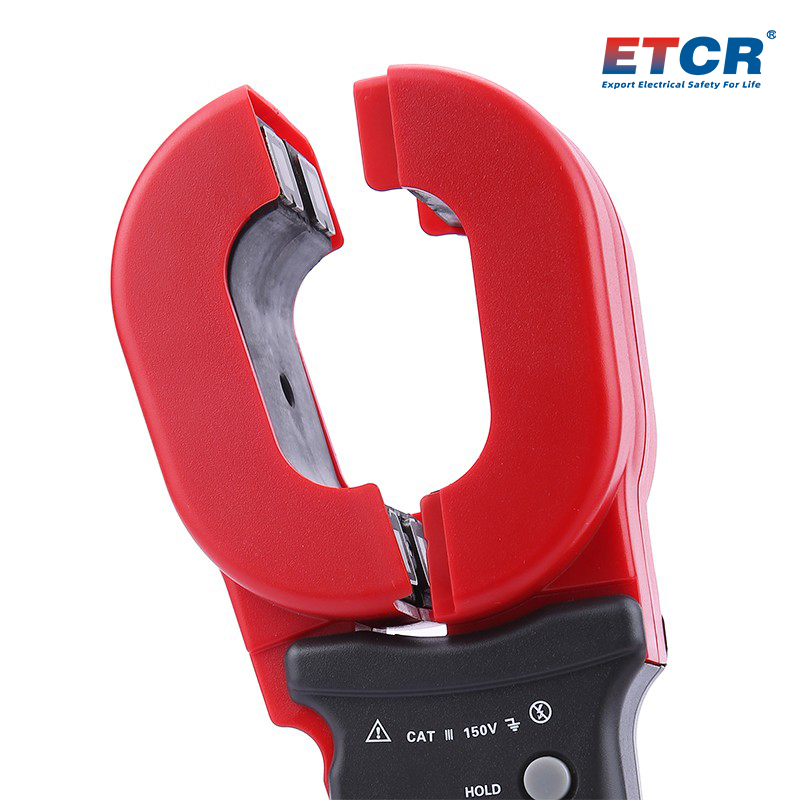

    Clamp Jaw Size 65mm×32mm
    Clamp Opening Size 32mm
    Tester Size 285mm×85mm×56mm
    Weight About 1100g (include battery)
    Protection Level Double insulation
    Structure Feature Clamp type
    Measurement Range Gear Shift Fully automatic shifting
    External Magnetic Field, electric Field <40A/m;<1V/m
    Single Measurement Time 0.5 second
    Resistance Measurement Frequency >1kHz
    Measured Current Frequency 50Hz/60Hz Automatic
    Working Temperature & Humidity -20℃~55℃; 10%RH~90%RH
    Model comparison
    Product Picture Product Model Name Clamp Jaw Size Resistance Range Current Range Alarm Function Others
    ETCR2000X Clamp Earth Resistance Tester 55mm×32mm 0.010Ω~500Ω -- --
    ETCR2000XC Clamp Earth Resistance Tester 55mm×32mm 0.010Ω~500Ω 0.00mA~20A --
    ETCR2000A Clamp Earth Resistance Tester 55mm×32mm 0.010Ω~200Ω -- Yes
    ETCR2000 Clamp Earth Resistance Tester 55mm×32mm 0.010Ω~1000Ω -- Yes
    ETCR2000C Clamp Earth Resistance Tester 55mm×32mm 0.010Ω~1000Ω 0.00mA~30A Yes
    ETCR2000A+ Clamp Earth Resistance Tester 65mm×32mm 0.010Ω~200Ω -- Yes
    ETCR2000+ Clamp Earth Resistance Tester 65mm×32mm 0.010Ω~1200Ω -- Yes
    ETCR2000B+ Explosion Proof Clamp Earth Resistance Tester 65mm×32mm 0.010Ω~1200Ω -- Yes Explosion proof
    ETCR2000C+ Clamp Earth Resistance Tester 65mm×32mm 0.010Ω~1200Ω 0.00mA~20A Yes
    ETCR2200 Multifunctional Clamp Earth Resistance Tester 65mm×32mm 0.010Ω~1500Ω 0.00mA~40A Yes Lithium battery
    USB interface
    Clock function
    Data download
