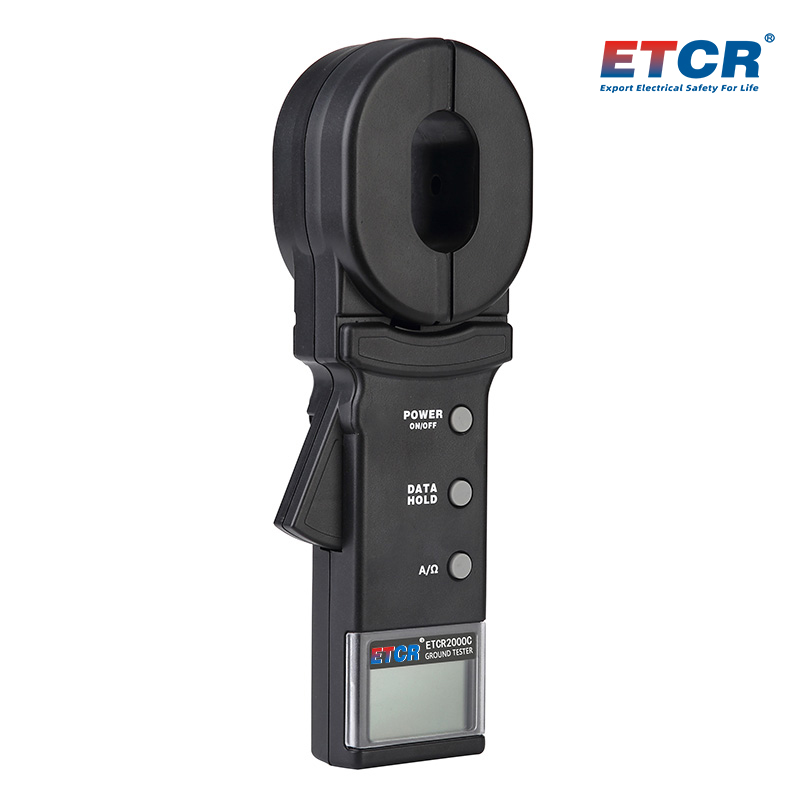

ETCR2000C Clamp Earth Resistance Tester

Main Functions
Grounding Resistance Measurement, Loop Resistance Measurement, Grounding Down Leads Leakage Current Measurement, Judge Grounding Fault
Clamp Jaw Size: 55mm×32mm
Resistance Range: 0.010Ω~1000Ω
Current Range: 0.00mA~30.0A
Memory: Data Storage 99 Groups
Alarm Function: resistance/current alarm threshold can be set
    Product Introduction
    ETCR2000C Clamp Earth Resistance Tester, also known as clamp type earth resistance tester, earth resistance tester, loop resistance tester, single clamp earth resistance tester, which is used for measurement of earth resistance, loop resistance, and grounding fault judgment.
    In the loop grounding system measurement, no need to disconnect the grounding down lead, and not request the auxiliary grounding pole, which is safe, fast and convenient to use.the clamp earth resistance tester is widely used in earth resistance and loop resistance measurement of electric power, telecommunications, meteorology, oil fields, construction and industrial electrical equipment.The long clamp is particularly suitable for flat steel grounding site.
    The tester can measure ground faults that cannot be measured by traditional methods, and can apply to the site which cannot be measured by traditional methods, because the clamp earth resistance tester is measuring the comprehensive value of the grounding body resistance and the grounding lead resistance.
    1.Non-contact measurement is safe and fast. When measuring the loop grounding system, no need to disconnect the grounding down lead, and not request the auxiliary grounding pole, which is saving time and efficient.
    2.The clamp earth resistance tester can measure ground faults that cannot be measured by traditional methods, and can apply to the site which cannot be measured by traditional methods.
    3.With data hold function, storage function, alarm function.
    Technical Parameter
    1.Measurement Range & Accuracy
    Measurement Mode Measuring Range Resolution Accuracy
    Resistance 0.010Ω~0.099Ω 0.001Ω ±(1%rdg+0.01Ω)
    0.10Ω~0.99Ω 0.01Ω ±(1%rdg+0.01Ω)
    1.0Ω~49.9Ω 0.1Ω ±(1%rdg+0.1Ω)
    50.0Ω~99.5Ω 0.5Ω ±(1.5%rdg+0.5Ω)
    100Ω~199Ω ±(2%rdg+1Ω)
    200Ω~395Ω ±(5%rdg+5Ω)
    400Ω~590Ω 10Ω ±(10%rdg+10Ω)
    600Ω~1000Ω 20Ω ±(20%rdg+20Ω)
    Current 0.00mA~9.95mA 0.05mA ±(2.5%rdg+1mA)
    10.0mA~99.0mA 0.1mA ±(2.5%rdg+5mA)
    100mA~299mA 1mA ±(2.5%rdg+10mA)
    0.30A~2.99A 0.01A ±(2.5%rdg+0.1A)
    3.0A~9.9A 0.1 A ±(2.5%rdg+0.3A)
    10.0A~19.9A 0.1 A ±(2.5%rdg+0.5A)
    20.0A~30.0A 0.1 A ±(3%rdg+1A)

    2.Technical Specification
    Power Supply 6V DC(4 PCS 5 alkaline dry batteries)
    LCD  Displayer 4-digit LCD digital display, 47mm×28.5mm
    Resistance Measurement Range 0.010Ω~1000Ω
    Resistance Resolution 0.001Ω
    Current Measurement Range 0.00mA~20A
    Current Resolution 0.05mA
    Clamp Jaw Size 55mm×32mm
    Tester Size 275mm×100mm×56mm
    Weight About 950g (include battery)
    Protection Level Double insulation
    Structure Feature Clamp type
    Measurement Range Gear Shift Automatic
    Alarm Threshold Setting Range Resistance: 1Ω~199Ω; Current: 1mA~499mA
    Single Measurement Time 0.5 Second
    Resistance Measurement Frequency >1kHz
    Memory 99 groups
    External Magnetic Field <40A/m
    External Electric Field <1V/m
    Working Temperature -10℃~55℃
    Relative Humidity 10%~90%
    Model comparison
    Product Picture Product Model Name Clamp Jaw Size Resistance Range Current Range Alarm Function Others
    ETCR2000X Clamp Earth Resistance Tester 55mm×32mm 0.010Ω~500Ω -- --
    ETCR2000XC Clamp Earth Resistance Tester 55mm×32mm 0.010Ω~500Ω 0.00mA~20A --
    ETCR2000A Clamp Earth Resistance Tester 55mm×32mm 0.010Ω~200Ω -- Yes
    ETCR2000 Clamp Earth Resistance Tester 55mm×32mm 0.010Ω~1000Ω -- Yes
    ETCR2000C Clamp Earth Resistance Tester 55mm×32mm 0.010Ω~1000Ω 0.00mA~30A Yes
    ETCR2000A+ Clamp Earth Resistance Tester 65mm×32mm 0.010Ω~200Ω -- Yes
    ETCR2000+ Clamp Earth Resistance Tester 65mm×32mm 0.010Ω~1200Ω -- Yes
    ETCR2000B+ Explosion Proof Clamp Earth Resistance Tester 65mm×32mm 0.010Ω~1200Ω -- Yes Explosion proof
    ETCR2000C+ Clamp Earth Resistance Tester 65mm×32mm 0.010Ω~1200Ω 0.00mA~20A Yes
    ETCR2200 Multifunctional Clamp Earth Resistance Tester 65mm×32mm 0.010Ω~1500Ω 0.00mA~40A Yes Lithium battery
    USB interface
    Clock function
    Data download
