ETCR9620B Wireless Low Voltage CT Turn Ratio Tester

Main Functions

It is used for current, variable ratio, angle difference testing, polarity and phase difference judgment of the first and second circuits of low-voltage current transformers.
Primary current clamp range: 0.00A～800A
Secondary current range: 0.00mA～5A
Variable ratio measurement range: 1～9999
Wireless transmission distance: 100m
Storage function: store 3000 sets of data

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

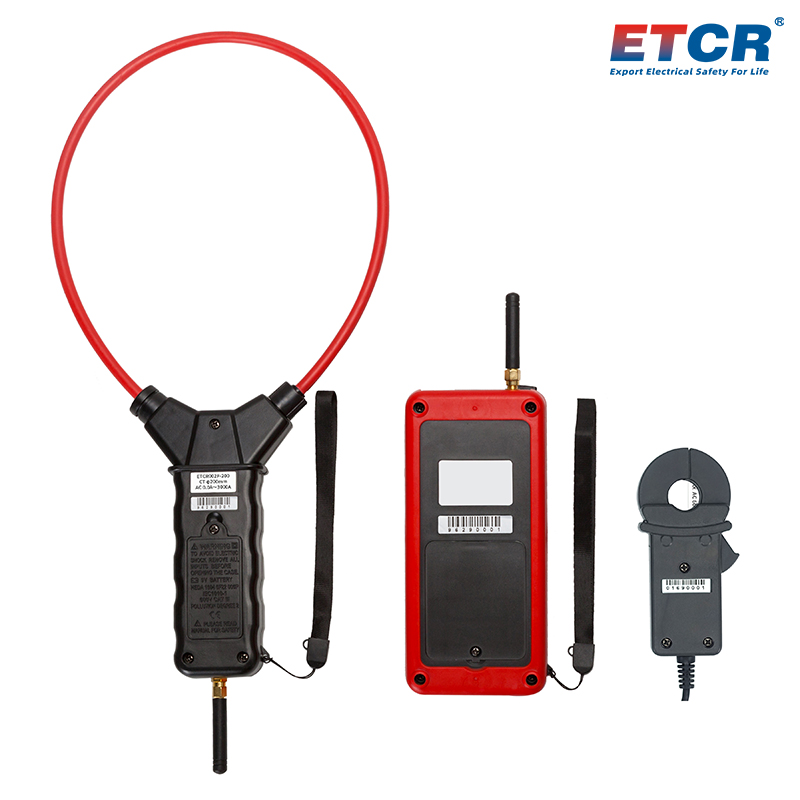

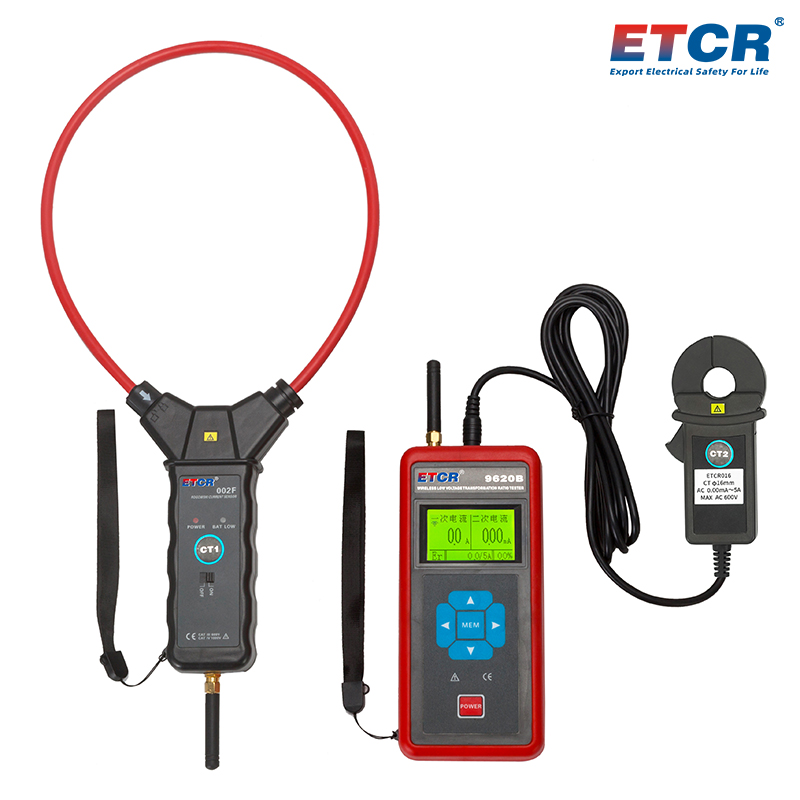

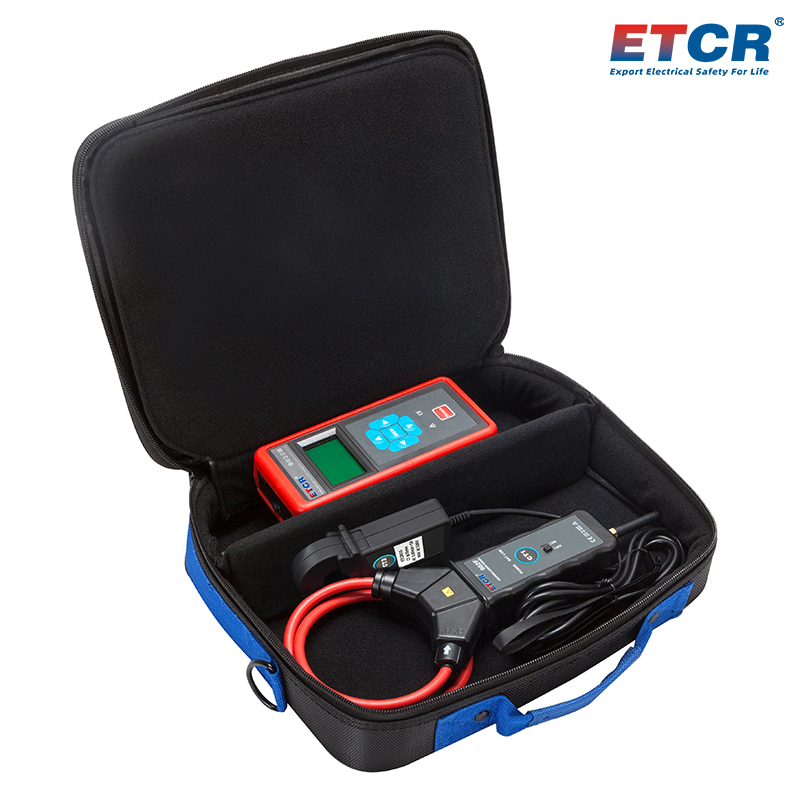

ETCR9620B Wireless Low Voltage CT Turn Ratio Tester, also known as transformer current variable ratio tester, transformer ratio difference tester, and current transformer variable ratio tester, is used to test the current and variable ratio of the first and second circuits of the medium and low-voltage current transformers in the metering device without power failure, and judge the polarity and phase difference.The tester consists of a host, a primary flexible current clamp, and a secondary current clamp.The flexible current clamp is particularly suitable for test sites with small spaces and dense wiring. The flexible current clamp adopts wireless transmission method, with a transmission distance of 100 meters, which is more convenient to use.It provides a new type of power instrument that is safe, accurate and convenient for electricity inspectors.
1. The current clamp is made of high-performance permalloy, adopts magnetic shielding and CT digital integration technology, has strong anti-interference, high accuracy and stable testing.
2. Primary current clamp. Flexible current clamp is particularly suitable for test sites with small spaces and dense wiring. It adopts wireless transmission method with a transmission distance of 100 meters.
3 Storage function, storing 3000 sets of data.

Technical Parameter

Power Supply	7#alkaline dry battery (1.5V×4)
Display Mode	4-digit LCD display, backlight function, suitable for dim places
LCD Size	47mm×28.5mm
Primary Current Clamp Test Accuracy	Range: 0.0A～3000A; resolution: 0.1A; accuracy: ±1%FS
Secondary Current Clamp Test Accuracy	Range: 0.00mA～5A; resolution: 0.01mA; accuracy: ±0.5%FS
Turn Ratio Measurement Range	1～9999
Turn Ratio Resolution	0.1
Angle Difference Test Accuracy	Range: 0～360°; resolution: 1°; accuracy: ±3°
Primary Current Clamp Size	Clamp jaw size: φ200mm; overall size: 200mm×370mm×40mm
Secondary Current Clamp Size	Clamp jaw size: φ16mm; overall size: 110mm×53mm×22mm
Host Size	78mm×165mm×42mm
Weight	About 800g
Memory	3000 groups
Sampling Rate	3 times/second
Battery Voltage	When the battery voltage is lower than 5.2V±0.3V, the low battery voltage symbol is displayed to remind the battery to be replaced.
Overflow Display	Over-range overflow function: ”OL A" symbol display
Automatic Shutdown	About 15 minutes
Wireless Transmission Distance	100m
Insulation Strength	AC3700V/rms between the clamp core and the housing
Working Temperature & Humidity	-10℃～50℃; below 70%RH
Storage Temperature & Humidity	-10℃～60℃; below 70%RH

Model comparison

Product Picture	Product Model Name	Line Voltage Level	Primarary Current Range	Secondary Current Range	Wireless Distance	Turn Ratio Range	Angle Difference Test	Others
	ETCR9500B Wireless High Voltage CT Turn Ratio Tester	≤35kV	0.0A ～800A	0.00mA～5A	100m	1～9999	--
	ETCR9500C-016 Three-Channel Wireless High Voltage CT Turn Ratio Tester	≤35kV	0.0A ～800A	0.00mA～5A	100m	1～9999	--	Simultaneous measurement of 3 channels secondary currents
	ETCR9500C-030 Three-Channel Wireless High Voltage CT Turn Ratio Tester	≤35kV	0.0A ～800A	0.00mA～10A	100m	1～9999	--	Simultaneous measurement of 3 channels secondary currents
	ETCR9550B Wireless High/Low Voltage CT Turn Ratio Tester	≤35kV	0.0A ～800A /3000A	0.00mA～5A	100m	1～9999	Yes
	ETCR9570 Multifunctional High/Low Voltage CT Turn Ratio Tester	≤35kV	0.0A～800A/3000A	0.00mA～10A	100m	1～9999	Yes	Harmonics/Voltage/Power measurement, Bluetooth
	ETCR9600 Low Voltage CT Turn Ratio Tester	380V/220V	0.0A～800A	0.00mA～5A	--	1～9999	Yes
	ETCR9620 Low Voltage CT Turn Ratio Tester	380V/220V	0.0A～3000A	0.00mA～5A	--	1～9999	Yes
	ETCR9620B Low Voltage CT Turn Ratio Tester	380V/220V	0.0A～3000A	0.00mA～5A	100m	1～9999	--
