ETCR9620 Low Voltage CT Turn Ratio Tester

Main Functions
It is used for current, variable ratio, angle difference testing, polarity and phase difference judgment of the first and second circuits of low-voltage current transformers.
Primary current clamp range: 0.00A~800A
Secondary current range: 0.00mA~5A
Variable ratio measurement range: 1~9999
Angle difference range: 0~360°
Storage function: store 3000 sets of data
    Product Introduction

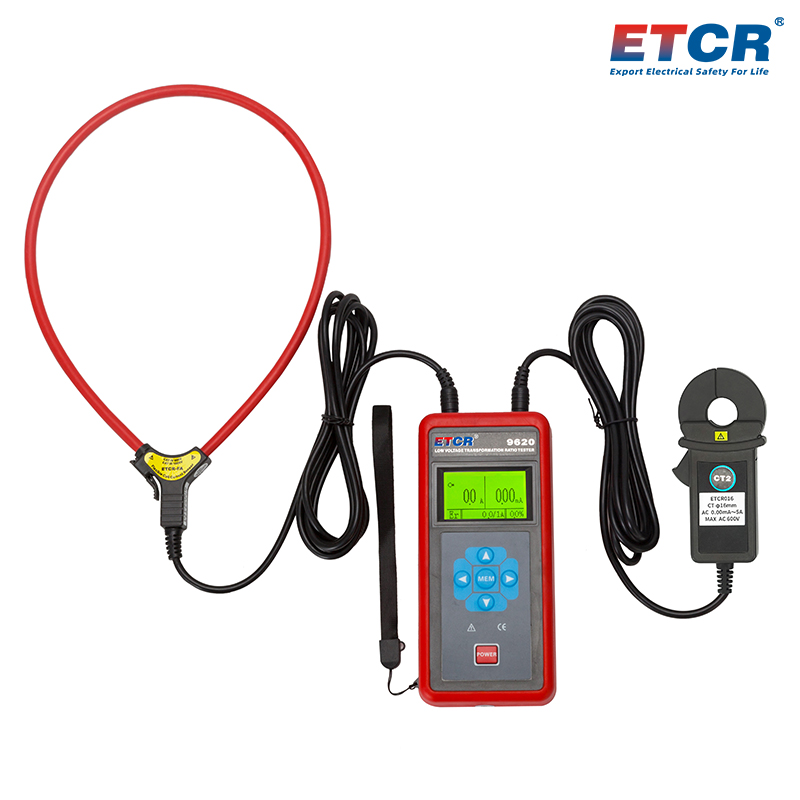

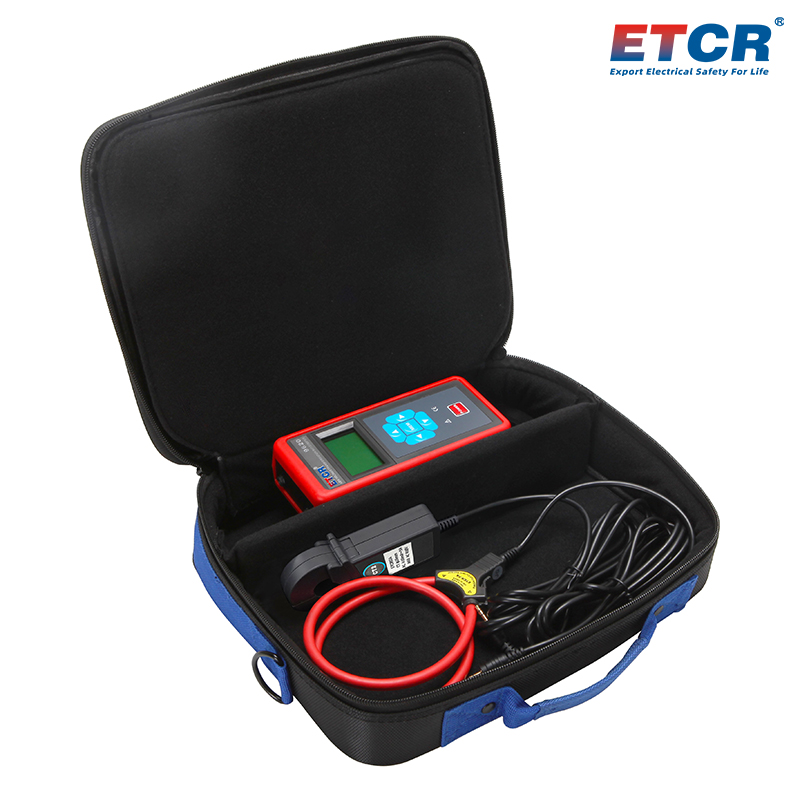

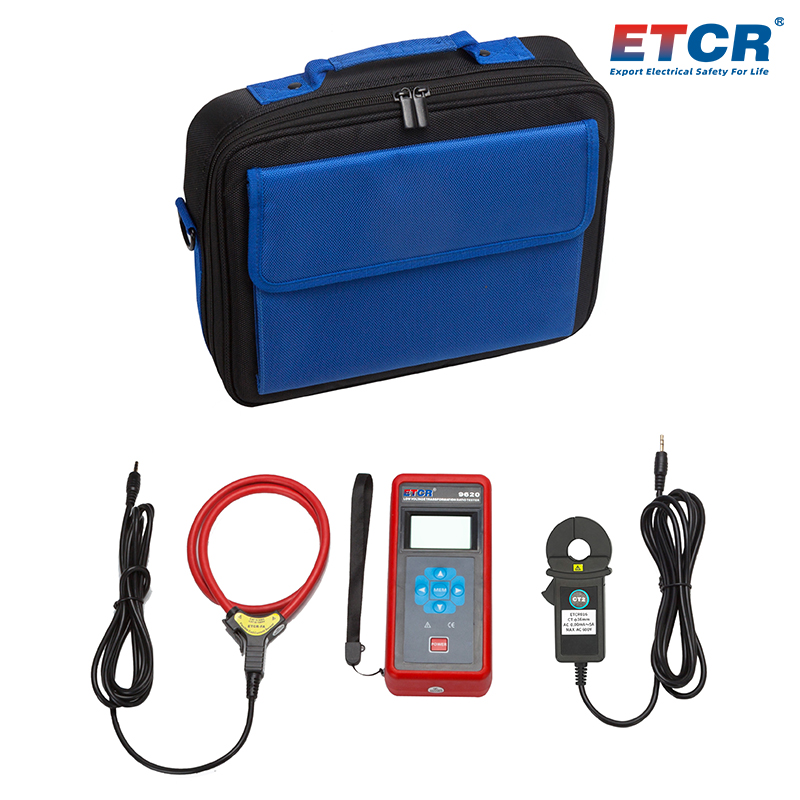

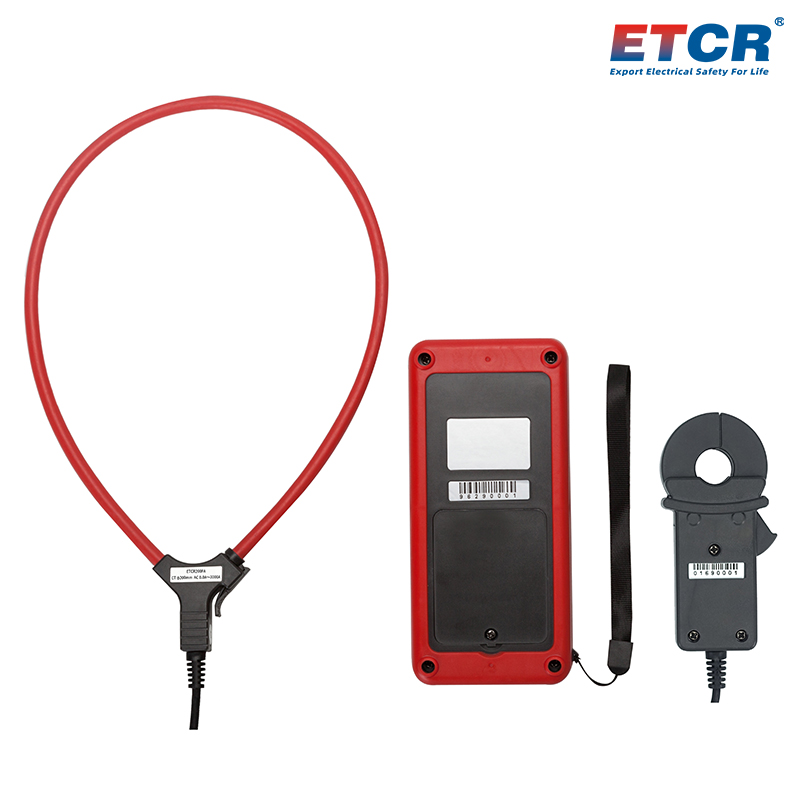

    ETCR9620 Low Voltage CT Turn Ratio Tester, also known as transformer current variable ratio tester, transformer ratio difference tester, and current transformer variable ratio tester, is used to test the current, variable ratio, and angle difference of the first and second circuits of the medium and low-voltage current transformers in the metering device without power-off, and judge the polarity and phase difference.The tester consists of a host, a primary flexible current clamp, and a secondary current clamp. The flexible current clamp is particularly suitable for test sites with small spaces and dense wiring.It provides a new type of power instrument that is safe, accurate and convenient for electricity inspectors.
    1. The current clamp is made of high-performance permalloy, adopts magnetic shielding and CT digital integration technology, has strong anti-interference, high accuracy and stable testing.
    2. The use of flexible current pliers for primary current pliers is particularly suitable for test sites with small spaces and dense wiring.
    3. Storage function, storing 3000 sets of data.
    Technical Parameter
    Power Supply 7#alkaline dry battery (1.5V×4)
    Display Mode 4-digit LCD display, backlight function, suitable for dim places
    LCD Size 47mm×28.5mm
    Primary Current Clamp Test Accuracy Range: 0.0A~3000A; resolution: 0.1A; accuracy: ±1%FS
    Secondary Current Clamp Test Accuracy Range: 0.00mA~5A; resolution: 0.01mA; accuracy: ±0.5%FS
    Turn Ratio Measurement Range 1~9999
    Turn Ratio Resolution 0.1
    Angle Difference Test Accuracy Range: 0~360°; resolution: 1°; accuracy: ±3°
    Primary Current Clamp Size Clamp jaw size: φ200mm; overall size: 200mm×245mm×13mm
    Secondary Current Clamp Size Clamp jaw size: φ16mm; overall size: 110mm×53mm×22mm
    Host Size 78mm×165mm×42mm
    Weight About 800g
    Memory 3000 groups
    Sampling Rate 3 times/second
    Battery Voltage When the battery voltage is lower than 5.2V±0.3V, the low battery voltage symbol is displayed to remind the battery to be replaced.
    Overflow Display Over-range overflow function: ”OL A" symbol display
    Automatic Shutdown About 15 minutes
    Insulation Strength AC3700V/rms between the clamp core and the housing
    Working Temperature & Humidity -10℃~50℃; below 70%RH
    Storage Temperature & Humidity -10℃~60℃; below 70%RH
    Model comparison
    Product Picture Product Model Name Line Voltage Level Primarary Current Range Secondary Current Range Wireless Distance Turn Ratio Range Angle Difference Test Others
    ETCR9500B Wireless High Voltage CT Turn Ratio Tester ≤35kV 0.0A ~800A 0.00mA~5A 100m 1~9999 --
    ETCR9500C-016 Three-Channel Wireless High Voltage CT Turn Ratio Tester ≤35kV 0.0A ~800A 0.00mA~5A 100m 1~9999 -- Simultaneous measurement of 3 channels secondary currents
    ETCR9500C-030 Three-Channel Wireless High Voltage CT Turn Ratio Tester ≤35kV 0.0A ~800A 0.00mA~10A 100m 1~9999 -- Simultaneous measurement of 3 channels secondary currents
    ETCR9550B Wireless High/Low Voltage CT Turn Ratio Tester ≤35kV 0.0A ~800A /3000A 0.00mA~5A 100m 1~9999 Yes
    ETCR9570 Multifunctional High/Low Voltage CT Turn Ratio Tester ≤35kV 0.0A~800A/3000A 0.00mA~10A 100m 1~9999 Yes     Harmonics/Voltage/Power measurement, Bluetooth
    ETCR9600 Low Voltage CT Turn Ratio Tester 380V/220V 0.0A~800A 0.00mA~5A -- 1~9999 Yes
    ETCR9620 Low Voltage CT Turn Ratio Tester 380V/220V 0.0A~3000A 0.00mA~5A -- 1~9999 Yes
    ETCR9620B Low Voltage CT Turn Ratio Tester 380V/220V 0.0A~3000A 0.00mA~5A 100m 1~9999 --
