ETCR1560A Multifunction Statellite Remote Wireless Phase Detector

Main Functions

It is used for remote nuclear phase and short-range nuclear phase, phase testing, phase sequence judgment and power verification in high-voltage lines, central cabinets, ring network cabinets and other places.
High voltage line core phase voltage: AC 10V～500kV
High-voltage line satellite core-to-core distance: 5000m
Ordinary core-to-core separation of high-voltage lines: 200m
Core phase voltage of ring network cabinet: AC 1V～600V
Ring network cabinet satellite core distance: 5000m
Ordinary core-to-core distance of ring network cabinet: 30m
Central cabinet core phase voltage: AC 10kV～35kV
Distance between the core of the central cabinet: 20m
Phase range: 0°～360°
Frequency range: 45.0Hz～65.0Hz
Storage function: 140 groups of data storage
Voice broadcast function
USB communication interface
Rechargeable lithium battery

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR1560A Multifunction Statellite Remote Wireless Phase Detector is used for remote nuclear phase and short-range nuclear phase, phase testing, phase sequence judgment and power verification in high-voltage lines, central cabinets, ring network cabinets and other places. The instrument has long-distance satellite timing nuclear phase and ordinary short-range nuclear phase functions, and is equipped with dedicated high-voltage lines, central cabinets, and ring network cabinets. Nuclear phase detectors, fully realize automatic nuclear phase from 1V to 500kV voltage, easy to operate, time-saving and fast.
The instrument adopts satellite precision timing technology to realize the long-distance nuclear phase, the short-range nuclear phase, the basement nuclear phase, and the underground nuclear phase. The timing accuracy is less than 20nS, and the joint timing is realized to ensure the accuracy of the nuclear phase.When the line voltage level exceeds 110kV, a non-contact nuclear phase must be used. During the nuclear phase, the metal probe hook of the detector is gradually approached to the wire. When the electric field signal is sensed, the nuclear phase can be completed without direct contact with the high-voltage wire, which is safe and fast.

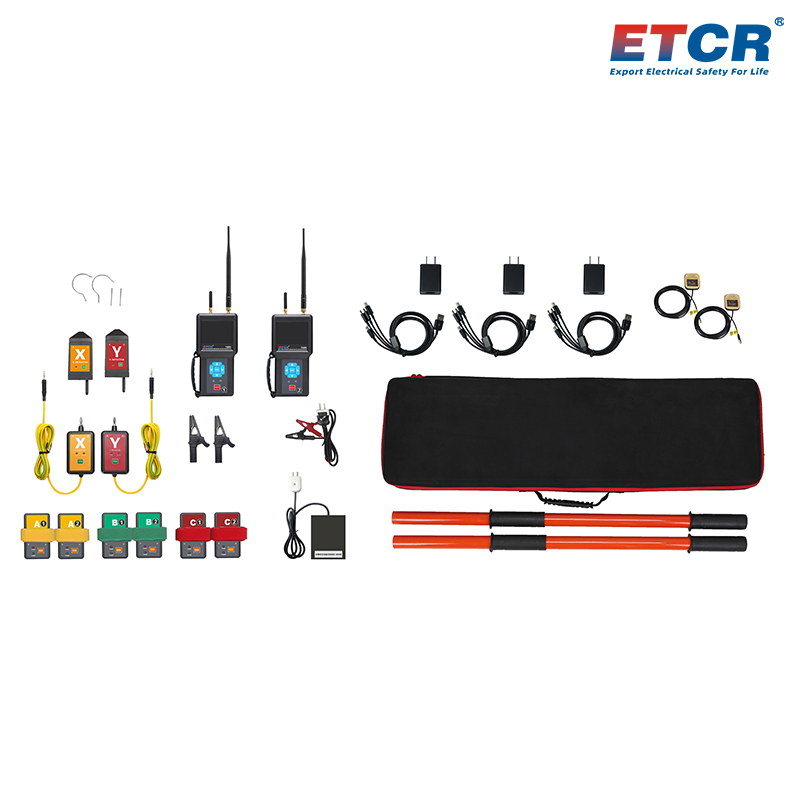

ETCR1560A Multifunction Statellite Remote Wireless Phase Detector consists of a host, a high-voltage line detector, a central cabinet detector, a ring network cabinet detector, a telescopic insulating rod, and monitoring software.Two mainframes are required for the remote nuclear phase of the satellite, and one mainframe is used for the short-range nuclear phase.The host adopts a 3.5-inch true-color LCD screen, which can display phase, frequency, phase sequence and nuclear phase results on the same screen; vector diagram indication and phase indication are clear and intuitive; it has voice prompt functions such as “normal X signal, normal Y signal, in-phase, out-of-phase” to make the test easier and easier.Storage function, can store 140 sets of data, USB communication interface, store data and upload to the computer for historical data reading, viewing, saving, printing, etc.
1. A fully functional nuclear phase meter with two nuclear phase modes: satellite remote nuclear phase mode and short-range ordinary nuclear phase mode, which can be used for nuclear phase testing in various occasions.
2. Equipped with 3 types of nuclear phase detectors, it can be handy for various nuclear phase occasions.
3. Voice broadcast function, voice prompt: “X signal is normal, Y signal is normal, Z signal is normal, positive phase sequence, inverse phase sequence”.
4. Using a 3.5-inch LCD color screen, the phase, frequency, phase sequence, and nuclear phase results can be displayed on the same screen, and the vector diagram indication and phase indication are clear and intuitive.
5. The instrument has the functions of power verification and voltage level display.
6. Storage function, 140 groups of data storage.
7. USB communication interface.
8. Rechargeable lithium battery

Technical Parameter

1.High Voltage Line Phase Detecting

Detector Power Supply	3.7V,1000mAh Rechargeable lithium battery
Phase Detecting Mode	Contact mode phase detecting: circuit line ≤110kV Non-Contact mode phase detecting: when ≥10KV line voltage≤110kV, can phase detecting on the cable insulation skin, when the line voltage > 110kV must adopt non-contact mode to testing
Phase Detecting Voltage	AC 10V～500kV
Statelite Phase Detecting Distance	5000m
Normal Phase Detecting Distance	200m
Detector Size	130mmX65mmX45mm
Detector Weight	156gX2 PCS (include battery)
Insulation Rod Length	4300mm

2.Ring Main Unit Phase Detecting

Detector Power Supply	3.7V,1000mAh Rechargeable lithium battery
Phase Detecting Mode	Contact mode phase detecting
Phase Detecting Voltage	AC 1V～600V
Statelite Phase Detecting Distance	5000m
Normal Phase Detecting Distance	30m
Detector Size	120mmX54mmX30mm
Detector Weight	123gX2 PCS (include battery)

3.Metalclad Withdraw Phase Detecting

Detector Power Supply	3.7V,1000mAh Rechargeable lithium battery
Phase Detecting Mode	Non-Contact mode phase detecting
Phase Detecting Voltage	AC 10kV～35kV
Phase Detecting Distance	20m
Detector Size	80mmX46mmX26mm
Detector Weight	71gX6 PCS (include battery)

4.Other Techinical Parameters

Host Power Supply	3.7V,2600mAh Rechargeable lithium battery
LCD Size	3.5 inch colorful screen; display area:71mmX53mm
Phase Qualitative	Same phase: -20°~20°; Out of phase:100°~140° and 220°~260°
Range	Test phase: 0°～360°
Range	Test frequency: 45.0Hz～65.0Hz
Accuracy	Phase: ≤±8°
Accuracy	Frequency: ≤±2Hz
Resolution	Phase: 1° Frequency: 0.1Hz
Transmitting Frequency	433MHz
Phase Indication	Vectogram and digital display
Power Indication	The detector with the green power indicator
Electricity Testing Indication	Du-du-du" buzzer sound
Voltage Grade Display Range	0.4kV～110kV
Display Speed	2 times/second
Satellite timing Accuracy	Less than 20nS
Search Satellite Indication	When searching satellite, dynamic display"----" symbol
Search Satellite Time	The first search statelite time is about 2 minutes, the second boot after the search statelite is successful, the search statelite time is about 15 seconds, and the subsequent hot start is about 1 second.
No Satellite Signal Continue Working Time	After the satellite signal search is successful, can synchronous continuephase detecting 1hours which can meet the requirements of the basementand the electric room indoor phase detecting.
Memory	Can store 140 groups. Short-distance phase detecting mode: 40 groups of high-voltage line phase detecting, 40 groups of round grid phase detecting, 20 groups of central phase detecting Satellite long-distance mode: 20 groups of high-voltage line nuclear phase (10 records per group), 20 groups of ring network cabinet nuclear phase (10 records per group)
Automatic Shutdown	The short-distance phase detecting mode is turned on for about 15 minutes; the satellite remote phase detecting mode is turned on for about 45 minutes.
Battery Voltage	The host battery has a 4-cell power display. When there is only 1 cell or 0 cells, please charge; when the indicator light of the detector flashes quickly, it means that the battery voltage is low. Please charge.
Rated Current	Detector: 30mA max; host: 150mA max
Host Size	195mmX100mmX45mm
Host Weight	550gX2 PCS (include battery)
Instrument Weight	7.67kg (include accessories)

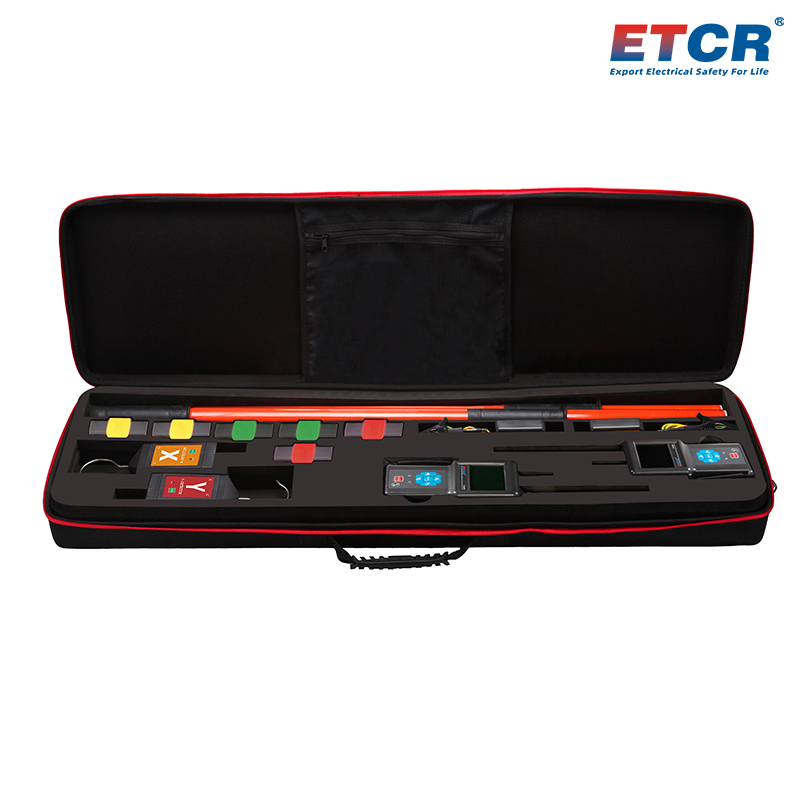

Instrument Case Size	1060mmX300mmX100mm
Insulation Test	After the insulating rod is stretched, both ends: AC 220kV/rms host, detector: AC3700V/rms (between exposed metal and plastic shell)
External Interference	No extra-strong electromagnetic field; No 433MHz same frequency interference
Suitable Safety Standard	It meets the standard of GB13398-92,GB311.1-311.6-8, 3DL408-91, and theational power industry standard requestment (general technical conditionsL/T 971-2017 for 1kV ~ 35kV portable phase detecting devices for live working).
Working Temperature & Humidity	-10℃～40℃；below 80%RH
Store Temperature & Humidity	-10℃～60℃；below 70%RH

Model comparison

Product Picture	Product Model Name	Phase Detecting Voltage	Voltage Level Display	Statelite Timing Function	Phase Detecting Distance	Catolog Of Power Supply	Others
	ETCR1050 Wireless High Voltage Phase Sequence Detector	10V~500kV	Yes	--	200m	Lithium Battery	Phase Sequence Testing & Phase Detecting
	ETCR1500 Wireless High Voltage Phase Detector	10V~500kV	Yes	--	200m	Lithium Battery
	ETCR1500A Remote Wireless High Voltage Phase Detector	10V~500kV	Yes	Yes	5km	Lithium Battery
	ETCR1500B Satellite Remote High Voltage Phase Detector	10V~500kV	Yes	Yes	500km	Lithium Battery
	ETCR1520 Ring Main Unit Wireless Phase Detector	1V~600V	Yes	--	30m	Lithium Battery
	ETCR1540 Metalclad Withdraw Switchgear Phase Detecor	10kV/35kV	Yes	--	20m	Lithium Battery
	ETCR1560A Multifunction Statellite Remote Wireless Phase Detector	10V~500kV	Yes	Yes	20m/30m/200m/500km	Lithium Battery	Comprehensive
