ETCR1560 Multifunction Wireless High Voltage Phase Detector

Main Functions

Used for nuclear phase, phase test, frequency test, phase sequence judgment and power inspection of power lines, central cabinets, ring network cabinets or substations below 500kV
High voltage line core phase voltage: 10V～500kV
High-voltage line core-to-core distance: 200m
Core phase voltage of ring network cabinet: AC 1V～600V
Distance between the core of the ring network cabinet: 30m
Central cabinet core phase voltage: 10kV～35kV
Distance between the core of the central cabinet: 20m
Phase range: 0°～360°
Frequency range: 45.0Hz～65.0Hz
Storage function: 300 sets of data storage
Voice broadcast function
USB communication interface
Rechargeable lithium battery

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR1560 Multifunction Wireless High Voltage Phase Detectoris used for nuclear phase, phase test, frequency test, phase sequence judgment and power verification of power lines below 500kV, central cabinets, ring network cabinets or substations. The instrument is equipped with detectors for high-voltage lines, ring network cabinets, and central cabinets to cope with various nuclear phase occasions.
For the nuclear phase of a high-voltage line, when the line voltage exceeds 110kV, a non-contact nuclear phase must be used. During the nuclear phase, the metal probe hook of the detector is gradually approached to the wire. When the electric field signal is sensed, the nuclear phase can be completed without direct contact with the high-voltage wire, which is safe and fast.

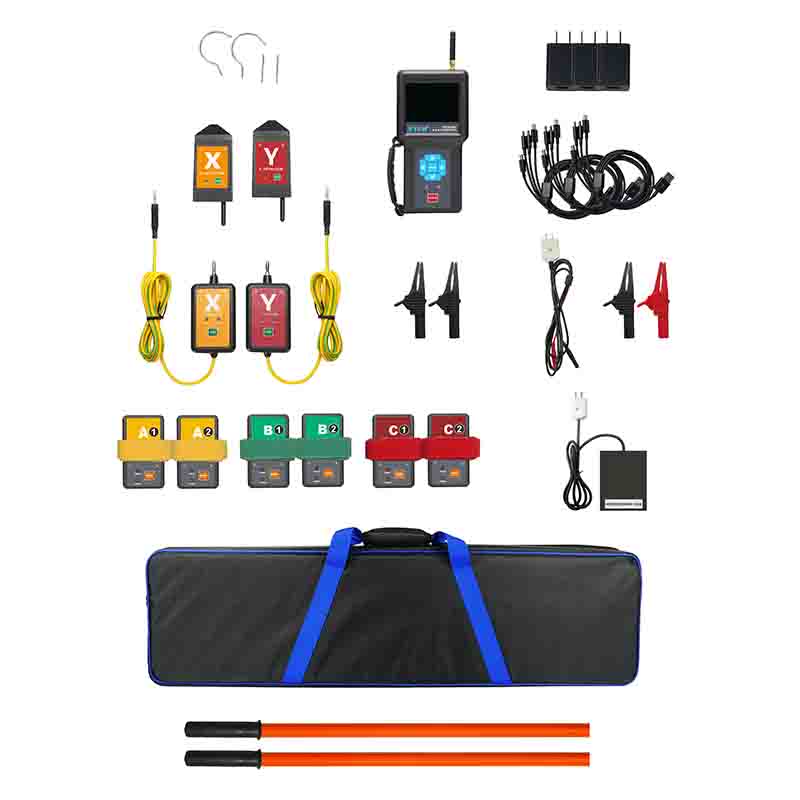

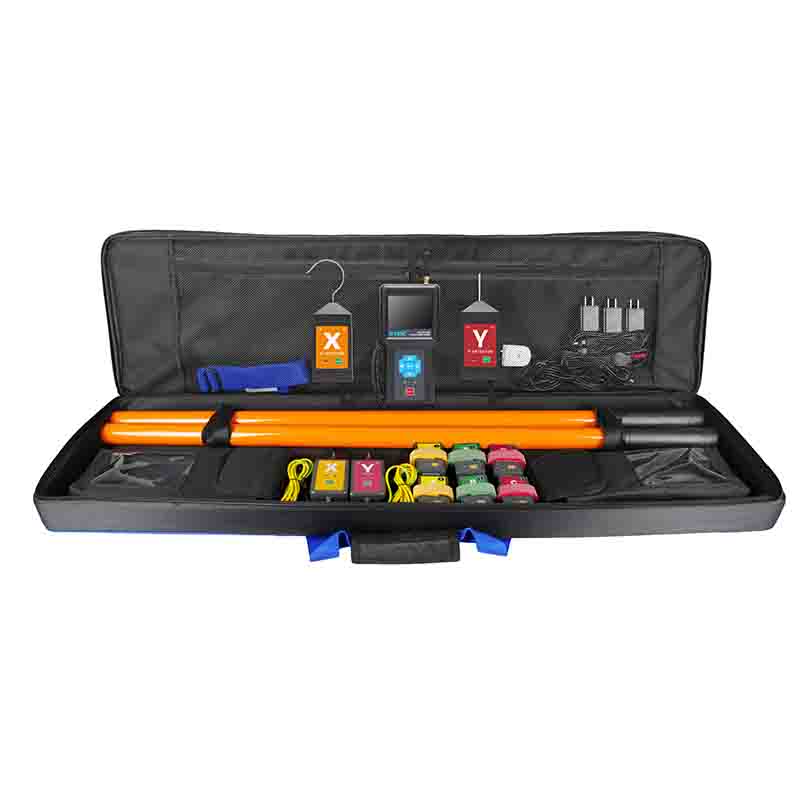

ETCR1560 Multifunction Wireless High Voltage Phase Detector consists of a host, a high-voltage line detector, a central cabinet detector, a ring network cabinet detector, a telescopic insulating rod, data upload software, USB communication cable, etc. The host adopts a 3.5-inch true-color LCD screen, which can display the phase, frequency, phase sequence and nuclear phase results on the same screen. The vector diagram indication and phase indication are clear and intuitive; it has voice prompt functions such as “normal X signal, normal Y signal, in-phase, out-of-phase”, as well as power inspection and line voltage level display functions.Storage function, can store 200 sets of data, USB communication interface, store data and upload to the computer for historical data reading, viewing, saving, printing, etc.
1. Configure 3 types of nuclear phase detectors, which are handy for various nuclear phase occasions.
2. Voice broadcast function, voice prompt: “X signal is normal, Y signal is normal, Z signal is normal, positive phase sequence, inverse phase sequence”.
3. Using a 3.5-inch LCD color screen, the phase, frequency, phase sequence, and nuclear phase results can be displayed on the same screen, and the vector diagram indication and phase indication are clear and intuitive.
4. The instrument has the functions of power inspection and voltage level display.
5. Storage function, 300 sets of data storage.
6. USB communication interface.
7. Rechargeable lithium battery

Technical Parameter

1.High Voltage Line Phase Detecting

Detector Power Supply	3.7V, 600mAh Rechargeable lithium battery
Phase Detecting Mode	Contact mode phase detecting: circuit line ≤110kV Non-Contact mode phase detecting: when ≥10KV line voltage≤110kV, can phase detecting on the cable insulation skin, when the line voltage > 110kV must adopt non-contact mode to testing
Phase Detecting Voltage	AC 10V～500kV
Phase Detecting Distance	200m
Detector Size	130mm×65mm×45mm
Detector Weight	2 PCS, 400g
Insulation Rod Length	4300mm

2.Ring Main Unit Phase Detecting

Detector Power Supply	3.7V,1000mAh Rechargeable lithium battery
Phase Detecting Mode	Contact mode phase detecting
Phase Detecting Voltage	AC 1V～600V
Phase Detecting Distance	30m
Detector Size	120mm×54mm×30mm
Detector Weight	2 PCS，260g

3.Metalclad Withdraw Phase Detecting

Detector Power Supply	3.7V,1000mAh Rechargeable lithium battery
Phase Detecting Mode	Non-Contact mode phase detecting
Phase Detecting Voltage	AC 10kV～35kV
Phase Detecting Distance	20m
Detector Size	80mm×46mm×26mm
Detector Weight	6 PCS, 420g

4.Other Techinical Parameters

Host Power Supply	3.7V,2600mAh Rechargeable lithium battery
LCD Size	3.5 inch colorful screen; display area:71mmx53mm
Phase Qualitative	Same phase: -20°~20°; Out of phase:100°~140° and 220°~260°
Range	Test phase: 0°～360°
Range	Test frequency: 45.0Hz～65.0Hz
Accuracy	Phase: ≤±8°
Accuracy	Frequency: ≤±2Hz
Resolution	Phase: 1° Frequency: 0.1Hz
Transmitting Frequency	433MHz
Phase Indication	Vectogram and digital display
Power Indication	The detector with the green power indicator
Electricity Testing Indication	Du-du-du" buzzer sound
Voltage Grade Display Range	0.4kV～110kV
Display Speed	2 times/second
Memory	300 groups (power-down or battery replacement will not lose data) 100 groups of high-voltage line core phase, 100 groups of ring network cabinet core phase, 100 groups of central cabinet core phase
Automatic Shutdown	15 minutes after boot up, the meter shuts down automatically without any operation
Battery Voltage	The host battery has a 4-cell power display. When there is only 1 cell or 0 cells, please charge; when the indicator light of the detector flashes quickly, it means that the battery voltage is low. Please charge.
Rated Current	Detector: 30mA max; Host: 150mA max
Host Size	195mm×100mm×45mm
Host Weight	350g
Instrument Case Size	1060mm×300mm×100mm
Instrument Weight	8.38kg (include insulating rod)
Insulation Test	After the insulating rod is stretched, both ends: AC 220kV/rms host, detector: AC3700V/rms (between exposed metal and plastic shell)
External Interference	No extra-strong electromagnetic field; No 433MHz same frequency interference
Suitable Safety Standard	It meets the standard of GB13398-92,GB311.1-311.6-8, 3DL408-91, and theational power industry standard requestment (general technical conditionsL/T 971-2017 for 1kV ~ 35kV portable phase detecting devices for live working).
Working Temperature & Humidity	-10℃～40℃；below 80%RH
Store Temperature & Humidity	-10℃～60℃；below 70%RH

Model comparison

Product Picture	Product Model Name	Phase Detecting Voltage	Voltage Level Display	Statelite Timing Function	Phase Detecting Distance	Catolog Of Power Supply	Others
	ETCR1050 Wireless High Voltage Phase Sequence Detector	10V~500kV	Yes	--	200m	Lithium Battery	Phase Sequence Testing & Phase Detecting
	ETCR1500 Wireless High Voltage Phase Detector	10V~500kV	Yes	--	200m	Lithium Battery
	ETCR1500A Remote Wireless High Voltage Phase Detector	10V~500kV	Yes	Yes	5km	Lithium Battery
	ETCR1500B Satellite Remote High Voltage Phase Detector	10V~500kV	Yes	Yes	500km	Lithium Battery
	ETCR1520 Ring Main Unit Wireless Phase Detector	1V~600V	Yes	--	30m	Lithium Battery
	ETCR1540 Metalclad Withdraw Switchgear Phase Detecor	10kV/35kV	Yes	--	20m	Lithium Battery
	ETCR1560A Multifunction Statellite Remote Wireless Phase Detector	10V~500kV	Yes	Yes	20m/30m/200m/500km	Lithium Battery	Comprehensive
