ETCR3670 Transformer DC Resistance Tester

Main Functions
Used for measurement of transformer winding DC resistance
Resistance measurement range: 200.0uΩ~50.00kΩ
Test current gear: AUTO, 10A, 5A, 1A, 100mA, 10mA, 1mA
Output Voltage: 24V MAX
Battery: AC 220V, built-in lithium battery
75℃ temperature conversion resistance calculation function
Alarm function: setting alarm threshold.
Memory: data storage 600 groups.
Built-in printer
Bluetooth communication
USB communication interface
    Product Introduction
    ETCR3670 Transformer DC Resistance Tester is used to quickly measure the DC resistance of various transformer windings. Semi-fnished products and finished product factory test, installation, handover test and preventive test of the power department in transformer manufacturing are mandatory test items, and the tester can effectively find the material selection, welding, loose connection parts, lack of shares, broken wires and other manufacturing defects and hidden dangers after operation of transformer windings.

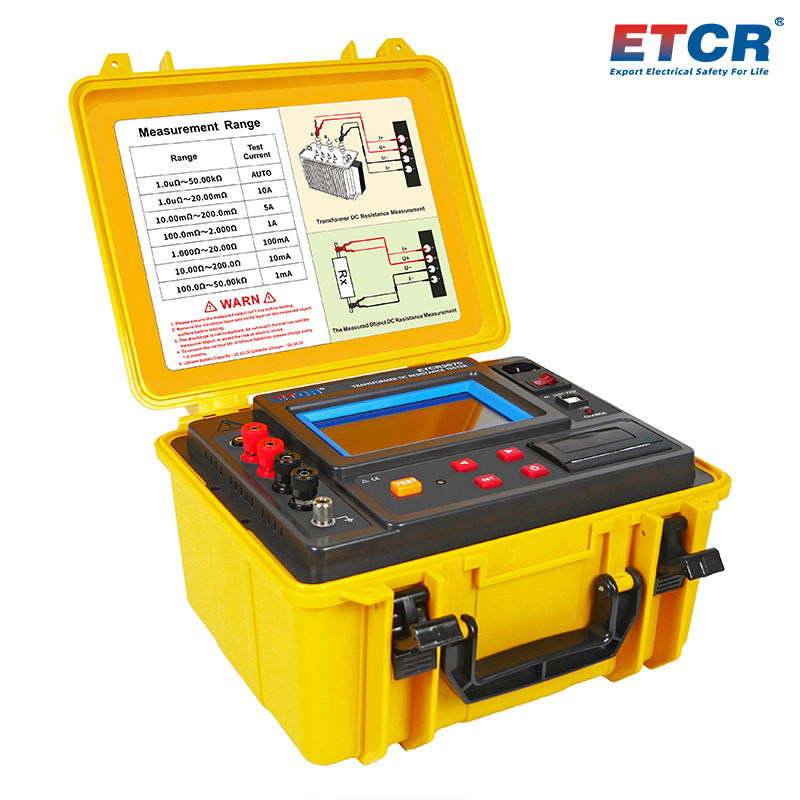

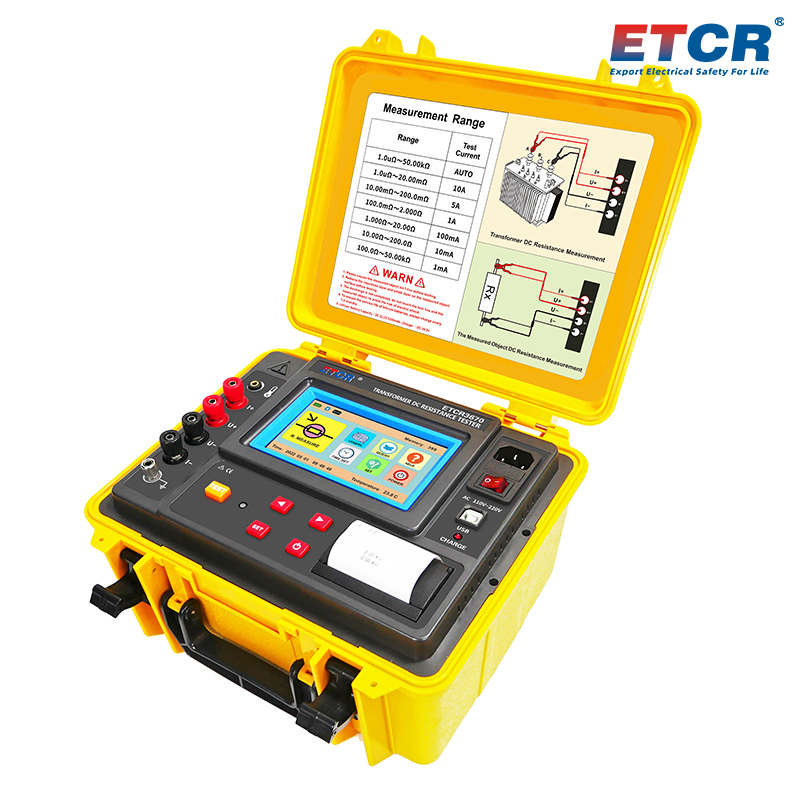

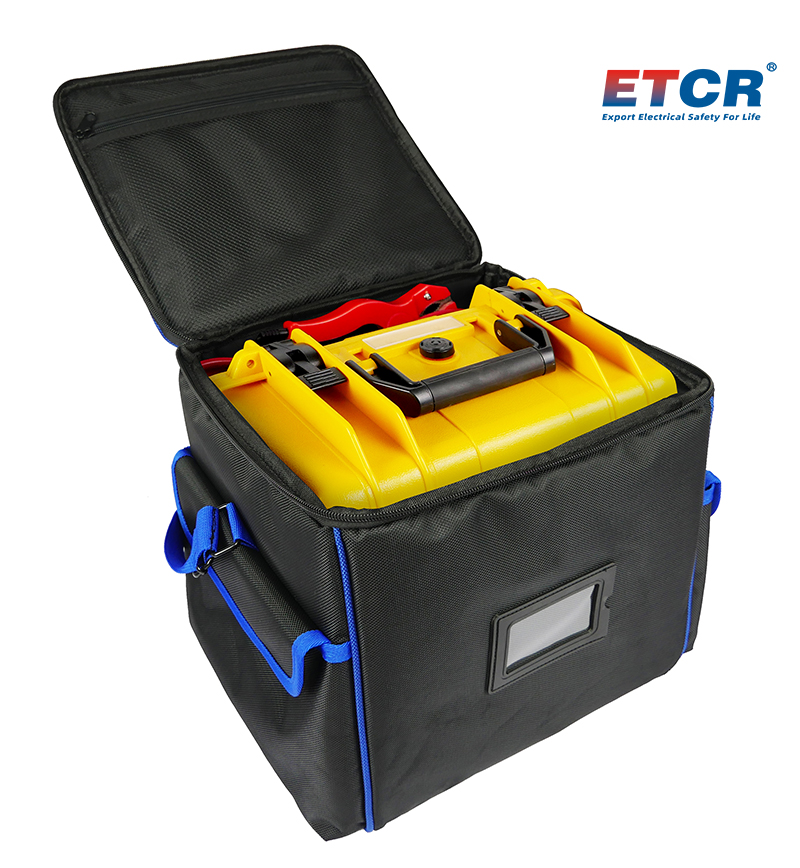

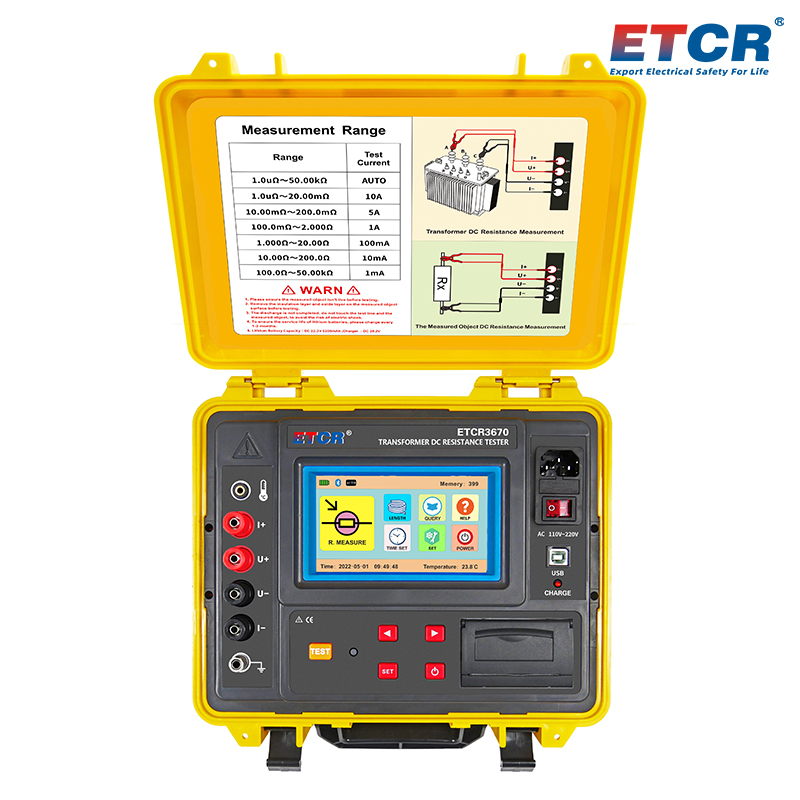

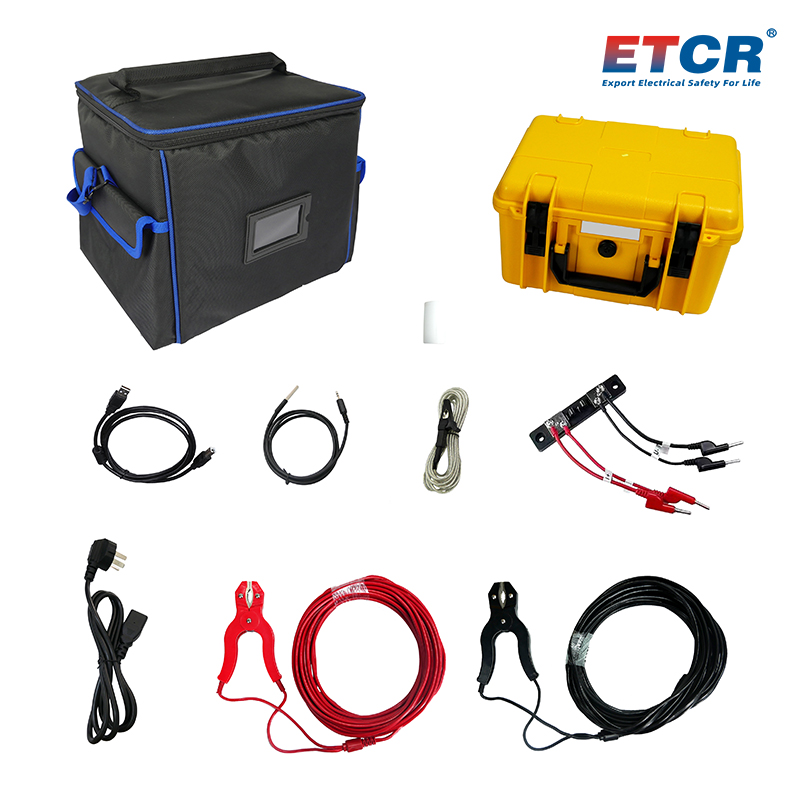

    ETCR3670 Transformer DC Resistance Tester consist of host, test line, temperature sensor and USB communication line, etc. The instrument adopt with the microprocessor technology and precision 4-wire method to test, accurate and reliable. The instrument with two power supply mode AC 200V and large capacity lithium battery, two measurement mode automatic measurement and manual measurement. The instrument has the function of converting resistance at 75℃ to compensate for the temperature and material of the test product. The instrument adopt with 5 inch full-color high definition touch screen with backlight adjustment function, which is clearly visible under strong light, also equipped with waterproof protective box, which is anti-collision, anti-fall, waterproof, strong, safe and durable. With built-in printer, Bluetooth communication, and USB interface. The instrument has the functions of automatic discharge, alarm, clock and automatic shutdown, etc, which is the ideal tester for quickly measure the DC resistance of the transformer.
    1.Two power supply mode AC 200V and large capacity lithium battery, meet the requirement of user on various occasions.
    2.Two measurement modes, automatic measurement mode: the test current can be automatically selected according to the load. Manual measurement mode: There are 7 gears to test current
    3.Test current gears: AUTO, 10A, 5A, 1A, 100mA, 10mA, 1mA
    4.Max. output voltage is 24V, the max. test current is 10A, fast-speed testing, and it can be applied to transformer measurement.
    5.With discharge function, which is automatically discharged after the test, and the discharge instructions are clear to avoid misoperation.
    6.The function of converting resistance at 75℃ to compensate for the temperature and material of the test product
    7.Alarm function, can setting the resistance alarm threshold.
    8.Memory: data storage 600 groups
    9.5 inch true-color touch screen
    10.Built-in printer
    11.Bluetooth communication function
    12.USB communication interface
    Technical Parameter
    Power Supply AC 220V
    Built-in Lithium Battery DC 22.2V 5200mAh
    Display Mode 5 inch true-color LCD touch screen, resolution 480×854
    Backlight Adjustment Drag the slider to adjust the brightness
    Measurement Range 1.0uΩ~50.00kΩ
    Test Current & Accuracy 200.0uΩ~50.00KΩ       AUTO
    200.0uΩ~20.00mΩ       10A               0.2%FS
    10.00mΩ~200.0mΩ       5A                0.5%FS
    100.0mΩ~2.000Ω        1A                1%FS
    1.00Ω~20.00Ω         >100mA Constant pressure method      1%FS
    10.0Ω~200.0Ω         >10mA Constant pressure method       1%FS
    100Ω~50.00kΩ         >1mA Constant pressure method       1%FS
    Max. Resolution 0.1uΩ
    Test Current Gear AUTO, 10A, 5A, 1A, 100mA, 10mA, 1mA
    Output Voltage 24V MAX
    Measurement Method Precision four-wire method, 2 A/D simultaneous detection
    Measurement Mode Automatic, manual
    Wire Length Test L: ≤9999m
    Standard Wire Length Standard wire length setting range: 1m~200m
    Temperature Measurement Range -55℃~125℃
    Temperature Measurement Accuracy ±0.5℃
    Test Time Sampling AD rate 1 second/time
    Alarm Setting Setting alarm threshold range:1mΩ~2500Ω,the alarm function is not activated at 0Ω
    Alarm Prompt When the test value exceed the set value of the alarm, the buzzer will sound and the alarm will prompt
    Overflow Display Overrange overflow function: digital 999999 overrun display
    Charging Indication The indicator light on the charger light up red when charging, and green when fully charged
    Low Voltage Indication When the battery voltage is lower than DC 22.2V, the battery level symbol is displayed in red, reminding charging in time.
    Memory 600 groups(no data will be lost if the battery is powered down or replaced)
    Data Hold Automatically keep displaying the tested result after each test
    Clock Function 24-hour clock, showing hours, minutes, and seconds
    Calculation Of Reduced Resistance Convert based on the temperature and material of the tested product.
    Discharge Function Automatic discharge after testing, with clear discharge instruction to avoid misoperation
    Automatic Shutdown After setting the automatic shutdown, it will automatically shut down after 15 minutes of no operation
    Host Size 280mm×260mm×160mm
    Weight The instrument: About 3250g (include battery); total weight: about 6.4kg (include accessory)
    Working Temperature & Humidity -10℃~40℃; below 80%RH
    Storage Temperature & Humidity -10℃~60℃; below 70%RH
    Model comparison
    Product Picture Product Model Name Test Current Output Voltage Resistance Range Displayer Power Supply Others
    ETCR3660 DC Resistance Tester 10A 24V 1.0uΩ~50kΩ LCD Screen 22.2V Lithium Battery USB
    Bluetooth
    ETCR3660C HandHeld DC Resistance Tester 10A 16V 1.0uΩ~50kΩ 5 Inch True-Color Touch Screen 16.8V Lithium Battery USB
    Bluetooth
    ETCR3670 Transformer DC

    Resistance Tester
    10A 24V 1.0uΩ~50kΩ 5 Inch True-Color Touch Screen AC220V/22.2V Lithium Battery USB
    Bluetooth
    Printer
    Data download
    Download:
