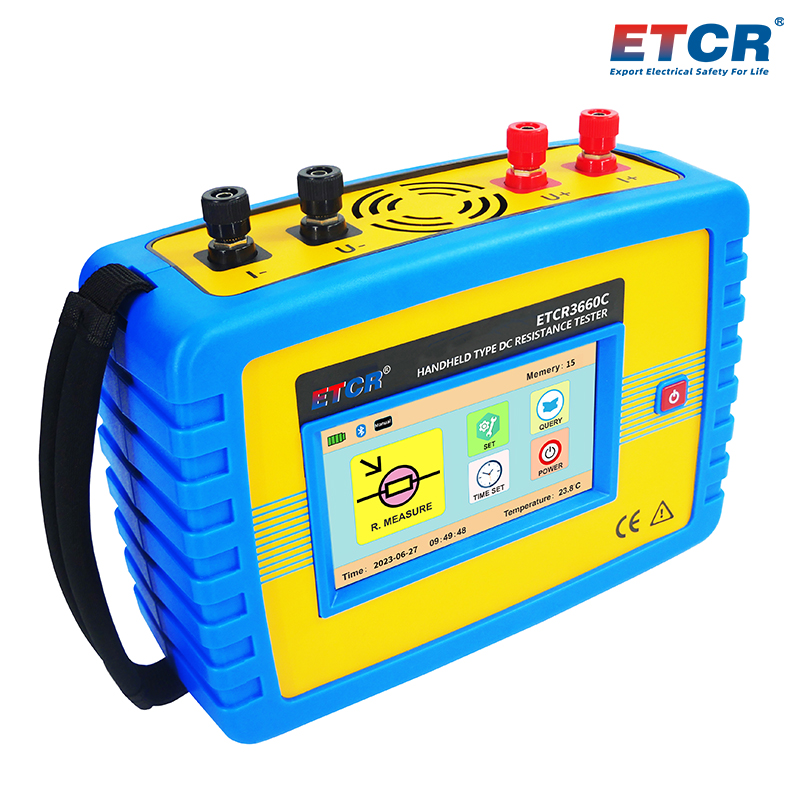

ETCR3660C Handheld DC Resistance Tester

Main Functions

Used for DC resistance measurement
Resistance measurement range: 200.0uΩ~50.00kΩ
Test current gear: AUTO, 10A, 5A, 1A, 100mA, 10mA, 1mA
Output Voltage: 24V MAX
Memory: data storage 600 groups.
Alarm function: setting alarm threshold.
True-color touch screen
Lithium battery

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR3660C Handheld DC Resistance Tester, also known as transformer DC resistance tester, DC low-value resistance tester, which mainly used to measure transformer winding resistance; cable conductor resistance; contact resistance of switches, connectors and relays: metal riveting resistance winding resistance of coil, motor and transducer; connection resistance between metal components; welding point resistance: Battery parallel connection resistance; wire length measurement and calculation, etc. The instrument with small size and light weight, and is equipped with a large-capacity lithium battery pack, which is especially suitable for use on outdoor construction site. lt is widely used in construction quality inspection station, supervision company, construction units, lightning protection companies, electric power departments and ship engine factory, etc.
ETCR3660C Handheld DC Resistance Tester adopt with the microprocessor technology and precision 4-wire method to test, accurate and reliable. The instrument with two measurement modes: automatic measurement and manual measurement. Automatic measurement mode: The instrument automatically select the measurement range and test current gear, manual measurement mode: users can choose their own measurement range and current gear to meet the requirements of user on different occasions, also has the functions of automatic discharge, alarm and automatic shutdown, etc.

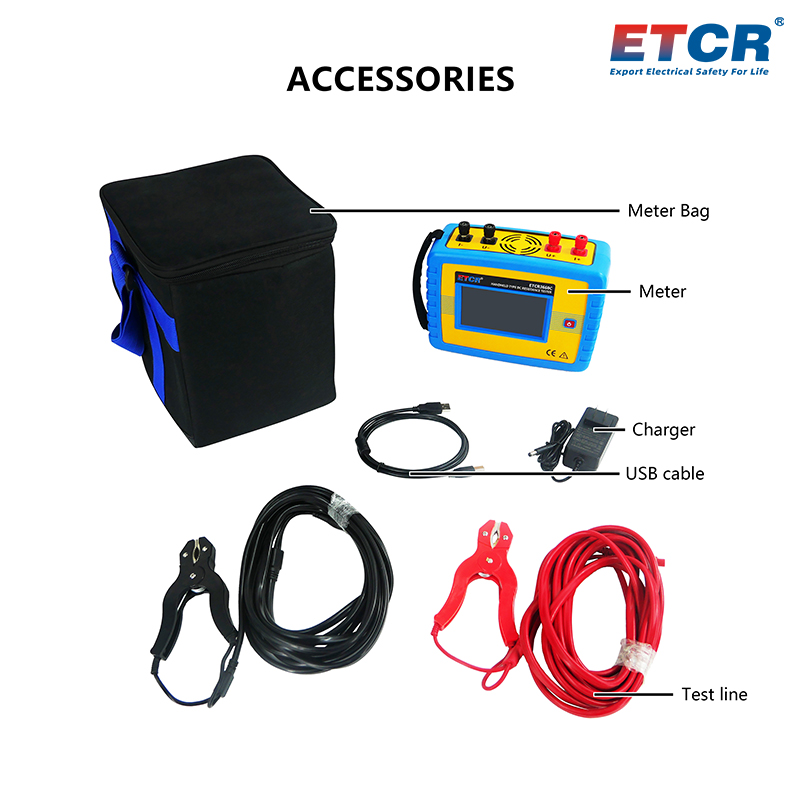

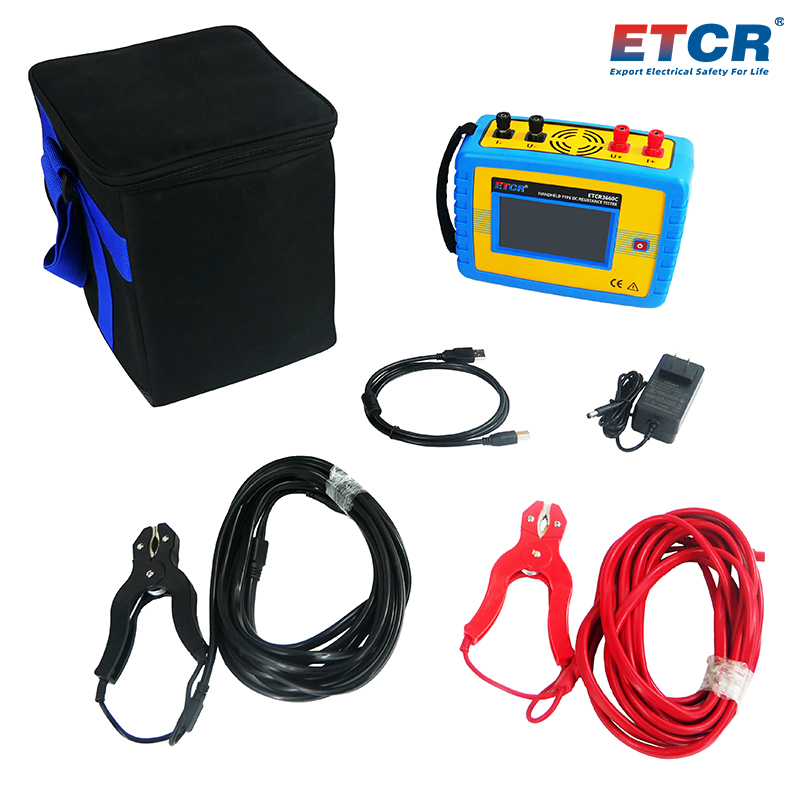

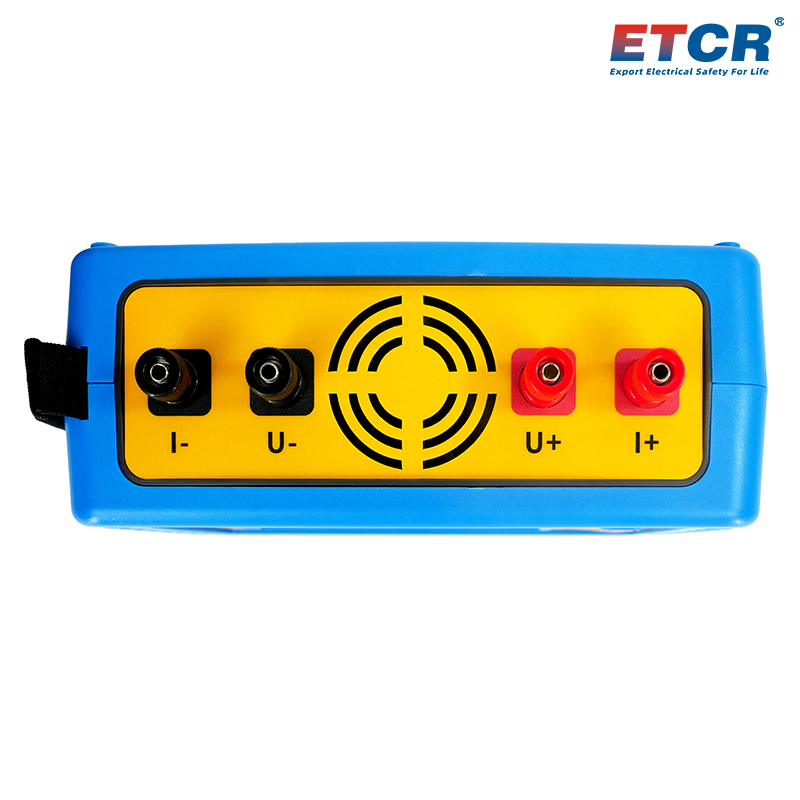

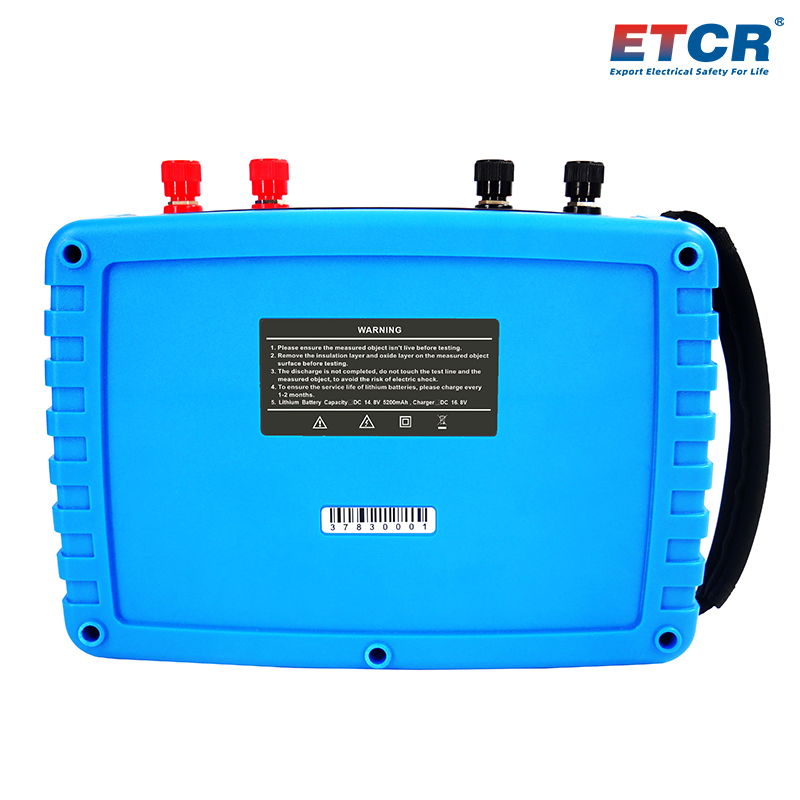

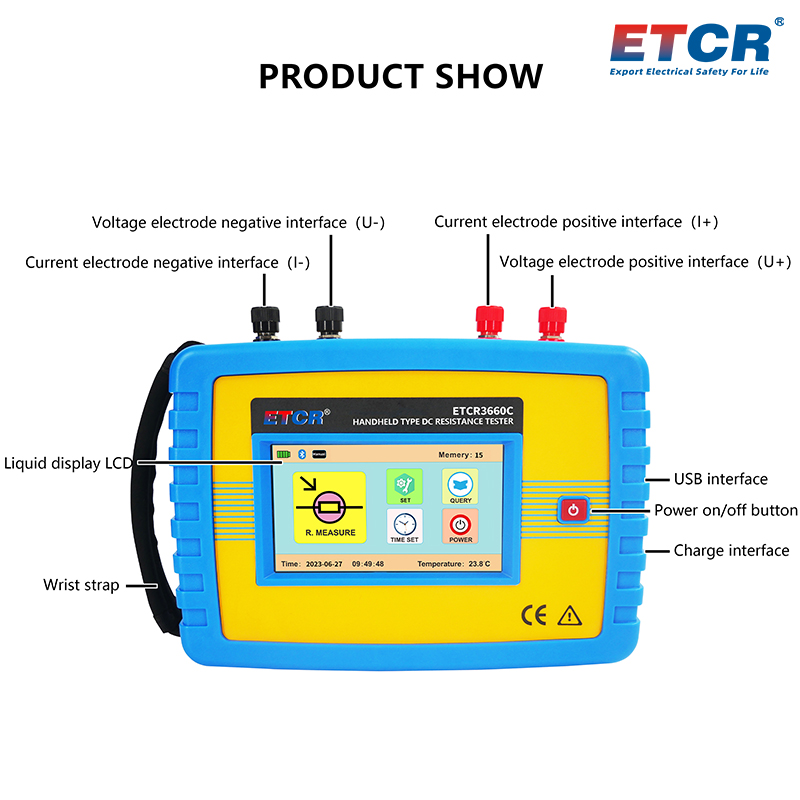

ETCR3660C Handheld DC Resistance Tester consist of host, monitoring software, test line, charger, USB communication line, etc.

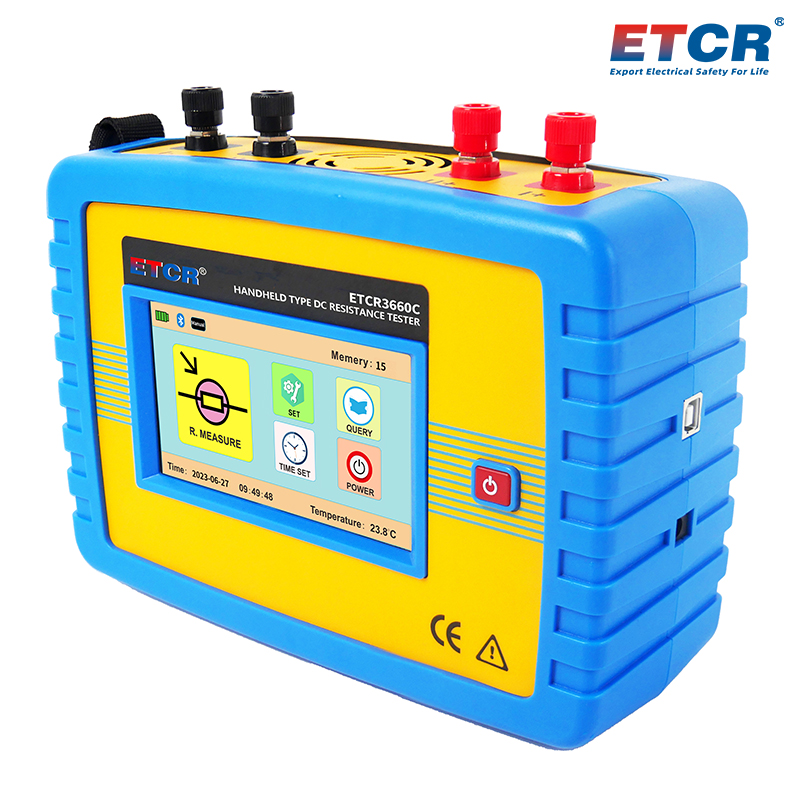

The instrument adopt with 5 inch true-color touch screen, has Bluetooth communication, and after installing the APP, can perform test operation or view test result on your mobile phone, which is particularly convenient for on-site use. The instrument can store 600 groups of data, and is connected to the computer through the USB interface and monitoring software. The monitoring software has functions such as reading, reviewing, saving, reporting, and printing historical data.
1.Handheld structure, easy to carry, true-color touch screen is simpler to operate.
2.Two measurement modes, automatic measurement mode: the test current can be automatically selected according to the load. Manual measurement mode: There are 7 gears to test current
3.Test current gear: AUTO, 10A, 5A, 1A, 100mA, 10mA, 1mA
4.Max. output voltage is 24V, the max. test current is 10A, fast-speed testing, and it can be applied to transformer measurement.
5.With discharge function, which is automatically discharged after the test, and the discharge instructions are clear to avoid misoperation.
6.Alarm function, can setting the resistance alarm threshold.
7.Clock function.
8.Bluetooth communication function.
9.USB communication interface.

Technical Parameter

Power Supply	Built-in lithium battery DC 14.8V 5200mAh
Display Mode	5 inch true-color LCD touch screen, solution 480×854
Measurement Range	1.0uΩ~50.00kΩ
Test Current & Accuracy	200.0uΩ~50.00kΩ AUTO
	200.0uΩ~20.00mΩ 10A 0.2%FS
	10.00mΩ~200.0mΩ 5A 0.5%FS
	100.0mΩ~2.000Ω 1A 1%FS
	1.00Ω~20.00Ω 100mA 1%FS
	10.0Ω~200.0Ω ≤10mA Constant pressure method 1%FS
	100Ω~50.00kΩ ≤1mA Constant pressure method 1%FS
Max. Resolution	0.1uΩ
Test Current Gear	AUTO, 10A, 5A, 1A, 100mA, 10mA, 1mA
Output Voltage	24V MAX
Measurement Method	Precision four-wire method, 2 A/D simultaneous detection
Measurement Mode	Automatic, manual
Test Time	Sampling AD rate 1 second/time
Alarm Setting	Setting alarm threshold range: 1mΩ~2500Ω，the alarm function is not activated at 0Ω.
Alarm Prompt	When the test value exceed the set value of the alarm, the buzzer will sound and the alarm will prompt.
Overflow Display	Overrange overflow function: digital 999999 overrun display.
Charging Indication	The indicator light on the charger light up red when charging, and green when fully charged.
Low Voltage Indication	When the battery voltage is lower than DC 14.8 V, the battery level symbol is displayed in red, reminding charging in time.
Memory	600 groups (no data will be lost if the battery is powered down or replaced)
Data Hold	Automatically keep displaying the tested result after each test
Clock Function	24-hour clock, showing hours, minutes and seconds
Discharge Function	Automatic discharge after testing, with clear discharge instruction to avoid misoperation
Automatic Shutdown	After setting the automatic shutdown, it will automatically shut down after 15 minutes of no operation.
Host Size	232mm×181mm×88mm
Weight	Host: About 1500g (include battery); test line: about 1026g; total weight: about 3.7kg (include accessories)
Working Temperature & Humidity	-10℃~40℃; below 80%RH
Storage Temperature & Humidity	-10℃~60℃; below 70%RH

Model comparison

Product Picture	Product Model Name	Test Current	Output Voltage	Resistance Range	Displayer	Power Supply	Others
	ETCR3660 DC Resistance Tester	10A	24V	1.0uΩ~50kΩ	LCD Screen	22.2V Lithium Battery	USB Bluetooth
	ETCR3660C HandHeld DC Resistance Tester	10A	16V	1.0uΩ~50kΩ	5 Inch True-Color Touch Screen	16.8V Lithium Battery	USB Bluetooth
	ETCR3670 Transformer DC Resistance Tester	10A	24V	1.0uΩ~50kΩ	5 Inch True-Color Touch Screen	AC220V/22.2V Lithium Battery	USB Bluetooth Printer
