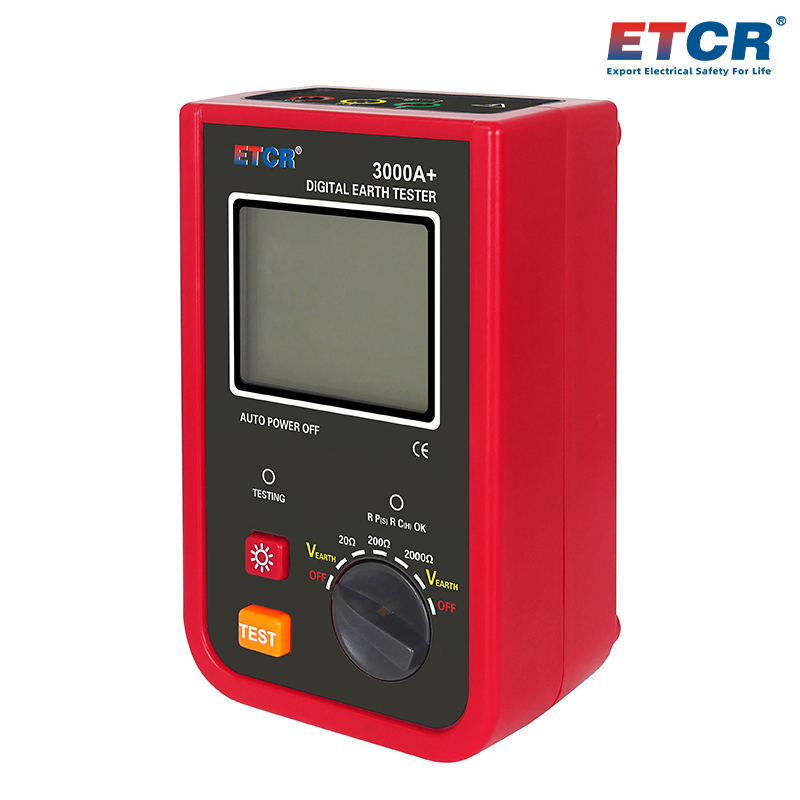

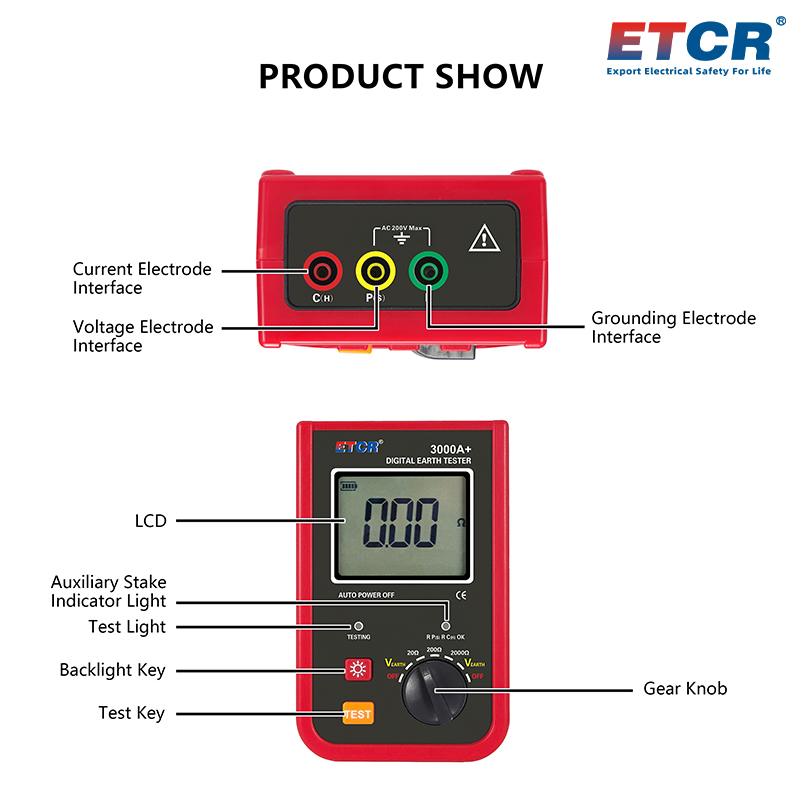

ETCR3000A+ Digital Earth Resistance Tester

Main Functions
Earth resistance measurement, Earth voltage measurement
Earth resistance measurement: 0.10Ω~2000Ω
Earth voltage measurement: 0V~200V AC
Auxiliary grounding pile judgment function
    Product Introduction
    ETCR3000A+ Digital Earth Resistance Tester, also known as earth resistance tester, grounding pile type earth resistance, grounding megger, which is used for measurement of earth resistance and earth voltage.The tester adopt with digital and micro-processing technology, and the earth resistance is measured by precision 3-wire method or 2-wire method widely used in industries such as electric power, telecommunication, meteorology, oil field, construction,lightning protection and industrial electrical equipment.
    ETCR3000A+ Digital Earth Resistance Tester consists of host, test line, etc.The tester has the function of judgement the earth resistance of the auxiliary grounding pile. The tester can display the resistance value of the auxiliary grounding pile during testing, which can avoid error caused by the excessive earth resistance of the auxiliary grounding pole.with line resistance verification function that can avoid errors caused by the test line not being fully inserted into the tester interface or poor contact, as well as the errors caused by the user replacing or lengthening the test line.It makes the measurement of low-value earth resistance in the field more accurate and reliable.
    1.Precision 3-wire method or 2-wire method to measure earth resistance.
    2.The Tester is lightweight, easy to carry, and operation convenient.
    3.The tester has the function of judgement the earth resistance of the auxiliary grounding pile. The tester can display the resistance value of the auxiliary earth pile during testing, which can avoid error caused by the excessive earth resistance of the auxiliary grounding pole.
    4.With line resistance verification function that can avoid the errors caused by the poor contact of test line, which makes the measurement of low-value earth resistance in the field more accurate and reliable.
    Technical Parameter
    1.Measurement Range & Accuracy
    Measurement Function Measuring Range Accuracy Resolution
    Earth Resistance 0.10Ω~20Ω ±2%rdg±3dgt (Auxiliary earth resistance 100Ω±5%,earth voltage <10V) 0.01Ω
    0.1Ω~200Ω 0.1Ω
    1Ω~2000Ω
    Earth Voltage 0V~200V AC ±2%rdg±3dgt 1V

    2.Technical Specification
    Power Supply DC 9V (alkaline dry battery LR6 1.5V 6 sections)
    Display Mode LED Screen
    LCD Size LCD display area: 58mm × 46mm
    Backlight Controllable brightness, suitable for use in dim place
    Measurement Precision three-wire measurement, simple two-wire measurement
    Measuring Method Earth resistance: rated current pole-change, measuring current 20mA Max;
    Earth voltage: effective value acquisition
    Test Frequency 128Hz
    Test Current >20mA(Sine wave)
    Auxiliary Pile Judgment Can avoid error caused by excessive earth resistance of the auxiliary grounding pole
    Line Resistance Verification Avoid errors caused by the test line not being fully inserted into the tester interface or poor contact, as well as the errors caused by the user replacing or lengthening the test line,which makes the measurement of earth resistance more accurate.

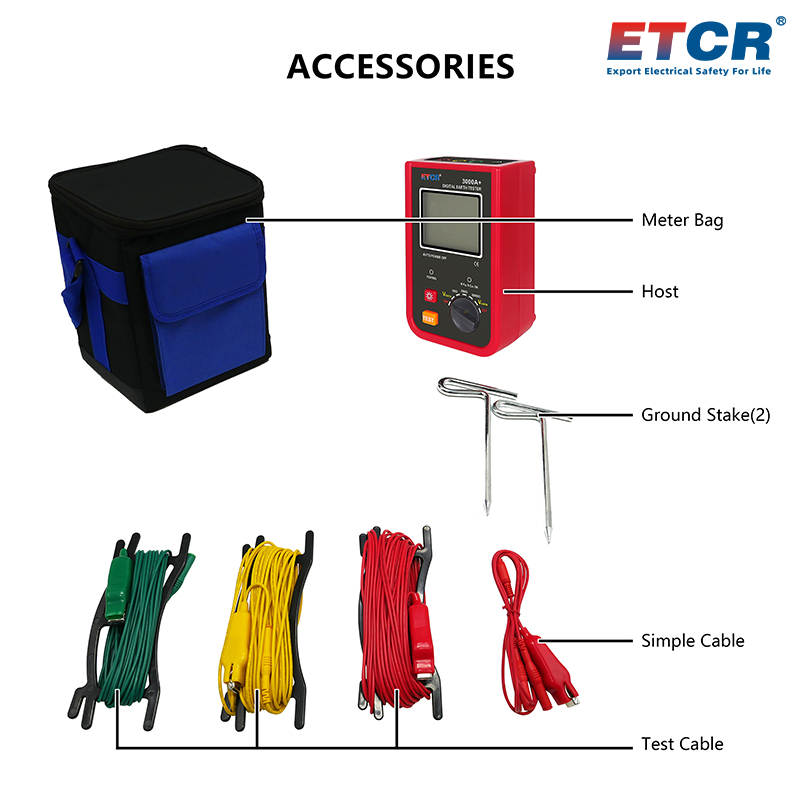

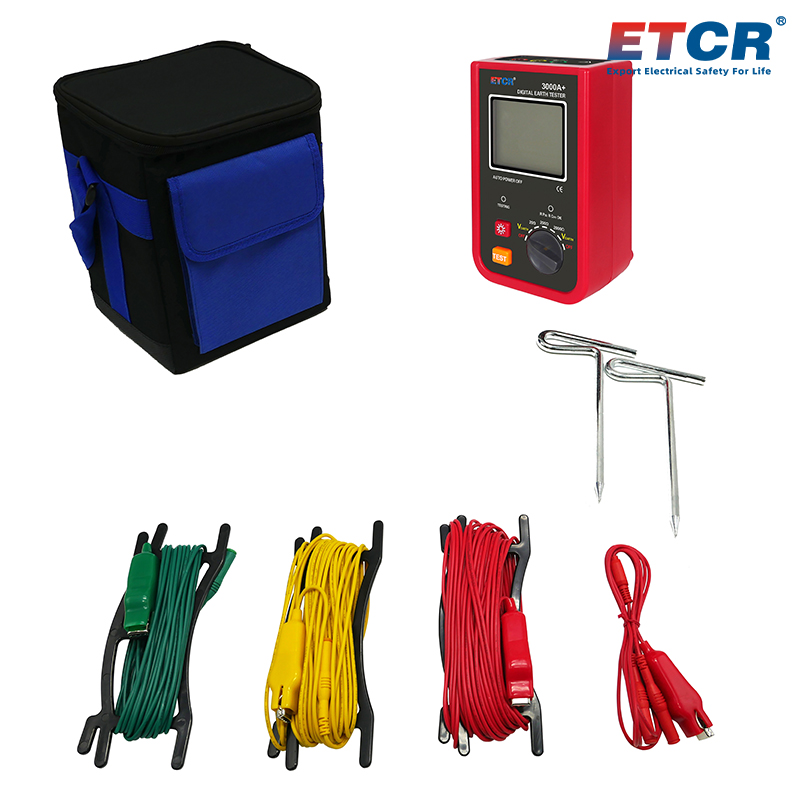

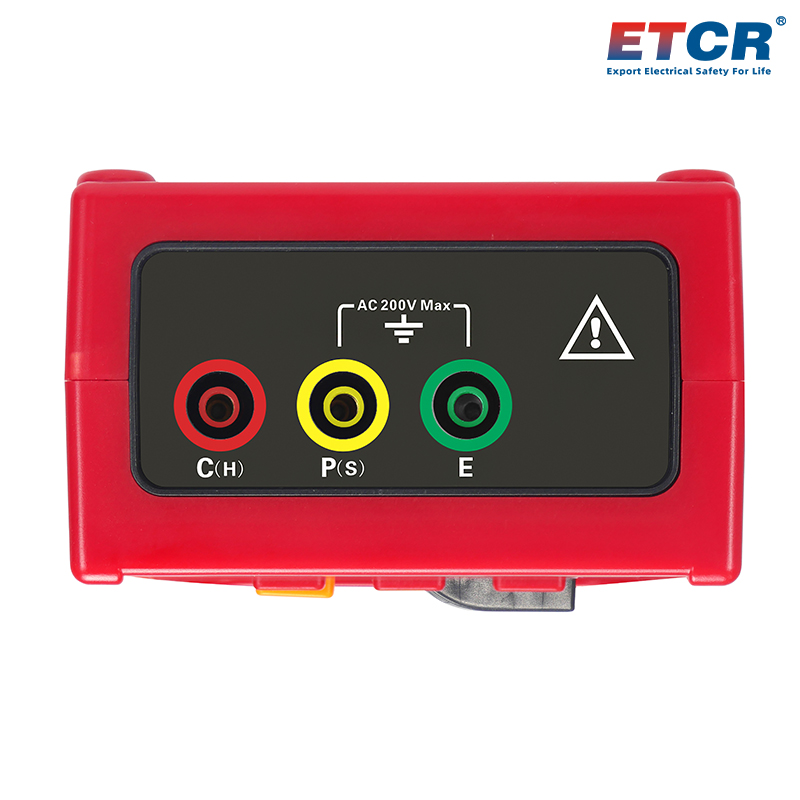

    Test Line 3 PCS: red 15m, yellow 10m, green 5m each 1 piece
    Simple Test Line Red 1.5m
    Auxiliary Ground Rod 2 PCS: φ9mm×230mm
    Measurement Time Earth voltage: about 2 times/second;
    Earth resistance: about 15 seconds/time
    Line Voltage Measurement of earth voltage: measurement below AC 200V
    Overflow Display Over-range overflow function:“OL”symbol display
    Battery Voltage When the battery voltage drop to about 7.2V, the low battery voltage symbol flashes to remind to replace the battery.
    Working Current Backlight: 56mA Max
    Standby: 20mA Max (backlight off)
    Measurement: 200mA Max (backlight off)
    Tester Size 157mm×100mm×66mm
    Weight Tester: about 470g (include battery)
    Total weight: about 1935g (include accessory)
    Overload Protection Measurement earth resistance: AC 280V/3 seconds between E-P and E-C ports
    Insulation Resistance Above 10MΩ(500V between the circuit and the housing)
    Withstand Voltage AC 3700V/rms (between circuit and housing)
    Electromagnetic characteristics IEC61010-4-3,wireless frequency electromagnetic field≤1V/m
    Suitable Safety Standard IEC61010-1,IEC1010-2-31,IEC61557-1,pollution level 2,CAT Ⅲ 300V
    Working Temperature & Humidity -10℃~40℃; below 80%RH
    Storage Temperature & Humidity -20℃~60℃; below 70%RH
    Model comparison
    Product Picture Product Model Name Resistance Range Soil Resistivity Range Voltage Range Current Range Alarm Function Others
    ETCR3000A+ Digital Earth Resistance Tester 0.00Ω~2000Ω -- 0~200V 0mA~100A --
    ETCR3000+ Digital Earth Resistance Tester 0.00Ω~2000Ω -- 0~200V -- --
    ETCR3000 Digital Earth Resistance Tester 0.00Ω~2000Ω -- 0~200V -- Yes
    ETCR3000B Digital Earth Resistance/Soil Resistivity Tester 0.00Ω~30.00kΩ 0.00Ωm~9000kΩm 0~600V -- Yes
    ETCR3000C Digital Earth Resistance Tester 0.00Ω~2000Ω   0~200V -- Yes USB Communication
    ETCR3100C Digital Earth Resistance/Soil Resistivity Tester 0.00Ω~30.00kΩ 0.00Ωm~9000kΩm 0~600V -- Yes USB Communication
    Bluetooth Communication
    Data download
    Download:
