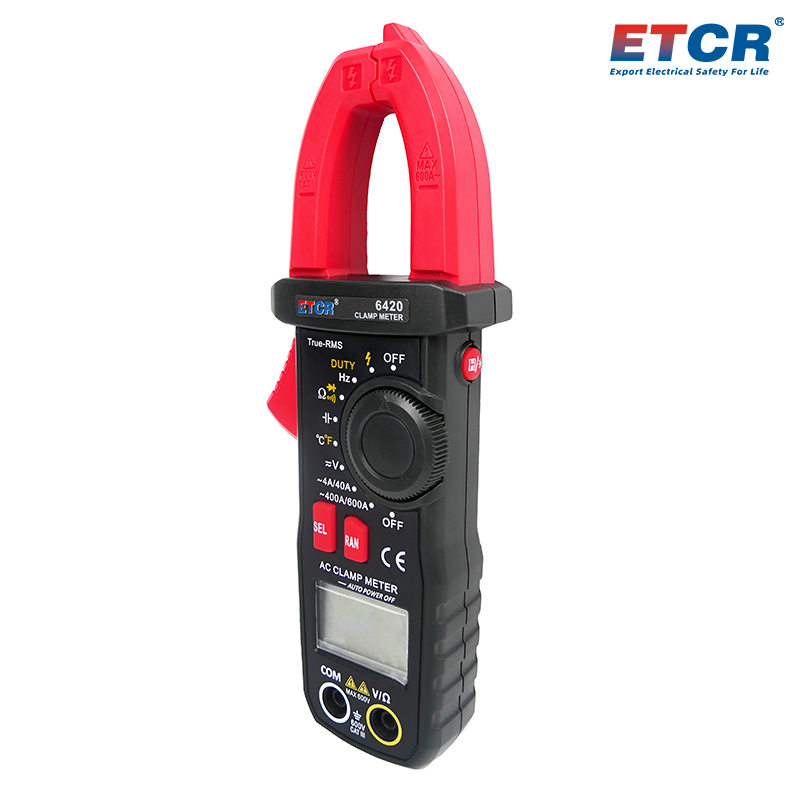

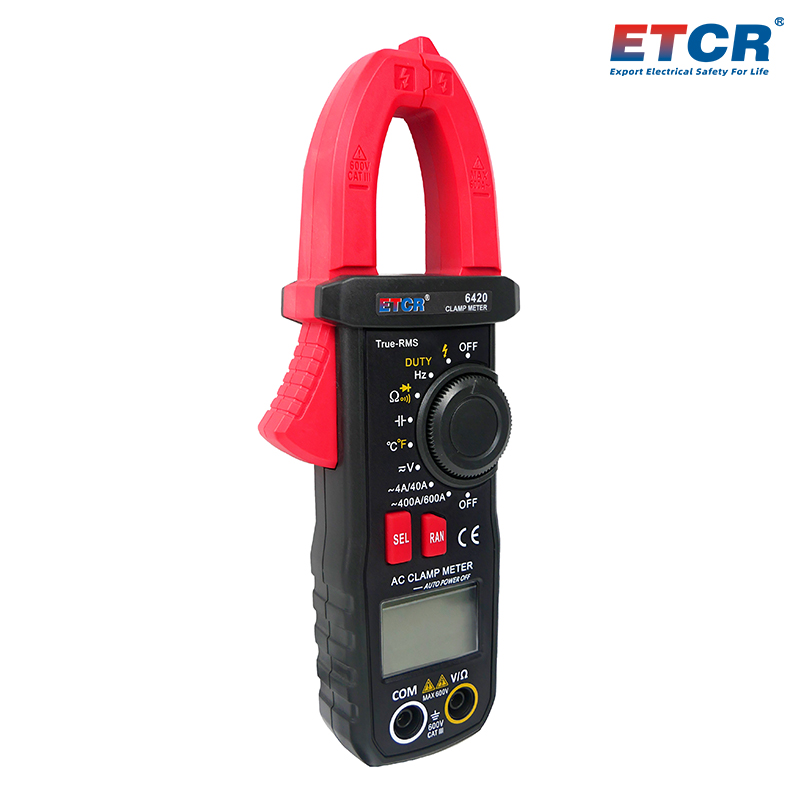

ETCR6420 Clamp Type Multimeter

Main Functions

Used for measurement of DC voltage, AC voltage, AC current true effective value (TRMS), resistance, capacitance, frequency, continuity test, temperature, forward voltage drop of diode ,etc.
Clamp jaw size: Ф27mm
Voltage measurement range: DC 0mV~600V; AC 0V~600V
Current measurement range: 0A~600A
Resistance measurement range: 0Ω~40MΩ
Capacitance measurement range: 0nF~10mF
Frequency measurement range: 100Hz~40MHz
Temperature measurement range: -50°C~1000°C

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR6420 Clamp Type Multimeter, also known as the multifunctional clamp type ammeter, is a portable type clamp digital multimeter, which can measure DC voltage, AC voltage, current true effective value (TRMS), resistance, frequency, on-off test, temperature, forward voltage drop of the diode and other parameters. The capacitance measurement range is up to 10mF and the measurement speed of large capacitance is fast. The multimeter with a small structure, easy to operate and portable. lt is an ideal instrument for electrical measurement, which provides a safe, accurate and convenient new electric power meter for electric inspectors, and is an essential tool for electrical safety inspection.
1.The perfect combination of clamp meter and multimeter, with a compact structure, easy operation, and convenient portability, is an ideal tool for electrical measurement.
2.The capacitance measurement range is up to 10mF and the measurement speed of large capacitance is fast.

Technical Parameter

Power Supply	3V DC LR03×2 PCS alkaline dry battery
LCD Size	39.2mm×26.3mm
DC Voltage	Range: 400mV/4V/40V/400V/600V ±(0.5%+5)
AC Voltage	Range: 4V/40V/400V/600V ±(1.2%+5)
AC Current	Range: 4A/40A/400A/600A ±(2%+10)
Resistance	Range: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1%+5)
Capacitance	Range: 10nF/100nF/1uF/10uF/100uF/1000uF/10mF ±(3%+5)
Frequency	Range: 100Hz/1kHz/10kHz/100kHz/1MHz/10MHz/40MHz ±(0.5%+3)
Temperature	Range: -50°C～1000°C ±(1%+4)
Automatic Range	√
Manual Range	√
AC Conversion Type	True effective value(TRMS)
Input Protection	√
Automatic Shutdown	About 10 minutes, can be set to no automatic shutdown
Diode Test	Can measure the LED work voltage below 3V
Duty Ratio Measurement	√
NCV (Live line) Measurement	√
Short Circuit Buzzer	√
Low Voltage lndicator	√
Input Impedance	About 10MΩ
Data Hold	√
Blue Backlight	√
Clamp Jaw Size	Can measure max wire diameter Ф27mm
Meter Size	213×80×35mm
Weight	About 230g (include battery)
Working Temperature	0℃～40℃ relative humidity <75%
Store Temperature	-10℃～ 50℃ relative humidity <80%

Model comparison

Product Picture	Product Model Name	Clamp Jaw Size	Voltage Range	Current Range	Resistance Range	Capacitance	Frequency	Temperature
	ETCR6420 Clamp Type Multimeter	Φ27mm	AC/DC 600V	AC 600A	40MΩ	10mF	40MHz	-50℃～1000℃
	ETCR6450 Clamp Type Multimeter	Φ52mm	AC 1000V、DC 600V	AC/DC 1000A	40MΩ	10mF	40MHz	-50℃～1000℃
	ETCR6470 Clamp Type Multimeter	Φ55mm	AC/DC 2000V	AC/DC 2000A	20MΩ	2000uF	--	--
