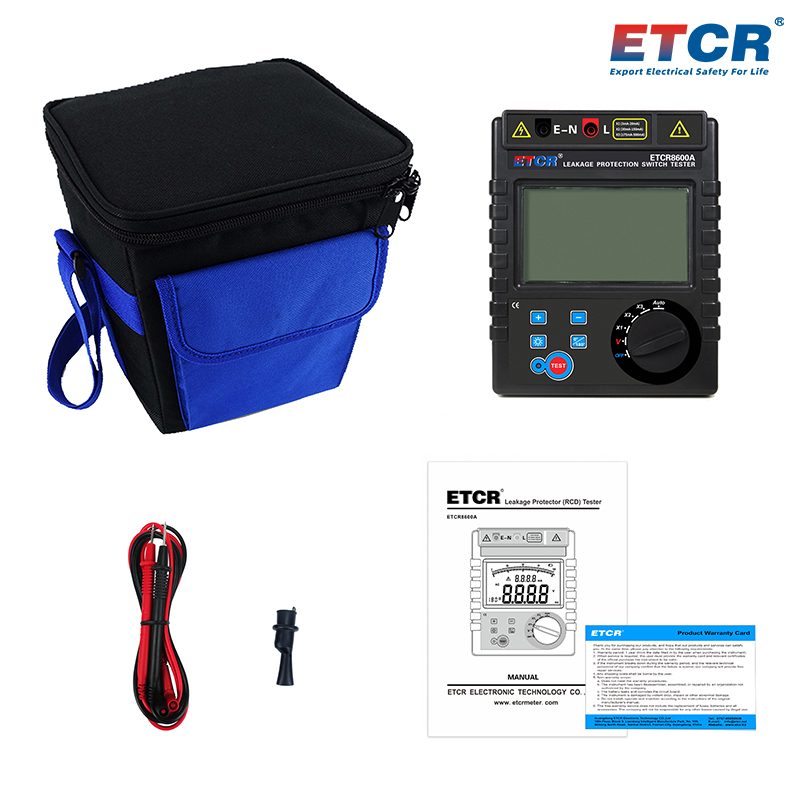

ETCR8600A Leakage Protector Tester

Main Functions

Used for measure the leakage operating time of various leakage protector and line AC voltage.
Test current: 3mA~500mA (18 gears)
Test range of leakage operating time: 0~999ms
Voltage measurement range: AC 0~600V
Rated voltage: AC 220V

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR8600A Leakage Protector Tester, also known as leakage switch tester and leakage switch characteristic tester, which is used for on-site measure various leakage protector of leakage operating time and line AC voltage. Test current is divided into 18 gears from 3mA~500mA(3mA, 5mA, 7mA, 10mA, 15mA, 20mA, 30mA, 35mA, 50mA, 100mA, 125mA, 150mA, 175mA, 250mA, 275mA, 300mA, 375mA, 500mA), test range of leakage current operating time is 0~999ms. AC voltage measurement range: 0~600V.

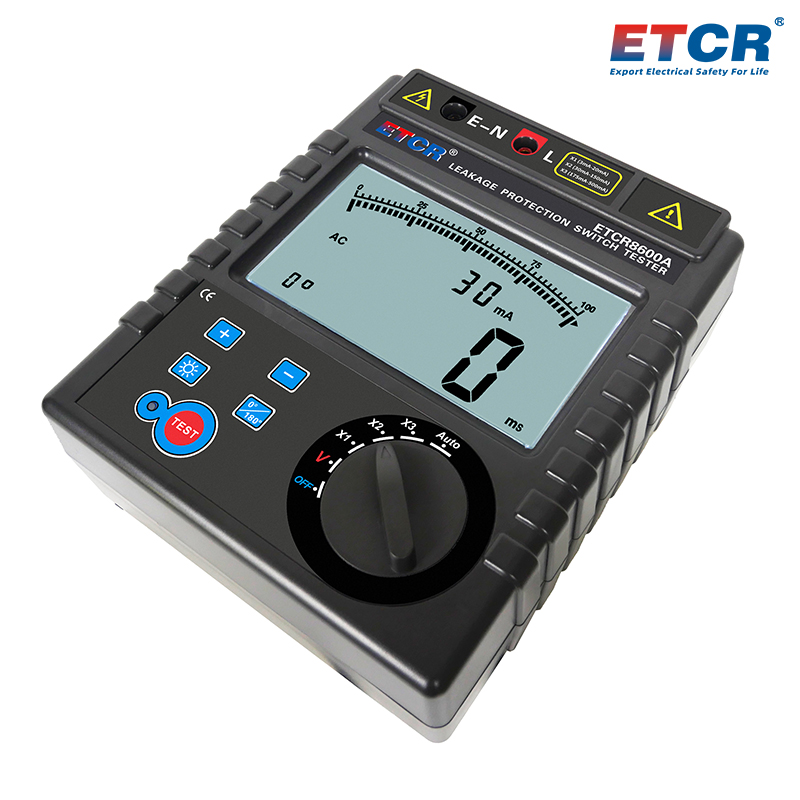

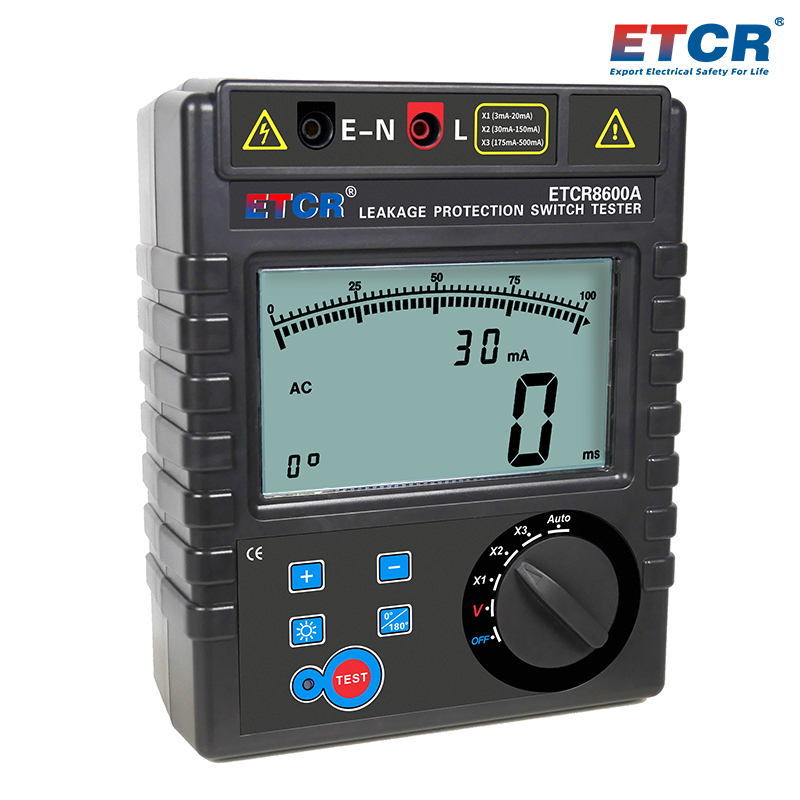

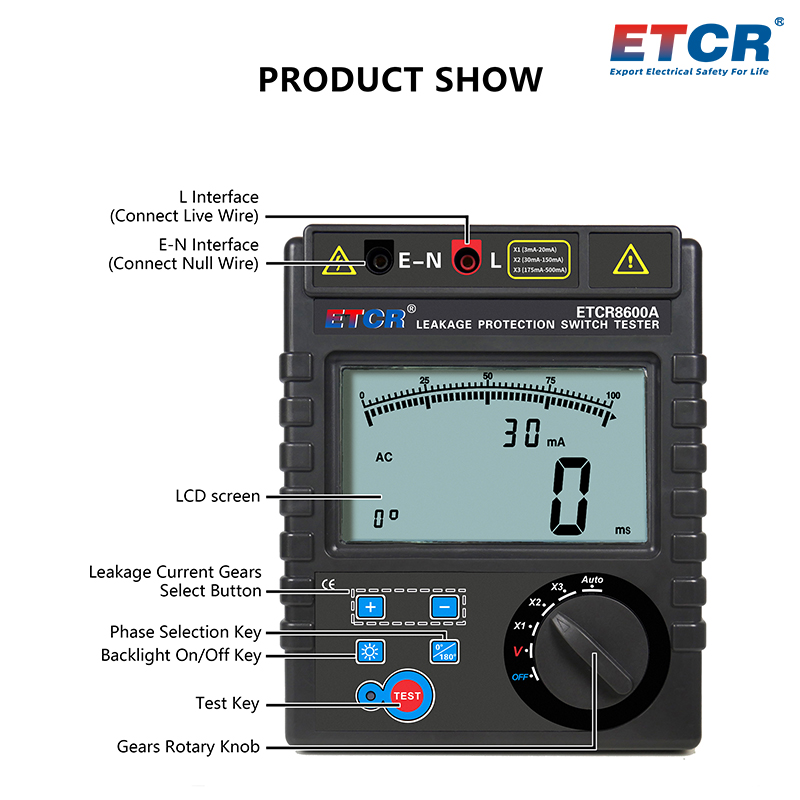

ETCR8600A Leakage Protector Tester adopts with super large LCD display, white screen backlight and bar chart indication. Output current, operating time, battery level and phase are displayed on the same screen. The tester has functions such as automatic shutdown, fault voltage indication setting, phase selection, backlight selection and memory. The tester is easy to operate, high accuracy, small size, light weight and exquisite appearance and portable, which is an ideal tool for on-site or indoor testing of various leakage protectors.
1.18 gears test current: 3mA, 5mA, 7mA, 10mA, 15mA, 20mA, 30mA, 35mA, 50mA, 100mA, 125mA, 150mA, 175mA, 250mA, 275mA, 300mA, 375mA, 500mA can satisfy various using requirements.
2.Test range of leakage operating time is 0~999ms.
3.Manual, automatic two measurement mode.
4.Phase selection function.
5.Adopt with super large LCD display, white screen backlight and bar chart indication. Output current, operating time, battery level and phase are displayed on the same screen.

Technical Parameter

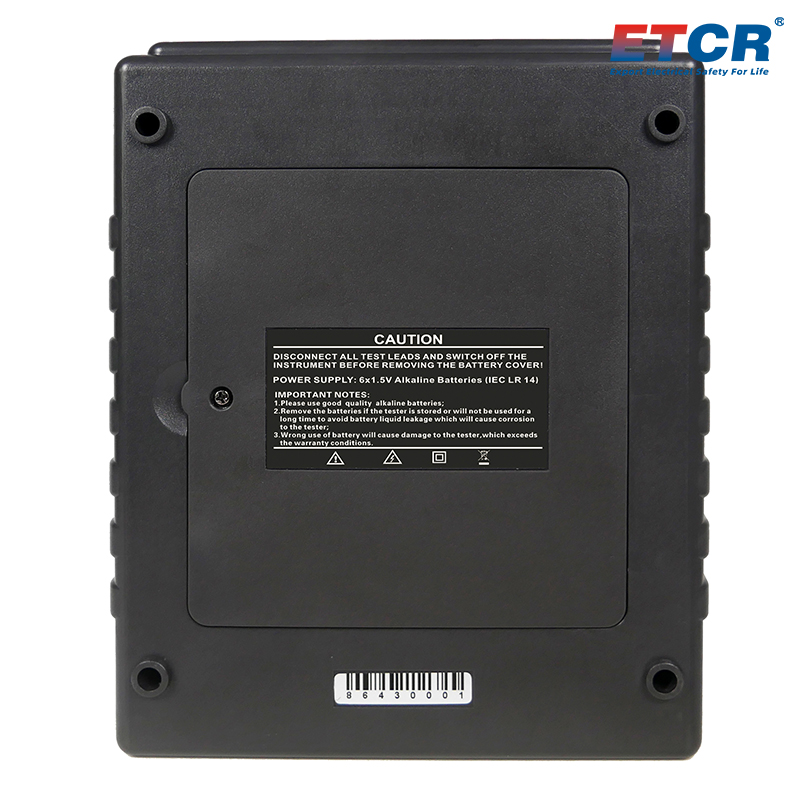

Power Supply	DC 9V (alkaline dry battery LR14 1.5V 6 PCS)
Display Mode	4-digit super large LCD display with white screen backlight
LCD Size	128mm×75mm; display area: 124mm×67mm
Rated Voltage	AC 220V (The rated voltage of tester is AC 220V during leakage protection switch testing)
Test Line Voltage	220V/380V
Leakage Current Gear	3mA, 5mA, 7mA, 10mA, 15mA, 20mA, 30mA, 35mA, 50mA, 100mA, 125mA, 150mA, 175mA, 250mA, 275mA, 300mA, 375mA, 500mA
Gear Current Accuracy	±10%rdg±5dgt
Knob Gear	OFF; V; X1; X2; X3; Automatic gear (6 gears)
Test Mode	Manual: X1 (3mA, 5mA, 7mA, 10mA, 15mA, 20mA) X2 (30mA, 35mA, 50mA, 100mA, 125mA, 150mA) X3 (175mA, 250mA, 275mA, 300mA, 375mA, 500mA) Automatic: Auto (3mA~500mA)
Test Range Of Leakage Operating Time	0~999ms
Accuracy Of Leakage Operating Time	±5%rdg±3dgt
AC Voltage Measurement Range	0~600V
AC Voltage Accuracy	±2%rdg±5dgt
Phase Selection	0°/ 180°
Data Hold	The interface will automatically maintains the display of test result after completing test.
Failure Message Indication	LCD displays “999” timeout indication, indicates that tested rated operating current gear is low or leakage protector has fault.
Length of test line	1.5m
Tester Size	215mm×178mm×83mm

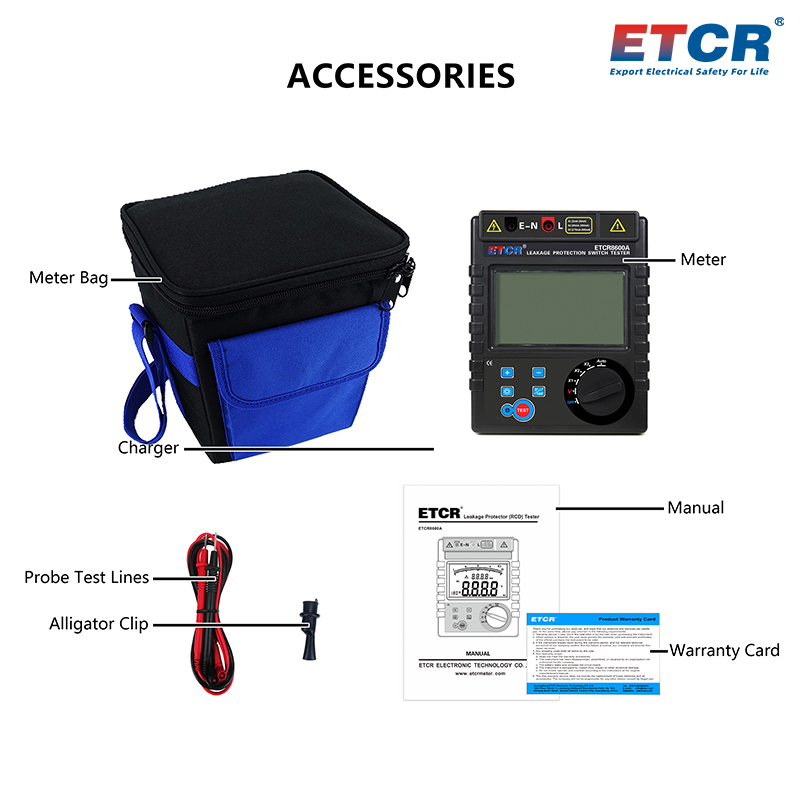

Weight	Host: about 955g (include battery); Total weight: 2kg (include accessory)
Battery Voltage	When the battery voltage drops to 7.4V, the low battery voltage symbol is displayed to remind the battery to be replaced.
Working Current	100mA Max
Insulation Withstand Voltage	100MΩ or greater, AC2kV/rms(between the housing and screw)
Suitable Safety Standard	IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V) IEC61326(EMC Standard)
Working Temperature & Humidity	-10℃~40℃; below 80%RH
Store Temperature & Humidity	-10℃~60℃; below 70%RH

Model comparison

Product Picture	Product Model Name	Test Current	Leakage Current Operating Time Range	Voltage Range	Display Mode	Power Supply
	ETCR8600 Portable Leakage Protector Tester	15mA~500mA, 10 gears	0ms~999ms	--	LCD Screen	Dry Battery
	ETCR8600A Leakage Protector Tester	3mA~500mA, 18 gears	0ms~999ms	AC 0~600V	Large LCD Screen	Dry Battery
	ETCR8600B Leakage Protector Tester	5mA~1000mA, 16 gears	0ms~999ms	AC 0~600V	Color Touch Screen	Lithium Battery

Data download

Download：

ETCR8600A Leakage Protector Tester
