ETCR8700 Power Failure/Electric Leakage Remote Monitor

Main Functions

It is used for remote online current/leakage current monitoring, leakage current alarm, power failure alarm, power supply prompt, remote monitoring and alarm of equipment operation, and can also be used as a line anti-theft alarm.
CT caliber:Ф40mm
Current range: AC 0.00mA～60.0A
Communication method: GPRS, RS485

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

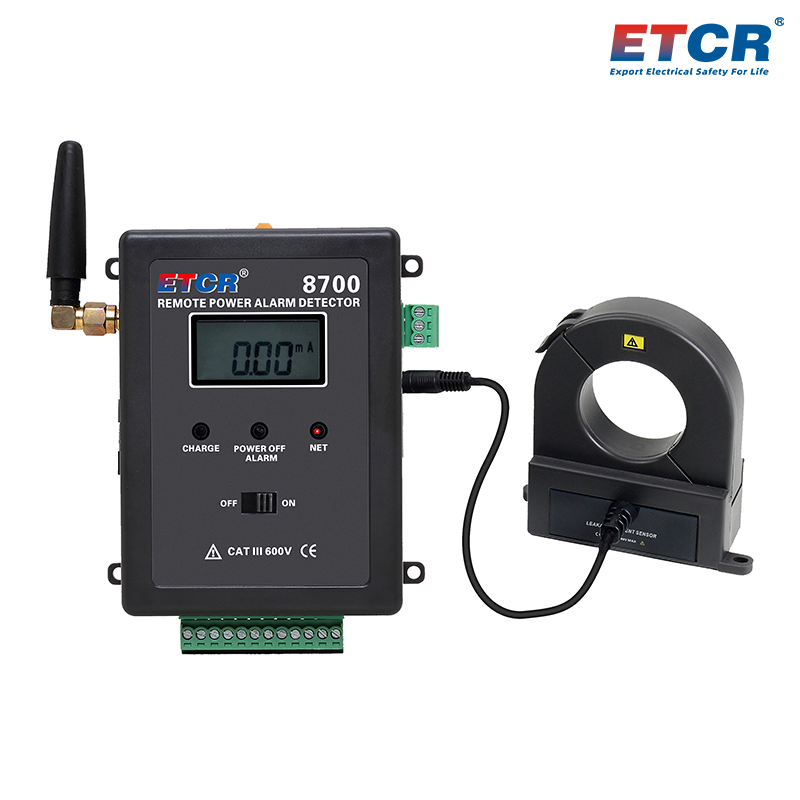

ETCR8700 Power Failure/Electric Leakage Remote Monitor, also known as online power failure alarm, is used in industrial control sites that require unattended and remote online alarm to monitor power failure, restore power supply, and leakage. It is an industrial-grade 4G alarm monitor and can also be used as an anti-theft alarm.The monitor consists of a computer, a current sensor, a GPRS module, a host computer software, a power adapter, etc.Built-in GPRS module, users only need to set a few simple parameters through their own computer server, you can monitor whether the remote device is powered off, whether the power supply is restored, whether there is leakage and other alarm information at any time; you can also access temperature, humidity, human body infrared sensors and other sensors through the input expansion port; you can also control other equipment such as remote relays through the output expansion port.It is widely used in various places such as security, power equipment, banks, telecommunications, factories, railways, computer rooms, uninterruptible power supplies, biopharmaceuticals, warehouses, pharmacies, important machinery and equipment, 24-hour production lines, etc. That require power failure alarms, leakage monitoring alarms, remote control start and stop, etc.
ETCR8700 Power Failure/Electric Leakage Remote Monitor host monitors 1 channel of current (LCD display current value), 1 channel of external power supply on-off status (that is, the on-off status of the power supply), 3 channels of extended input interface (DC0～9V analog voltage), 3 channels of extended output control interface (on/off: DC12V/0V); provides 1 channel RS485 data interface and MODBUS protocol to facilitate secondary development; built-in large-capacity rechargeable lithium battery, with charging management function, when the external power supply is disconnected, the built-in lithium battery continues to power the host, fully realizing remote Monitoring, alarm, control and other functions.
The server can send setting instructions, alarm instructions, query instructions, factory reset instructions, etc. to the host through GPRS.For example: send relevant instructions to configure, power failure alarm, current value of power supply, leakage current alarm, leakage current alarm value setting; query current size, query power on or off status, query extended input interface voltage signal size, query extended output interface control on or off status, etc.
The current sensor is an open-close CT, which is very suitable for online installation. The aperture is φ40mm. Users can choose current sensors of different diameters according to their needs. The iron core uses special alloys and adopts magnetic shielding technology. It is almost unaffected by the external magnetic field, ensuring the high precision, high stability and high reliability of uninterrupted monitoring all year round.
1. Two communication methods: GPRS wireless communication method and RS485 wired communication method.
2. 3 extended input interfaces (DC0～9V analog voltage) and 3 extended output control interfaces (on/off: DC12V/0V).
3. Actively send daily information to the administrator's mobile phone every day (optional function).
4. The host is compact and has two installation methods: card slot and screw.

Technical Parameter

Power Supply	External power adapter power supply: AC110V～240V to DC12V
Display Mode	4-digit LCD display
LCD Size	35mm×21.5mm; display area: 32mm×15mm
Built-in Battery	Rechargeable lithium battery: 3.7V, 3000mAh, the number of cycles is about 1000 times, the battery is fully charged and the continuous power supply time is about 24 hours
Channel	1 channel of current, 1 channel of power supply, 3 channels of extended input signals (DC0～9V analog voltage), 3 channels of extended output control signals (on/off: DC12V/0V), a single channel with a maximum load of 500mA, and a total load of three outputs with a maximum of 18W
CT Caliber	Ф40mm (you can chooseФ10mm,Ф25mm,Ф80mm, etc.)
Current Range	0.00mA～60.0A AC (range 0～1000A can be customized according to demand)
Current Resolution	0.01mA AC
Current Accuracy	±2%rdg±5dgt
Current Shift	Fully automatic switching
Detection Speed	About 1 time/second
Communication Method	GPRS, RS485
SIM Card Slot	External type, easy to insert and take the card
SIM Card Type	4G

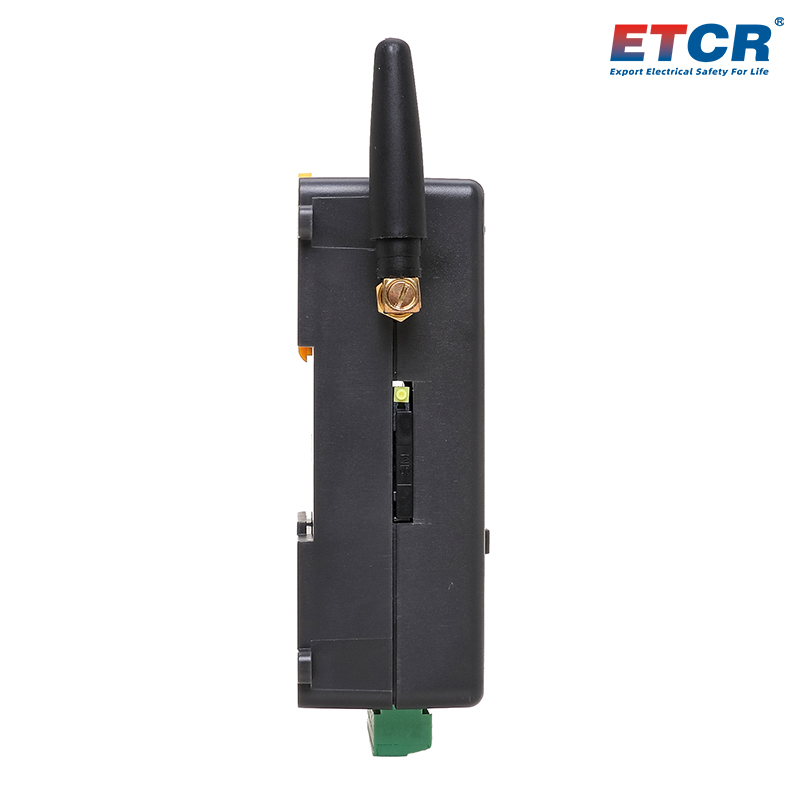

Antenna	50 ohm SMA antenna
Host Size	100mm×73mm×35mm
CT Size	95mm×88mm×31mm

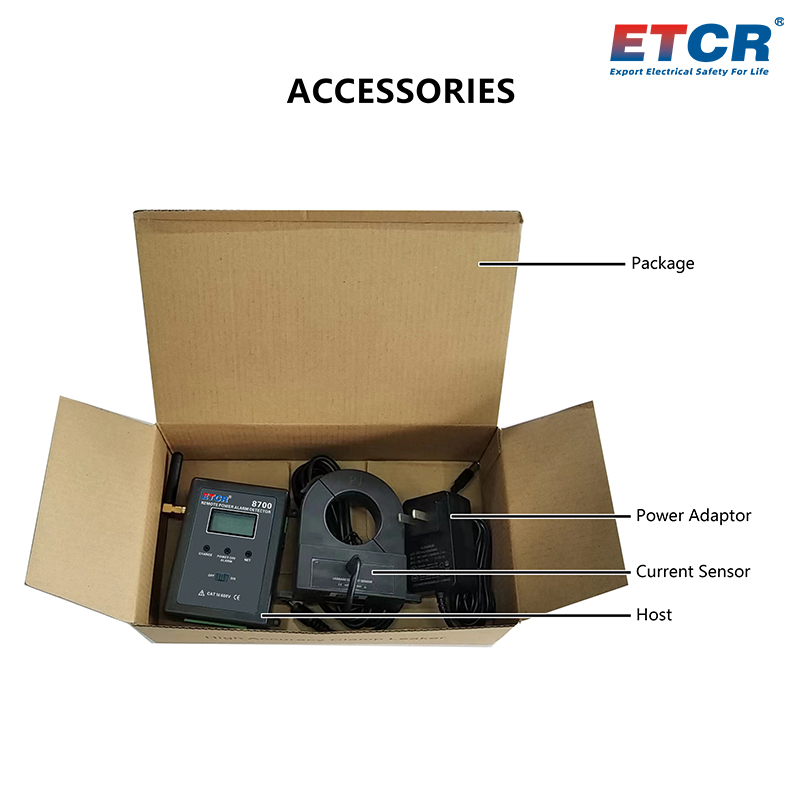

Weight	Host: about 404g; total mass: about 0.64kg (including accessories)

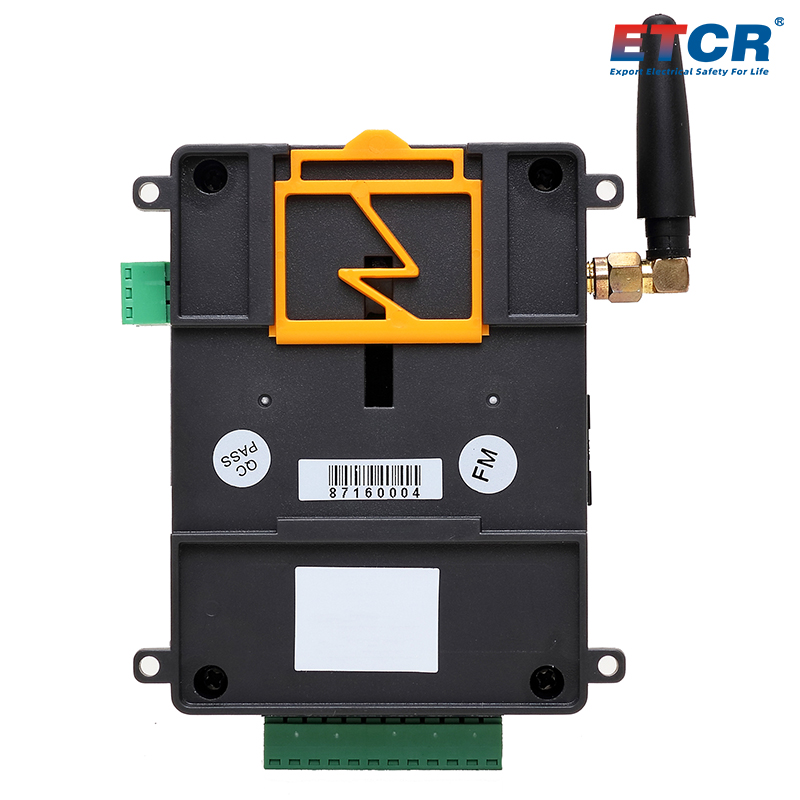

Installation Method	Rail fixed or screw fixed installation
Installation Size	The width of the guide rail is 35mm, and the fixing screw hole isФ3.5mm

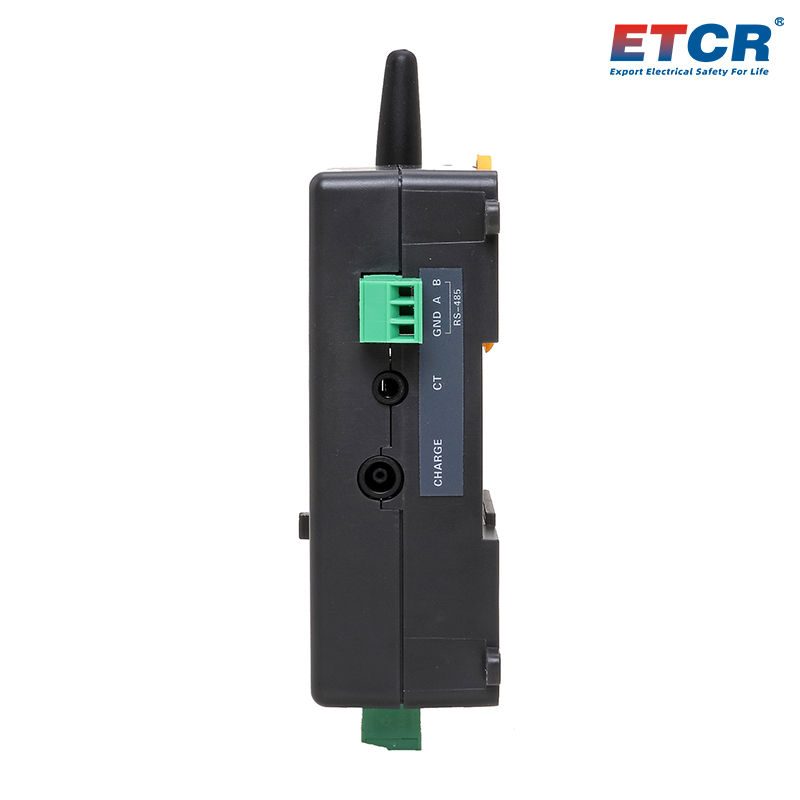

RS485 Interface	3.5mm-3P plug-in terminal

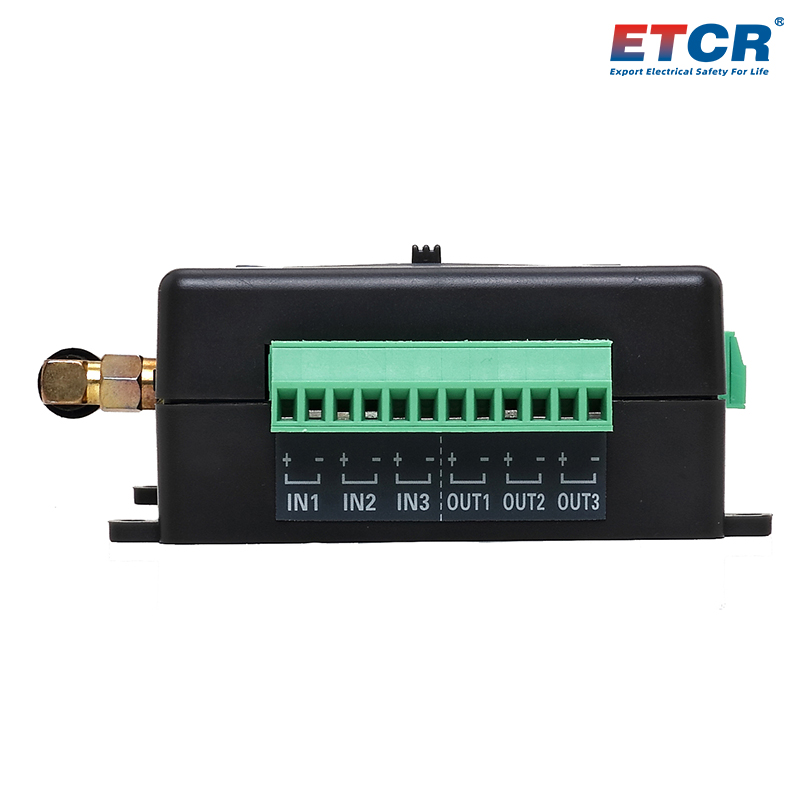

Extension Interface	3.5mm-12P plug-in terminal
Extended Input	IN1～IN3: DC0～9V analog voltage access is allowed
Extended Output	Output voltage DC12V (on), or low voltage 0V (off)
Missed Alarm	When the current or leakage current of the monitored point exceeds the set alarm threshold, the host of the monitoring point sends a leakage current alarm message to the server.
CHARGE Light	Charging indicator light, red light when charging, dimmed when fully charged
POWER OFF ALARM Light	Work indicator light, flashing during normal operation
NET Light	GPRS network indicator light, the GPRS module does not light up when it is initialized, the GPRS module keeps on when it is working normally, and it will blink quickly for 1-2 seconds when receiving and transmitting.
Host Power Consumption	Less than 2W
Insulation Strength	AC 2kV/rms (between the shell and the screw)
Suitable Safety Standard	CAT Ⅲ(600V)
Line Voltage	Suitable for line testing below AC600V
Working Temperature & Humidity	-10℃～40℃; below 80%RH
Storage Temperature & Humidity	-10℃～60℃; below 70%RH
