ETCR1500B Satellite Remote High Voltage Phase Detector

Main Functions
Used for remote nuclear phase, phase test, frequency test, phase sequence judgment and power inspection of power lines, high-voltage switchgear or substations below 500kV
Nuclear phase voltage: 10V~500kV
Remote core-to-core distance: 500km
Ordinary core-to-core distance: 200m
Phase range: 0°~360°
Frequency range: 45.0Hz~65.0Hz
Storage function: 200 sets of data storage
Voice broadcast function
USB communication interface
Rechargeable lithium battery
    Product Introduction
    ETCR1500B Satellite Remote High Voltage Phase Detector has both ultra-long-distance nuclear phase and ordinary short-range nuclear phase functions. It adopts satellite precision timing technology to achieve long-distance nuclear phase, short-range ordinary nuclear phase, basement nuclear phase, and mine nuclear phase. The timing accuracy is less than 20nS, and the joint timing is realized to ensure the accuracy of the nuclear phase.Ordinary nuclei are 200m apart (in an open place), and satellite nuclei are 500km apart.This phase detector can perform phase verification both on high-voltage lines and in high-voltage switchgear (central cabinets, ring network cabinets, etc.), and realize functions such as automatic phase verification, phase testing, frequency testing, phase sequence judgment, power verification, and voltage level display from 10V to 500kV voltage level.When the line voltage exceeds 110kV, a non-contact nuclear phase must be used. During the nuclear phase, the metal probe hook of the detector is gradually approached to the wire. When the electric field signal is sensed, the nuclear phase can be completed without direct contact with the high-voltage wire, which is safe and fast.When used for the nuclear phase of the ring network cabinet, the detector must use a probe and a ring network cabinet test line.

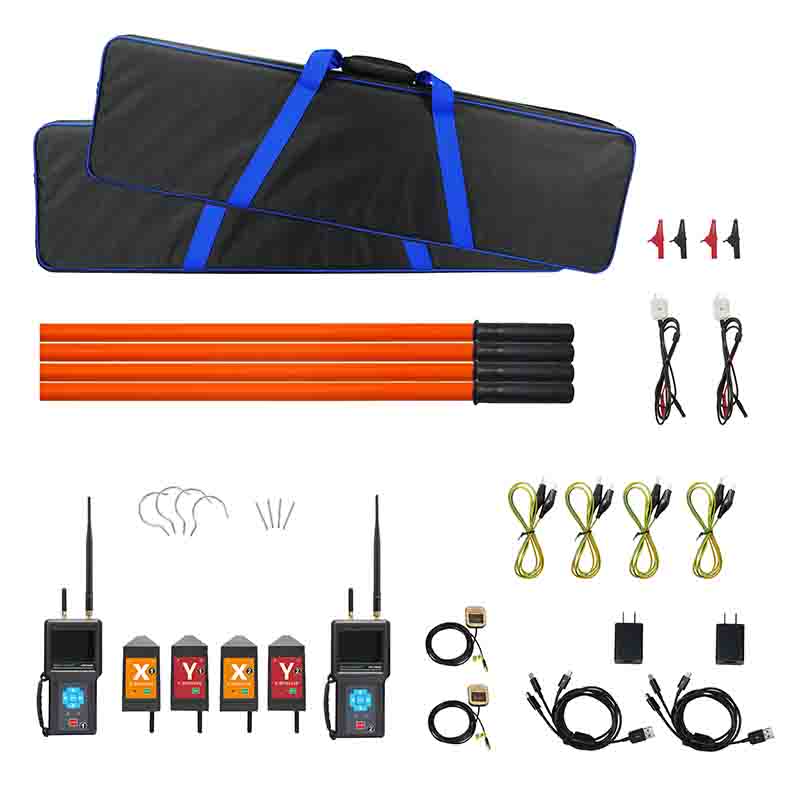

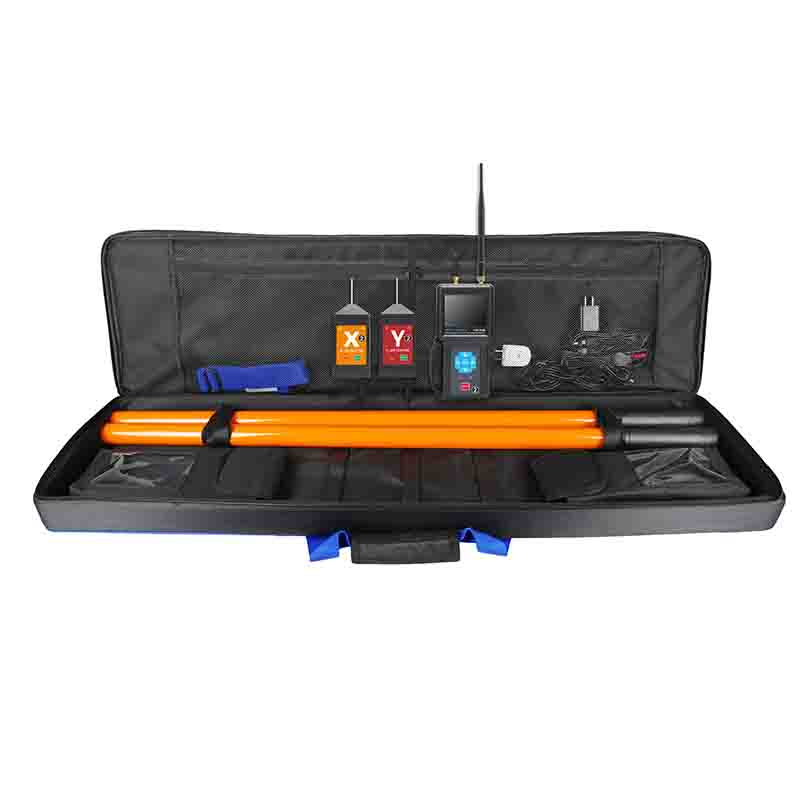

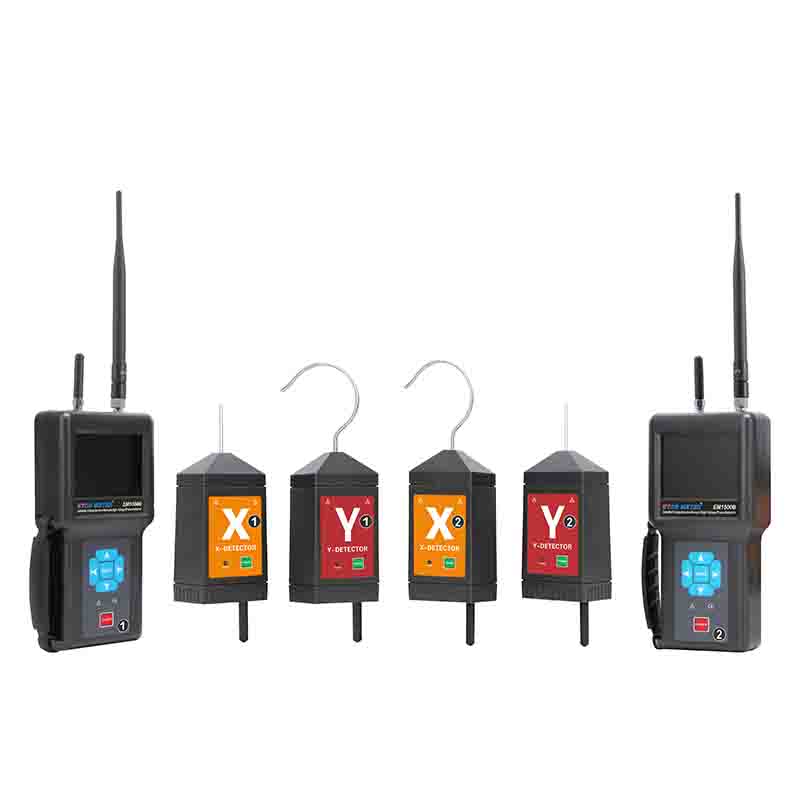

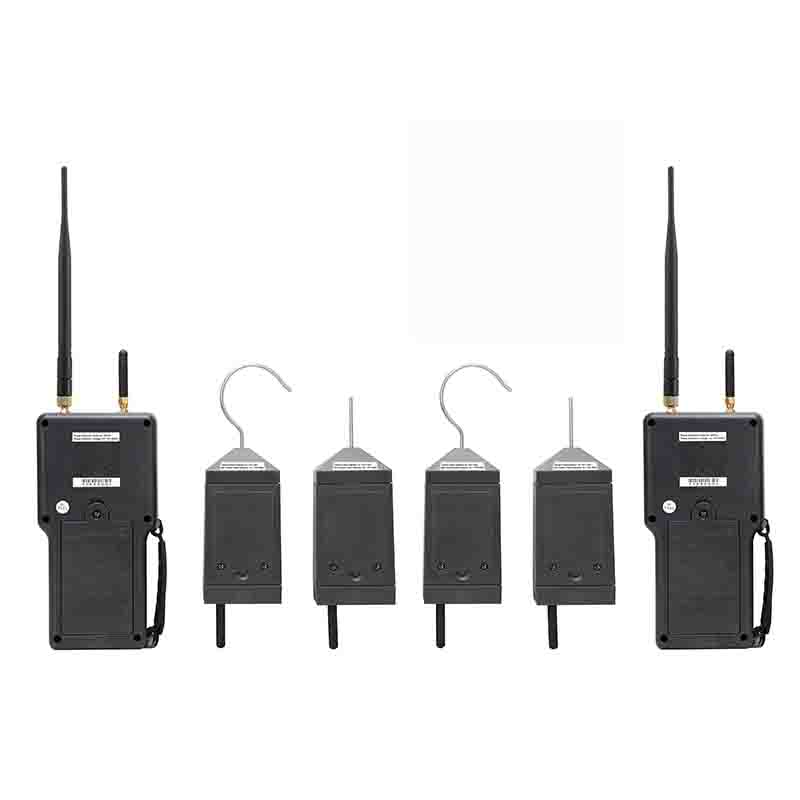

    ETCR1500B Satellite Remote High Voltage Phase Detector consists of 2 mainframes, 4 detectors, telescopic insulating rods, monitoring software, etc. The mainframe adopts a 3.5-inch true-color LCD screen, which can display phase, frequency, phase sequence and nuclear phase results on the same screen. The vector diagram indication and phase indication are clear and intuitive; it has the “X signal is normal, Y signal is normal, in-phase, out-of-phase” voice prompt function, making the test easier and easier.
    1. Two nuclear phase modes: satellite remote nuclear phase mode and short-range ordinary nuclear phase mode.
    2. Voice broadcast function, voice prompt: “X signal is normal, Y signal is normal, Z signal is normal, positive phase sequence, inverse phase sequence”.
    3. Using a 3.5-inch LCD color screen, the phase, frequency, phase sequence, and nuclear phase results can be displayed on the same screen, and the vector diagram indication and phase indication are clear and intuitive.
    4. The instrument has the functions of power inspection and voltage level display.
    5. Storage function, 200 sets of data storage.
    6. USB communication interface.
    7. Rechargeable lithium battery
    Technical Parameter
    Power Supply Host: 3.7V, 2600mAh rechargeable lithium battery
    Detector: 3.7V, 1000mAh rechargeable lithium battery
    LCD Size 3.5-inch true color screen; display area: 71mmX53mm
    Phase Detecting Mode Satellite remote nuclear phase mode, short-range ordinary nuclear phase mode
    Phase Detecting Method Contact nuclear phase: ≤110kV line time
    Non-contact nuclear phase: when ≥10kV and ≤110kV are displayed, the nuclear phase can be carried out on the cable insulating skin; when the line voltage is >110kV, the non-contact nuclear phase must be used.
    Phase Detecting Voltage AC 10V~500kV
    Satellite Phase Detecting Distance 500km
    Ordinary Phase Detecting Distance 200m
    Phase Difference Qualitative In-phase: -20°~20°; out-of-phase: 100°~140° and 220°~260°
    Range Test phase: 0°~360°
    Test frequency: 45.0Hz~65.0Hz
    Accuracy Phase: ≤±10°
    Frequency: ≤±2Hz
    Resolution Phase: 1° Frequency: 0.1Hz
    Electricity Testing Indication ”Beep-beep-beep" beep
    Voltage Level Display Range 0.4kV~110kV
    Satellite Timing Accuracy Less than 20nS
    Satellite Searching Indication Dynamically display the “----” symbol when searching for satellites
    Satellite Searching Time The first star search time is about 2 minutes, the second boot after the star search is successful, the star search time is about 15 seconds, and the subsequent hot start is about 1 second.
    No Satellite Continuous Time After the star search is successful, try to continue the nuclear phase until there is no satellite signal, which can last for 1 hour, fully meeting the requirements of the basement nuclear phase and the electric room core.
    Automatically Switch Timing Mode According to the strength of the satellite signal, the satellite receiving nuclear phase and the timing nuclear phase are automatically switched, without the need to choose whether the satellite mode or the timing mode.
    Display Rate 2 times/second
    Memory 200 groups (no data will be lost after power-down)
    Automatic Shutdown Normal nuclear phase mode is turned on for about 15 minutes without operation and automatically shuts down
    Battery Voltage Satellite remote nuclear phase mode is turned on for about 45 minutes without operation and automatically shuts down
    Rated Current Detector: 30mA max; host: 150mA max
    Instrument Size Host 195mmX100mmX45mm; detector 130mmX65mmX45mm
    Weight Host: about 550gX2 (including battery); detector: about 156gX4 (including battery); total mass: about 15.63kg (including accessories)
    Length Of Telescopic Insulating Rod 4300mm
    Insulation Test Both ends of the insulating rod after stretching: AC 220kV/rms
    Host, detector: AC3700V/rms (between exposed metal and plastic shell)
    External Interference No extra-strong electromagnetic field; no 433MHz co-frequency interference
    Suitable Safety Standard GB13398-92, GB311.1-311.6-8, 3DL408-91 standards and national power industry standards "General technical conditions for 1kV~35kV Portable Nuclear phase Shifters for Live Operation DL/T 971-2017" requirements
    Working Temperature & Humidity -10℃~40℃; below 80%RH
    Storage Temperature & Humidity -10℃~60℃; below 70%RH
