ETCR9500B Wireless High Voltage CT Turn Ratio Tester

Main Functions

Current and variable ratio testing of the first and second circuits of high and low voltage current transformers, polarity and phase difference judgment
Primary current range: 0.00A～800A
Secondary current range: 0.00mA～5A
Variable ratio measurement range: 1～9999
Wireless transmission distance: 100m
Memory: store 3000 sets of data
USB communication interface

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

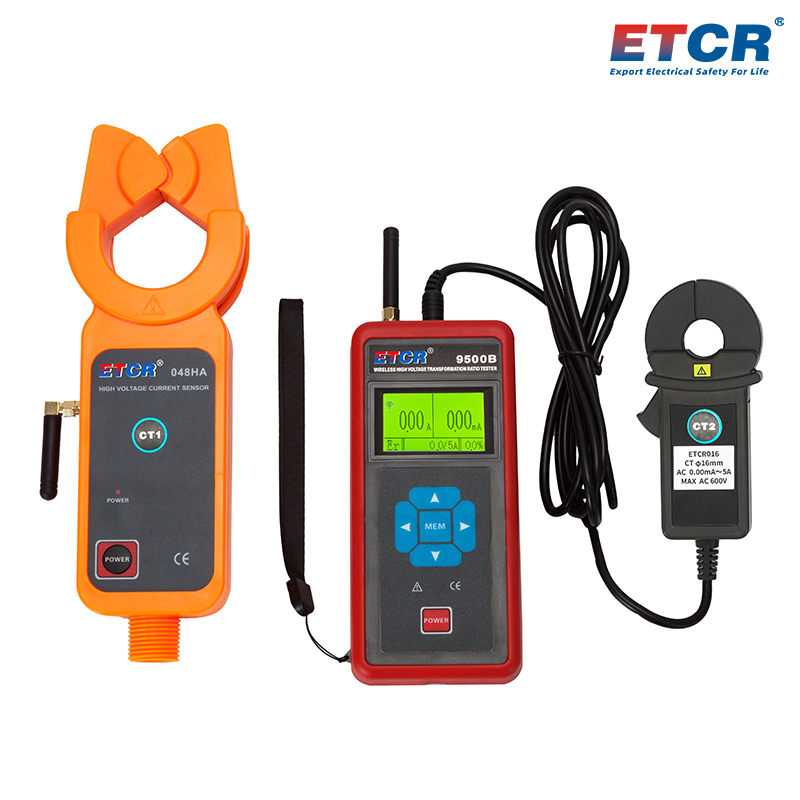

ETCR9500B Wireless High Voltage CT Turn Ratio Tester, also known as transformer current variable ratio tester, transformer ratio difference tester, current transformer variable ratio tester, is used for primary current, secondary current size, variable ratio, phase difference, polarity judgment of current transformers below 35kV.It is widely used in substations, power plants, power inspection departments, industrial and mining enterprises, testing stations, electrician maintenance departments for current detection, anti-theft and field electrician operations.

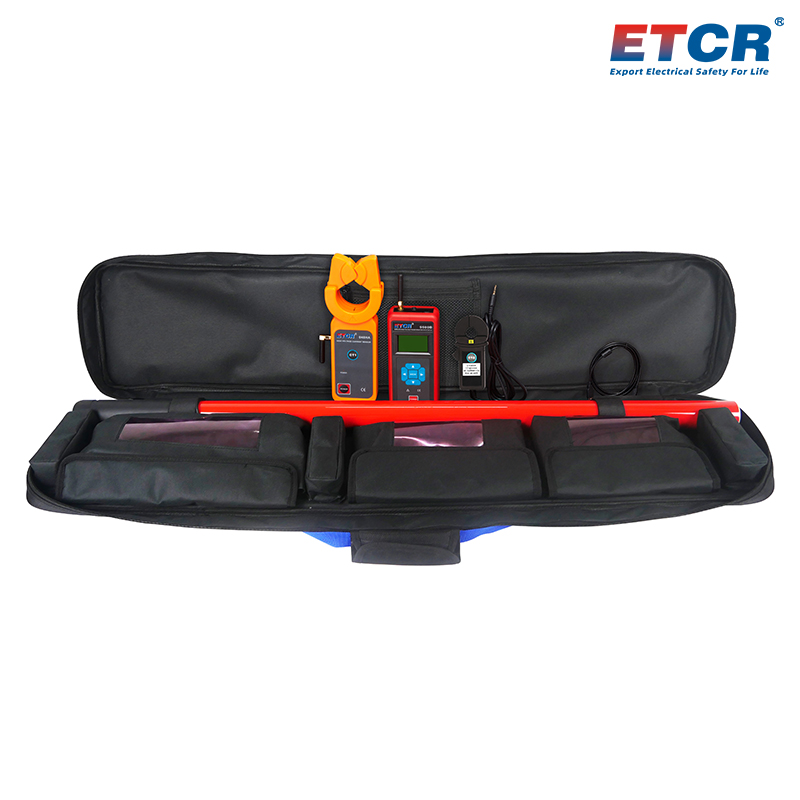

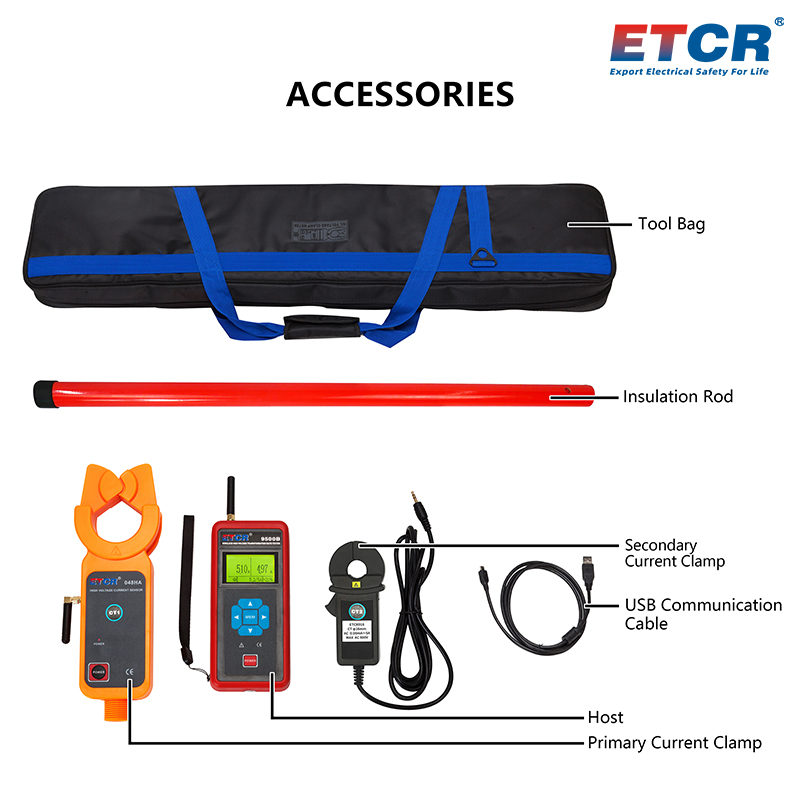

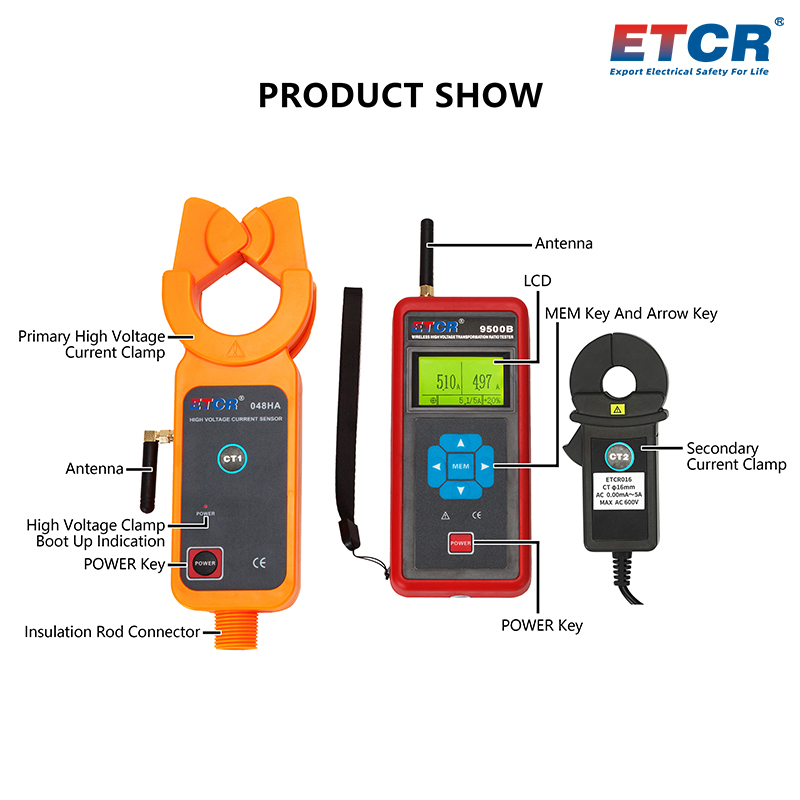

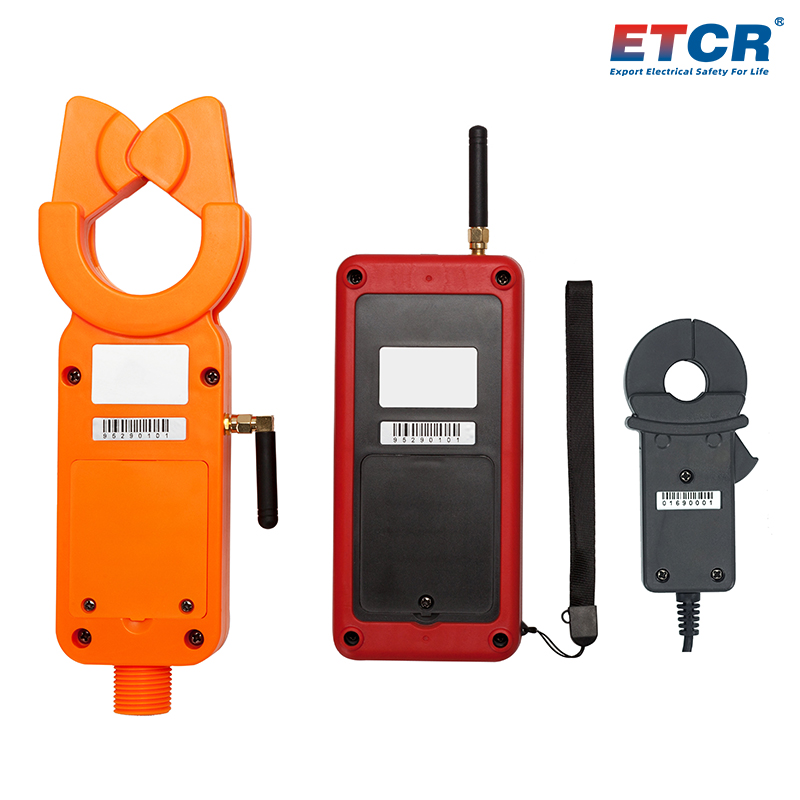

ETCR9500B Wireless High Voltage CT Turn Ratio Tester consists of a primary current clamp (high-voltage detector), a secondary current clamp, a host, a high-voltage insulating rod, monitoring software, and a communication line. The high-voltage current clamp is made of high-performance permalloy and has high test accuracy.The high-voltage current clamp has a unique automatic plug-in structure. It can easily clamp or evacuate the wire under test by pressing or withdrawing the insulating rod. The operation is safe, time-saving and fast. The insulating rod is lightweight and has the characteristics of moisture-proof, high temperature resistance, impact resistance, bending resistance, and high insulation. The insulation level is 110kV.The instrument has a storage function, a USB communication interface, and the stored data can be uploaded to a computer for historical data reading, viewing, saving, printing, etc.
1. The high-voltage current clamp is made of high-performance permalloy material, which has strong anti-interference and high test accuracy.
2. The innovative automatic plug-in and unplugging structure of the high-voltage current clamp can easily clamp or evacuate the wire under test by pressing or withdrawing the insulating rod, which is safe, time-saving and fast.
3. The high-voltage current clamp adopts wireless transmission method, with a transmission distance of 100m.
4. Storage function, storing 3000 sets of data.
5. USB communication interface.

Technical Parameter

Power Supply	DC6V alkaline dry battery LR03 (1.5V AAAX4)
Display Mode	LCD: 128dots×64dots; backlight function, suitable for dim places
LCD Size	Display area: 44mmX27mm
Test Method	Clamp CT
Primary Current Test	Range: 0.00A～800A; resolution: 0.01A; accuracy: ±0.5%FS
Secondary Current Test	Range: 0.00mA～5A; resolution: 0.01mA; accuracy: ±0.5%FS
Turn Ratio Measurement Range	1～9999
Turn Ratio Resolution	0.1
Primary Current Clamp Size	Clamp jaw size: Φ48mm；Dimensions：255mmX84mmX39mm；
Secondary Current Clamp Size	Clamp jaw size: Φ48mm; overall size: 255mmX84mmX39mm；
Shift Gears	Fully automatic gear shift
Sampling Rate	3 times/second
Memory	3000 groups, press the left arrow key to keep the data and store it automatically (data will not be lost if the battery is powered down or replaced)
Data Hold	Press the left arrow key to hold the data, the HOLD symbol is displayed, and then press the HOLD key to cancel the hold
Data Access	Press the right arrow key to enter the data access mode
Overflow Display	Over-range overflow function: ”OL" symbol display
No Signal Indication	Prompt “No signal” when the host does not receive the transmitted signal
Battery Voltage	When the battery voltage is lower than 5.2V±0.3V, the low battery voltage symbol is displayed to remind the battery to be replaced.
Primary Current Clamp Transmission Distance	Wireless transmission distance 100m
Secondary current clamp connection line length	2m
Host Size	78mm×165mm×42mm
Weight	Receiver: about 302g (include battery); primary high voltage current clamp: about 363g (include battery) Secondary low voltage current clamp: about 156g; total weight: about 6.14kg (include accessories)
External Interference	Avoid extra-strong electromagnetic fields; avoid 433MHz and 315MHz interference at the same frequency
Automatic Shutdown	After about 15 minutes of power-on, the meter will automatically turn off
Insulation Rod Size	4300mm
Insulation Rod Withstand Voltage	110kV
Insulation Strength	Host and detector: AC1000V/rms (between shell and screw)
Working Temperature & Humidity	-15℃～50℃; below 70%RH
Store Temperature & Humidity	-10℃～60℃; below 70%RH

Model comparison

Product Picture	Product Model Name	Line Voltage Level	Primarary Current Range	Secondary Current Range	Wireless Distance	Turn Ratio Range	Angle Difference Test	Others
	ETCR9500B Wireless High Voltage CT Turn Ratio Tester	≤35kV	0.0A ～800A	0.00mA～5A	100m	1～9999	--
	ETCR9500C-016 Three-Channel Wireless High Voltage CT Turn Ratio Tester	≤35kV	0.0A ～800A	0.00mA～5A	100m	1～9999	--	Simultaneous measurement of 3 channels secondary currents
	ETCR9500C-030 Three-Channel Wireless High Voltage CT Turn Ratio Tester	≤35kV	0.0A ～800A	0.00mA～10A	100m	1～9999	--	Simultaneous measurement of 3 channels secondary currents

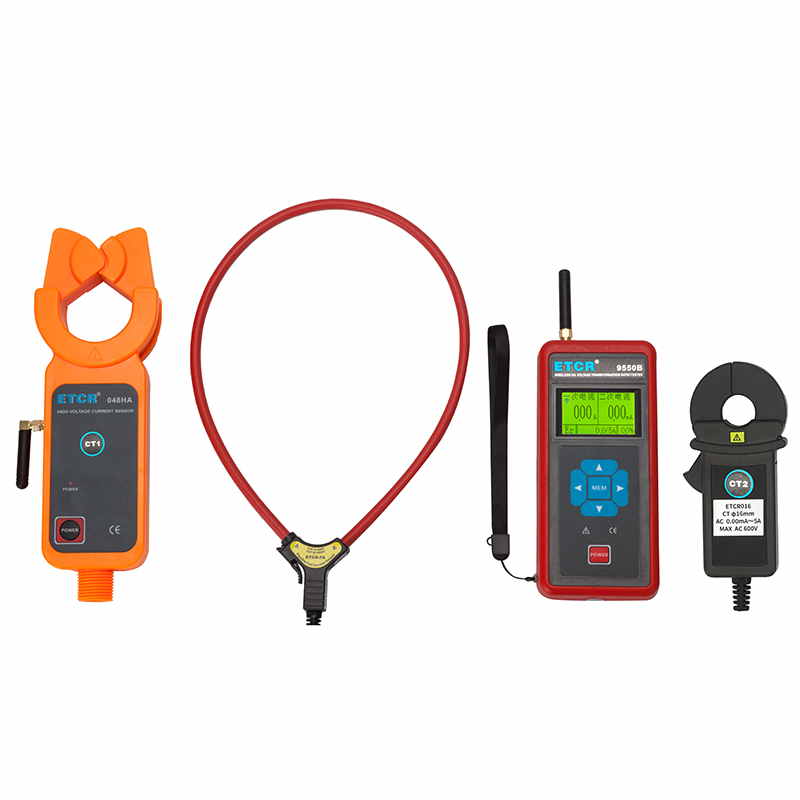

	ETCR9550B Wireless High/Low Voltage CT Turn Ratio Tester	≤35kV	0.0A ～800A /3000A	0.00mA～5A	100m	1～9999	Yes

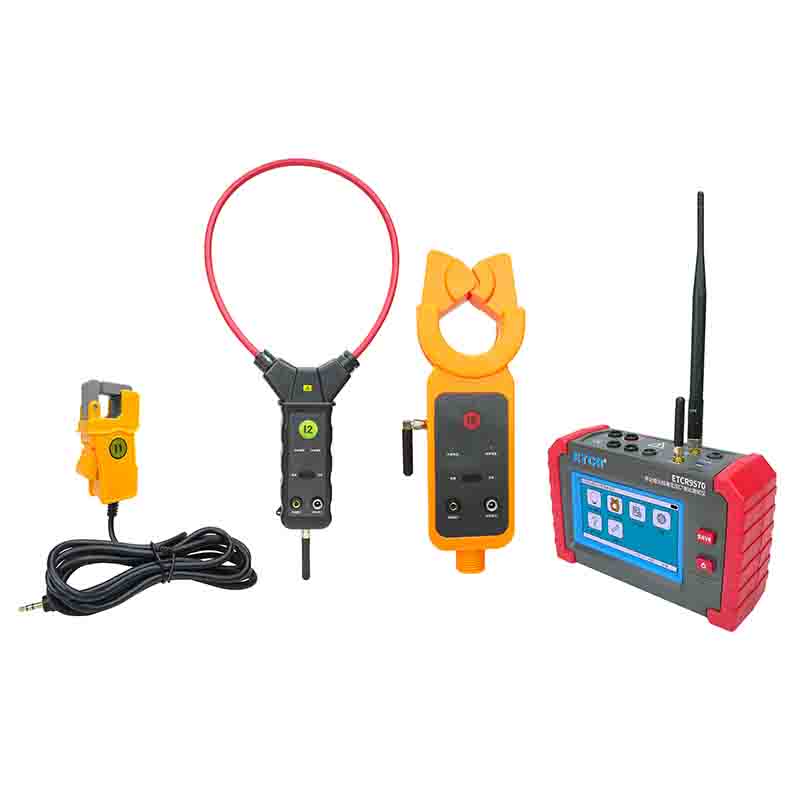

	ETCR9570 Multifunctional High/Low Voltage CT Turn Ratio Tester	≤35kV	0.0A～800A/3000A	0.00mA～10A	100m	1～9999	Yes	Harmonics/Voltage/Power measurement, Bluetooth
	ETCR9600 Low Voltage CT Turn Ratio Tester	380V/220V	0.0A～800A	0.00mA～5A	--	1～9999	Yes
	ETCR9620 Low Voltage CT Turn Ratio Tester	380V/220V	0.0A～3000A	0.00mA～5A	--	1～9999	Yes
	ETCR9620B Low Voltage CT Turn Ratio Tester	380V/220V	0.0A～3000A	0.00mA～5A	100m	1～9999	--
