Product Introduction
ETCR8000 lOT Current Online Monitoring System is used for remote online monitoring of AC leakage current and current, troubleshooting circuit insulation faults, monitoring intermittent leakage faults, and checking the time when the insulation failure occurred, the location of the failure, etc.Products are widely used in electric power, communications, meteorology, railways, oil fields, construction, metrology, scientific research and teaching units, industrial and mining enterprises and other fields.
ETCR8000 lOT Current Online Monitoring System consists of a monitoring terminal, a cloud, and a client.
Monitoring terminal: including clamp monitor, SIM card, etc.The monitor uses 4G communication to upload test data or leakage events to the cloud server.
Cloud: Including cloud servers, system software, etc.Manage the monitoring terminal.
Client: including mobile terminals, PCs, etc.The mobile terminal supports various platforms windows, Android, and Huawei Hongmeng OS systems.Users can easily view the real-time current monitoring data (current value, battery level, monitor number, etc.) through a PC or mobile phone, PDA tablet computer and other mobile terminals at any time to achieve remote real-time monitoring.
System Performance

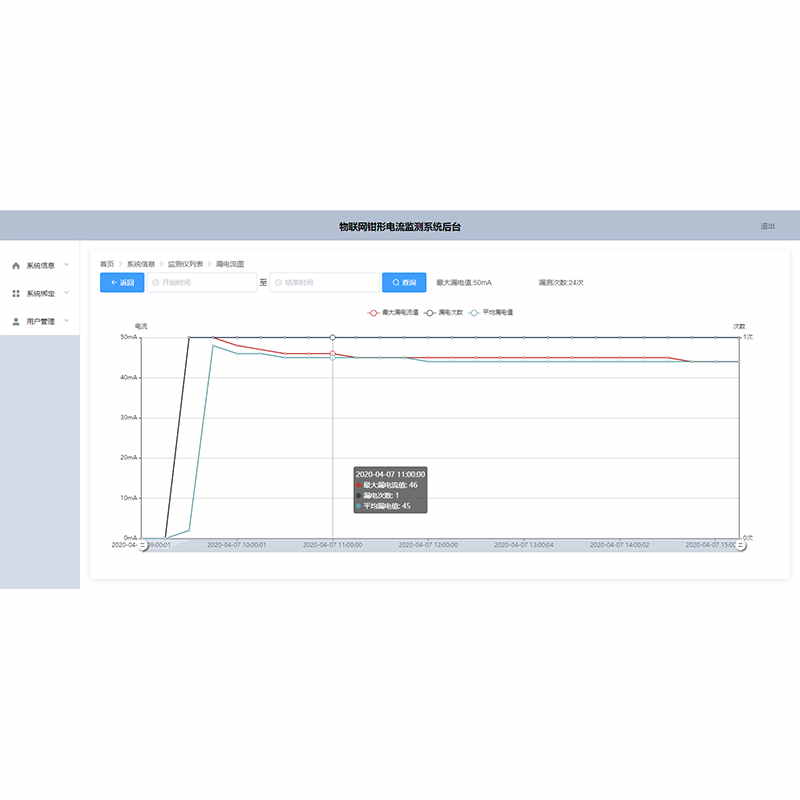

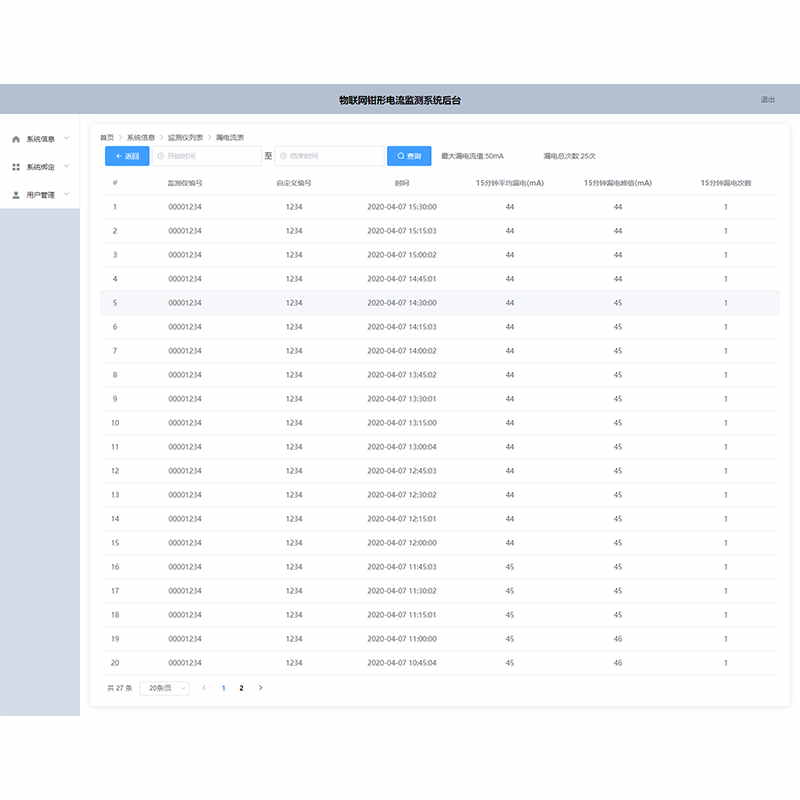

1. Data statistics function: The system counts the uploaded data, realizes two viewing methods, table and line chart, and monitors and displays the maximum current value and the number of leaks in real time, which is convenient, efficient and practical.In the PC terminal, you can quickly query through the time button, and all monitoring data within that time is displayed in one of two ways: a table or a line chart.
2. Quick function (positioning function): The installation location and brief address can be set according to the actual monitoring location or address. In the event of a leakage event, you can quickly locate and understand the relevant leakage situation.In the list of monitors, you can quickly query the relevant information of the corresponding monitor, that is, the monitoring data, by searching for the monitor number or brief address.
3. Alarm function: The monitor leaks electric current alarm: When the current value exceeds the alarm value, the system will have a corresponding prompt.Monitor battery level alarm: When the battery level is low, there will be corresponding prompts.
4. Monitor management function: efficiently manage the monitor through the account number, and change the installation address and installation location at any time, so that each monitoring can ensure the accurate positioning of the leakage event when it occurs.You can view the number of monitors bound to the account, and automatically classify the type of monitor, and the maximum number of instruments bound to the account and other information.
5. Monitor binding function: Bind the tester through the account number, that is, add the monitor.You can also unbind the tester through your account, that is, delete the monitor.One account can have up to 200 monitors (which can be customized according to needs).
Technical Parameter
| Monitor Model |
ETCR8042 |
ETCR8072 |
| Monitor Picture |
|
|
| Measuring Range |
0.0mA～300A |
0.0mA～600A |
| Max Measurement Accuracy |
±1.5%rdg±5dgt |
±1.5%rdg±5dgt |
| Clamp Jaw Size |
Ф40mm |
Ф70mm |
| Communication Method |
4G |
4G |
Model comparison
