ETCR9500C-030 Three-Channel Wireless High Voltage CT Turn Ratio Tester

Main Functions
Current and variable ratio testing of the first and second circuits of high and low voltage current transformers, polarity and phase difference judgment
Primary current range: 0.00A～800A
Secondary current range: 0.00mA～10A
Variable ratio measurement range: 1～9999
Wireless transmission distance: 100m
Storage function: store 3000 sets of data
USB communication interface
Consult Immediately
    Product Introduction
    ETCR9500C-030 Three-Channel Wireless High Voltage CT Turn Ratio Tester, also known as transformer current variable ratio tester, transformer ratio difference tester, current transformer variable ratio tester, is used for primary current, secondary current size, variable ratio, phase difference, polarity judgment of current transformers below 35kV.The instrument uses 3 secondary low-voltage current pliers (diameter 25mm×30mm) to test the low-voltage circuit at the same time, which can directly determine the corresponding phase relationship between the high-voltage terminal and the low-voltage terminal, without multiple clamp tests.It is widely used in substations, power plants, power inspection departments, industrial and mining enterprises, testing stations, electrician maintenance departments for current detection, anti-theft and field electrician operations.

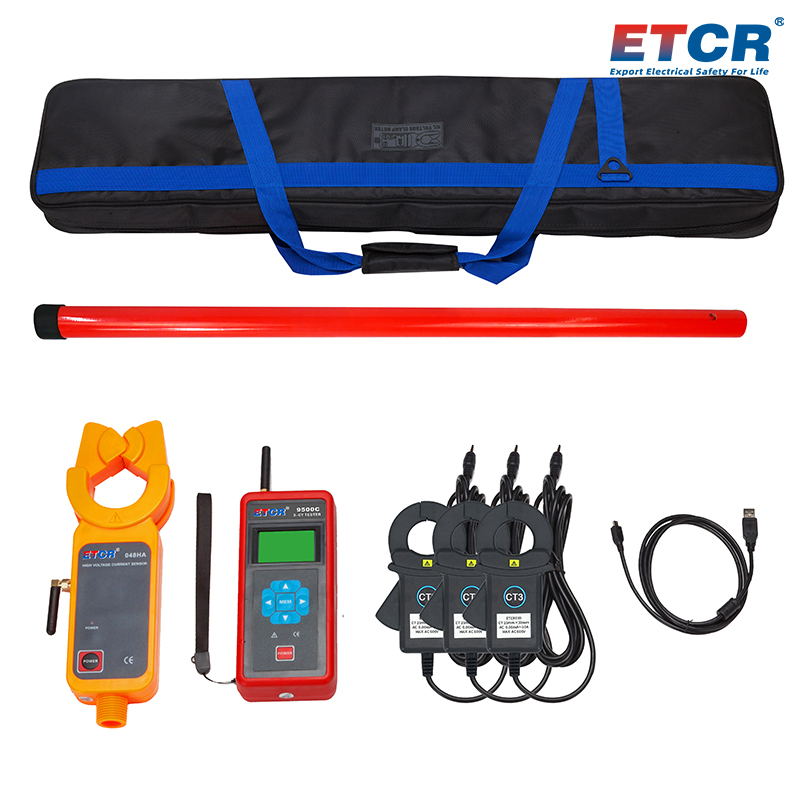

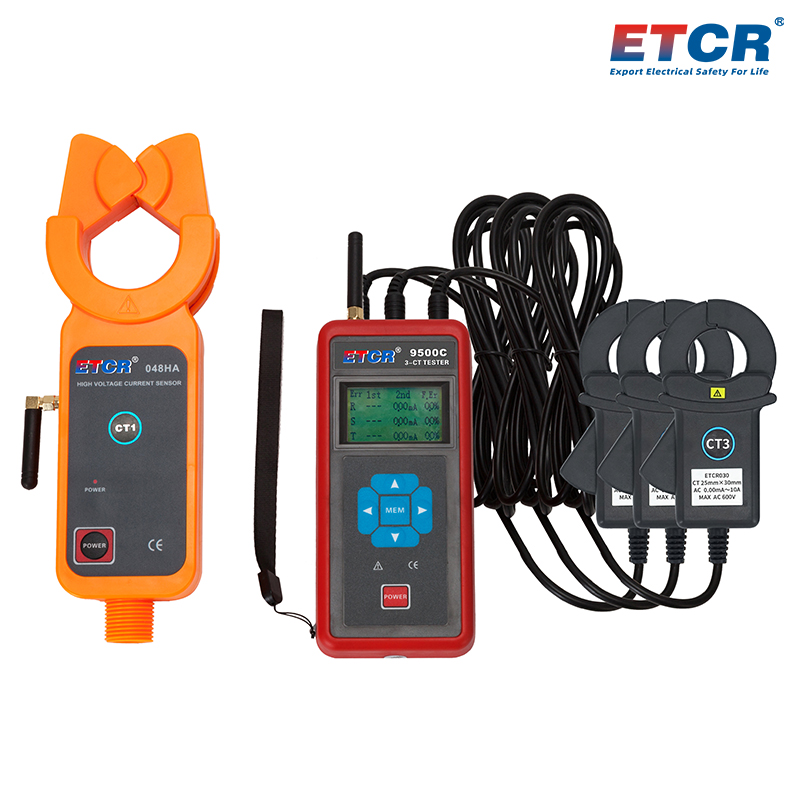

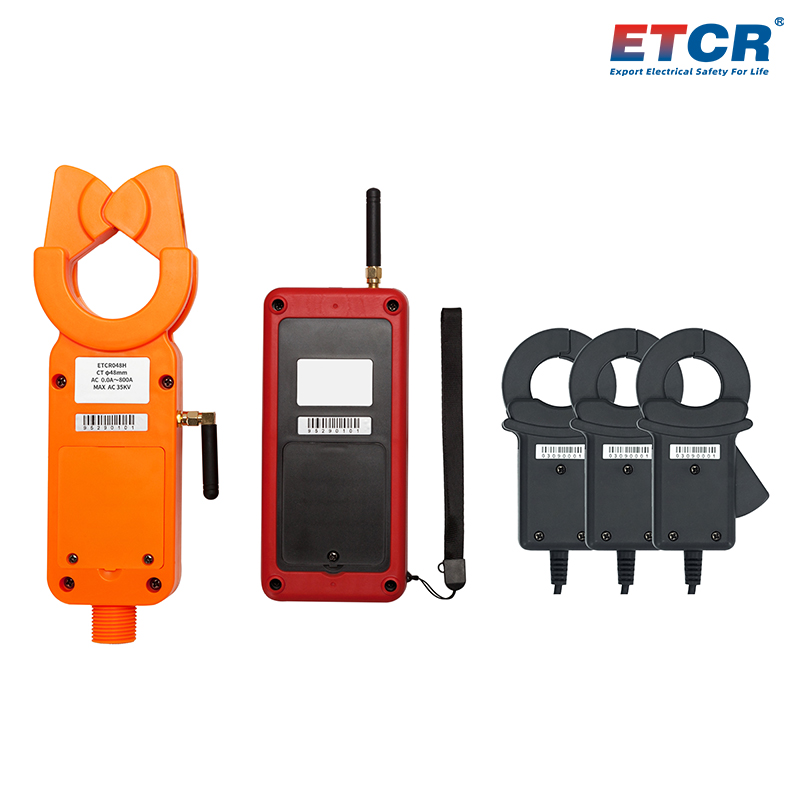

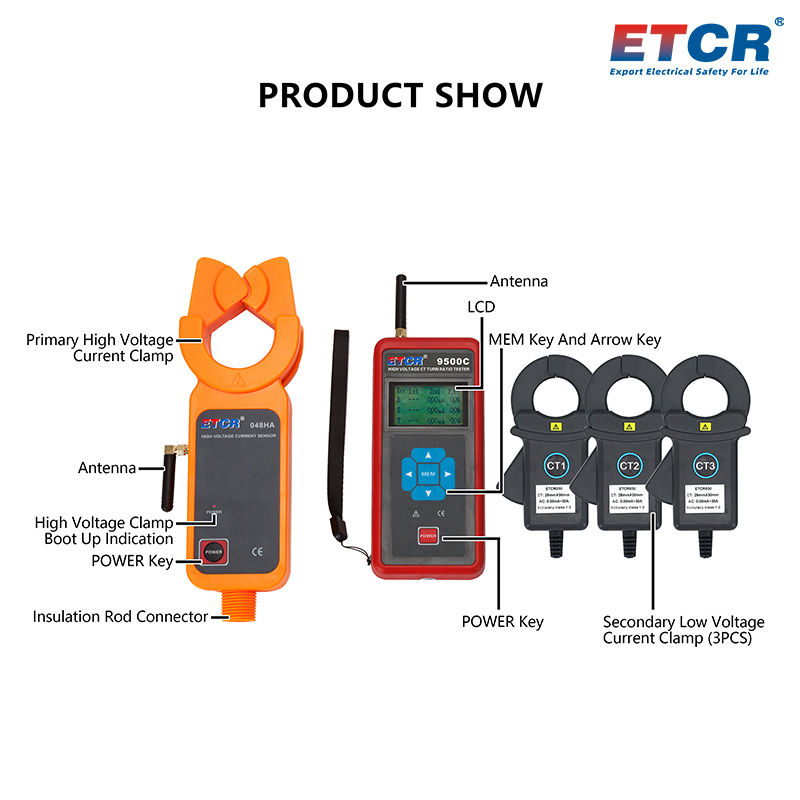

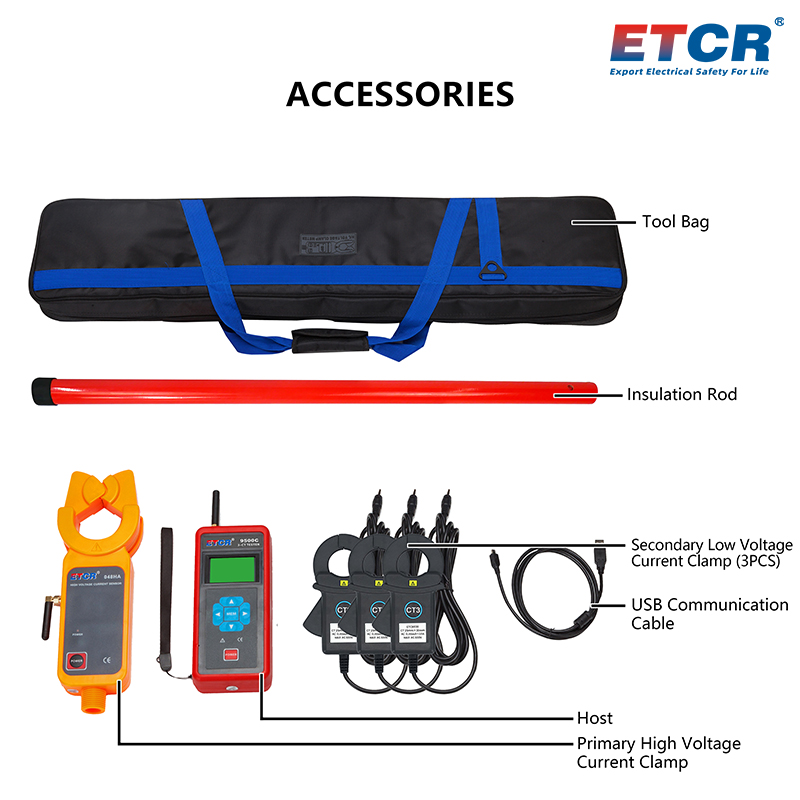

    ETCR9500C-030 Three-Channel Wireless High Voltage CT Turn Ratio Tester consists of primary current pliers (high-voltage detector), secondary current pliers (3 pcs), host, high-voltage insulating rod, monitoring software, communication line, etc., The high-voltage current pliers are made of high-performance permalloy, and the test accuracy is high.The high-voltage current clamp has a unique automatic plug-in structure. It can easily clamp or evacuate the wire under test by pressing or withdrawing the insulating rod. The operation is safe, time-saving and fast. The insulating rod is lightweight and has the characteristics of moisture-proof, high temperature resistance, impact resistance, bending resistance, and high insulation. The insulation level is 110kV.The instrument has a storage function, a USB communication interface, and the stored data can be uploaded to a computer for historical data reading, viewing, saving, printing, etc.
    1. Three secondary low-voltage current pliers are used to test the low-voltage circuit at the same time, which can directly determine the corresponding phase relationship between the high-voltage terminal and the low-voltage terminal, without multiple clamp tests.
    2. The innovative automatic plug-in and unplugging structure of the high-voltage current clamp can easily clamp or evacuate the wire under test by pressing or withdrawing the insulating rod, which is safe, time-saving and fast.
    3. The high-voltage current clamp adopts wireless transmission method, with a transmission distance of 100m.
    4. Storage function, storing 3000 sets of data.
    5. USB communication interface.
    Technical Parameter
    Power Supply DC6V alkaline dry battery LR03 (1.5V AAAX4)
    Display Mode LCD: 128dotsX64dots; backlight function, suitable for dim places
    LCD Size Display area: 44mmX27mm
    Test Method Clamp CT
    Primary Current Test Range: 0.00A～800A; resolution: 0.01A; accuracy: ±0.5%FS
    Secondary Current Test Range: 0.00mA～10A; resolution: 0.01mA; accuracy: ±0.5%FS
    Turn Ratio Measurement Range 1～9999
    Turn Ratio Resolution 0.1
    Primary Current Clamp Size Clamp jaw size: Φ48mm; overall size: 255mmX84mmX39mm
    Secondary Current Clamp Size Clamp jaw size: 25mmX30mm; overall size: 115mmX70mmX33mm
    Shift Gears Fully automatic gear shift
    Sampling Rate 3 times/second
    Memory 3000 groups, press the left arrow key to keep the data and store it automatically (data will not be lost if the battery is powered down or replaced)
    Data Hold Press the left arrow key to hold the data, the HOLD symbol is displayed, and then press the HOLD key to cancel the hold
    Data Access Press the right arrow key to enter the data access mode
    Overflow Display Over-range overflow function: ”OL" symbol display
    No Signal Indication Prompt “No signal” when the host does not receive the transmitted signal
    Battery Voltage When the battery voltage is lower than 5.2V±0.3V, the low battery voltage symbol is displayed to remind the battery to be replaced.
    Primary Current Clamp Transmission Distance Wireless transmission distance 100m
    Second Current Clamp Connection Line Length 2m
    Host Size 78mmX165mmX42mm
    Weight Receiver: about 302g (including battery); primary high voltage current clamp: about 363g (including battery) Secondary low voltage current clamp: about 156g; total mass: about 6.14kg (including accessories)
    External Interference Avoid extra-strong electromagnetic fields; avoid 433MHz and 315MHz interference at the same frequency
    Automatic Shutdown After about 15 minutes of power-on, the meter will automatically turn off
    Insulating Rod Size 4300mm
    Insulating Rod Withstand Voltage 110kV
    Insulation Strength Host and detector: AC1000V/rms (between shell and screw)
    Working Temperature & Humidity -15℃～50℃; below 70%RH
    Storage Temperature & Humidity -10℃～60℃; below 70%RH


    Model comparison
    Product Picture Product Model Name Line Voltage Level Primarary Current Range Secondary Current Range Wireless Distance Turn Ratio Range Angle Difference Test Others
    ETCR9500B Wireless High Voltage CT Turn Ratio Tester ≤35kV 0.0A ～800A 0.00mA～5A 100m 1～9999 --
    ETCR9500C-016 Three-Channel Wireless High Voltage CT Turn Ratio Tester ≤35kV 0.0A ～800A 0.00mA～5A 100m 1～9999 -- Simultaneous measurement of 3 channels secondary currents
    ETCR9500C-030 Three-Channel Wireless High Voltage CT Turn Ratio Tester ≤35kV 0.0A ～800A 0.00mA～10A 100m 1～9999 -- Simultaneous measurement of 3 channels secondary currents
    ETCR9550B Wireless High/Low Voltage CT Turn Ratio Tester ≤35kV 0.0A ～800A /3000A 0.00mA～5A 100m 1～9999 Yes
    ETCR9570 Multifunctional High/Low Voltage CT Turn Ratio Tester ≤35kV 0.0A～800A/3000A 0.00mA～10A 100m 1～9999 Yes     Harmonics/Voltage/Power measurement, Bluetooth
    ETCR9600 Low Voltage CT Turn Ratio Tester 380V/220V 0.0A～800A 0.00mA～5A -- 1～9999 Yes
    ETCR9620 Low Voltage CT Turn Ratio Tester 380V/220V 0.0A～3000A 0.00mA～5A -- 1～9999 Yes
    ETCR9620B Low Voltage CT Turn Ratio Tester 380V/220V 0.0A～3000A 0.00mA～5A 100m 1～9999 --
