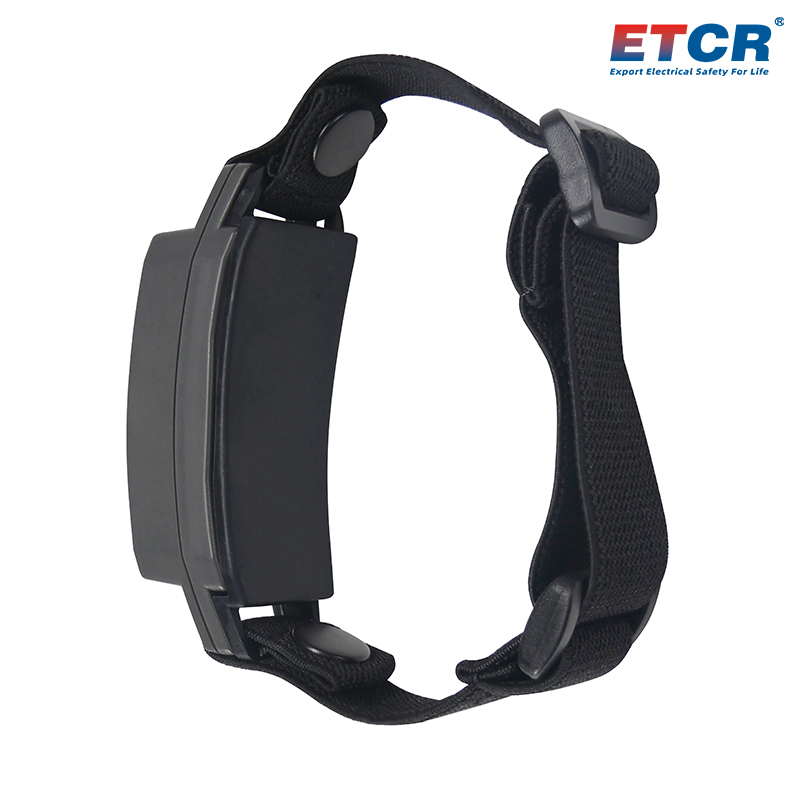

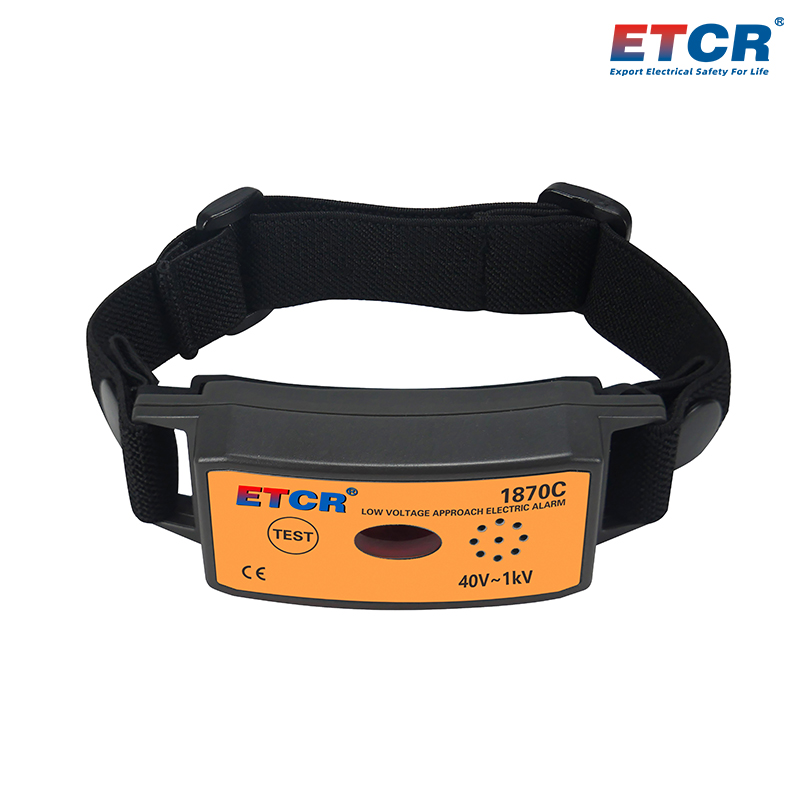

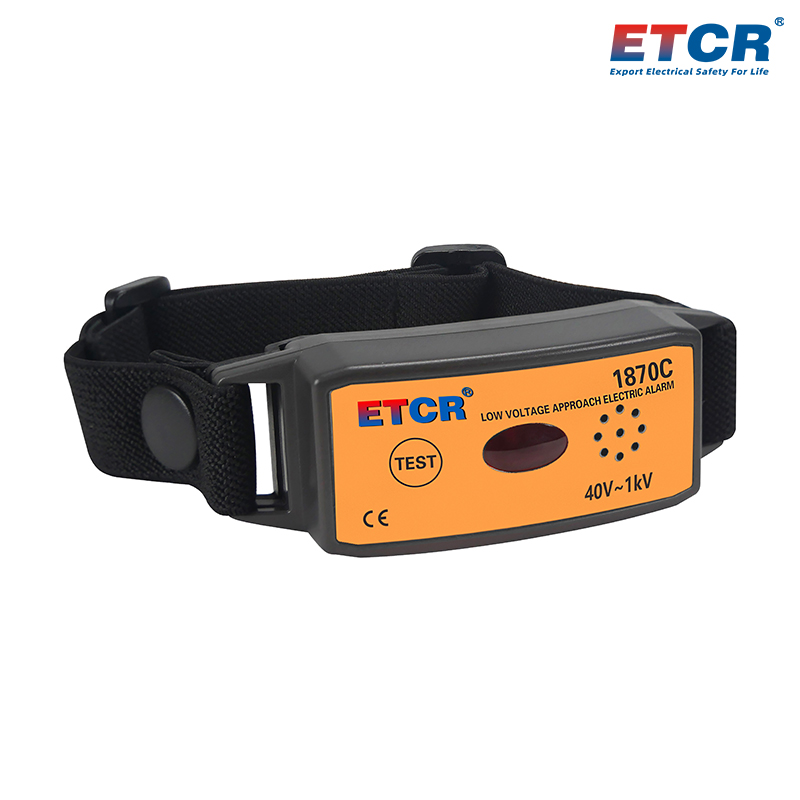

ETCR1870C Arm Type Low Voltage Approach Electricity Alarm

Main Functions
After the operator wearing the alarm, when approaching the certain distance from the high voltage charged object,the alarm will emit sound and light alarm according to the safe distance corresponding to the voltage level, reminding the electrical worker paying attention to safety and avoiding high-voltage electric shock accident.This product can also be used for line fault detection and electroscope use.
Alarm voltage range: 40V~1kV
Method of electricity verification: non-contact
Protection level: IP54

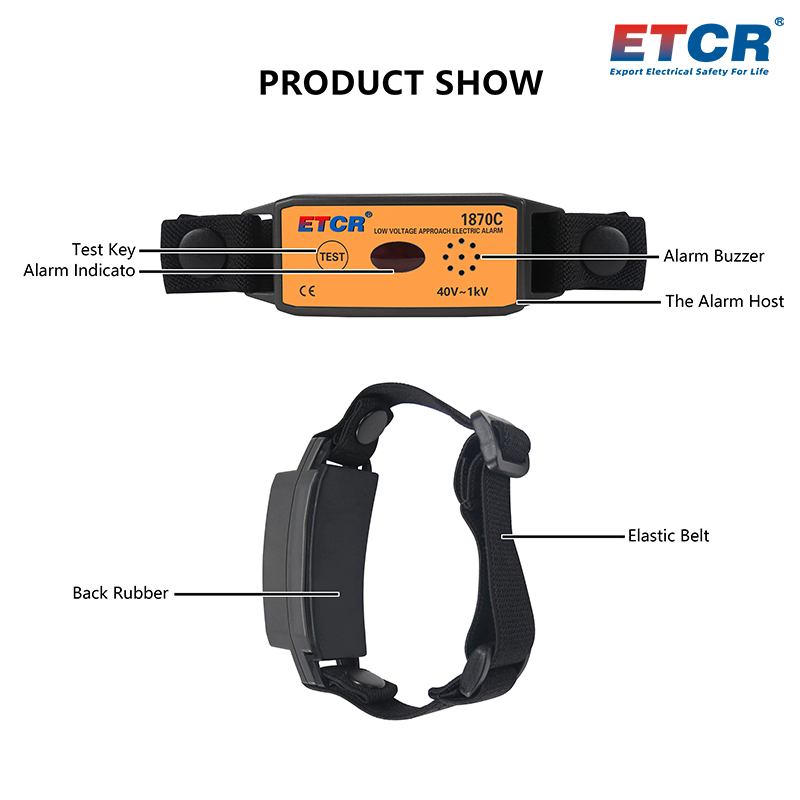

Sound and light alarm
    Product Introduction
     ETCR1870C Arm Type Low Voltage Approach Electricity Alarm, also known as wearable near-electric alarm, which provides a safe, practical and convenient new-type high voltage alarm device for near-electric operators. When work on electric device without turning off electricity, the safety distance between the operator and the live object should not be lower than the requirement of relevant work regulation. After the operator wearing this alarm, when approaching the certain distance from high voltage live object, the alarm will emit sound and light alarm according to the corresponding safety distance of the voltage level, reminding electrical worker paying attention to safety and avoiding high voltage electric shock accident.
    ETCR1870 Series Arm Type Low Voltage Approach Electricity Alarm has two options: high voltage alarm (suitable for 1kV and above) and low voltage alarm (suitable for 1kV and below), adopting with non-contact induction technology, accurate alarm, energy-saving and durable, with standby time up to 12 months. The alarm has unique automatic triggering detection function to ensure the safety of live working personnel. This alarm are widely used in near-electric workplaces such as power, railway and industrial mining enterprise.

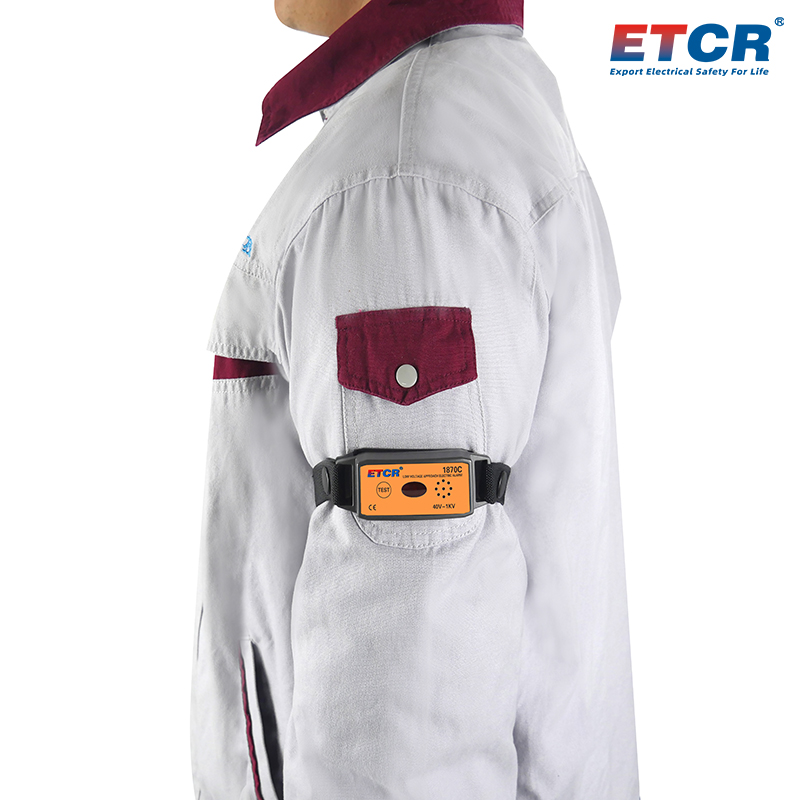

    1.The alarm is worn on the outermost part of the worker's work clothes and upper arm.
    2.Adopt with non-contact induction technology, accurate alarm, energy-saving and durable, with standby time up to 12 months.
    3.Comprehensive detects the electric field in the air in all directions, trigger automatically alarm function, sound and light mode, ensuring the safety of near-electricity operator.
    4.Protection level: IP54
    Technical Parameter
    1.Voltage level and alarm distance (safety distance according to "GB 26860-2011 Electric Power Safety Work Regulations - Electrical Part of Power Plants and Substations" and "GB 26859-2011 Electric Power Safety Work Regulations - Power Line Part")
    Voltage Level Alarm Distance
    40V 5cm
    110V 10cm
    220V 15cm
    600V 40cm
    1kV 60cm

    2.General Specifications
    Power Supply CR1632 (140mAH) button cell 2 PCS
    Alarm Voltage Range 40V~1kV (low voltage alarm)
    Work Frequency 50Hz/60Hz
    Method Of Electricity Verification Non-contact
    Detection Mode Automatic trigger
    Alarm Distance Error ±10cm (Under benchmark conditions)
    Battery Life Continuous operation (sound and light alarm): about 24 hours
    Standby time: about 12 months
    Alarm Method Indicator light: 8000LX visible light visible LED light
    Buzzer: Above 60dB (60cm apart)
    Protection Level IP54
    Overall Size 88mm×32mm×30mm
    Weight Instrument: about 46g (include battery); total weight: about 0.08kg (include accessory)
    Working Temperature & Humidity -10℃~40℃; below 80%RH
    Storage Temperature & Humidity -10℃~60℃; below 70%RH
    Model comparison
    Product Picture Product Model Name Voltage Range Sound & Light Alarm Power Supply Mode Standby Time Others
    ETCR1840 Waterproof Approach Electricity Alarm AC 40V~500kV Yes Lithium battery 6 months IP67
    Vibration alarm
    ETCR1850 Grounding Down Lead Clip Approach Electricity Alarm AC 40V~1kV Yes Lithium battery 6 months
    ETCR1860 Wrist Type High Voltage Approach Electricity Alarm AC 1kV~500kV Yes Button cell 12 months
    ETCR1860C Wrist Type Low Voltage Approach Electricity Alarm AC 40V~1kV Yes Button cell 12 months
    ETCR1870 Arm Type High Voltage Approach Electricity Alarm AC 1kV~500kV Yes Button cell 12 months
    ETCR1870C Arm Type Low Voltage Approach Electricity Alarm AC 40V~1kV Yes Button cell 12 months
    ETCR1880 Helmet High Voltage Approach Electricity Alarm AC 1kV~500kV Yes Button cell 12 months
    ETCR1880C Helmet Low Voltage Approach Electricity Alarm AC 40V~1kV Yes Button cell 12 months
