ETCR001F Flexible Coil Sensor With Integrator(Separate)
Main Functions
Used for detection of AC current, high-order harmonic current, complex waveform current, transient inrush current, start-up current, phase, electrical energy, power, power factor, etc.
Current range: AC 0A～10000A
Signal output: AC 0～1V
Response frequency: 0.1Hz～1MHz
Accept customer customization
Products meet CE requirements
Product Introduction
ETCR001F Flexible Coil Sensor With Integrator(Separate), also known as Rockwell coil current sensor, Roche coil sensor, flexible current clamp, lightning strike current sensor, is used for current, high-order harmonic current (up to 400 times), complex waveform current, transient inrush current, phase, electrical energy, power, power factor and other detection.After being equipped with an integrator, it can be more easily integrated into other test equipment, such as power quality analyzer, harmonic analyzer, power parameter recorder, phase detection analyzer, industrial control device, oscilloscope, high-precision digital multimeter, transient impact recorder, distributed measurement system, protection system, etc.

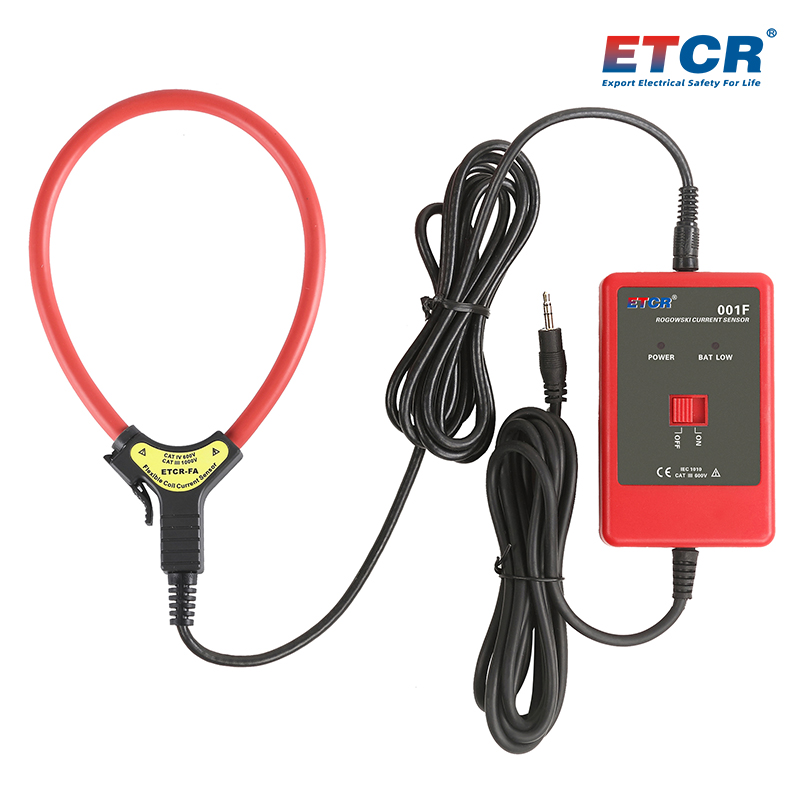

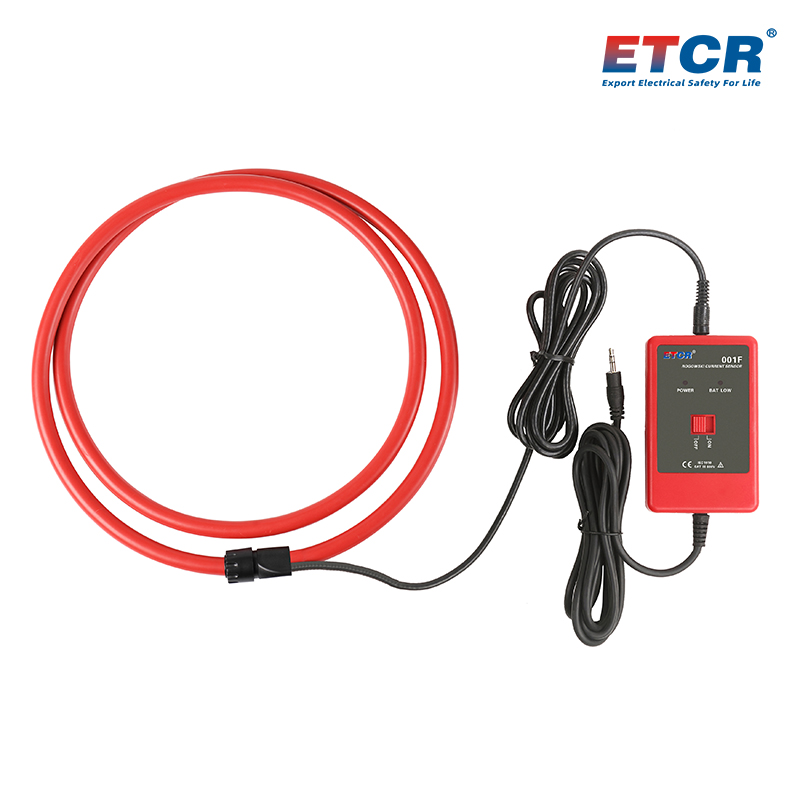

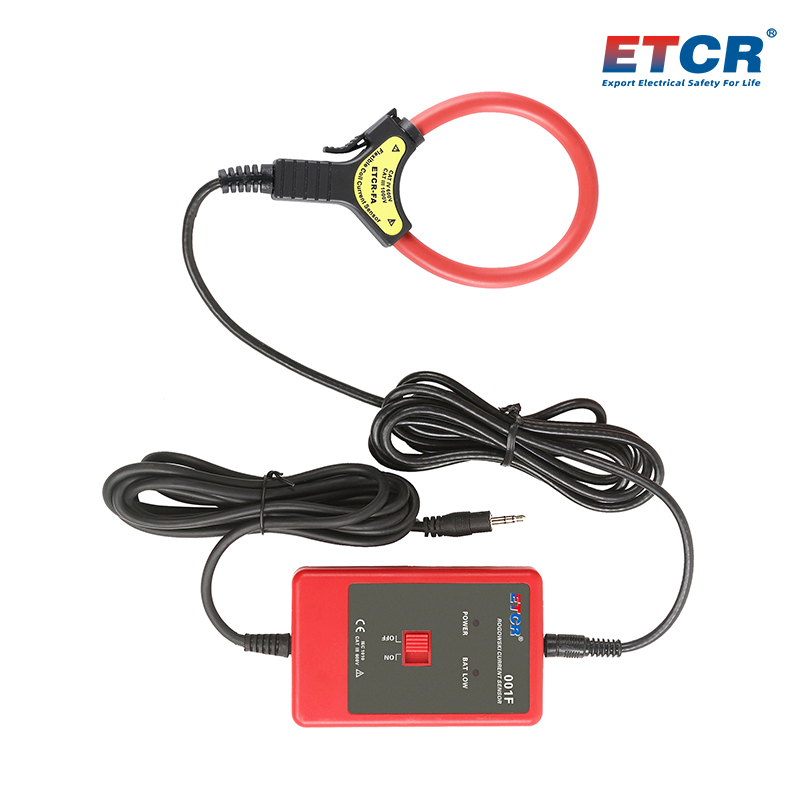

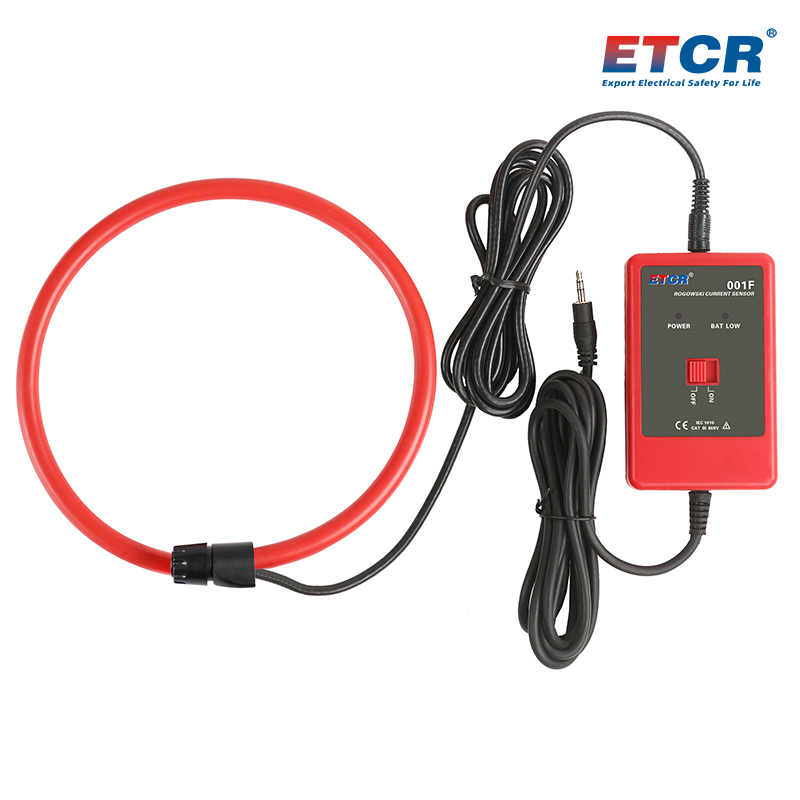

ETCR001F Flexible Coil Sensor With Integrator(Separate) consists of an integrator and a coil, and the integrator can be combined with FA and FB coils.The coil part does not have any exposed metal conductors, non-contact measurement, safe and reliable; its small size, light weight, exquisite appearance, soft and flexible, suitable for narrow environments and places with dense wiring; wide measurement range, high accuracy, strong reliability, wide response frequency band, users can customize the coil length according to their needs.It is widely used in electric power, communications, meteorology, railways, oil fields, construction, metrology, scientific research and teaching units, industrial and mining enterprises and other fields.It is particularly suitable for industrial environments with severe signal distortion such as relay protection, SCR rectifier, frequency conversion speed regulation, semiconductor switching, power electronic conversion equipment, arc welding, etc.
1. The separate integrator can be equipped with flexible coils of various specifications, which are flexible and convenient to meet various needs.
2. Non-contact measurement, safe and reliable.The measurement range is wide, the accuracy is high, the reliability is strong, and the response frequency band is wide.
3. The integrator is small in size and light in weight, and the flexible coil is soft and flexible. It is suitable for narrow environments and places with dense wiring, as well as for measuring the current of conductors with large sizes or irregular shapes.
4. The coil diameter and length can be customized according to customer requirements.
Technical Parameter
| Power Supply |
Zinc-manganese dry battery 6F22 9VDC |
| Current Range |
AC 0A～3000A/6000/10000A(optional) |
| Resolution |
1A/2A/3A |
| Accuracy Level |
±1%FS (50Hz/60Hz; 23℃±2℃, below 70%RH, the wire is in the center of the coil) |
| Signal Output |
Full-scale corresponding outputAC 0～1V |
| Phase Error |
≤1°(50Hz/60Hz;23℃±2℃) |
| Output Interface |
3.5mm audio plug/BNC interface/tap (optional) |
| Flexible Coil Wire Diameter |
Ф7.5/Ф12 (optional) |
| Flexible Coil Size |
Ф40～Ф3000mm (optional) |
| Electric Field Interference |
No hysteresis effect, not disturbed by external electric field |
| Wire Position |
The wire under test is in the center of the coil, and the influence of the position error is ≤±0.5%FS |
| Current Frequency |
45Hz～70Hz (measured current frequency) |
| Response Frequency |
0.1Hz～1MHz |
| Line Voltage |
Line test below AC 600V |
| Integrator Size |
103mm×65mm×26mm |
| Integrator Weight |
205g |
| Insulation Strength |
AC 2000V/rms (both ends of the coil after unlocking and unfolding) |
| Suitable Safety Standard |
CAT IV 600V, CAT Ⅲ 1000V |
| Working Temperature & Humidity |
-20℃～50℃; below 80%rh |
| Storage Temperature & Humidity |
-10℃～60℃; below 70%rh |
Model comparison
| Product Picture |
Product Model Name |
Cable Diameter |
Coil Length |
Current Range |
Precision Level |
Others |
| |
Flexible Coil sensor With Integrator(Separate) |
Φ7.5mm/Φ12mm |
Accept Customization |
AC 300A/3000A/6000A/10000A |
±1.0%FS |
With Integrator |
| |
Flexible Coil Sensor With Integrator(integral) |
Φ7.5mm |
Accept Customization |
AC 300A/3000A/6000A/10000A |
±1.0%FS |
With Integrator |
| |
Rogowski Flexible Coil Current Sensor |
Φ7.5mm/Φ12mm |
Accept Customization |
AC 0～10000A |
±1.0%FS |
-- |
