ETCR6900 Flexible Large Current Clamp Meter

Main Functions

Measurement of AC current.
Current measurement range: AC 0.00A~9999A
Coil Diameter: Φ200mm
Memory: data storage 99 groups
Peak value hold function

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

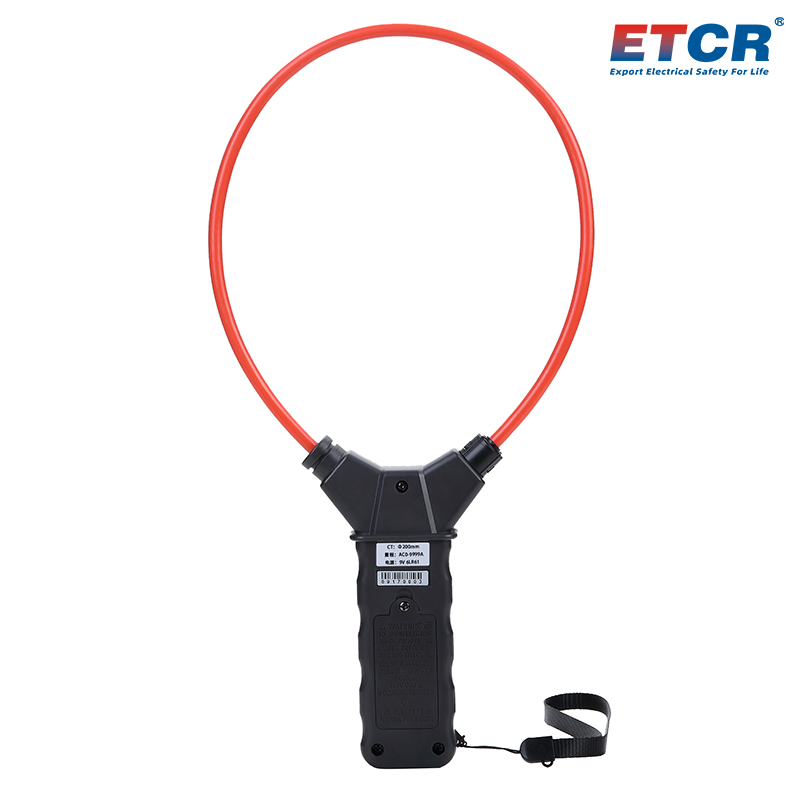

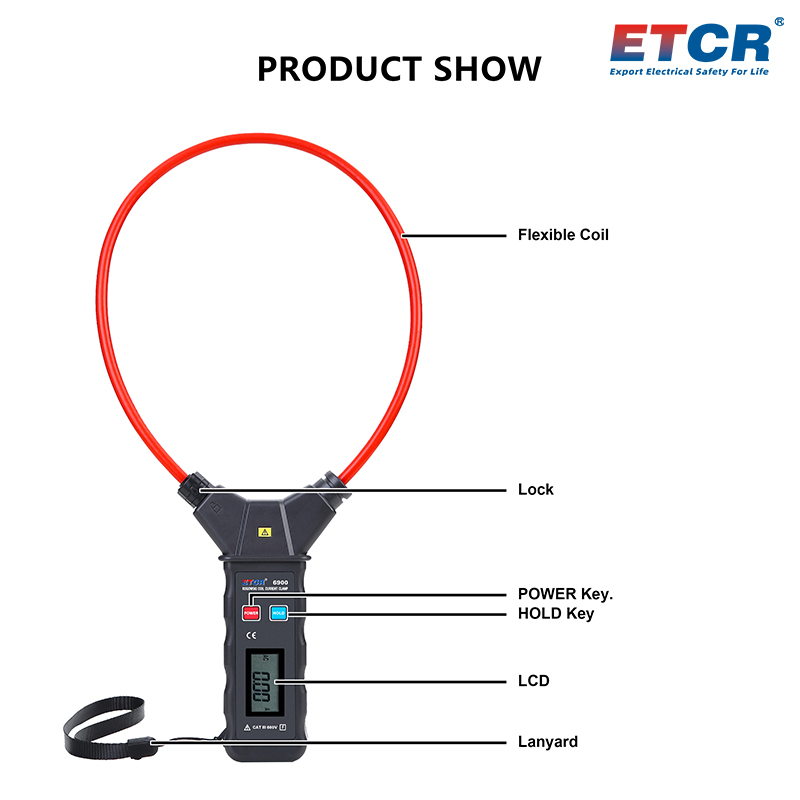

ETCR6900 Flexible Large Current Clamp Meter, also known as flexible coil clamp meter, super large current clamp meter, Rogowski coil current clamp meter, which is used for measurement of AC current. Flexible coil without any exposed metal conductors, small size, light weight, soft and flexible, especially suitable for large size conductor, narrow environment and cable dense place, which can be used for current testing in industrial environments with severe signal distortion. It is widely used in electric power, communication, meteorology, railway, oil field, construction, metrology, scientific research and teaching units, industrial and mining enterprises and other fields.
ETCR6900 Flexible Large Current Clamp Meter with the function of peak hold, data hold and data storage, convenient to use, which is an essential tool for electrical safety inspection.

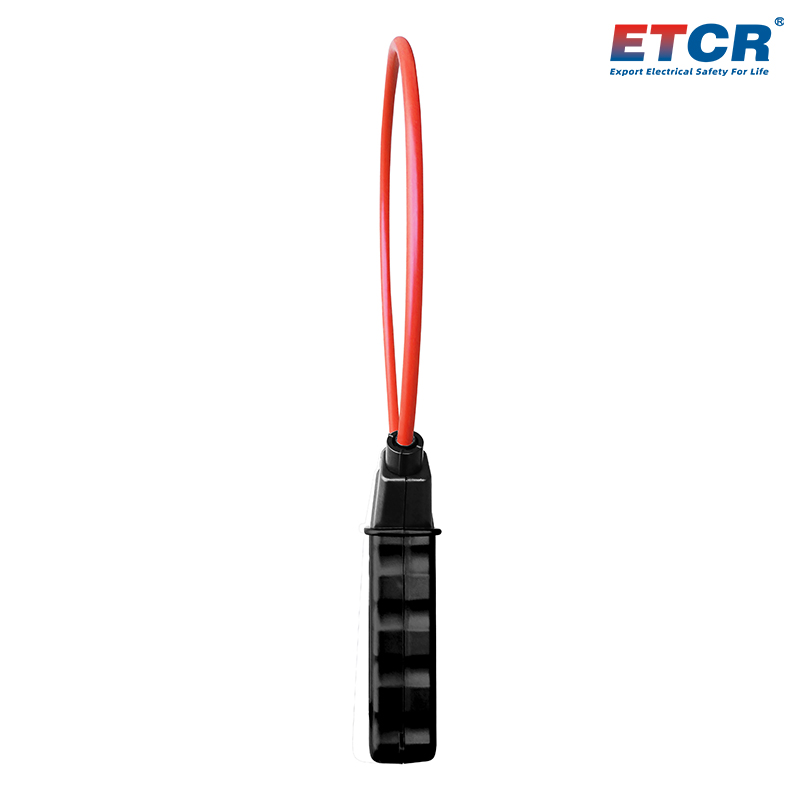

1.Flexible coil without any exposed metal conductors, small size, light weight, soft and flexible, suitable for large size conductor, narrow environment and cable dense place.
2.No magnetic saturation, strong anti-interference ability. Especially suitable for the relay protection, silicon controlled rectifier, frequency conversion speed regulation, semiconductor switch, power electronic conversion equipment, arc welding and other industrial environment with serious signal distortion.
3.Memory: data storage 99 groups.
4.Peak value hold function.

Technical Parameter

Power Supply	Zn-Mn dry battery 6F22 9V
LCD Size	35mm×21.5mm; display area: 32mm×15mm
Measurement Range	AC 0.00A~9999A
Solution	AC 10mA
Accuracy	±2%rdg±3dgt(the wire is at the center of the flexible coil,23℃±2℃)
Coil Diameter	φ200mm
Coil Thickness	φ7.5mm
The Measured Current Frequency	50Hz/60Hz(Automatic)
Backlight	with backlight, convenient to use in dark site
Meter Size	190mm×370mm×40mm
Weight	Meter: about 200g(include battery);total weight: about 0.38kg(include accessory)
Electric Field Interference	No hysteresis effect, strong anti-interference ability
Position Error	The measured wire should be in the center of the flexible coil as far as possible, not close to the opening and closing mouth, the test error at the opening and closing mouth will increase by one times or more
Sampling Rate	2 times /second
Memory	99 groups,flicker to flash display "FULL" symbol indicate storage full
Peak Hold	Peak value capture and hold function, long press POWER key display peak value, and the peak value symbol display
Data Hold	Data hold function: "DH" symbol display
Line Voltage	Line measurement below AC600V
Overflow Display	Exceed measure range overflow function: “OL”symbol display
Battery Level	While battery voltage is lower than 7.2V. low battery voltage symbol display, remind to replace the battery
Rated Current	About 8mA
Insulation Resistance	100MΩ or larger, 1000V
Suitable Safety Standard	IEC1010-1, IEC1010-2-032, Pollution level 2, CAT VI(1000V) IEC61326(EMC standard)
Working Temperature & Humidity	-10℃~40℃; below 80%RH
Storage Temperature & Humidity	-10℃~60℃; below 70%RH

Model comparison

Product Picture	Product Model Name	Clamp Jaw Size	Current Range	Voltage Range	Resistance Range	Communication Method	Others
	ETCR6900 Flexible Large Current Clamp Meter	Φ200mm	AC 0.00A~9999A	--	--	--	Peak Hold
	ETCR6920 Flexible Large Current Clamp Meter	Φ200mm	AC 0mA~10000A	AC 0.1V~750V;DC 0.1V~1000V	0Ω~2kΩ	USB	Switching Test
	ETCR6920B Flexible Large Current Clamp Meter	Φ300mm	AC 0mA~10000A	AC 0.1V~750V;DC 0.1V~1000V	0Ω~2kΩ	USB	Switching Test

Data download

Download：

ETCR6900 Flexible Large Current Clamp Meter
