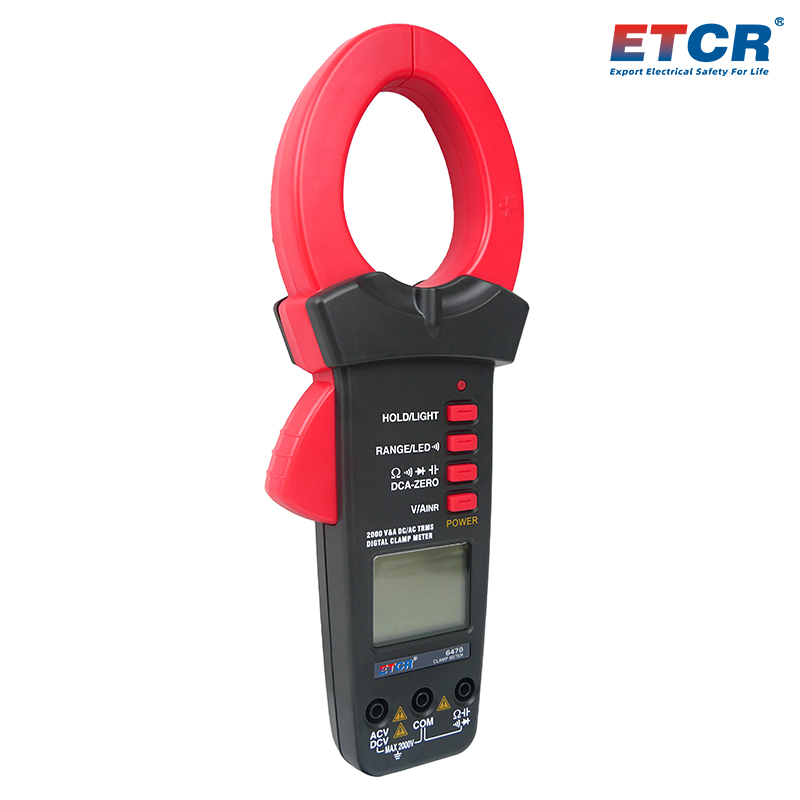

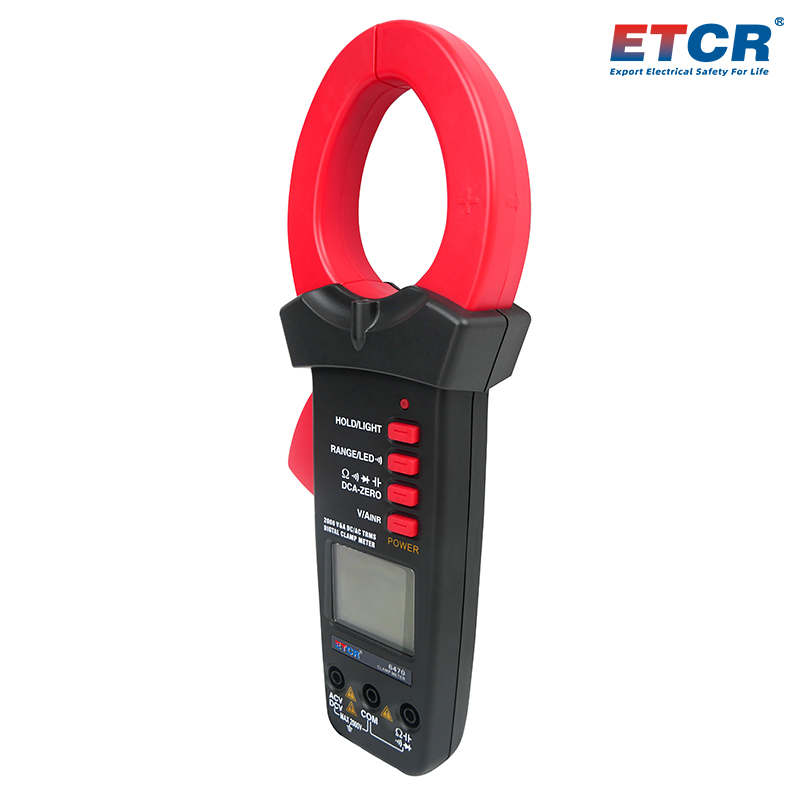

ETCR6470 Clamp Type Multimeter

Main Functions

Used for measurement of DC voltage, current, AC voltage, current true effective value (TRMS), resistance, surge, capacitance, frequency, continuity test, forward voltage drop of diode ,etc.
Clamp jaw size: Ф55mm
Voltage measurement range: DC/AC 0V~2000V
Current measurement range: DC/AC 0A~2000A
Resistance measurement range: 0Ω~20MΩ
Capacitance measurement range: 0uF~2000uF

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

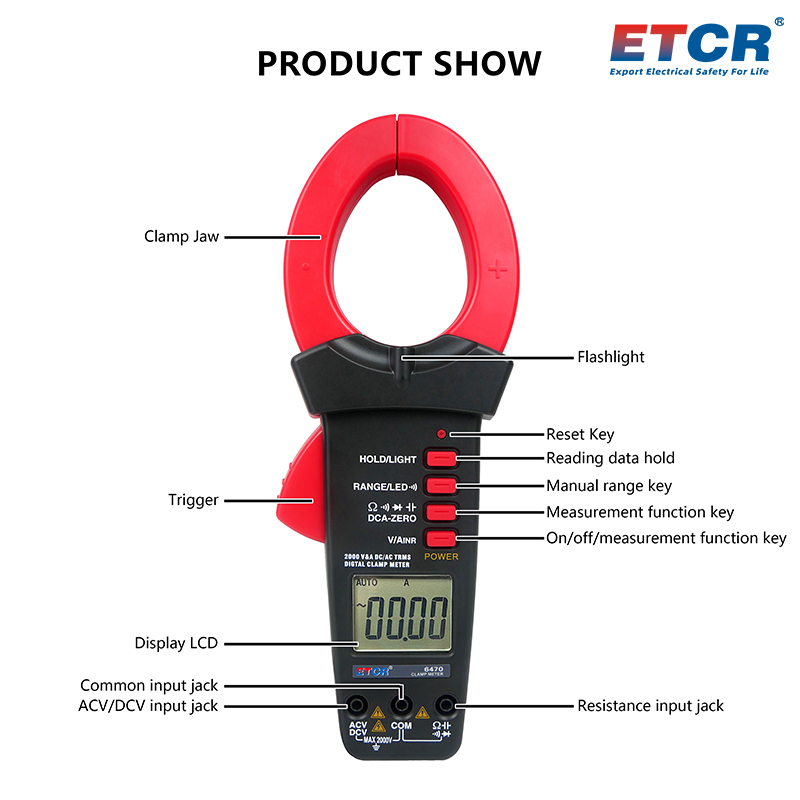

ETCR6470 Clamp Multimeter, also known as multifunctional clamp type ammeter, is a 3 1/2 digits portable digital clamp type meter for measurement of maximum AC/DC voltage of 2000V and AC current of 2000A. lts whole circuit design is based on the core of new specific MCU, with overload protection for all functions to prevent the meter burned out. The clamp multimeter adopt with button type to function switching, and with high reliability, high safety, automatic range and other characteristics. The meter has large digital displayer, data hold function, under voltage indication, auto shutdown function, has true effective value (TRMS) measurement function which can accurately measure variable frequency voltage, non-sinusoidal wave voltage, and can measure the true effective value (TRMS) of the surge current with a period of 80mS, which suitable for measuring large motor and compressor starting current. lt can measure AC/DC current,AC/DC voltage, resistance, capacitance, continuity test, diode forward voltage drop, LED working voltage,and other parameters.
ETCR6470 Clamp Multimeter with compact structure, easy operation and portability, which is an ideal tool for electrical measurement. Especially suitable for the measuring the site of large current and starting current.
1.The perfect combination of clamp meter and multimeter, adopt with new type MCU processor with high performance, portability, which is an ideal tool for electrical measurement.
2.Suitable for the measuring the site of large current and starting current.
3.No rotary switch of the multimeter, with high reliability, high safety, automatic range and other characteristics.
4.With large digital displayer, data hold function, under voltage indication, auto shutdown function.

Technical Parameter

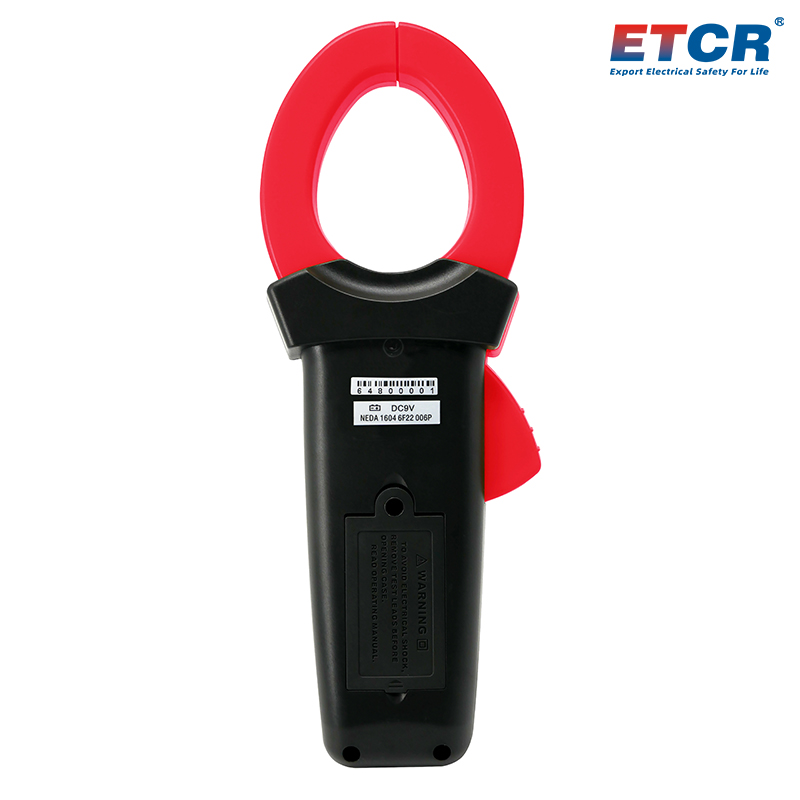

Power Supply	9V DC 6F22×1 PCS alkaline dry battery
LCD Size	45.8mm×39.5mm
DC Voltage	Range: 2V/20V/200V/2000V ±(0.5%+5)
AC Voltage	Range: 2V/20V/200V/2000V ±(0.8%+5)
DC Current	Range: 20A/200A/2000A ±(1.9%+10)
AC Current	Range: 20A/200A/2000A ±(1.9%+10)
Resistance	Range: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(1%+5)
Capacitance	Range: 20uF/200uF/2uF/20uF/200uF/2000uF ±(3%+10)
Automatic Measurement Range	√
Display	True effective value (Sine wave effective value calibration)
Overload Protection	√
Automatic Shutdown	√
Diode Test	DC forward current about 0.5mA DC reverse voltage about 3.2V Open circuit voltage about 0.6V
Short Circuit Buzzer	√
Low Voltage lndicator	√
Input Impedance	About 10MΩ
Data Hold	√
Surge Current Measurement	√
Clamp Jaw Size	Can measure max wire diameter Ф55mm
Meter Size	270x100x46mm
Weight	About 460g (include battery)
Working Temperature	0℃～40℃ relative humidity <75%
Store Temperature	-10℃～ 50℃ relative humidity <80%

Model comparison

Product Picture	Product Model Name	Clamp Jaw Size	Voltage Range	Current Range	Resistance Range	Capacitance	Frequency	Temperature
	ETCR6420 Clamp Type Multimeter	Φ27mm	AC/DC 600V	AC 600A	40MΩ	10mF	40MHz	-50℃～1000℃
	ETCR6450 Clamp Type Multimeter	Φ52mm	AC 1000V、DC 600V	AC/DC 1000A	40MΩ	10mF	40MHz	-50℃～1000℃
	ETCR6470 Clamp Type Multimeter	Φ55mm	AC/DC 2000V	AC/DC 2000A	20MΩ	2000uF	--	--
