AC/DC Current Clamp Series

Main Functions
Used for online detection of AC and DC current
Products meet CE requirements
Power supply: 9V DC
Clear method: yes
Accept customer customization
Consult Immediately
    Product Introduction
    Performance characteristics of AC and DC current clamp series products：
    1. Clamp-shaped structure, no power failure or disconnection of the line under test, easy to carry, especially suitable for on-site online testing.
    2. It adopts Hall induction technology, has stable performance and high accuracy, and has strong anti-interference ability.
    3. It can output current signal or voltage signal.
    4. The range, output signal, output interface, etc. of the transformer can be customized according to customer requirements.
    5. Output interface: BNC plug/4.0mm dual banana plug/3.5mm audio plug (optional), cable length 1.5m.
    6. Safety level: CATⅢ600V.
    7. Working temperature: -15°C～50°C

    Product Model Product Picture Measurement Parameter Output Signal Clamp Jaw Size Dimensions Weight

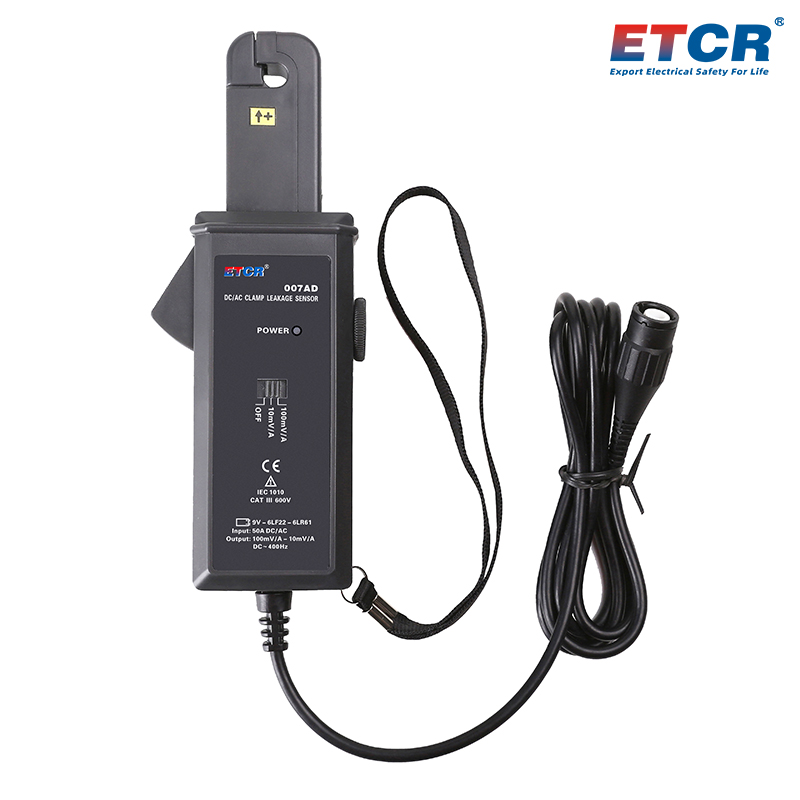

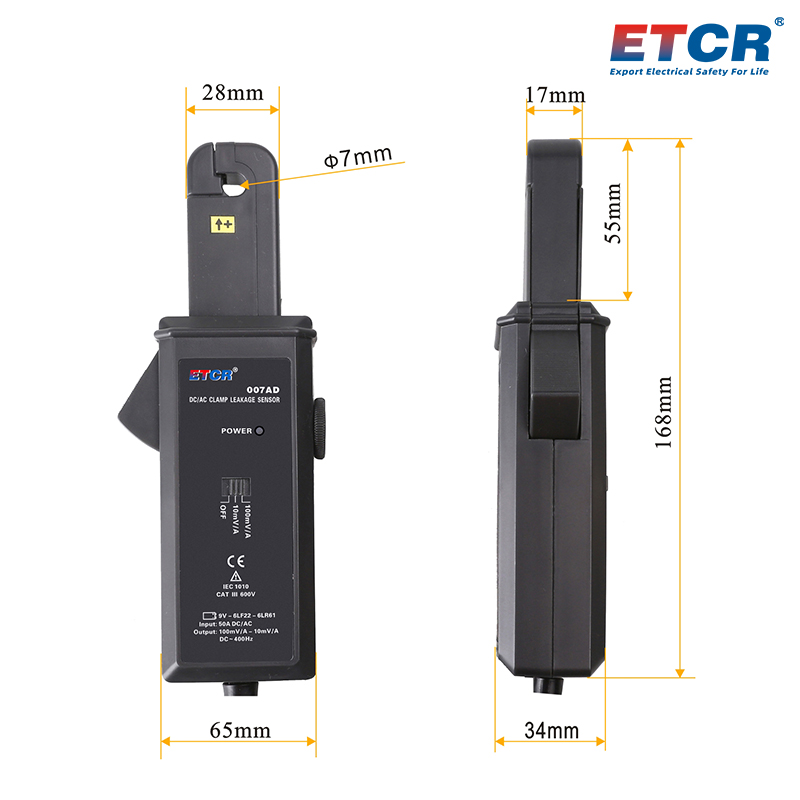

    ETCR007AD Range: 0mA～50A AC/DC
    Accuracy level: 3
    Phase error: ≤3°
    Working frequency: DC～400Hz    		 10mV/1A or 100mV/1A(Manual shift) Ф7mm 168mm×65mm×34mm 170g
    ETCR017AD Range: 0mA～50A AC/DC
    Accuracy level: 3
    Phase error: ≤3°
    Working frequency: DC～400Hz    		 10mV/1A or 100mV/1A(Manual shift) 16mm×18mm 215mm×65mm×34mm 202g
    ETCR030D Range: 0.1mA～100mA DC
    Accuracy level: 3
    Phase error: ≤3°
    Working frequency: DC    		 25mV/1mA 25mm×30mm 115mm×70mm×33mm 163g

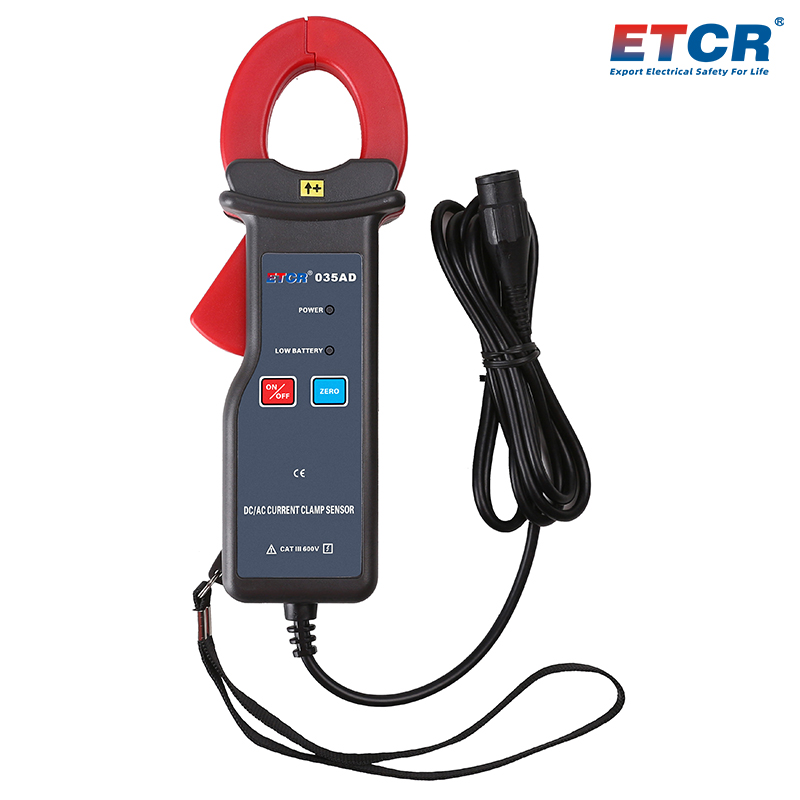

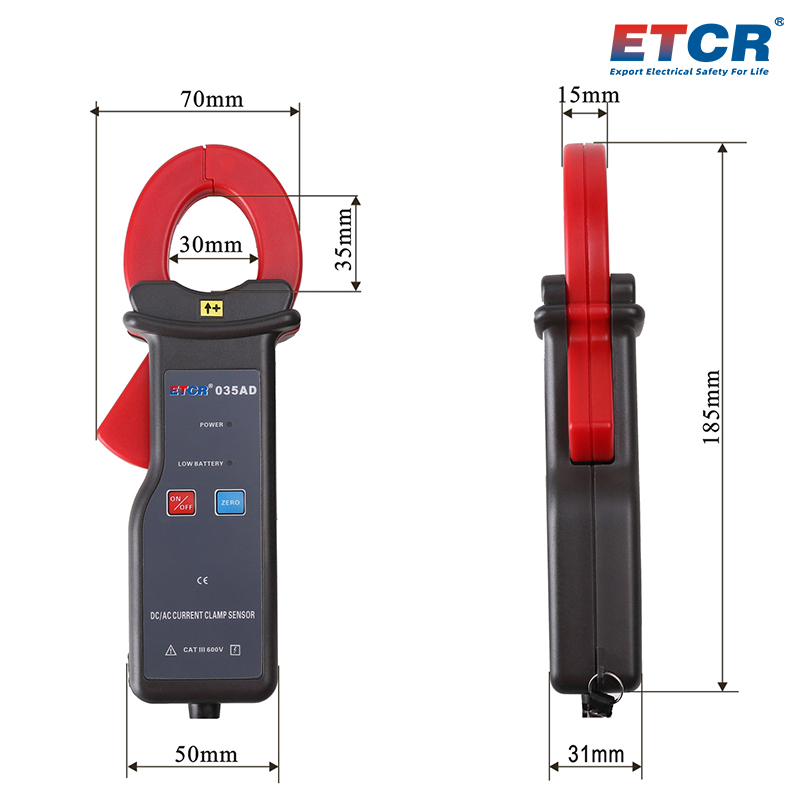

    ETCR035AD Range: 0.0A～1000A AC/DC
    Accuracy level: 2
    Phase error: ≤3°
    Working frequency: DC～400Hz    		 1mV/1A 30mm×35mm 122mm×70mm×33mm 180g

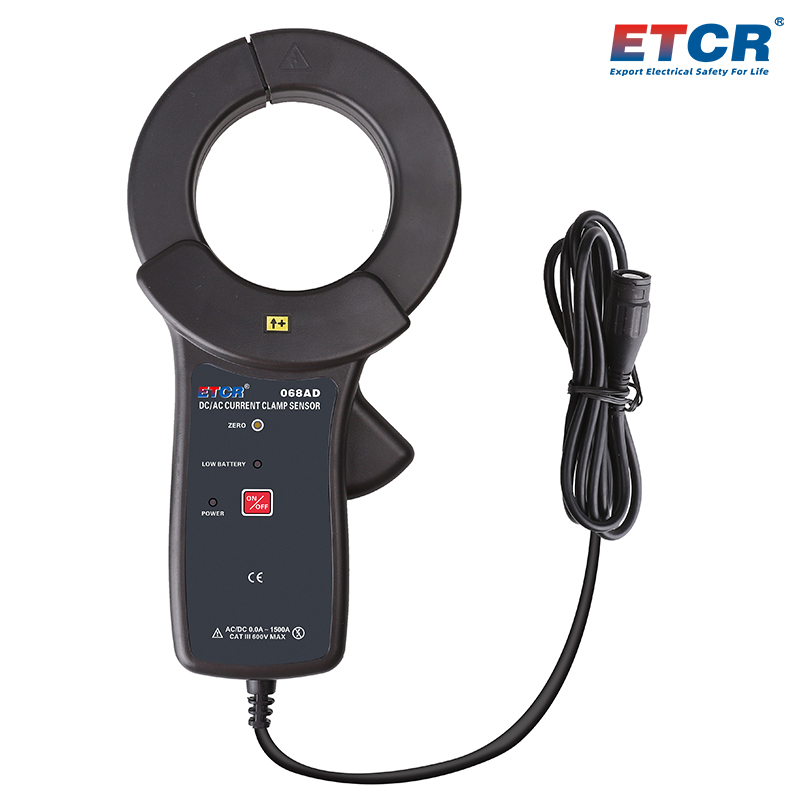

    ETCR068AD Range: 0.0A～1500A AC/DC
    Accuracy level: 3
    Phase error: ≤3°
    Working frequency: DC～400Hz    		 1mV/1A Ф68mm 224mm×115mm×43mm 515g
    Technical Parameter
    Model comparison
    Product Picture Product Model Name Clamp Jaw Size Current Range Precision Level Others
      Small Caliber Clamp Current Sensor Series Φ8 mm/Φ14 mm/17mm×18mm AC 0.0mA～20A/100A 0.5 Accept Customization
      Clamp Leakage Current Sensor Series Φ16mm/25mm×30mm/35mm×40mm/Φ68mm/80mm×80mm AC 0.00mA～20A/30A/40A/60A/100A 0.5 Accept Customization
      Clamp Current Sensor Series 25mm×30mm/35mm×40mm/Φ68mm/80mm×80mm AC 0mA～300A/500A/800A/1000A 0.5 Accept Customization
      R-Shape Current Clamp Series Φ50mm/Φ70mm AC 0mA～600A/1000A 0.5 Accept Customization
      AC/DC Current Clamp Series Φ7mm/16mm×18mm/25mm×30mm/30mm×35mm/Φ68mm AC/DC 0mA～100mA/50.0A/1000A/1500A 3.0 ±12VDC, Accept Customization
      High Voltage Current Clamp Series Φ33 mm/Φ40 mm/Φ48 mm/Φ68 mm AC 0.000mA～20A/1000A/1200A 1.0 Accept Customization
