ETCR9330B Large Caliber H/L Voltage Hook Type Current Meter

Main Functions

Used for measurement of H/L voltage AC current of overhead line below 110kV
Current Measurement Range: AC 0.00A~9999A
Clamp Jaw Size: Φ128mm
Wireless transmission distance: 100m
Memory: data storage 99 groups

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR9300B Large Caliber Hook Shaped Wireless H/L Voltage Current Meter, also known as hook shaped H/L voltage clamp current meter, overhead line load tester, high voltage load tester, high altitude current tester, high voltage current telemeter, which is used for measurement of H/L voltage AC current of overhead line below 110kV. The unique U-shaped opening structure realizes unhindered measurement, and on-site testing is particularly convenient. It is widely used in substation, power plant, industrial and mining enterprise, testing station, electrician maintenance department for current detection and field electrician operation,etc.

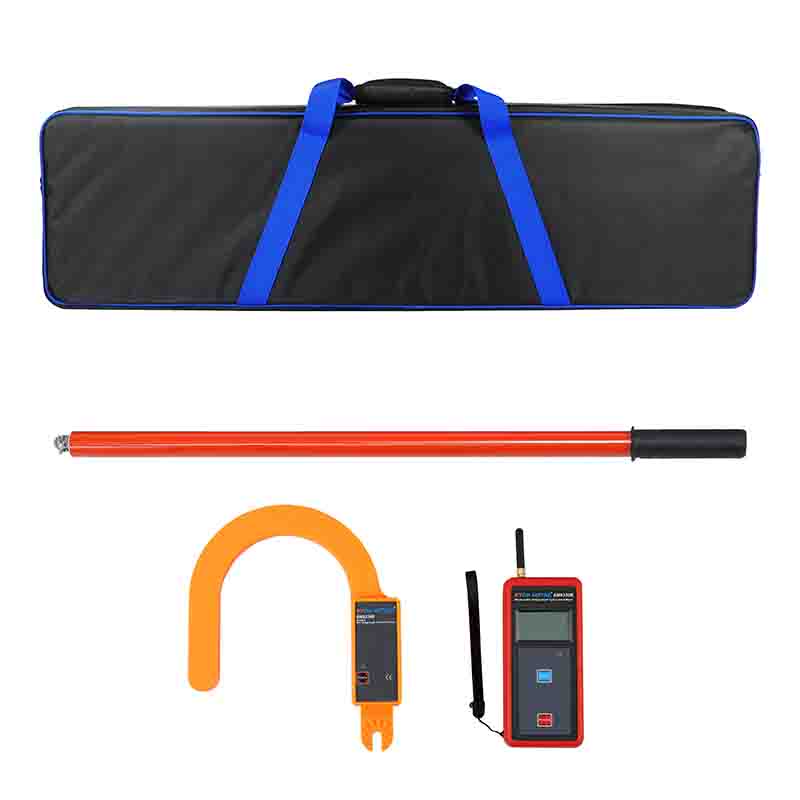

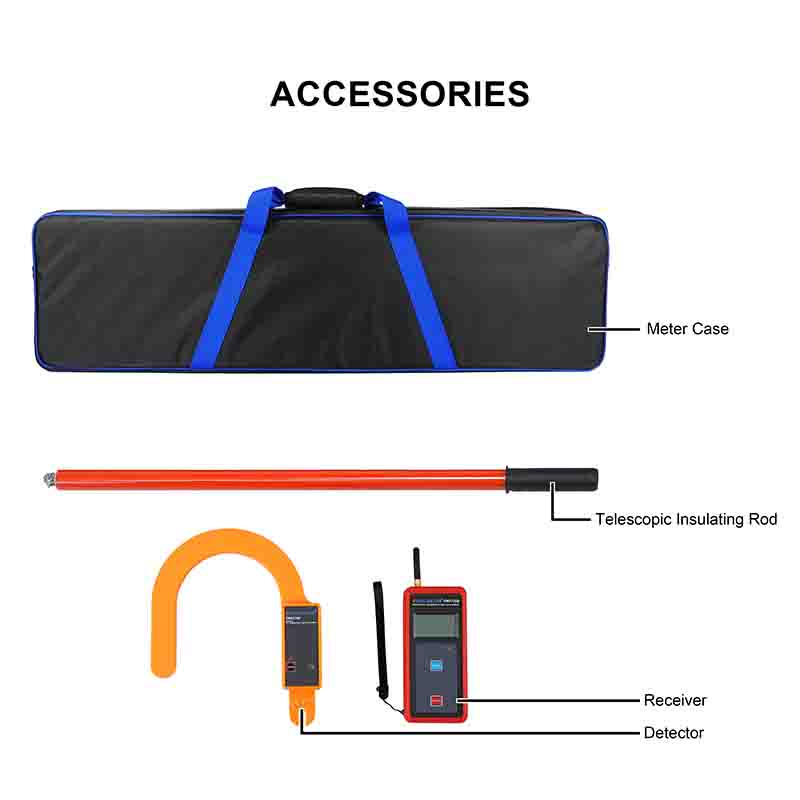

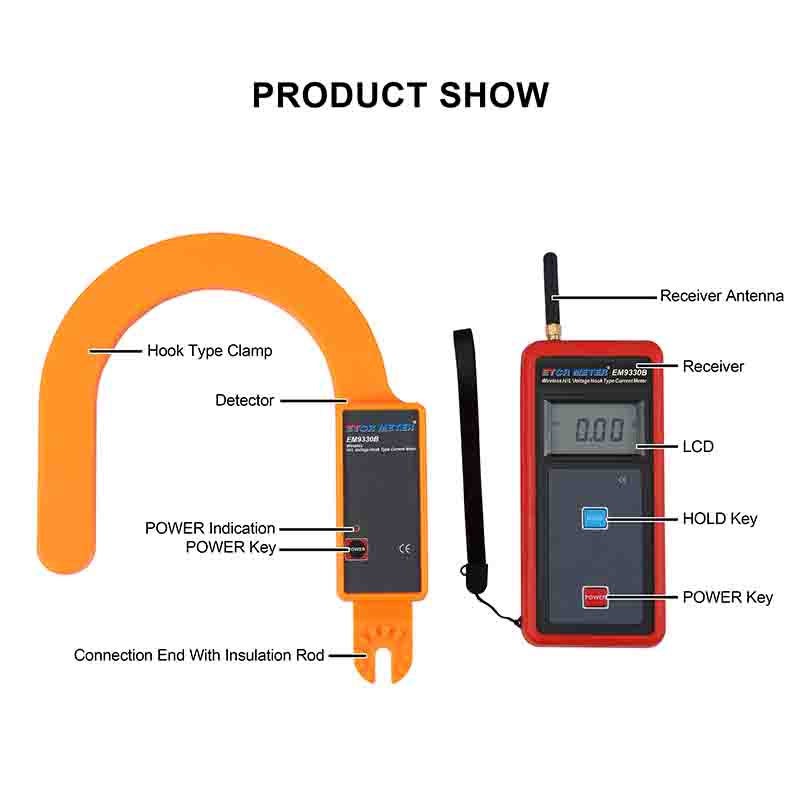

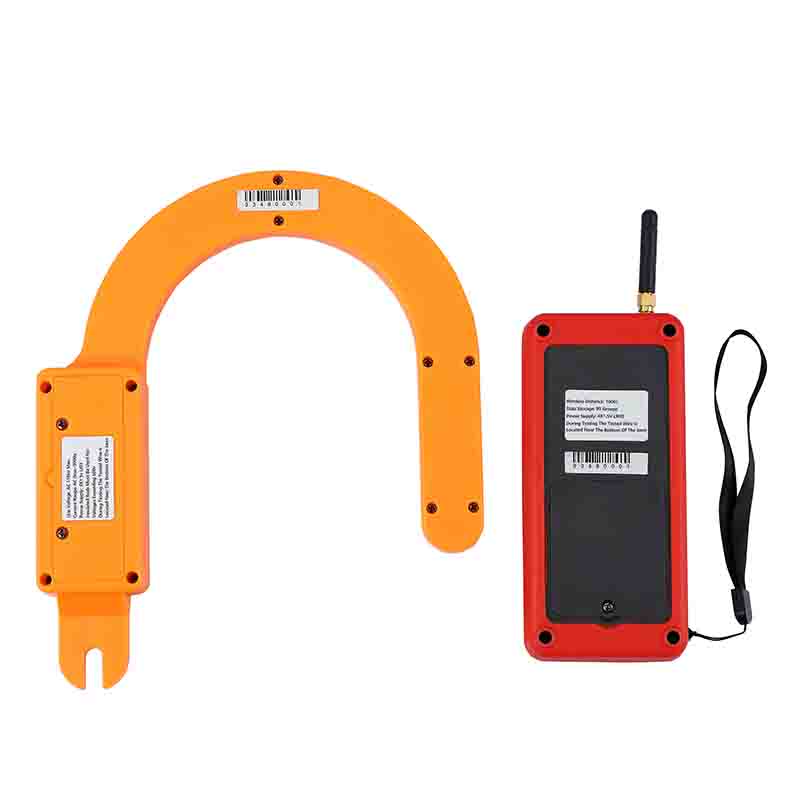

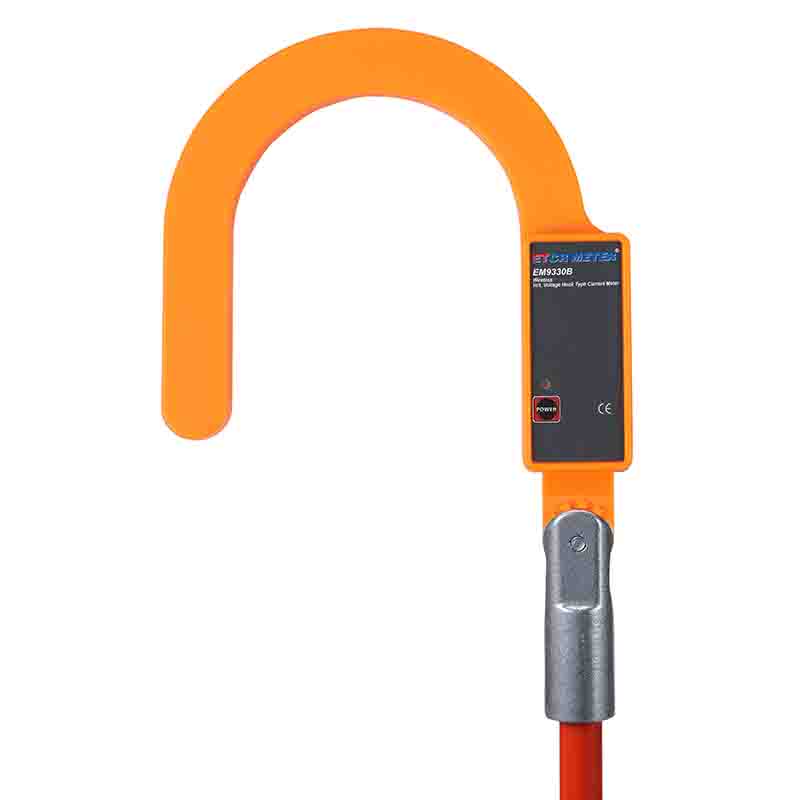

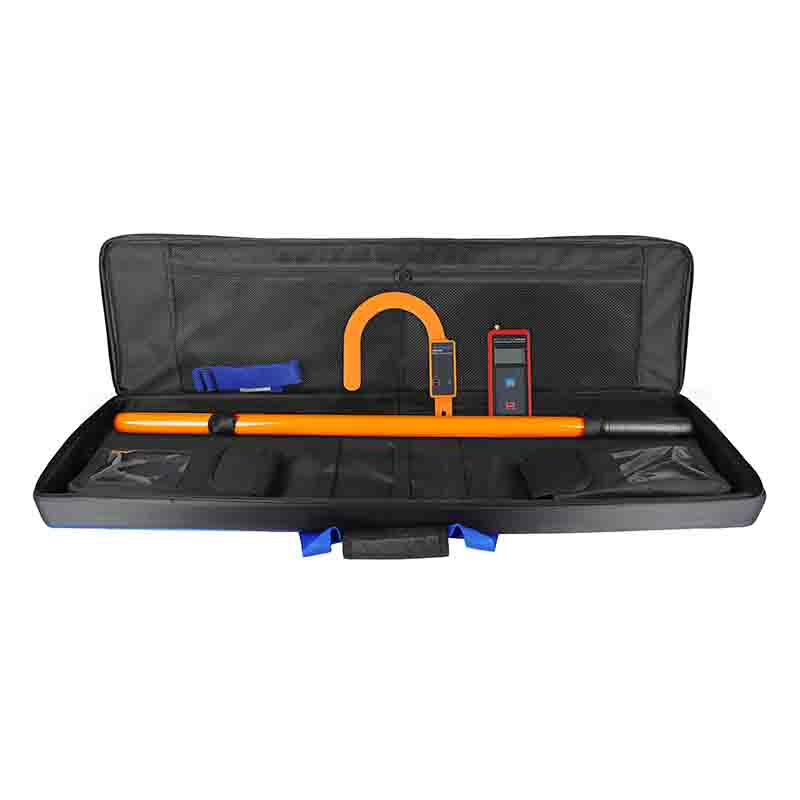

ETCR9300B Large Caliber Hook Shaped Wireless H/L Voltage Current Meter is composed of u-shaped clamp jaw, receiver and insulating rod. Testing below 110kV requires insulating rod (testing below 500kV can be customized), no request insulating rod when measure below 600V. The meter has data hold, memory function, etc.
1.Unique U-shaped opening structure realizes unhindered measurement, and on-site testing is particularly convenient.
2.Testing below 110kV requires insulating rod (testing below 500kV can be customized).
3.Super caliber is suitable for measuring thick cables or busbars.
4.Ultra-wide current range: 0.00A~9999A.
5.Adopt with wireless transmission method, transmission distance 100m.
6.Memory: data storage 99 groups.

Technical Parameter

Power Supply	DC6V alkaline dry battery (1.5V AAA×4)
Display Mode	4-digit LCD display, backlight function, suitable for dim place
LCD Size	47mm×28.5mm
Measurement Method	Non contact U-shaped CT
Transmission Mode	433MHz wireless transmission, transmission distance about 100m
Clamp Jaw Size	Φ68mm
Sampling Rate	2 times/second
Measurement Range	0.00A~9999A(50/60Hz automatic)
Solution	0.01A
Shift Gear	0.00A~9999A Fully automatic shift gear
Test Accuracy	±2%rdg±5dgt(The wire is in the center position near the bottom of the U-shaped clamp jaw)
Position Error	The measured conductor should be placed as close as possible to the center of the bottom of the U-shaped clamp jaw, not close to the top of the U-shaped clamp jaw. The testing error at the top of the U-shaped clamp jaw should increase by about twice or more.
Memory	99 groups, in storage process “MEM” symbol display, “FULL” symbol flicker indicate storage full
Line Voltage	Testing below 110kV requires insulating rod (testing below 500kV can be customized).
Data Hold	Press HOLD key to hold data in test mode, “HOLD" symbol display, press HOLD key again to cancel this function.
Data Access	"MR" symbol display, can look up all storage data
Overflow Display	Exceed measure range overflow function:"OL A" symbol display
No Signal Indication	When the receiver has not received transmit signal, dynamic display "no- -"symbol
Automatic Shutdown	After 15 minutes power on, the meter shuts down automatically without any operation to reduce battery consumption
Battery Voltage	When battery voltage is lower than 4.8V±0.2V,low battery voltage symbol display and remind to replace battery.
Meter Size	Meter: 210mm×246mm×45mm; Receiver:LXWXH 78mm×165mm×42mm
Weight	Meter: about 300g (include battery), Receiver: about 280g(include battery), Total weight: about 2300g(include insulating rod and battery)
Telescoping Insulating Rod Size	About 4300mm
Interference	Avoid 315MHz, 433MHz same frequency signal interference
Insulation Strength	AC 220kV/rms (The telescopic insulating rod is completely pulled apart, between the two ends)
Working Temperature & Humidity	-10℃~40℃; below 80%RH
Storage Temperature & Humidity	-10℃~60℃; below 70%RH

Model comparison

Product Picture	Product Model Name	Clamp Jaw Size	Line Voltage Level	Current Range	Solution	Max Accuracy	Transmission Method
	ETCR9000 H/L Voltage Clamp Current Meter	Φ48mm	≤110kV	AC 0mA～1200A	1mA	±1%rdg±5dgt	--
	ETCR9000A H/L Voltage Clamp Current Meter	Φ48mm	≤110kV	AC 0mA～1200A	1mA	±1%rdg±5dgt	Bluetooth 10m
	ETCR9000B Wireless H/L Voltage Clamp Current Meter	Φ48mm	≤110kV	AC 0mA～1200A	1mA	±1%rdg±3dgt	Wireless 30m
	ETCR9000S H/L Voltage Clamp Current Meter	Φ48mm	≤10kV	AC 0mA～1200A	1mA	±1%rdg±5dgt	--
	ETCR9100 H/L Voltage Clamp Current Meter	Φ33mm	≤60kV	AC 0.00mA～600A	0.01mA	±1%rdg±5dgt	--
	ETCR9100B Wireless H/L Voltage Clamp Current Meter	Φ33mm	≤60kV	AC 0.00mA～600A	0.01mA	±1%rdg±5dgt	Wireless 30m
	ETCR9100S H/L Voltage Clamp Current Meter	Φ33mm	≤10kV	AC 0.00mA～600A	0.01mA	±1%rdg±5dgt	--
	ETCR9150B Wireless H/L Voltage Clamp Current Meter	Φ40mm	≤110kV	AC 0mA～1200A	1mA	±1%rdg±5dgt	Wireless 30m
	ETCR9200 H/L Voltage Clamp Current Meter	Φ68mm	≤60kV	AC 0mA～1200A	1mA	±1%rdg±5dgt	--
	ETCR9200B Wireless H/L Voltage Clamp Current Meter	Φ68mm	≤60kV	AC 0mA～1200A	1mA	±1%rdg±5dgt	Wireless 30m
	ETCR9310B H/L Voltage Clamp Current Meter	Φ68mm	≤110kV	AC 0.00A～9999A	0.01A	±2%rdg±5dgt	Wireless 100m
	ETCR9330B H/L Voltage Clamp Current Meter	Φ128mm	≤110kV	AC 0.00A～9999A	0.01A	±2%rdg±5dgt	Wireless 100m
