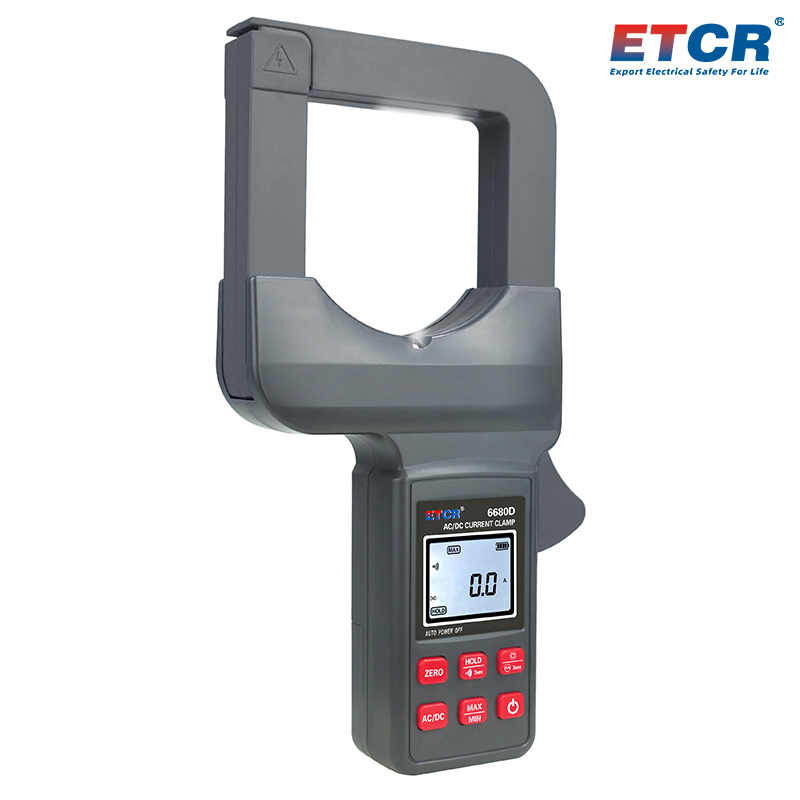

ETCR6680D Large Caliber DC/AC Clamp Leakage Current Meter

Main Functions
Measurement of AC/DC current
Current measurement range: DC 0.0A~2000A、AC 0.0A~1000A

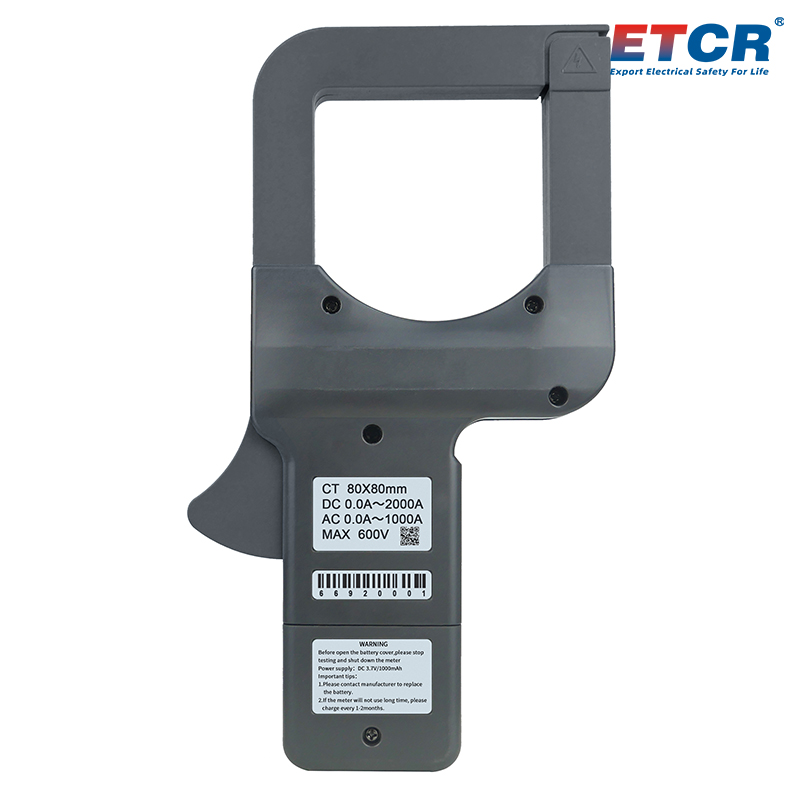

Clamp jaw size: 80mmx80mm
Memory: data storage 2000 groups
Bluetooth communication function
Flashlight function
Lithium battery

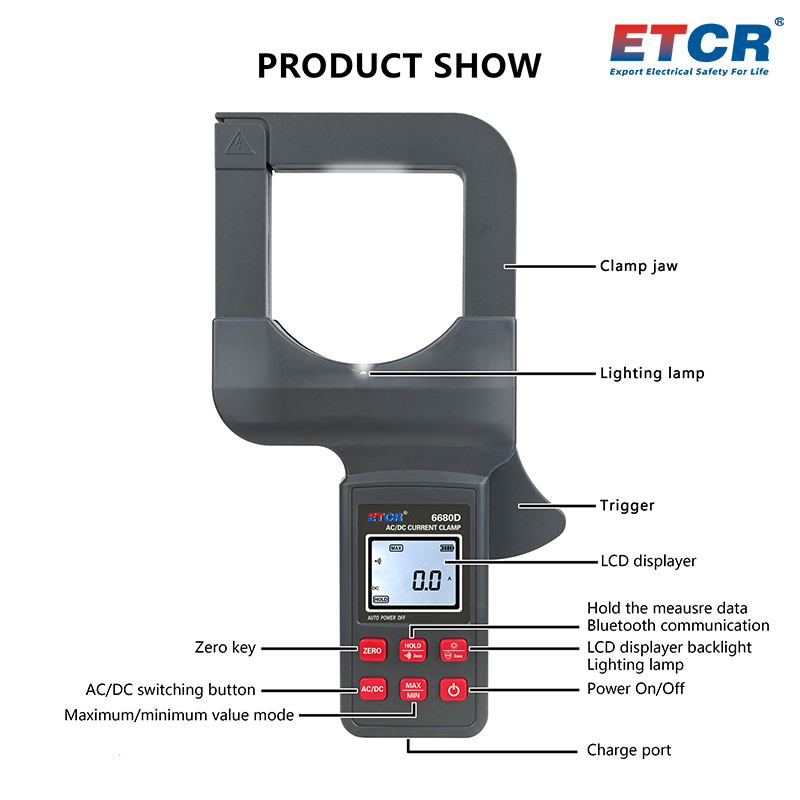

    Product Introduction
    ETCR6680D Large Caliber DC/AC Clamp Current Meter, also known as clamp type current meter, which is used for measurement of AC/DC current. The meter adopt with Hall effect sensor and unique CT digital integration technology, the characteristics of small size, high precision and perfect function, which widely used in power, communications, meteorology, railways, oil fields, construction, metrology, scientific research and teaching units, industrial and mining enterprises and other fields.
    ETCR6680D Large Caliber DC/AC Clamp Current Meter with DC/AC true RMS measurement, maximum value / minimum value / average value and other test functions. The meter with data hold function, Bluetooth communication function, equipped with large capacity rechargeable lithium battery and type-c charging port, which is new type essential tool for electrical safety testing.
    1.The meter adopt with Hall effect sensor and digital integration technology, high precision of measurement, stable performance.
    2.The meter with DC/AC true RMS measurement, maximum value / minimum value / average value and other test functions.
    3.Memory: data storage 2000 groups

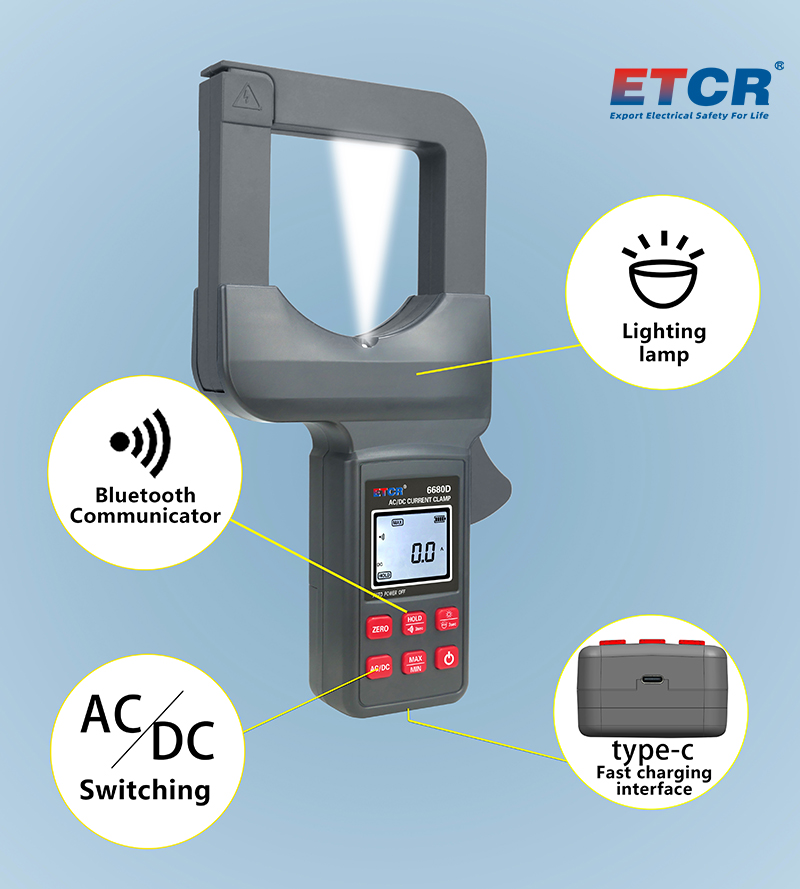

    4.Bluetooth communication function
    5.Flashlight function
    6.Large capacity Lithium battery, type-c charging port.
    Technical Parameter
    Power Supply Lithium battery DC 3.7V/1000mAh
    LCD Size 43mm×38mm; display area: 36.5mm×29mm
    Measurement Range DC 0.0A~2000A, AC 0.0A~1000A
    Measurement Accuracy 0.0A~99.9A:   ±2%rdg±5dgt
    100A~999A:    ±2.5%rdg±5dgt
    1000A~1499A:  ±3%rdg±5dgt
    1500A~2000A:  ±4%rdg±5dgt
    Clamp Jaw Size 80mm×80mm

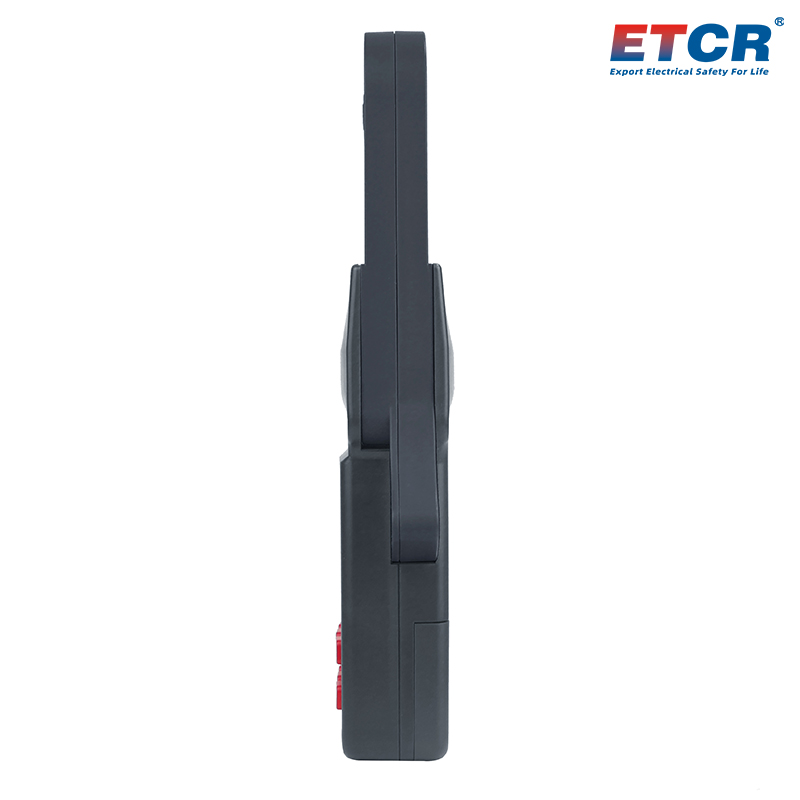

    Meter Size 253mm×145mm×40mm

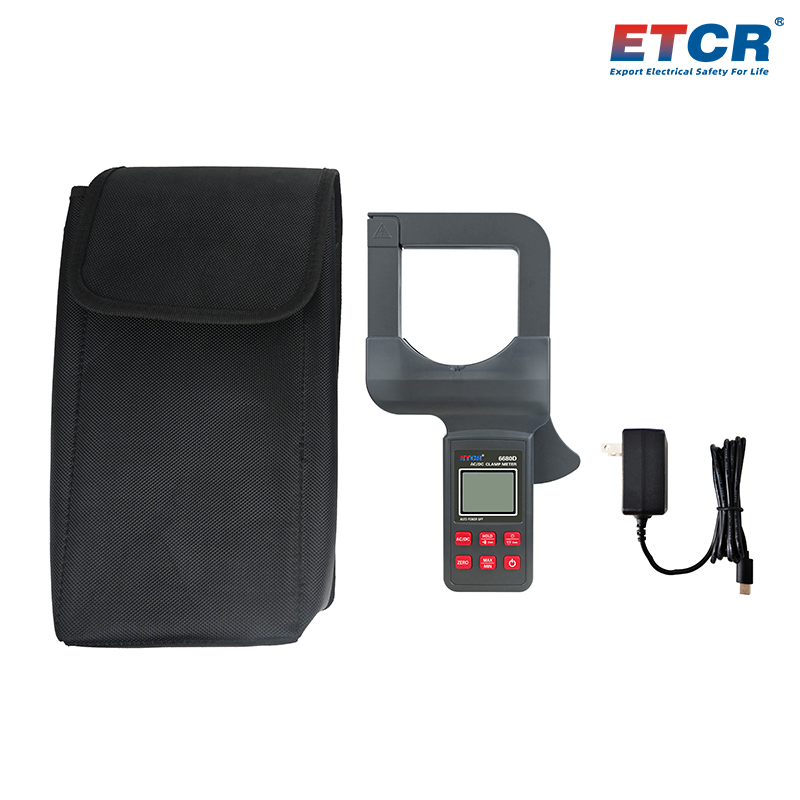

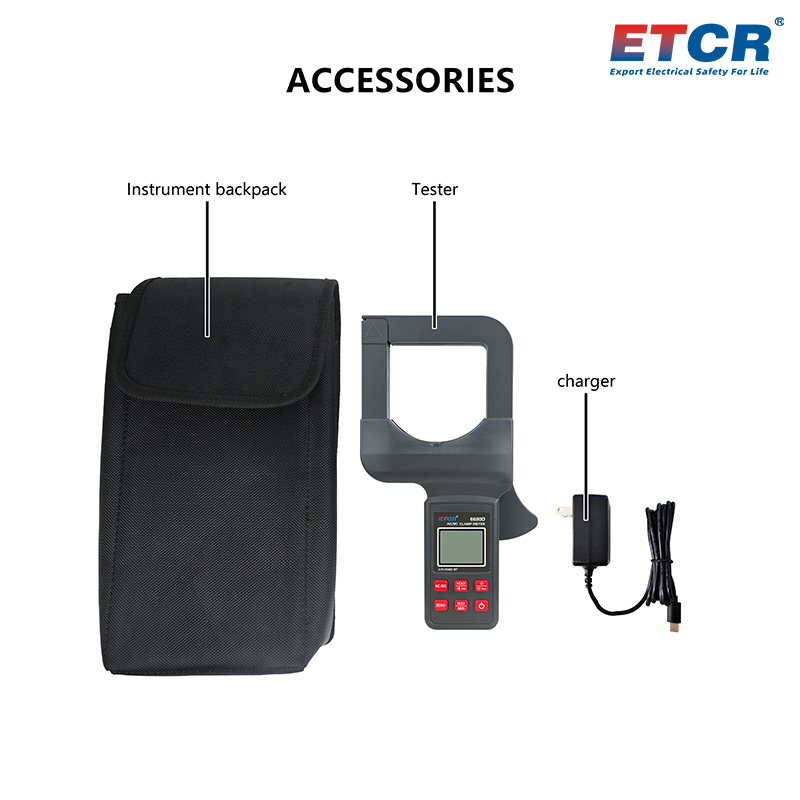

    Weight About 664g(include battery);total weight: about 1160g(include accessory)
    LCD Backlight Yes
    Flashlight Yes
    Max/Min Value Yes
    Average Value Yes
    Data Hold Yes
    Memory 2000 groups (store via app)
    Overflow Display Exceed measure range overflow function: “OL”symbol display
    Bluetooth Communication Yes, can test or view the test results on mobile after install the App.
    Automatic Shutdown 5 Minutes after power on, the meter shut down automatically without any operation to reduce battery consumption
    Battery Level 4-cell display
    Sampling Rate 2 times/second
    Working Current 60mA (open flashlight 72mA)
    Line Voltage Line measurement below AC600V
    Insulating Strength AC 3700V/rms(between the core and outside shell)
    Suitable Safety Standard IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)
    Working Condition -10℃~50℃; below 80%RH
    Storage Condition -20℃~60℃; below 70%RH
    Model comparison
    Product Picture Product Model Name Clamp Jaw Size AC Current Range DC Current Range Communication Method Others
    ETCR6000 DC/AC Clamp Leakage Current Meter Φ7mm AC 0mA~60.0A DC 0mA~60.0A USB
    ETCR6000B DC/AC Clamp Leakage Current Meter 16mm×18mm AC 0mA~60.0A DC 0mA~60.0A USB
    ETCR6100 DC/AC Clamp Leakage Current Meter 30mm×35mm AC 0.0A~1000A DC 0.0A~1000A USB
    ETCR6670D DC/AC Clamp Leakage Current Meter Φ70mm AC 0.0A~1500A DC 0.0A~2000A Bluetooth True Virtual Value
    Harmonic
    Flashlight
    ETCR6680D Large Caliber DC/AC Clamp Leakage Current Meter 80mm×80mm AC 0.0A~1500A DC 0.0A~2000A Bluetooth True Virtual Value
    Harmonic
    Flashlight
    ETCR7100D Super Large Caliber DC/AC Clamp Leakage Current Meter 108mm×148mm AC 0.0A~1000A DC 0.0A~2000A USB
