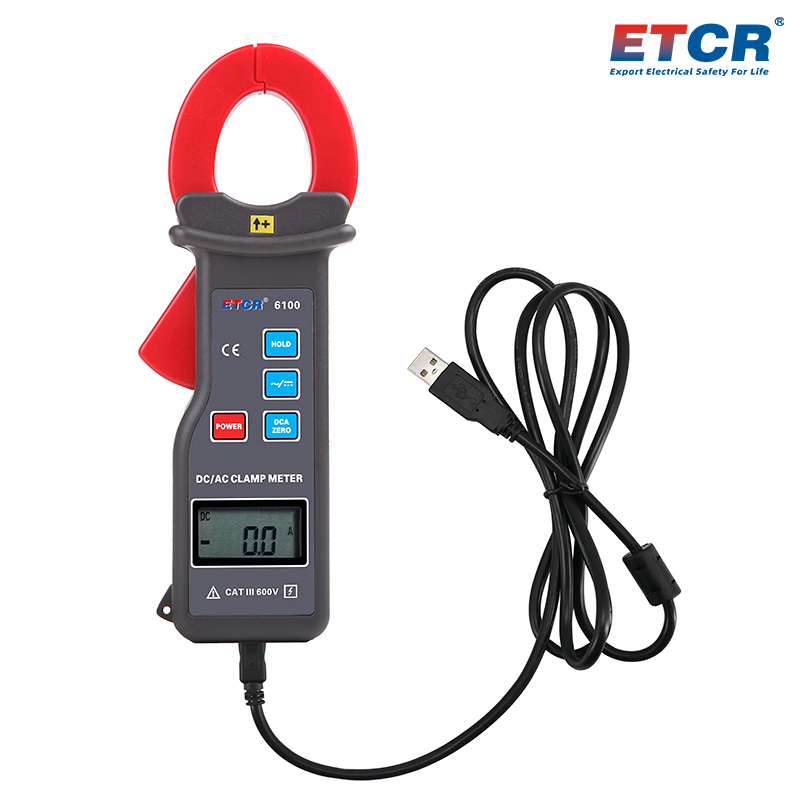

ETCR6100 DC/AC Clamp Leakage Current Meter

Main Functions

Measurement of AC/DC current.
Current range: 0.0A~1000A
Clamp jaw size: 30mm×35mm
Peak hold function
Memory: data storage 99 groups
USB communication interface

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR6100 AC/DC Clamp Current Meter, also known as clamp type current meter, which is used for measurement of AC/DC current. The meter adopt with Hall induction technology and digital integration technology, the clamp jaw without any bare metal conductor, non-contact measurement to ensure operation safety, which is widely used in electric power, communication, meteorology, railway, oil field, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields, which is an essential tool for electrical safety inspection.
ETCR6100 AC/DC Clamp Current Meter with the functions of peak hold, data hold and data storage, etc., and equipped with USB interface and upper computer software. lt can real time monitoring and query history online via the computer, and display dynamically, has the maximum, the minimum and the average value indication, with the historical data reading, save, print and other functions.
1.The meter has small volume, high accuracy, stable performance.
2.Memory: data storage 99 groups.
3.USB communication function, storage data can be upload to computer for reading, saving and printing.

Technical Parameter

Power Supply	Alkaline dry battery 6LR61 9V
Display Mode	4 digits LCD display
LCD Size	35mm×21.5mm; display area: 32mm×15mm
Measurement Range	DC/AC 0.0A~1000A
Accuracy	±2%rdg±3dgt
Solution	0.1A

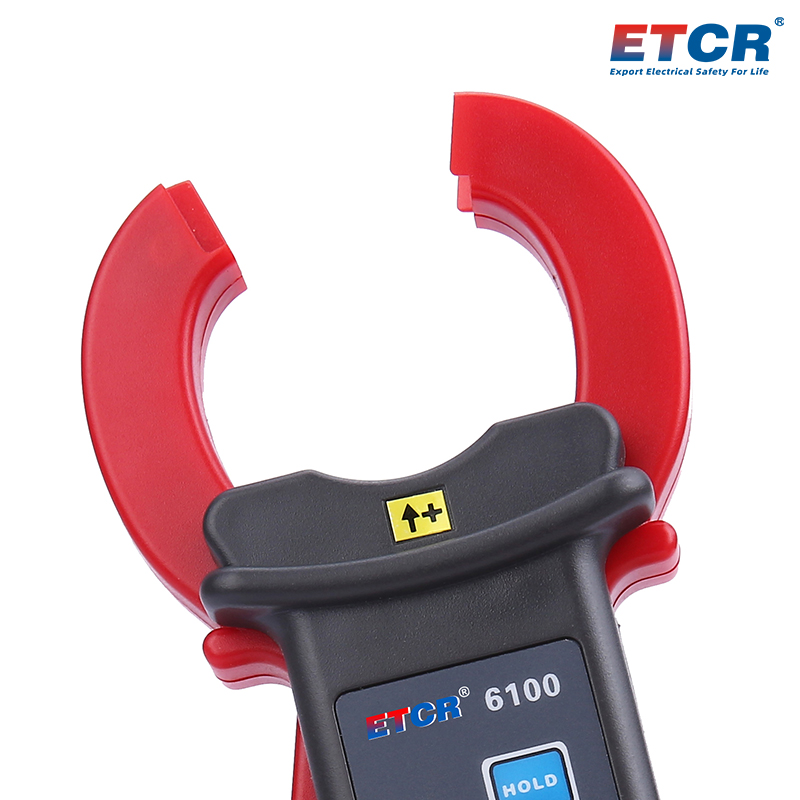

Clamp Jaw Size	30mm×35mm
Data Interface	USB
Meter Size	175mm×70mm×38mm
Weight	200g(include battery)
Working Current	10mA
Measurement Method	Clamp CT, Non-contact measurement
Sampling Rate	2 times/second
Polar Indication	Automatic identification for DC current detecting, display "-" symbol
Wire Position	The tested wire should be in the center of the clamp jaw, clamp with off-center position will increase the error for max 1.5%rdg
Shift Gear	Fully automatic shift
Line Voltage	Line measurement below 600V
Software	Yes, the storage data of the meter can upload to computer by software
Memory	99 groups, flicker to display “FULL”symbol indicate storage full
Peak Hold	Peak value capture and hold function, during the testing. long press the HOLD key to display the peak value.
Data Hold	Data hold function: “DH”symbol display
Overflow Display	Exceed measure range overflow function: “OL ”symbol display
Auto Shut Down	5 Minutes after power on, the meter shut down automatically without any operation to reduce battery consumption
Battery Voltage	While battery voltage decrease to about 7.2V,low battery voltage symbol display, and remind to replace the battery.
Insulating Strength	AC2kV/rms(between the core and outside shell)
Suitable Safety Standard	IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)
Working Temperature & Humidity	-10℃~50℃; below 80%rh
Storage Temperature & Humidity	-10℃~60℃; below 70%rh

Model comparison

Product Picture	Product Model Name	Clamp Jaw Size	AC Current Range	DC Current Range	Communication Method	Others
	ETCR6000 DC/AC Clamp Leakage Current Meter	Φ7mm	AC 0mA~60.0A	DC 0mA~60.0A	USB
	ETCR6000B DC/AC Clamp Leakage Current Meter	16mm×18mm	AC 0mA~60.0A	DC 0mA~60.0A	USB
	ETCR6100 DC/AC Clamp Leakage Current Meter	30mm×35mm	AC 0.0A~1000A	DC 0.0A~1000A	USB
	ETCR6670D DC/AC Clamp Leakage Current Meter	Φ70mm	AC 0.0A~1500A	DC 0.0A~2000A	Bluetooth	True Virtual Value Harmonic Flashlight
	ETCR6680D Large Caliber DC/AC Clamp Leakage Current Meter	80mm×80mm	AC 0.0A~1500A	DC 0.0A~2000A	Bluetooth	True Virtual Value Harmonic Flashlight
	ETCR7100D Super Large Caliber DC/AC Clamp Leakage Current Meter	108mm×148mm	AC 0.0A~1000A	DC 0.0A~2000A	USB

Data download

Download：

ETCR6100 DC/AC Clamp Leakage Current Meter
