ETCR5200 Mini Power Quality Analyzer

Main Functions

It is used for comprehensive analysis and diagnosis of three-phase power parameters, which provides all the power quality information user need for working.
4-channel current, voltage measurement
Transient record
Screenshot record
Trend chart record
Wave recording
TF memory card
True-color touch screen
USB communication interface

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

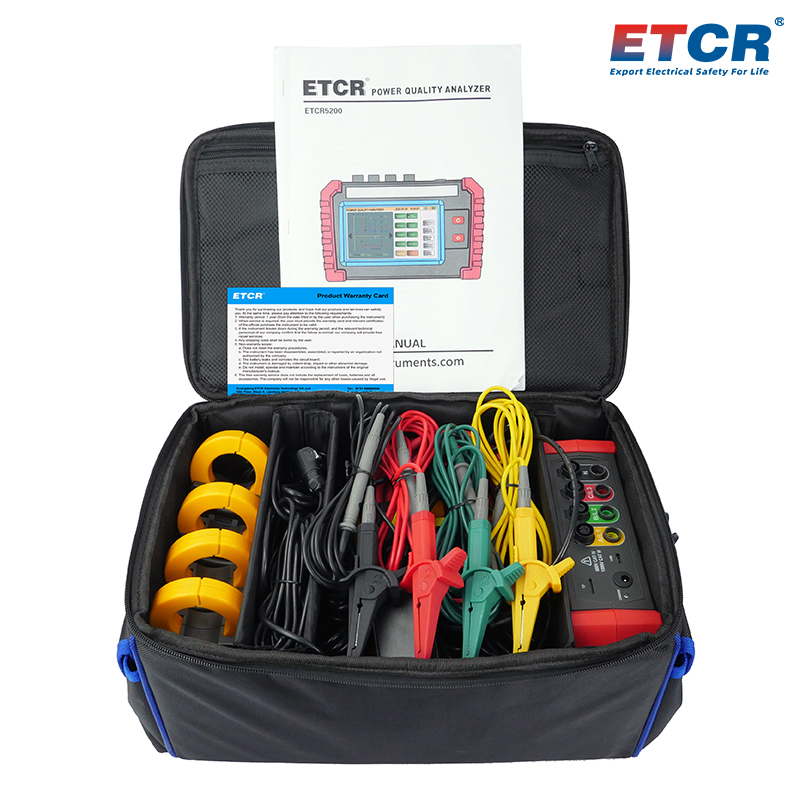

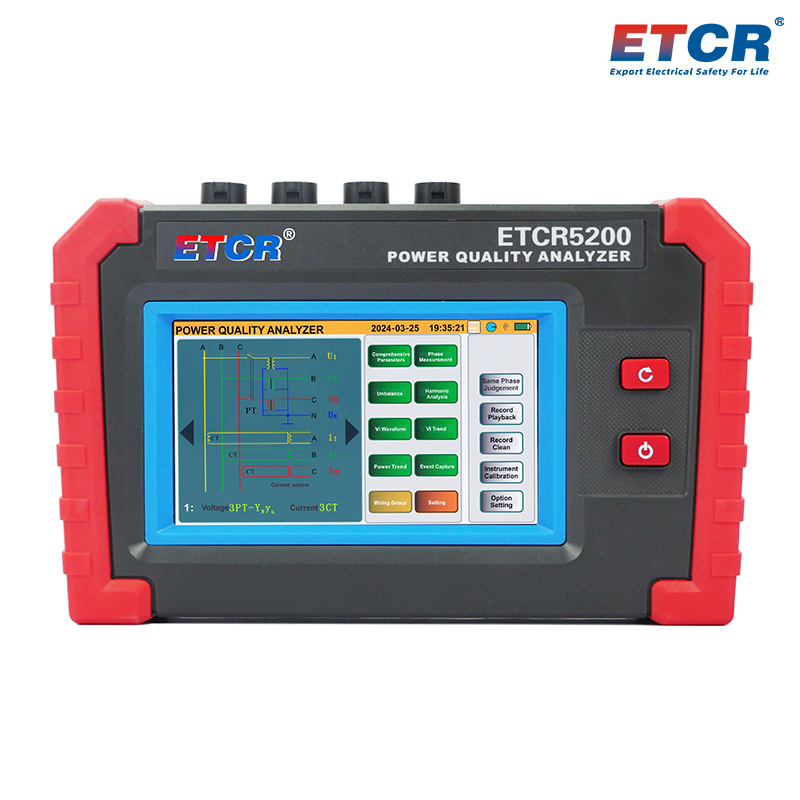

ETCR5200 Mini Power Quality Analyzer, also known as power quality analyzer, power parameter tester and harmonic analyzer, which is a high-precision comprehensive testing instrument designed specifically for on-site testing of three-phase power quality. The instrument has the characteristics of intelligence, comprehensive function, simple human-machine operation and bilingual operation interface in Chinese and English. The instrument adopt with 5-inch true-color touch screen, which is small in size, lightweight, and convenient to carry. Multiple current clamps can be optionally equipped. The instrument can simultaneously measure 4 channels current (ABC three-phase and neutral line currents), 3 channels voltage, three-phase imbalance, active power, reactive power, apparent power, harmonic ratio, total harmonic distortion, etc; Display real-time waveform and phasor diagram of current and voltage; dynamic capture of instantaneous changes in voltage and current, monitoring of starting current, monitoring of various power parameters and generating alarm lists, long-term recording of test data and generation of trend curves, and other functions. Suitable for power, petrochemical, metallurgical, railway, industrial and mining enterprises, scientific research institutions, metrology departments, etc.

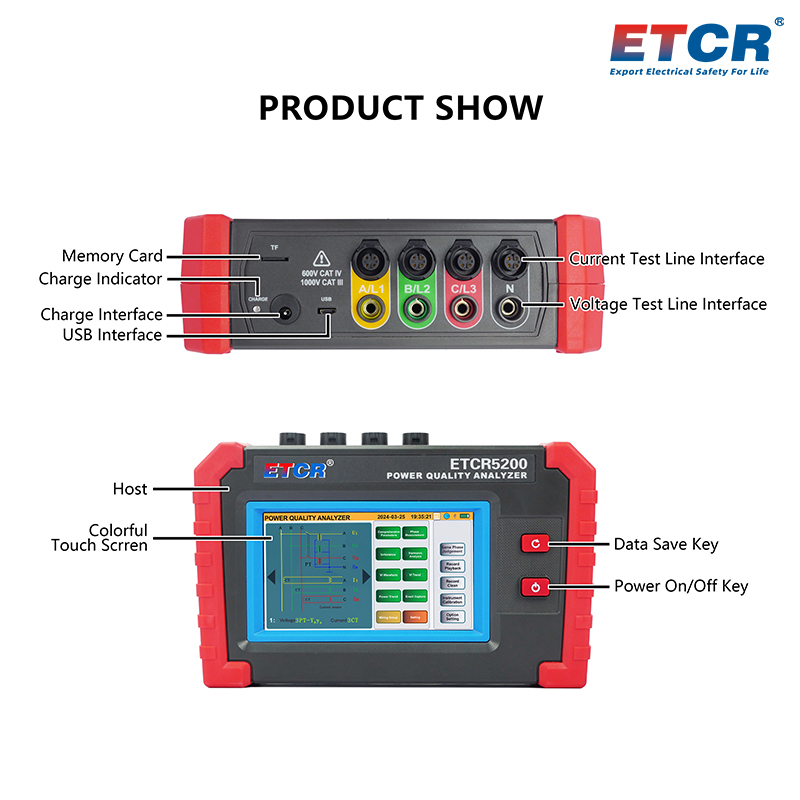

ETCR5200 Mini Power Quality Analyzer adopt with 5 inch true-color touch screen to display, which uses different colors to distinguish the parameter, waveform, phasor, and harmonic ratio of each phase, allowing user to more efficiently and intuitively understand the status of power grid parameter. Upload stored data to the computer through USB communication interface and upper computer software to continue data analysis.
Product Functions
1.Real time waveform display (3 channels voltage/4 channels current).
2.True effective value of voltage and current.
3.Phasor diagram display.
4.Measurement of harmonics in each phase, up to 50 harmonics.
5.The bar chart displays the harmonic content of each phase's current and voltage.
6.Total harmonic distortion (THD).
7.The active/reactive/apparent power value and total value of each phase.
8.Voltage, current and power trend chart.
9.The active/reactive/apparent power value and total value of each phase.
10.Measurement of three-phase imbalance (voltage and current).
11.Record waveform and parameter.
12.Screenshot save.
13.Touch screen operation.
14.Short term voltage flicker.
15.Starting current and surge current monitoring.
16.USB communication interface and computer upper communication.
17.The wiring method of the instrument and the type of power grid can be set.
18.Different current clamp and voltage test ratio can be set.
Product Features
1.Conduct a comprehensive analysis and diagnosis of all electrical parameters such as voltage, current, power, electrical energy, harmonics, phase, etc.
2.4 current clamps are available for selection, suitable for various site.
3.4 channels current and voltage measurement, while capturing and recording electrical parameter and waveform.
4.Large LCD color screen display with high resolution.
5.Bilingual operation interface in Chinese and English.
6.TF memory card: 8G.
7.USB communication interface.

Technical Parameter

1.Measurement Accuracy

Measurement	Measurement Range	Display Solution	Max. Error Within The Reference Range
Frequency	40Hz~70Hz	0.001Hz	±(0.03)Hz
True Effective Value Of Voltage	2V~600V	Min. Solution 0.001V	±(0.5%Fs)
True Effective Value Of Current	10mA~6000A	Min. Solution 0.001A	±(0.5%Fs)
Active Power	0.0000W~3600kW	Min. Solution 0.001W	±(1%rdg+3dgt); Cosφ≥0.8
Active Power	0.0000W~3600kW	Min. Solution 0.001W	±(1.5%rdg+10dgt); 0.2≤Cosφ<0.8
Reactive Power	0.0000VAR~3600kVAR	Min. Solution 0.001VAR	±(1%rdg+3dgt); Sinφ≥0.5
Reactive Power	0.0000VAR~3600kVAR	Min. Solution 0.001VAR	±(1.5%rdg+10dgt); 0.2≤Sinφ<0.5
Apparent Power	0.0000VA~3600kVA	Min. Solution 0.001VA	±(1%rdg+3dgt)
Power Factor	-1.000~1.000	0.001	±(1.5%rdg+3dgt); Cosφ≥0.5
Power Factor	-1.000~1.000	0.001	±(1.5%rdg+10dgt); 0.2≤Cosφ<0.5
Phase Angle	0°~360°	0.001°	±(2°)
Voltage Harmonic Ratio Includes 1~50 times (Vrms>50V)	0.0%~99.9%	0.001%	(1~20 times)±(1%rdg+5dgt) (21~30 times)±(1%rdg+10dgt) (31~50 times)±(1%rdg+15dgt)
Voltage Harmonic Angle (Vrms>50V)	0°~360°	0.001°	±(3°)harmonic 1~25 times
Voltage Harmonic Angle (Vrms>50V)	0°~360°	0.001°	±(10°)harmonic 26~50 times
Current Harmonic Ratio Includes 1~50 times (Arms>I range÷100)	0.0%~99.9%	0.001%	(1~20 times)±(1%rdg+5dgt) (21~30 times)±(1%rdg+10dgt) (31~50 times)±(1%rdg+15dgt)
Current Harmonic Angle (Arms>I range÷100)	0°~360°	0.001°	±(3°)harmonic 1~25 times ±(10°)harmonic 26~50 times
Total Harmonic Rate (THD or THD-F)≤50	0.0%~99.9%	0.001%	±(1%rdg+10dgt)
Distortion Factor (DF or THD-R)≤50	0.0%~99.9%	0.001%	±(1%rdg+10dgt)
Three-phase Imbalance	0.0%~100%	0.01%	±(1%)

2.General Specifications

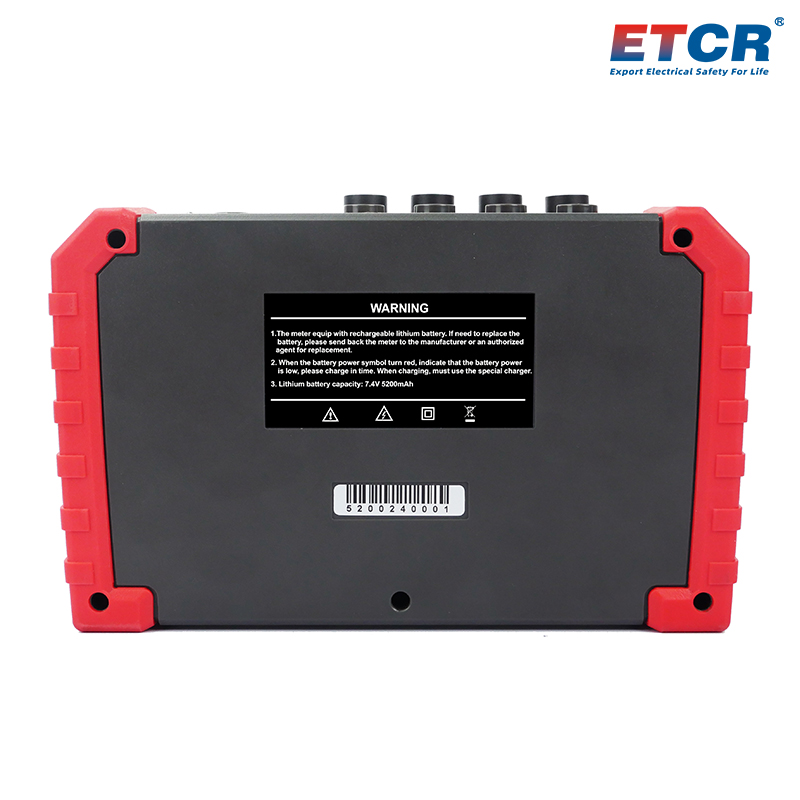

Power Supply	Rechargeable lithium battery pack 7.4V 5200mAh, external battery charger.
Display Mode	5 inch true-color touch screen
Working Current	About 490mA

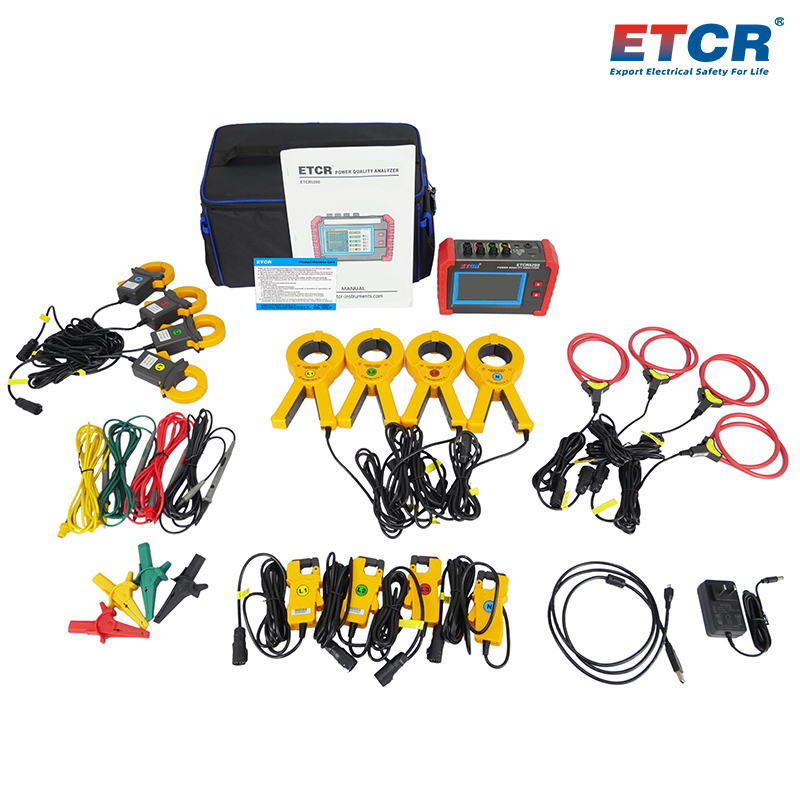

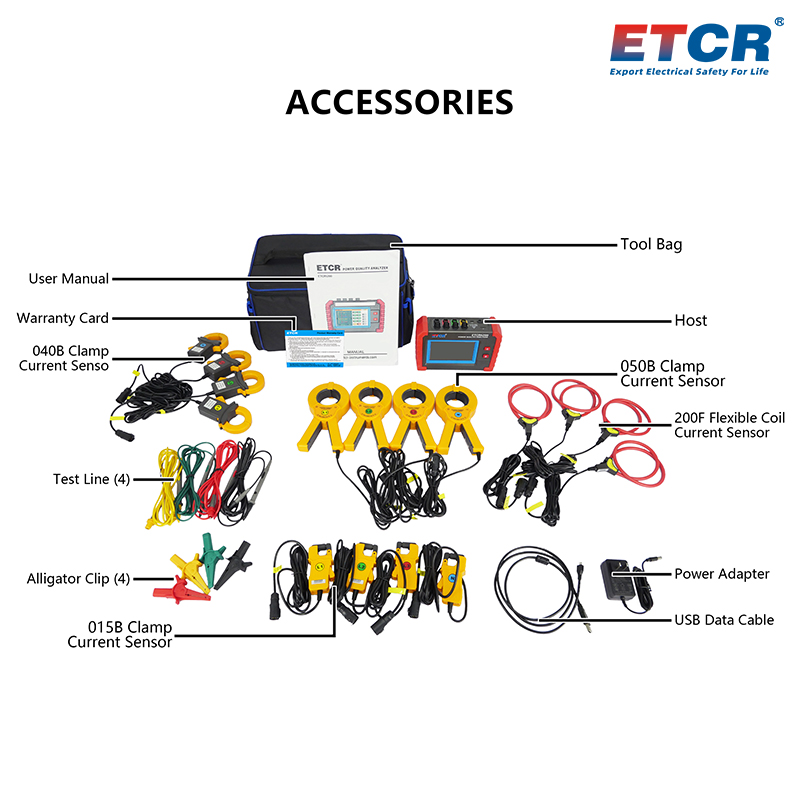

Current Clamp Specifications (Optional)	015B Current clamp: 17mm×18mm; 042B Current clamp: Φ40mm; 050B Current clamp: Φ50mm; 200F Flexible current clamp: Φ200mm;
Number Of Channels	3 channels voltage, 4 channels current.
Voltage Measurement Range	2V~600V
Current Measurement Range	015B Current clamp: 10mA~10.0A; 042B Current clamp: 0.1A~100A; 050B Current clamp: 1A~1000A; 200F Current clamp: 10A~6000A;
Frequency Measurement Range	40Hz~70Hz
Harmonic	Yes,2~51 times.
Total Harmonic Distortion	Yes,2~51 times, each phase.
Three-phase Imbalance	Yes
Communication Interface	USB
TF Memory Card	8G
Battery Level Indication	The battery symbol shows the battery level, and when the battery level is lower, the instrument will automatically shut down.
Automatic Shutdown	When the recording function is turned on, the instrument does not automatically shut down.
Automatic Shutdown	If the recording function is not turned on, it can be automatically turned off after 15 minutes, 30 minutes, and 60 minutes according to the setting time.
Meter Size	210mm×129mm×68mm
Weight	About 7.5kg (include package and accessory)
Input Impedance	The input impedance of the test voltage: 1MΩ.
Withstand Voltage	The sine wave AC voltage of 3700V/50Hz withstand between the instrument circuit and the housing for 1 minute.
Insulation	The distance between the instrument circuit and the protective case ≥ 10M Ω.
Suitable Safety Standard	IEC 61010 1000V Cat III / 600V CAT IV, IEC61010-031, IEC61326, Pollution Level 2.
Working Temperature & Humidity	-10℃~40℃; below 80%RH.
Store Temperature & Humidity	-10℃~60℃; below 70%RH.

3.The Characteristics Of Current Clamp

Current Clamp Model	Picture Of Current Clamp	Current True RMS Value	Measurement Range	The Maximum Error Of The True RMS Value Of The Current	Maximum Error Of Phase Angle φ
ETCR 015B CT Size: 17mm×18mm		10mA~99mA	10.0A	±(1%+3dgt)	±(3°),Arms≥20mA
ETCR 015B CT Size: 17mm×18mm		100mA~10.0A	10.0A	±(1%+3dgt)	±(1.5°)
ETCR 042B CT Size: Ф40mm		0.10A~0.99A	100A	±(1%+3dgt)	±(1.5°)
ETCR 042B CT Size: Ф40mm		1.00A~100A	100A	±(1%+3dgt)	±(1.5°)
ETCR 050B CT Size: Ф50mm		1.0A~9.9A	1000A	±(2%+3dgt)	±(3°)
ETCR 050B CT Size: Ф50mm		10.0A~1000A	1000A	±(2%+3dgt)	±(3°)
ETCR 200F CT Size: Ф200mm		10A~99A	6000A	±(1 %rdg + 3dgt)	±(3°)
ETCR 200F CT Size: Ф200mm		100A~6000A	6000A	±(1 %rdg + 3dgt)	±(3°)

Model comparison

Product Picture

Product Model Name

Measurement Channel

Current Range

Resistance Range

Harmonic

Transient

Trend Chart

Recorder

Screenshot

Memory Card

USB

Others

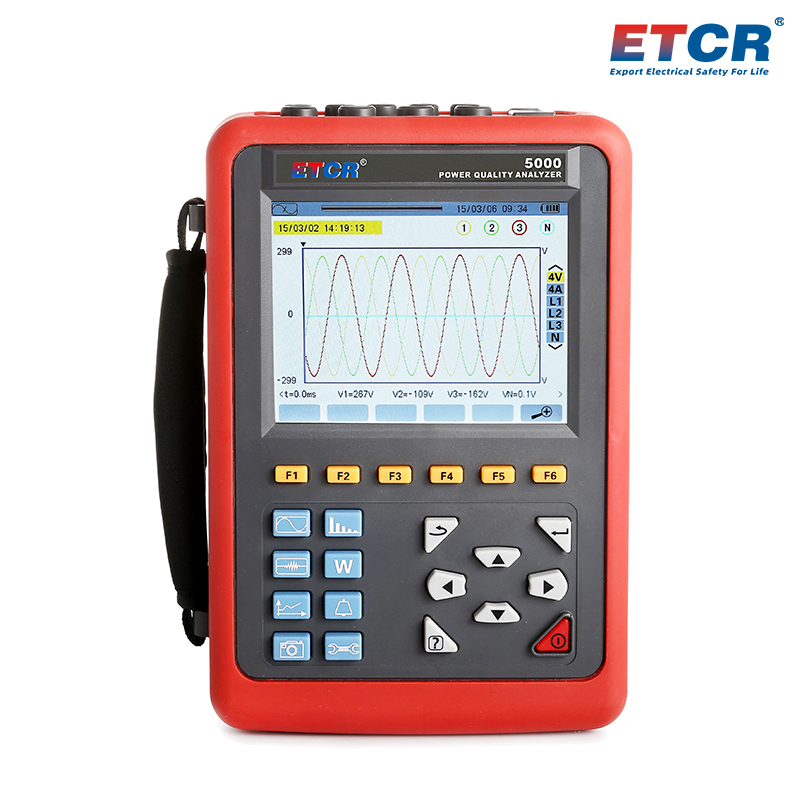

ETCR5000 Power Quality Analyzer

4 channel

10mA~6000A

1.0V~1000V

0~50 times

Yes

SD Card 2G

Yes

ETCR5200 Mini Power Quality Analyzer

4 channel

10mA~6000A

1.0V~600V

2~51 times

Yes

TF Card 8G

Yes

True-Color
touch screen
