Split Type DC Leakage Current Sensor Series

Main Functions
Used for online detection of DC leakage current and DC small current
Products meet CE requirements
Accept customer customization
Consult Immediately
    Product Introduction
    Performance characteristics of open and closed DC leakage current transformer series products：
    1. The open-and-close structure does not require power failure and does not need to disconnect the line under test. The installation is fast, safe and reliable, especially suitable for online installation.
    2. It adopts permalloy iron core and double-layer shielding technology, with stable performance and high precision, strong anti-interference ability, and is suitable for complex interference environments.
    3. Power supply: ±12VDC
    4. Output interface: 4-core wire or 5P terminal blocks (V-power supply negative, V+power supply positive, AL alarm light control terminal, GND power supply and output ground, OUT output terminal)
    5. Safety level: CATⅢ600V.
    6. Working temperature: -15°C～50°C

    Product Model Product Picture Measurement Parameters Output Signal Clamp  Jaw Size Dimensions Weight

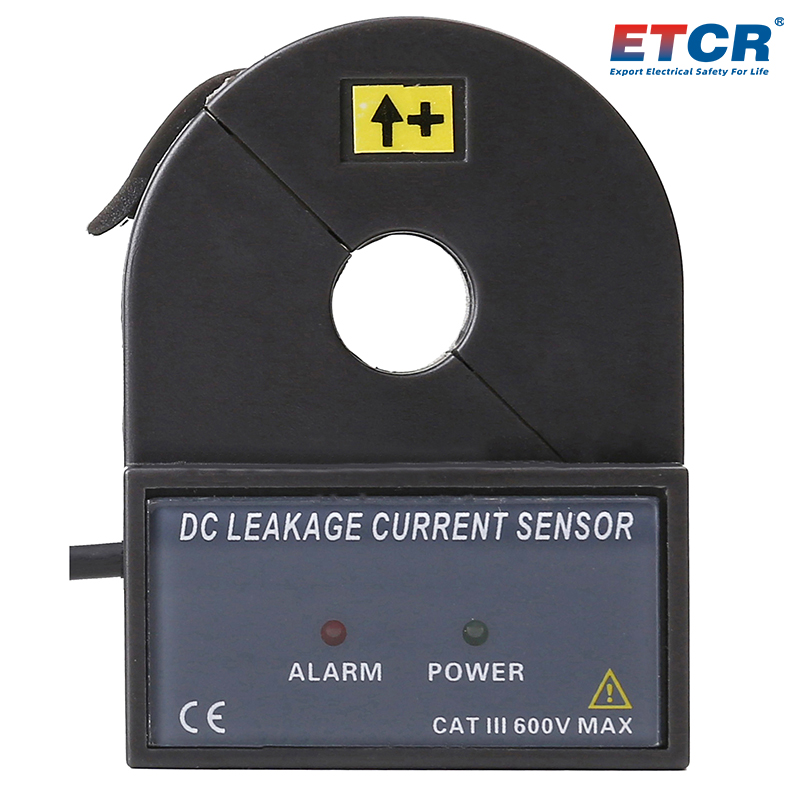

    ETCR010KD Range: 0.0mA～100mA DC
    Accuracy level: 3.0
    Working frequency: DC    		 50mV/1mA Ф10mm 53mm×42mm×28mm 75g

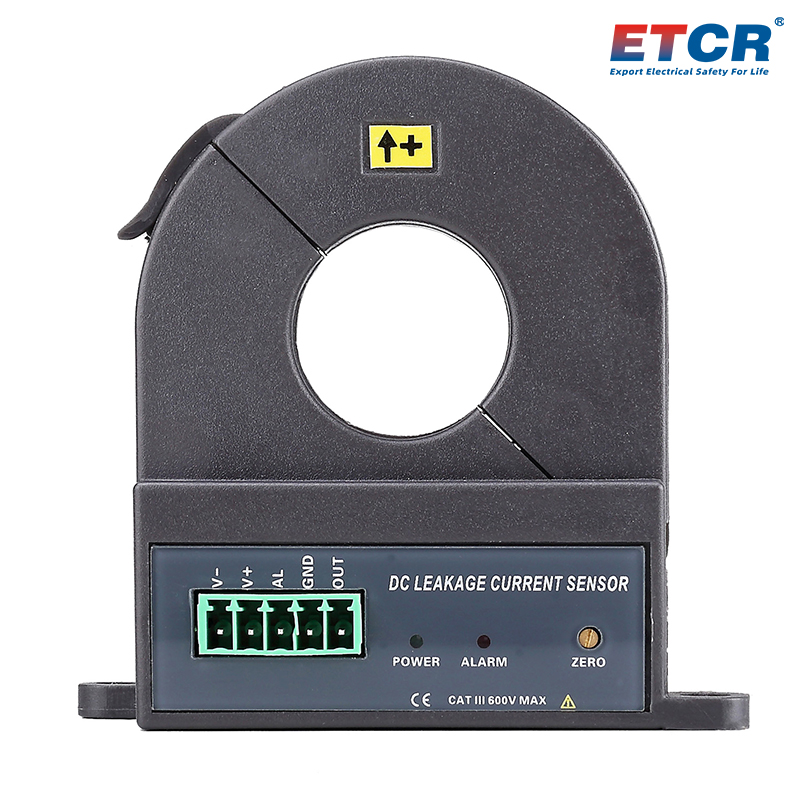

    ETCR025KD Range: 0.0mA～100mA DC
    Accuracy level: 3.0
    Working frequency: DC    		 50mV/1mA Ф25mm 78mm×82mm×31mm 109g
    Technical Parameter
    Model comparison
    Product Picture Product Model Name Clamp Jaw Size Current Range Precision Level Others
      Split Type Leakage Current Sensor Series Φ10mm/Φ25mm/Φ25mm/Φ40mm/Φ80mm AC 0.00mA～20A/30A/60A 0.5 Accept Customization
      Split Type DC Leakage Current Sensor Series Φ10mm/Φ25mm DC 0.0mA～100mA 3.0 ±12VDC, Accept Customization
      Microampere Level Split Leakage Current Sensor Series Φ22mm/Φ45mm/80mm×21mm/Φ90mm AC 0uA～10A 0.5 Accept Customization
      Split Type Leakage Current Sensor Series 80×26mm/85×20mm AC 0.00mA～60A 1.0 Accept Customization
      Flat Port Leakage Current Sensor Series 145×40m/200×40mm AC 0.00mA～60A 1.0 Accept Customization
