ETCR1400 Integrated Overhead Line Ground Fault Detector

Main Functions

It is used for single-phase ground fault detection of overhead high voltage line and precise positioning of ground fault point. Accurately find concealed earth faults such as single phase metallic grounding, intermittent arc grounding, intermittent transition resistor grounding, porcelain bottle breakdown and lightning arrester breakdown of overhead high voltage line.
Output voltage: 3000V/8000V
Output current: ≤50mA
Earth fault resistance: ≤150kΩ
Line reactance: ≤30MΩ
Output frequency: 50Hz
Wireless communication distance: 50m
Bluetooth communication distance: 40m
USB communication interface

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

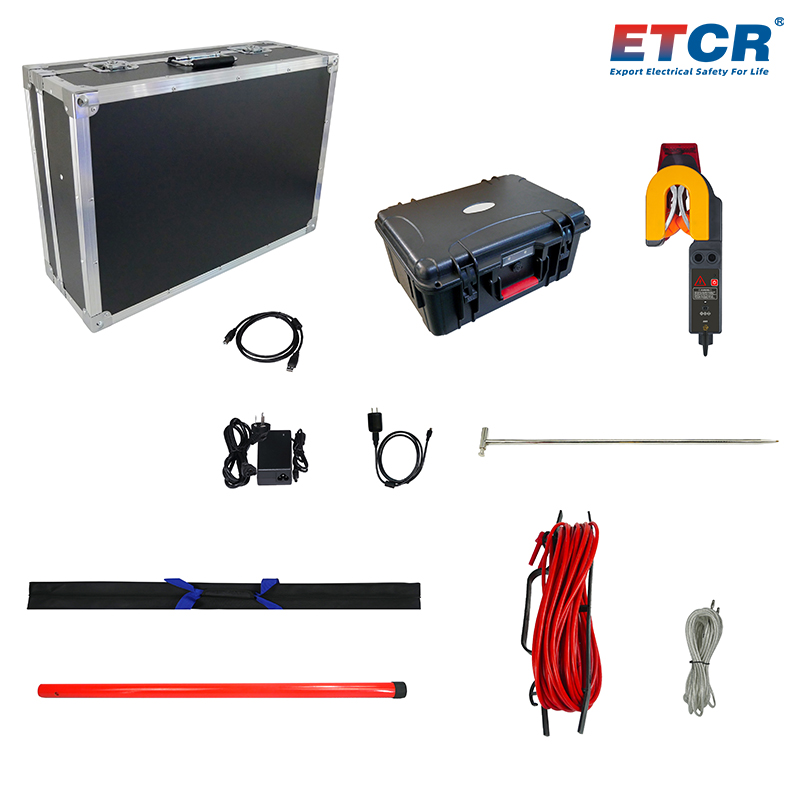

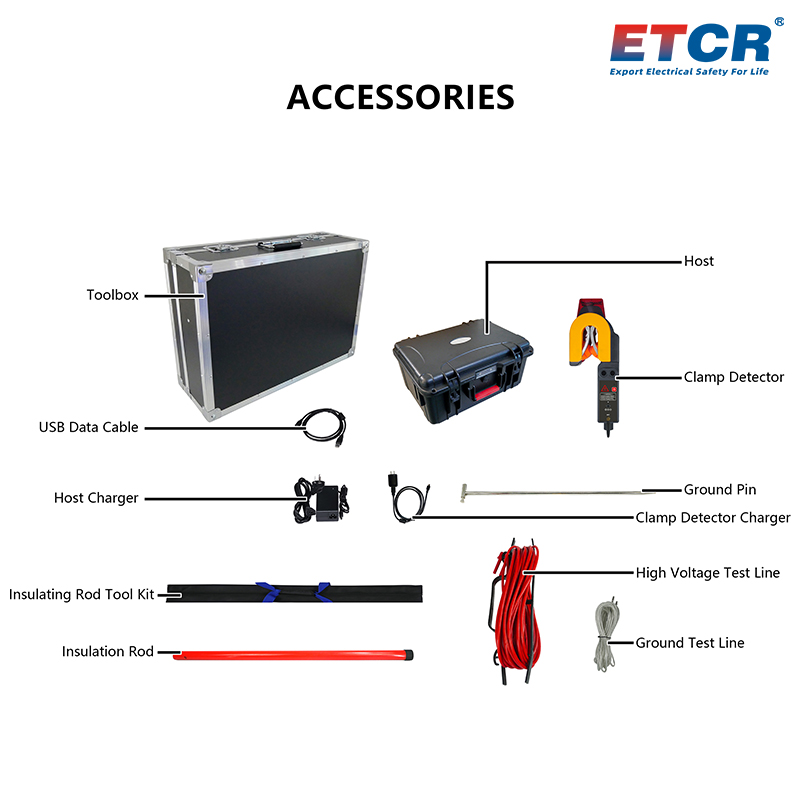

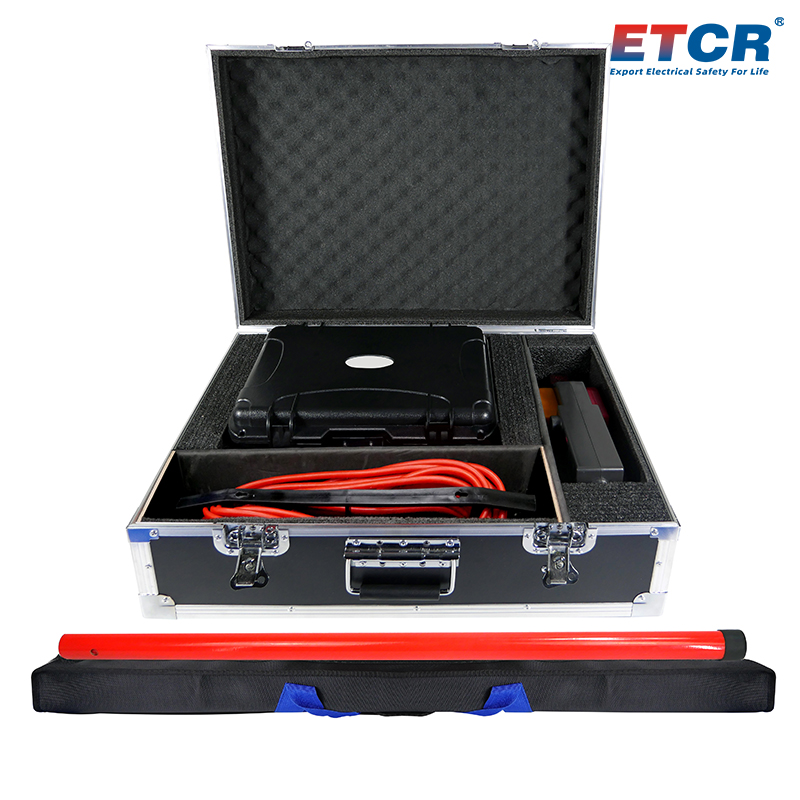

ETCR1400 Integrated Overhead Line Ground Fault Detector, also known as dichotomous method overhead line ground fault locator, overhead line single-phase ground fault detector, small current ground fault locator and cable equipped dedicated overhead line fault locator. The detector is consisted of host, detect clamp, test line, grounding pin, insulating rod and other accessories, wireless communication is adopted to use between the host and the detect clamp.

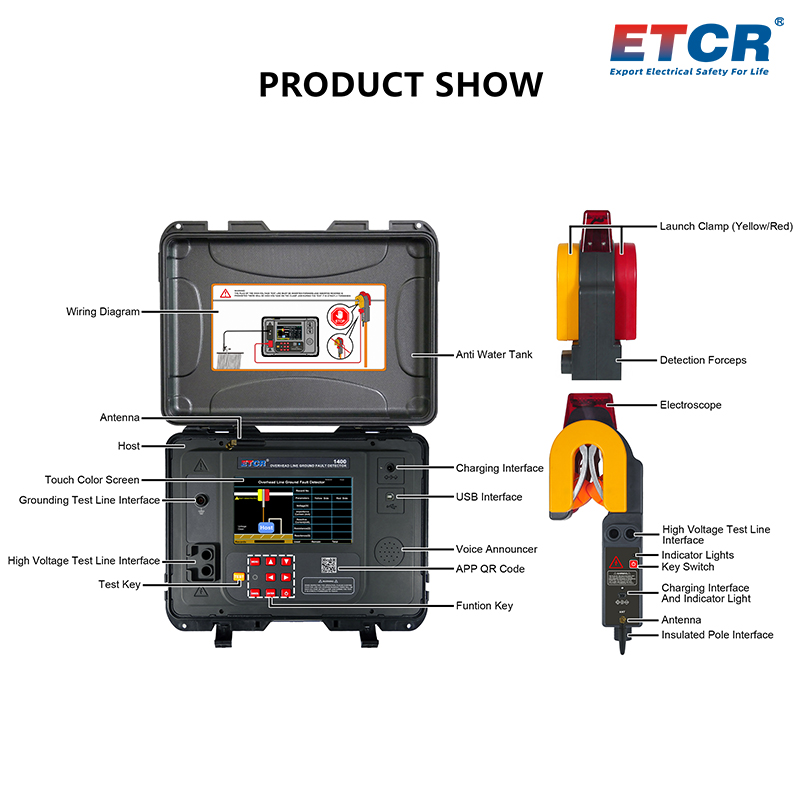

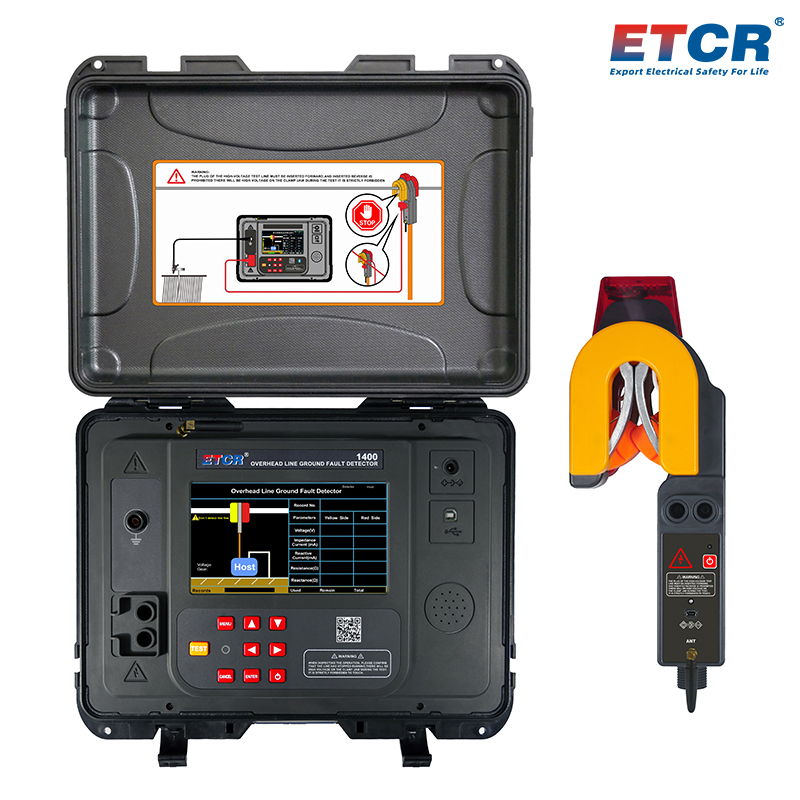

The host adopt with 7 inch true-color screen, which can make the fault data explicit and test result clear and obvious. The host is equipped with voice broadcast function, which voice prompts the direction of line fault and makes the on-site operation easier. The innovative detect clamp integrates signal transmission and acquisition, with a clamp structure that is small in size, lightweight and easy to install, one installation can complete line fault detection, with simple and fast operation, greatly reducing test workload and improving work efficiency. The detect clamp with non-contact electroscope, also with Bluetooth communication and USB communication interface, can detect if the electrical cable is live and emit sound and light alarm to make sure the safety of operator and detector. The detector also has Bluetooth communication function and USB communication interface.

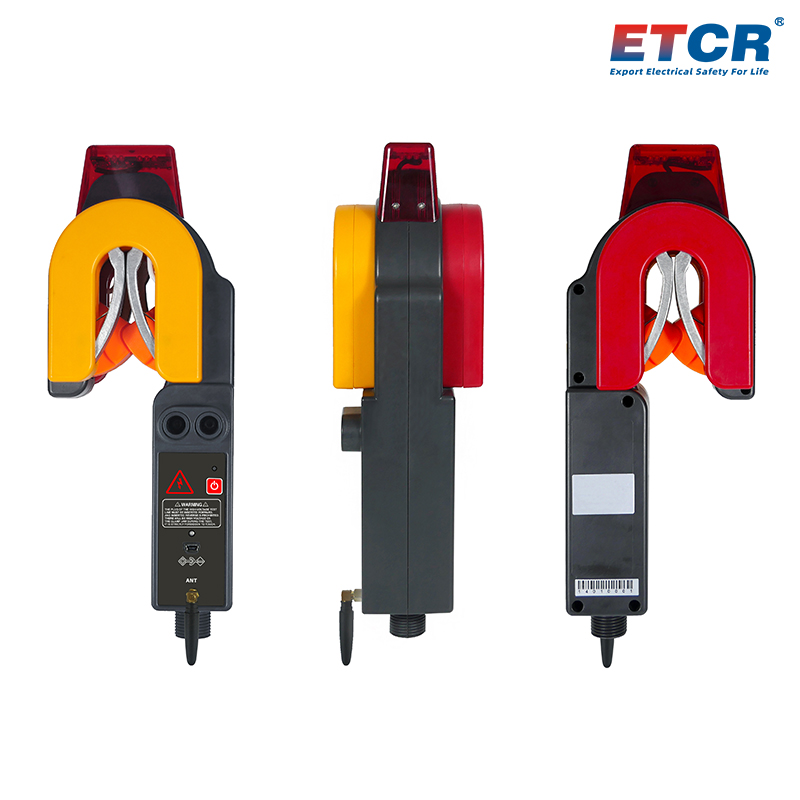

ETCR1400 Integrated Overhead Line Ground Fault Detector can locate ground fault of multiple line. After the overhead line stopping operating, testing starts section by section from one end of the line. The detect clamp applies low frequency high voltage signal to line and detects the current on both left and right sides of line. The direction of ground fault point (yellow or red direction) is shown on the host by analyzing the pulse current and impedance on the left and right sides. The detection clamp has the corresponding yellow and red end, and tests segment by segment along the direction indicated by fault point. Before the fault point, the test result show that the fault point is behind it; after the fault point, the test result show that the fault point is in front of it, thus gradually approaching the fault point and determining the fault location.
1.The innovative detect clamp integrates signal transmission and acquisition, with a clamp structure and easy to install, one installation can complete line fault detection, not request to separate the operation of signal output and signal acquisition, also not request to disconnect PT, with simple and fast operation, reducing worker’s workload and improving work efficiency.
2.The detect clamp with non-contact electroscope, tested line can emit sound and light alarm, and the host will broadcast voice prompt to make sure the safety of operators and the detector.
3.Can detect concealed various faults such as single phase metallic grounding, intermittent arc grounding, intermittent transition resistor grounding, porcelain bottle breakdown and lightning arrester breakdown of overhead line.
4.Especially suitable for the fault line with cable branch.
5.Two gears output voltage 8000V and 3000V can be selected to satisfy the various requirements of the customer.
6.Strong detection ability of short circuit can detect direct short circuit fault with earth resistance of 0Ω.
7.Large capacity rechargeable battery, be able to finish the detection of the entire line after full charged.
8.Fast-speed detecting, the test result can be obtained after several seconds of installment.
9.7 inch true-color screen can display the fault clear and obvious.
10.Voice broadcast function prompts the direction of fault.
11.Bluetooth communication function, communication distance can reach 40m, can test and view the test result on the telephone after installing the APP, use as handheld receiver.
12.USB communication interface.

Technical Parameter

Power Supply	Host: 14.8V 5200mAh lithium battery; detection clamp: 3.7V 2600mAh lithium battery
Displayer	7 inch true-color LCD, 153.8mm×85.6mm
Measurement Method	Clamp type CT
Output Voltage	AC 3000V/8000V
Output Current	≤50mA
Earth Fault Resistance	≤150kΩ
Line Reactance	≤30MΩ
Output Frequency	50Hz
Clamp Jaw Size	Φ36mm
Electricity Verification Alarm	Detect whether the tested cable is live, emit sound and light alarm if live.
Voice Broadcast	Yes
Communication Method	433MHz wireless communication
Wireless Communication Distance	50m(in open environment)
Bluetooth Communication Distance	40m(in open environment)
Data Upload	The host has a USB interface for uploading test data.
Automatic Shutdown	The detector will automatically shut down after 15 minutes of no-operation.
Battery Level Display	Display the battery level of host and detection clamp.
Detector Size	Host: 355mm×272mm×164mm; Detection clamp: 297mm×118mm×94mm
Weight	Host: about 7610g; detection clamp: about 785g; total weight: 17.4kg (include insulation rod)
Battery Level	Display the battery level of host and detection clamp.
Working Height	Altitude <5000m
Insulating Rod Size	About 4300mm
Working Temperature & Humidity	Temperature: -20℃~70℃; Humidity: 5~90％RH
