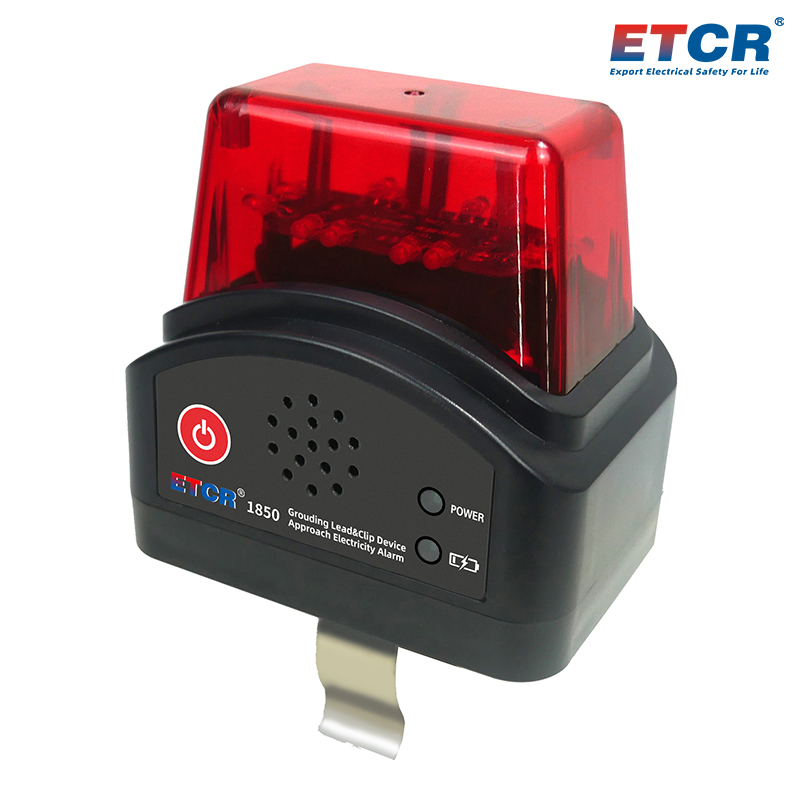

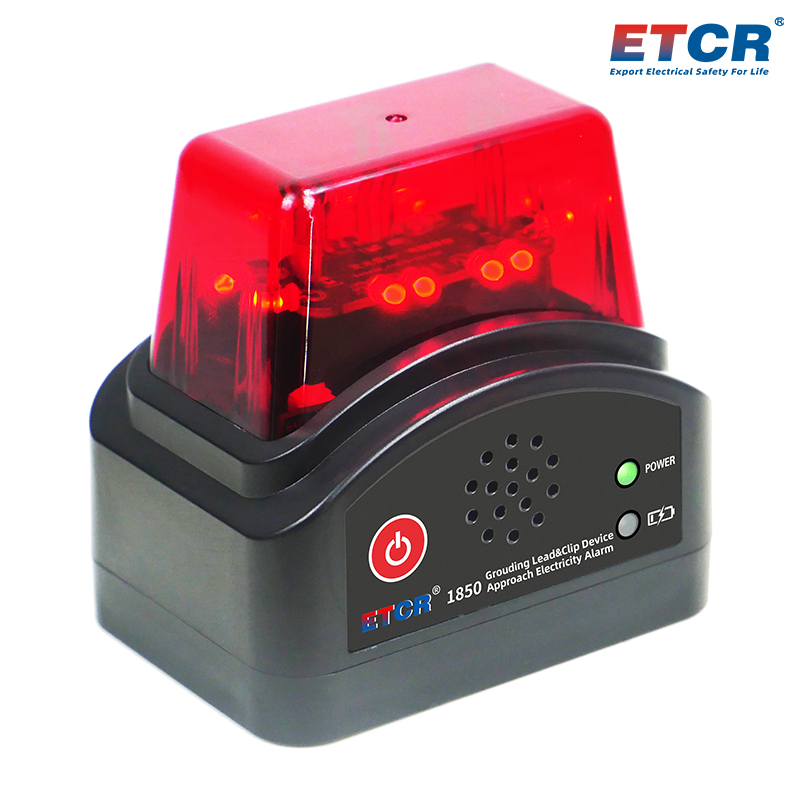

ETCR1850 Grounding Wire Clip Approach Electricity Alarm

Main Functions
The alarm is installed on the grounding down lead clip or insulating rod, when the cable or device is live, the alarm will trigger the alarm function to send out sound and light alarm to remind the operator to pay attention to safety and to avoid electric shock accident, providing safer protection for the operator.
Alarm voltage range: 40V~10kV
Method Of Electricity Verification: Non-contact
Protection level: IP65
Sound and light alarm
    Product Introduction
    ETCR1850 Grounding Wire Clip Approach Electricity Alarm , also known as charged object near electric alarm, which provides a safe, practical and convenient new-type near electric alarm for power operators. When power operators perform power outage maintenance on power cable and equipment, due to induced voltage or other reasons, in order to ensure the safety of operator, it is necessary to use grounding down lead clip to earth the cable or equipment. The alarm is installed on the grounding down lead clip or insulating rod, when the cable and equipment is live, the alarm will trigger the alarm function to emit sound, light and vibration alarm to remind operators to pay attention to safety, avoiding electric shock accident, and provide safer protection for operators.
    ETCR1850 Grounding Wire Clip Approach Electricity Alarm adopt with non-contact induction technology to comprehensive detects the electric field in the air in all directions, accurate alarm, low power consumption of the alarm, and the standby time is up to 6 months. There are various methods to install the alarm, and it is convenient to install and remove. The alarm is durable and has a protection level of IP65, also can be used for line fault detection and electroscope use.

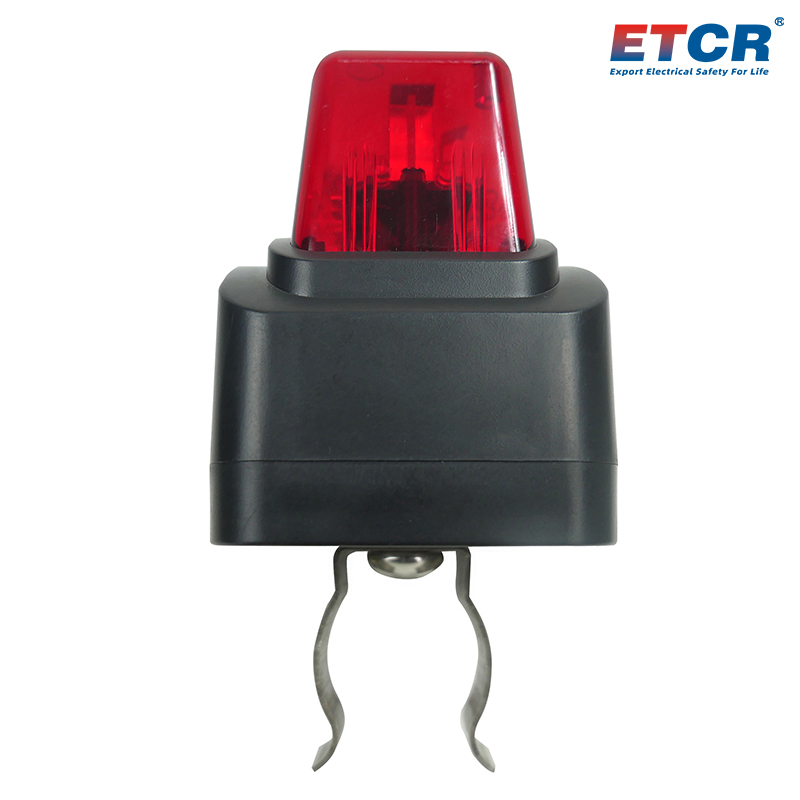

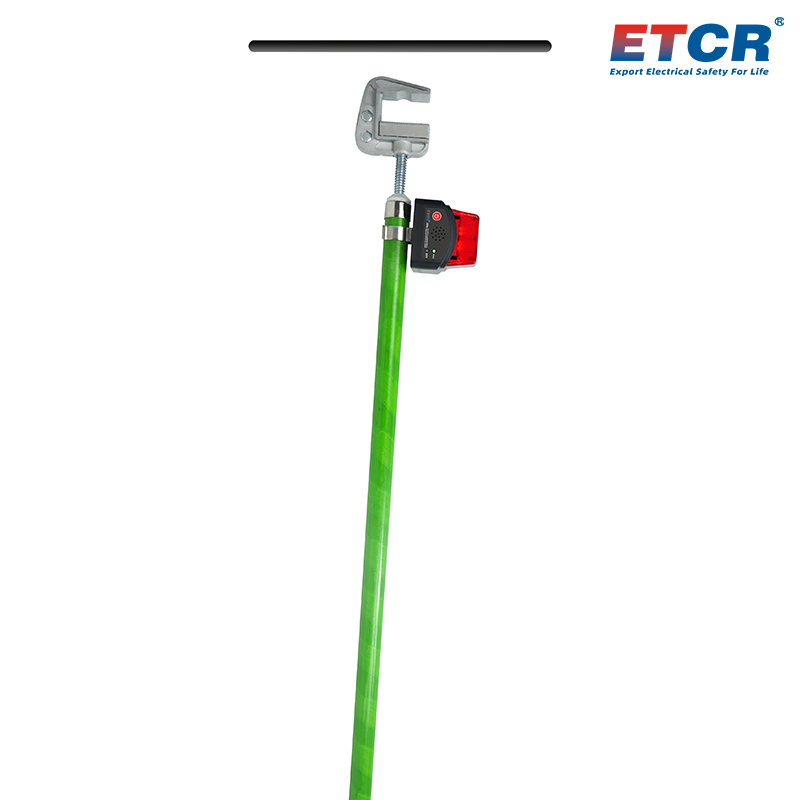

    1.There are various methods to install the alarm, and it is convenient to install and remove. When the alarm be installed on the insulating rod, should place as close as the metal line clip.
    2.Adopt with non-contact induction technology, accurate alarm, low power consumption of the alarm, the standby time is up to 6 months.
    3. Comprehensive detects the electric field in the air in all directions, and triggers automatic electricity verification alarm, sound and light alarm mode, ensuring the safety of the near electric operators.
    4.Protection level: IP56
    Technical Parameter
    1.Alarm Distance
    Voltage Level 40V 110V 220V 600V 1kV 10kV
    Alarm Distance 4cm 10cm 15cm 25cm 35cm 200cm
    Note: In practical application, the alarm distance of the alarm may change due to the influence of the environment.

    2.General Specification
    Power Supply Lithium battery DC 7.4V  600mAh
    Alarm Voltage Range 40V~10kV
    Work Frequency 50Hz/60Hz
    Method of Electricity Verification Non-contact
    Detect Mode Automatic trigger
    Work Time Continuous work (sound & light alarm): about 48 hours
    Standby time: 6 months

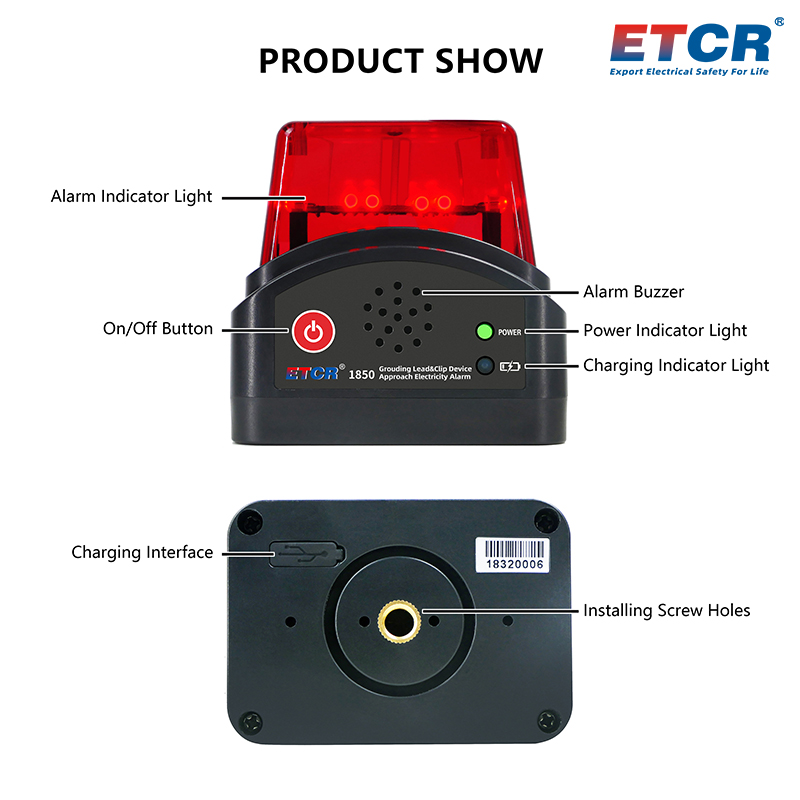

    Alarm Method Indicator light: constantly flashing
    Buzzer: continuously emit beep-beep-beep sound

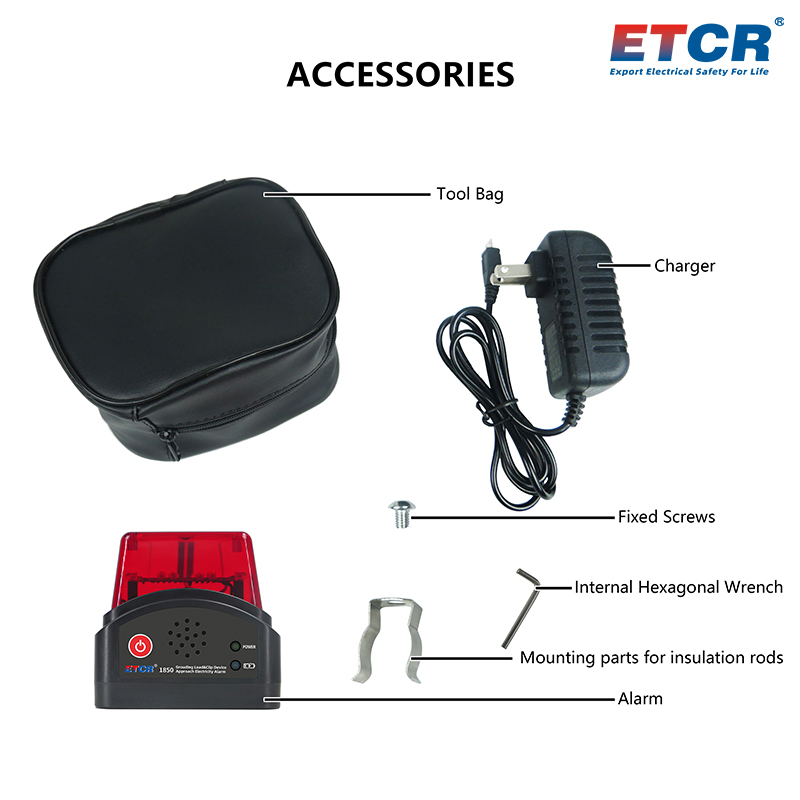

    Weight Alarm: about 125g (include battery); Total Weight: 310g (include accessory)
    Overall Size 80mm×77mm×57mm
    Protection Level IP65
    Working Temperature & Humidity -10℃~40℃; below 80%RH
    Store Temperature & Humidity -10℃~60℃; below 70%RH
    Model comparison
    Product Picture Product Model Name Voltage Range Sound & Light Alarm Power Supply Mode Standby Time Others
    ETCR1840 Waterproof Approach Electricity Alarm AC 40V~500kV Yes Lithium battery 6 months IP67
    Vibration alarm
    ETCR1850 Grounding Down Lead Clip Approach Electricity Alarm AC 40V~1kV Yes Lithium battery 6 months
    ETCR1860 Wrist Type High Voltage Approach Electricity Alarm AC 1kV~500kV Yes Button cell 12 months
    ETCR1860C Wrist Type Low Voltage Approach Electricity Alarm AC 40V~1kV Yes Button cell 12 months
    ETCR1870 Arm Type High Voltage Approach Electricity Alarm AC 1kV~500kV Yes Button cell 12 months
    ETCR1870C Arm Type Low Voltage Approach Electricity Alarm AC 40V~1kV Yes Button cell 12 months
    ETCR1880 Helmet High Voltage Approach Electricity Alarm AC 1kV~500kV Yes Button cell 12 months
    ETCR1880C Helmet Low Voltage Approach Electricity Alarm AC 40V~1kV Yes Button cell 12 months
