ETCR1520 Ring Main Unit Wireless Phase Detector

Main Functions

Used for nuclear phase and phase, frequency, and phase sequence testing of ring network cabinets of power distribution network systems
Nuclear phase voltage: 1V～600V
Nuclear distance: 30m
Phase range: 0°～360°
Frequency range: 45.0Hz～65.0Hz
Storage function: 200 sets of data storage
Voice broadcast function
USB communication interface
Rechargeable lithium battery

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR1520 Ring Main Unit Wireless Phase Detector, also known as low-voltage nuclear phase meter, is used for ring network cabinet nuclear phase and phase, frequency, and phase sequence testing.The instrument can be in the nuclear phase in a very low voltage line, the nuclear phase voltage is 1V~600V, and the nuclear phase is 30 meters away.

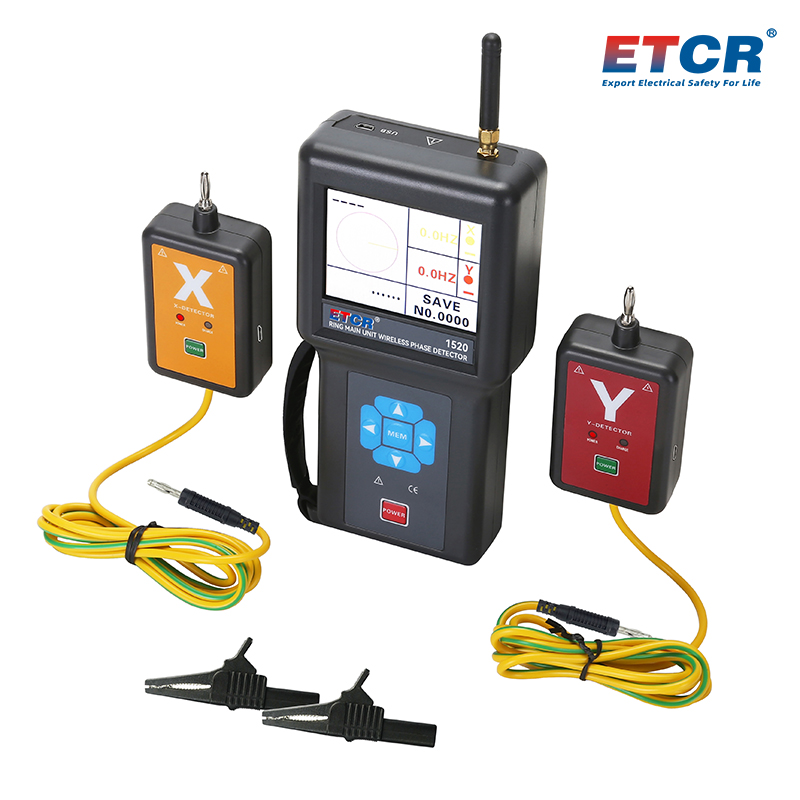

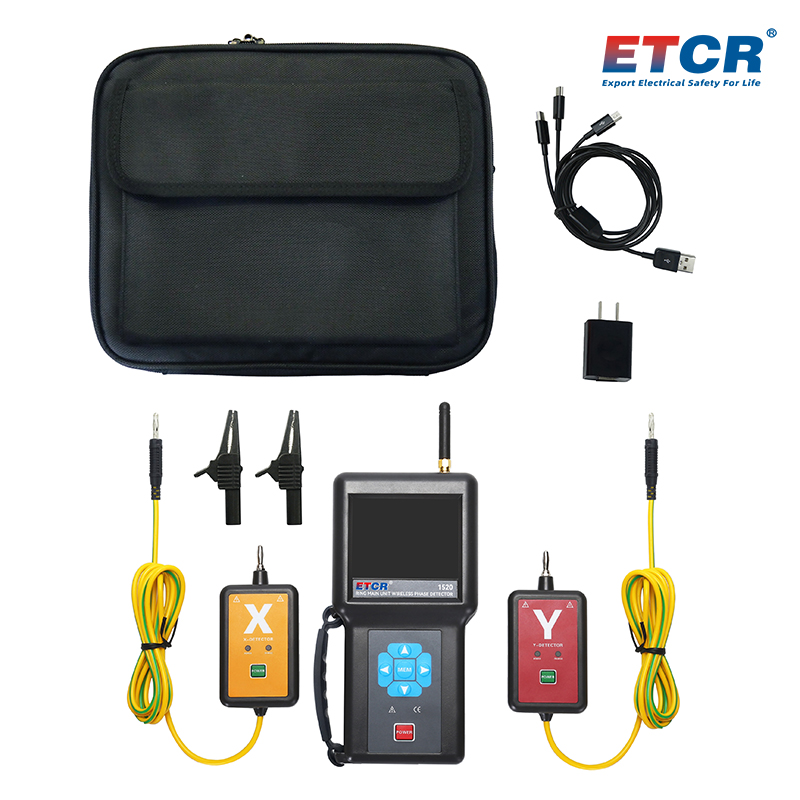

ETCR1520 Ring Main Unit Wireless Phase Detector consists of a host, a detector, data upload software, USB communication cable, etc. The host adopts a 3.5-inch true-color LCD screen, which can display the phase, frequency, phase sequence and nuclear phase results on the same screen. The vector diagram indication and phase indication are clear and intuitive, and it has voice prompt functions such as “normal X signal, normal Y signal, in-phase, out-of-phase” to make the test easier and easier.Storage function, can store 200 sets of data, USB communication interface, store data and upload to the computer for historical data reading, viewing, saving, printing, etc.
1. Wireless transmission technology is used, the nuclear phase is separated by 30 meters, and the nuclear phase is accurate and easy to operate.
2. Voice broadcast function, voice prompt: “X signal is normal, Y signal is normal, in-phase, out-of-phase”.
3. Using a 3.5-inch LCD color screen, the phase, frequency, phase sequence, and nuclear phase results can be displayed on the same screen, and the dynamic vector diagram indication and phase indication are clear and intuitive.
4. Storage function, 200 sets of data storage.
5. USB communication interface.
6. Rechargeable lithium battery

Technical Parameter

Power Supply	Host: 3.7V, 2600mAh rechargeable lithium battery Detector: 3.7V, 1000mAh rechargeable lithium battery
LCD Size	3.5-inch true color screen; display area: 71mmX53mm
Phase Detecting Voltage	AC 1V～600V
Phase Detecting Distance	30m
Phase Difference Qualitative	In-phase: -20°～20°; out-of-phase: 100°～140° and 220°～260°
Range	Test phase: 0°～360°
Range	Test frequency: 45.0Hz～65.0Hz
Accuracy	Phase: ≤±8°
Accuracy	Frequency: ≤±2Hz
Resolution	Phase: 1° Frequency: 0.1Hz
Transmitting Frequency	433MHz
Phase Indication	Vector graphics and numbers are displayed at the same time
Display Rate	2 times/second
Memory	200 groups (no data will be lost after power-down)
Automatic Shutdown	The meter will automatically turn off after about 15 minutes of power-on
Battery Voltage	The host battery has a 4-cell power display. When there is only 1 cell or 0 cells, please charge; when the indicator light of the detector flashes quickly, it means that the battery voltage is low. Please charge.
Rated Current	Detector: 30mA max; host: 150mA max
Instrument Size	Host 195mmX100mmX45mm; detector 120mmX54mmX30mm
Weight	Instrument: about 750g (include battery)
Protection Level	IP63
Insulation Test	Host, detector: AC3700V/rms (between exposed metal and plastic shell)
External Interference	No extra-strong electromagnetic field; no 433MHz co-frequency interference
Suitable Safety Standard	GB13398-92, GB311.1-311.6-8, 3DL408－91 standards and the newly promulgated national power industry standard "General Technical conditions for 1kV～35kV Portable Nuclear phase Shifters for Live Operation DL/T 971-2017" requirements
Suitable Safety Standard	Comply with IEC61481-A2; 2004; IEC 61243-1 ed.2:2003 standard
Working Temperature & Humidity	-10℃～40℃; below 80%RH
Storage Temperature & Humidity	-10℃～60℃; below 70%RH

Model comparison

Product Picture	Product Model Name	Phase Detecting Voltage	Voltage Level Display	Statelite Timing Function	Phase Detecting Distance	Catolog Of Power Supply	Others
	ETCR1050 Wireless High Voltage Phase Sequence Detector	10V~500kV	Yes	--	200m	Lithium Battery	Phase Sequence Testing & Phase Detecting
	ETCR1500 Wireless High Voltage Phase Detector	10V~500kV	Yes	--	200m	Lithium Battery
	ETCR1500A Remote Wireless High Voltage Phase Detector	10V~500kV	Yes	Yes	5km	Lithium Battery
	ETCR1500B Satellite Remote High Voltage Phase Detector	10V~500kV	Yes	Yes	500km	Lithium Battery
	ETCR1520 Ring Main Unit Wireless Phase Detector	1V~600V	Yes	--	30m	Lithium Battery
	ETCR1540 Metalclad Withdraw Switchgear Phase Detecor	10kV/35kV	Yes	--	20m	Lithium Battery
	ETCR1560A Multifunction Statellite Remote Wireless Phase Detector	10V~500kV	Yes	Yes	20m/30m/200m/500km	Lithium Battery	Comprehensive
