High Voltage Current Clamp Series

Main Functions

Used for detection of AC leakage current, phase, electrical energy, power, power factor, harmonics, etc. of overhead high-voltage lines
Products comply with RoHS environmental protection requirements
Products meet CE requirements
Can output current signal or voltage signal
Accept customer customization

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

Performance characteristics of high voltage current clamp series products：
1.The unique automatic plug-in clamp structure is particularly suitable for on-line current testing of high-voltage overhead lines.
2.Using permalloy iron core, it has stable performance and high precision, strong anti-interference ability, and is suitable for complex interference environments.
3.Can output current signal or voltage signal.
4.The battery compartment can hold 4 1.5V AAA alkaline dry batteries to provide power for secondary development.
5.With insulating rod interface: M24 screw teeth.
6.The range, variable ratio, output interface, etc. of the transformer can be customized according to customer requirements.
7.Output interface: Terminal interface: BNC plug/4.0mm dual banana plug/3.5mm audio plug/bare wire tap (optional), cable length 1.5m.
8.Safety level: CATⅢ600V.
9.Working temperature: -15°C～50°C

Product Model	Product Picture	Measurement Parameters	Reference Load	Clamp Jaw Size	Dimensions	Weight

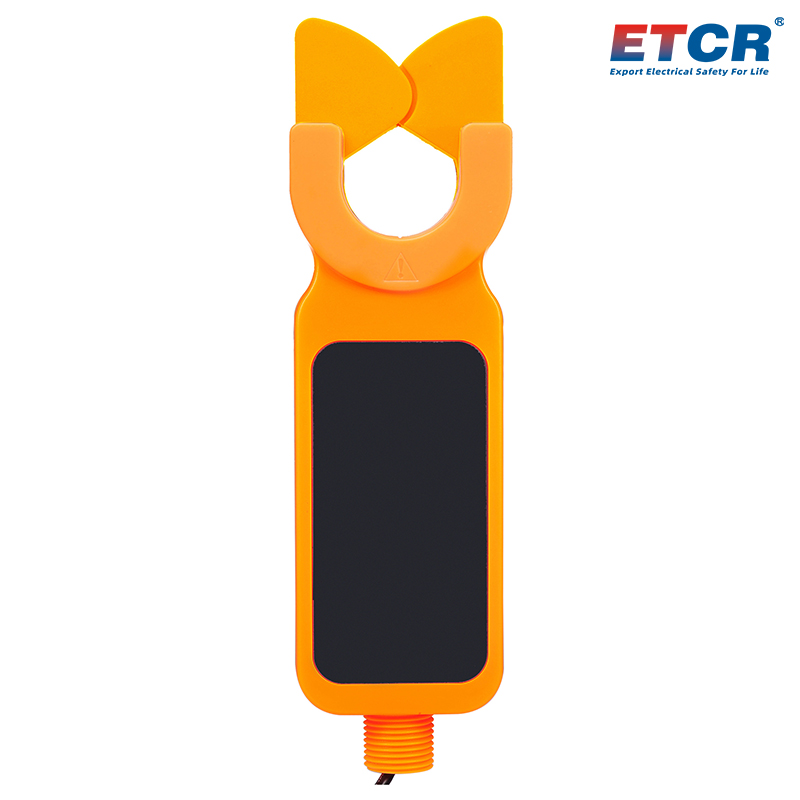

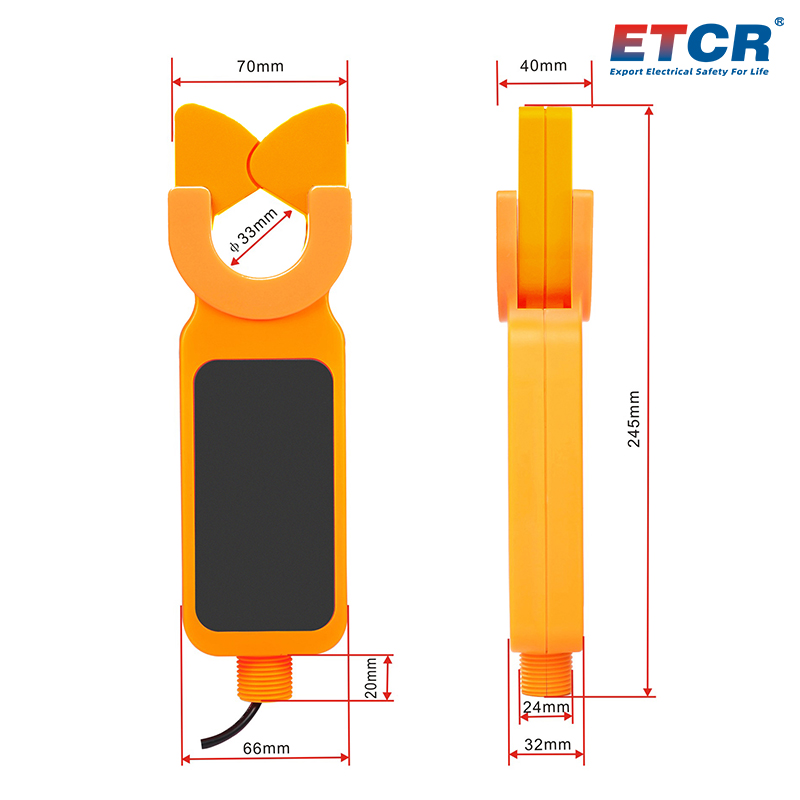

ETCR033H		Range: 0.000mA～20A AC Accuracy level: 1.0 Phase error: ≤2° Variable ratio: 800:1 Working frequency: 10Hz～100kHz	0～200mA≤300Ω 0～2A≤30Ω 0～20A≤3Ω	Ф33mm	245mm×72mm×39mm	266g

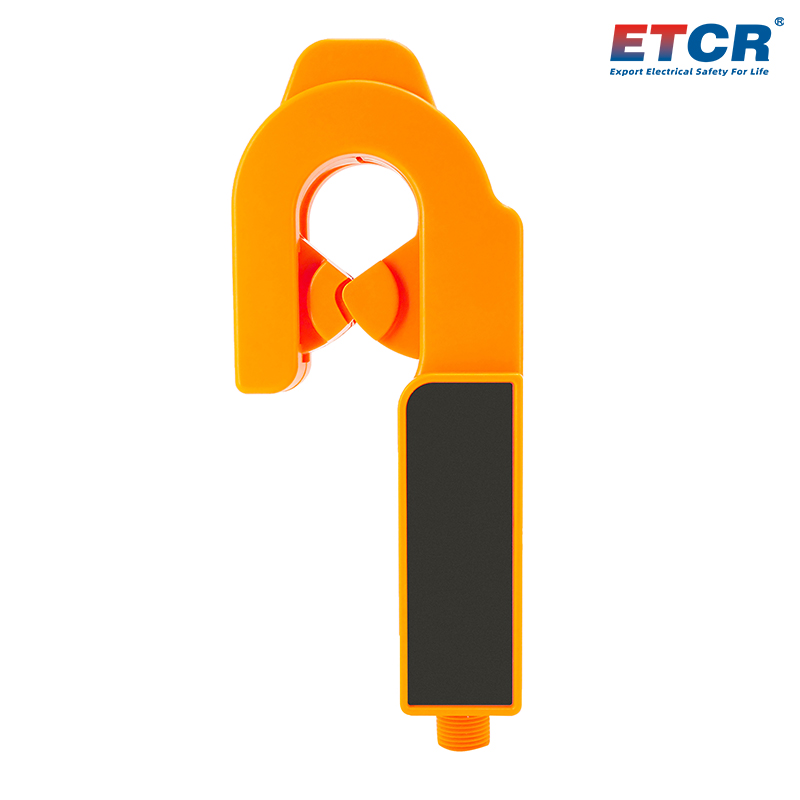

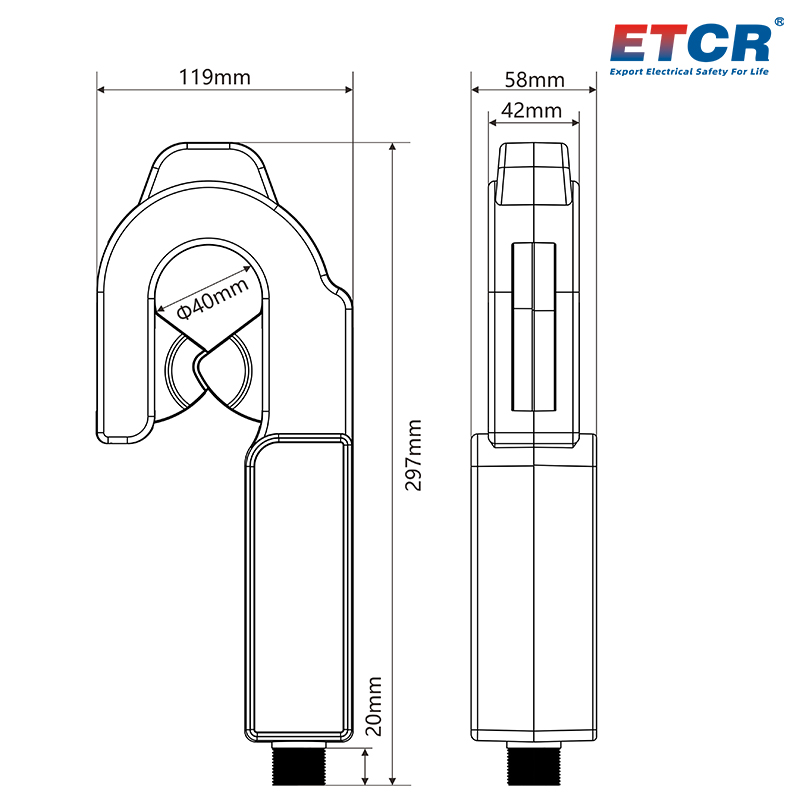

ETCR040HA		Range: 0mA～1000A AC Accuracy level: 1.0 Phase error: ≤2° Variable ratio: 4000:1 Working frequency: 10Hz～100kHz	0～10A≤300Ω 0～100A≤30Ω 0～1000A≤3Ω	Ф36mm	297mm×119mm×58mm	267g

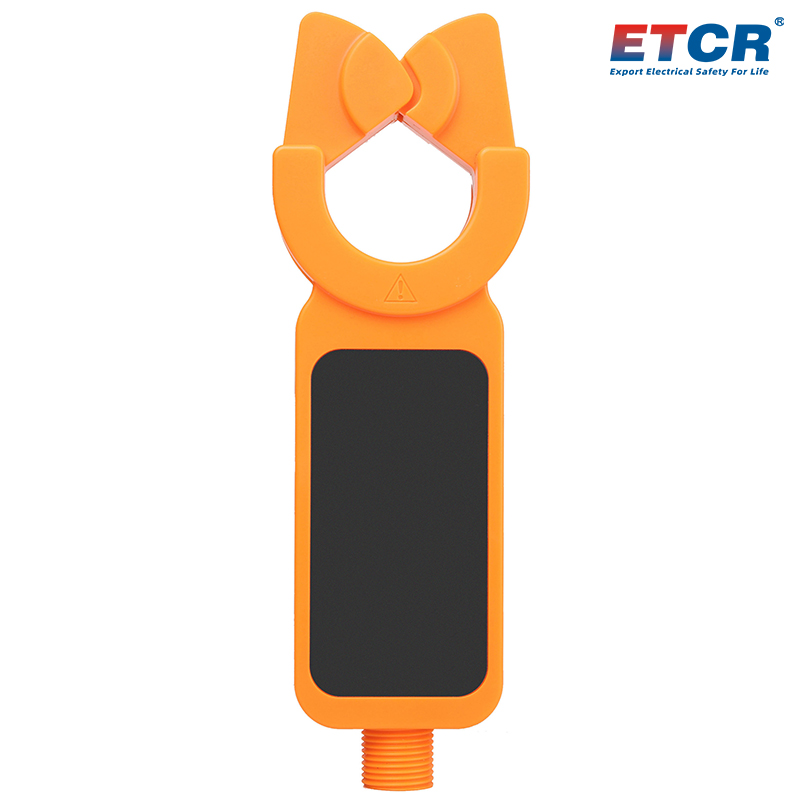

ETCR048HA		Range: 0mA～1000A AC Accuracy level: 1.0 Phase error: ≤2° Variable ratio: 4000:1 Working frequency: 10Hz～100kHz	0～10A≤300Ω 0～100A≤30Ω 0～1000A≤3Ω	Ф48mm	255mm×84mm×39mm	336g
ETCR068HA		Range: 0mA～1200A AC Accuracy level: 1.0 Phase error: ≤2° Turn ratio: 4000:1 Operating frequency: 10Hz～100kHz	0～12A≤300Ω 0～120A≤30Ω 0～1200A≤3Ω	Ф68mm	215mm×135mm×60mm	492g

Technical Parameter

Model comparison

Product Picture	Product Model Name	Clamp Jaw Size	Current Range	Precision Level	Others
	Small Caliber Clamp Current Sensor Series	Φ8 mm/Φ14 mm/17mm×18mm	AC 0.0mA～20A/100A	0.5	Accept Customization
	Clamp Leakage Current Sensor Series	Φ16mm/25mm×30mm/35mm×40mm/Φ68mm/80mm×80mm	AC 0.00mA～20A/30A/40A/60A/100A	0.5	Accept Customization
	Clamp Current Sensor Series	25mm×30mm/35mm×40mm/Φ68mm/80mm×80mm	AC 0mA～300A/500A/800A/1000A	0.5	Accept Customization
	R-Shape Current Clamp Series	Φ50mm/Φ70mm	AC 0mA～600A/1000A	0.5	Accept Customization
	AC/DC Current Clamp Series	Φ7mm/16mm×18mm/25mm×30mm/30mm×35mm/Φ68mm	AC/DC 0mA～100mA/50.0A/1000A/1500A	3.0	±12VDC, Accept Customization
	High Voltage Current Clamp Series	Φ33 mm/Φ40 mm/Φ48 mm/Φ68 mm	AC 0.000mA～20A/1000A/1200A	1.0	Accept Customization
