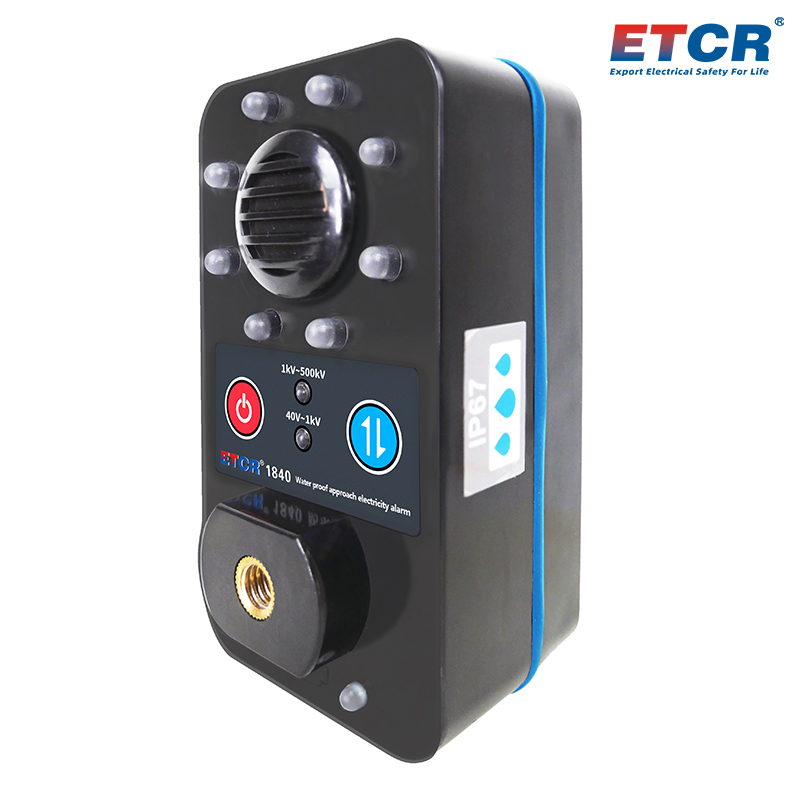

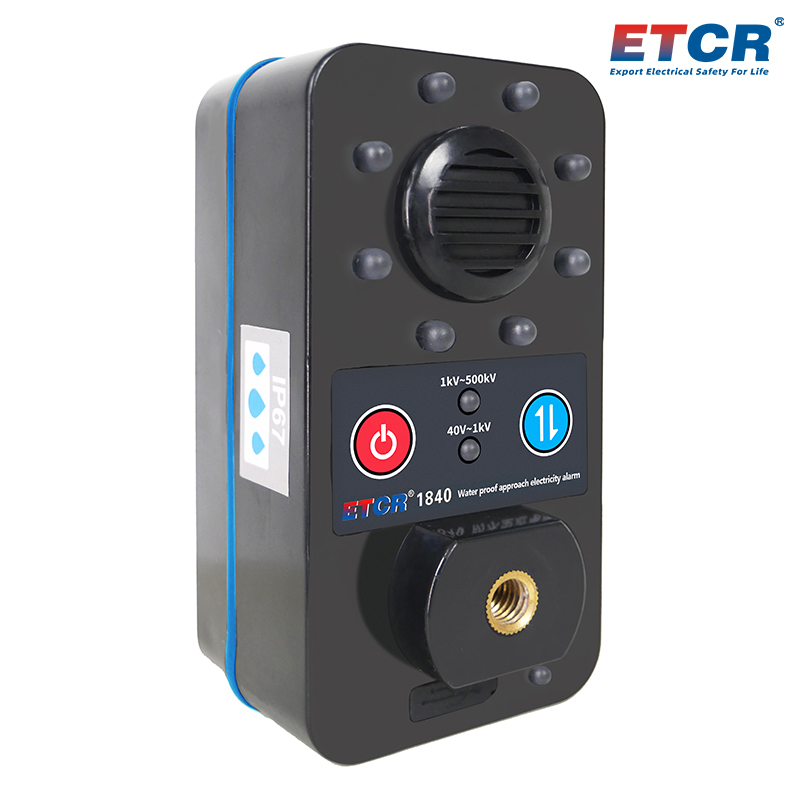

ETCR1840 WaterProof Approach Electricity Alarm

Main Functions

When approaching the charged object, the alarm will be triggered at a safe
distance to remind the operators to pay attention to safety, avoid electric shock
accidents, which provide safer protection for near-electric operators.
Alarm voltage gear: 1kV~500kV; 40V~1kV
Method of electricity verification: non-contact type.
Protection level: IP67
Sound and light alarm
Vibration alarm
Lithium battery

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR1840 WaterProof Approach Electricity Alarm，also known as water near electric alarm，provides a safe, practical and convenient new-type near electric alarm for power operators. This alarm adopt with non-contact induction technology to comprehensive sense the electric field in the air in all directions. When the induced electric field is greater than the threshold value, the alarm will trigger the alarm function to emit sound, light and vibration alarm to remind operators to pay attention to safety, avoiding electric shock accident, and provide safer protection for operators.
1. Non-contact induction technology to comprehensive detects the electric field in the air in all directions, trigger automatically alarm function.
2.The protection level is IP67, can be used to water electricity verification alarm (should use low voltage gear and install insulating rod ).

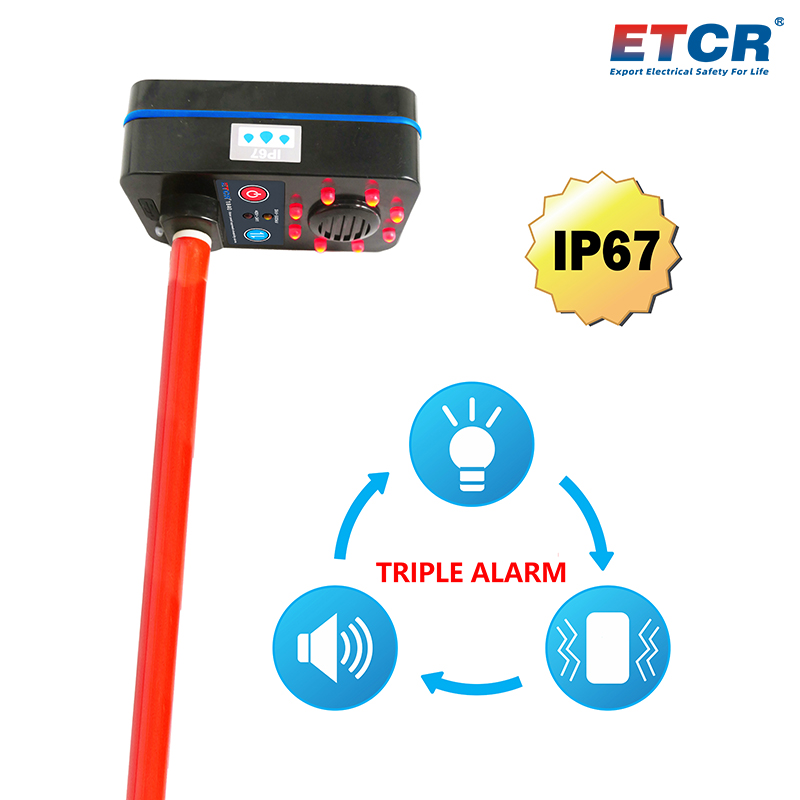

3.Has triple alarm mode of vibration, light and beep.
4.2 gears options: high voltage/low voltage alarm can be chosen.
5.Low power consumption of the alarm, and the standby time is up to 6 months.
6.It can be connected to an insulating rod for using.

Technical Parameter

1.Alarm Voltage & Distance

Alarm Voltage Gear	Voltage Level	Safe Distance	Alarm Distance
1kV~500kV	1kV		0.10m
	6.6kV		0.70m
	10kV	0.70m	1.00m
	35kV	1.00m	1.60m
	66kV	1.50m	2.20m
	110kV	1.50m	2.50m
	220kV	3.00m	3.50m
	330kV	4.00m	4.50m
	500kV	5.00m	5.50m
40V~1kV	40V		5cm
	110V		10cm
	220V		15cm
	600V		40cm
	1kV		60cm

Note: The safe distance is based on "GB 26860-2011 Power Safety Work Regulations-Electrical Parts of Power Plant and Substation" and "GB 26859-2011 Power Safety Work Regulations-Power Line Part". In practical application, the alarm distance of the alarm has changed accordingly due to the influence of the environment.

2.General Specifications

Power Supply	Lithium battery DC 7.4V 600mAh
Alarm Voltage Gear	Low voltage gear: 40V~1kV; High voltage gear: 1kV~500kV
Work Frequency	50Hz/60Hz
Method Of Electricity Verification	Non-contact
Work Time	Continuous work (alarm status): about 8 hours
Work Time	Standby time: 6 months
Alarm Method	Vibration, light, buzzing

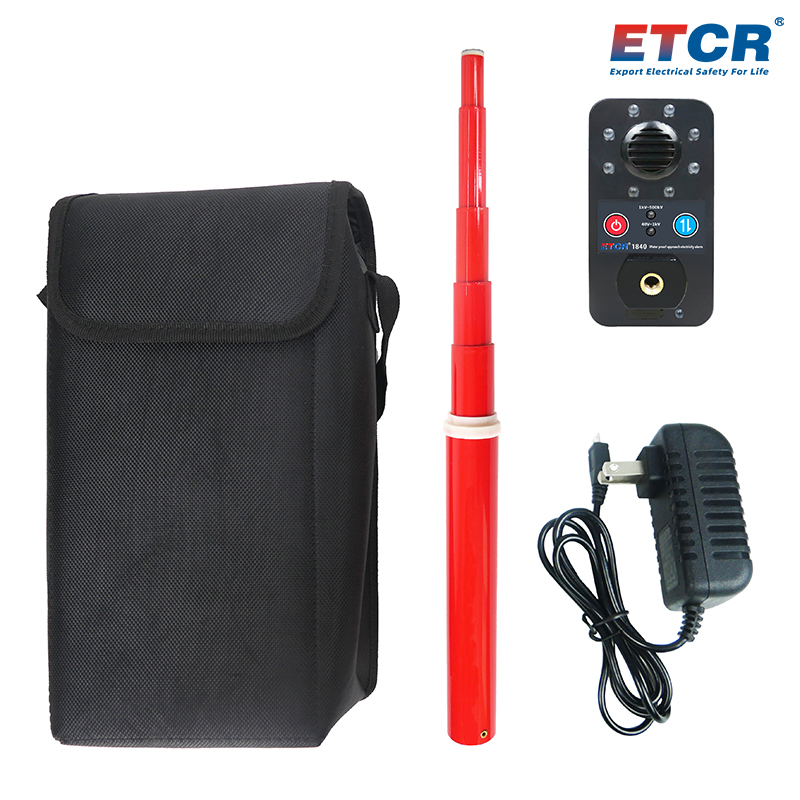

Weight	Alarm: about 170g (include battery); Total weight: about 820g (include accessory)
Overall Size	111mm×60mm×50mm
Telescopic Insulating Rod	Developed state 1m
Protection Level	IP67
Working Temperature & Humidity	-10℃~40℃; below 80%RH

Model comparison

Product Picture	Product Model Name	Voltage Range	Sound & Light Alarm	Power Supply Mode	Standby Time	Others
	ETCR1840 Waterproof Approach Electricity Alarm	AC 40V~500kV	Yes	Lithium battery	6 months	IP67 Vibration alarm
	ETCR1850 Grounding Down Lead Clip Approach Electricity Alarm	AC 40V~1kV	Yes	Lithium battery	6 months
	ETCR1860 Wrist Type High Voltage Approach Electricity Alarm	AC 1kV~500kV	Yes	Button cell	12 months
	ETCR1860C Wrist Type Low Voltage Approach Electricity Alarm	AC 40V~1kV	Yes	Button cell	12 months
	ETCR1870 Arm Type High Voltage Approach Electricity Alarm	AC 1kV~500kV	Yes	Button cell	12 months
	ETCR1870C Arm Type Low Voltage Approach Electricity Alarm	AC 40V~1kV	Yes	Button cell	12 months
	ETCR1880 Helmet High Voltage Approach Electricity Alarm	AC 1kV~500kV	Yes	Button cell	12 months
	ETCR1880C Helmet Low Voltage Approach Electricity Alarm	AC 40V~1kV	Yes	Button cell	12 months
