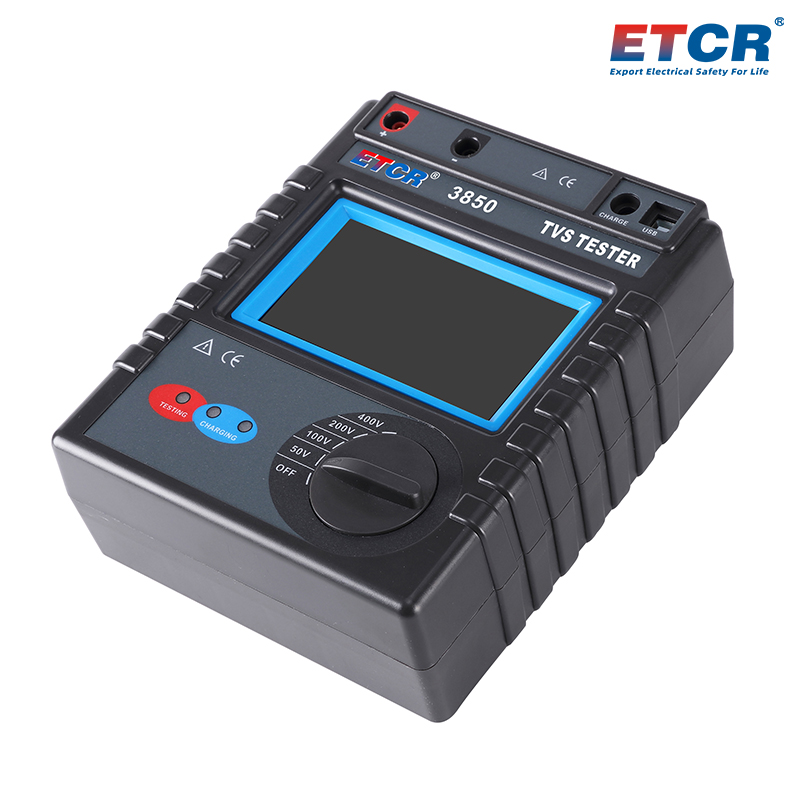

ETCR3850 Transient Voltage Suppressor Tester

Main Functions

Perform reverse breakdown voltage testing on unidirectional and bidirectional TVS (Transient Voltage Suppressor)
Measurement range of DC breakdown voltage: 0V~400V
Memory: data storage 4000 groups.

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR3850 Transient Voltage Suppressor Tester, also known as TVS tester, which is specially designed for TVS diode performance index test and is an industrial grade test instrument. Transient voltage suppressor has the advantages of faster response speed compared to the traditional Zener diode, thus the tester is widely used in circuit design. In order to ensure the performance of the product, it is particularly important to test the performance of each diode when leaving the factory. In the performance index of transient voltage suppressor, the most important index is "reverse breakdown voltage". This product is designed for this index detection. Compared to traditional measuring instrument, ETCR3850 Transient Voltage Suppressor Tester has added an LCD display function, which facilitates user operation and displays test result. The display section of LCD is mainly consisted of several parts: voltage threshold input, qualification judgment, test result display, real-time voltage and current display, usage of measurement record, battery level display, test record display and test record operation. In contrast to other measuring instruments, the hardware design of the power button and other function keys is also different. This tester uses a rotary switch instead of traditional buttons for longer lifespan and more convenient use. In terms of power supply, this tester adopts rechargeable lithium battery for portability. Fully charged is required when working in places without electricity. Compared to traditional dry cell power supply, it is more durable to use and environmentally friendly. Another highlight of ETCR3850 is the function of recording test results, each gear can store 1000 test records, users can view and operate the test results. At the same time, user can use the upper computer software equipped by our company to view and operate test records, providing users with the function of exporting test records. Users can export test records to EXCEL format for viewing, comparing and analyzing test data.
1.TVS tester adopts with true-color touch screen, with voltage threshold input, qualification judgment, test result display, real-time voltage and current display, usage of measurement record, battery level display, test record display and test record operation.
2.Detect TVS “reverse breakdown voltage” to guarantee the performance of the product.
3. With qualification range setting, qualification judgment mode.
4.Adopt with 5 inch true-color touch screen, Chinese interface.
5.Memory: data storage 4000 groups.
6.USB communication interface.
7.Large capacity rechargeable lithium battery.

Technical Parameter

1.Measurement range & accuracy

Measurement Function	Measurement Range	Accuracy	Solution
Voltage Test (DC)	0V~50V	±5%FS	0.01V
	50V~100V
	100V~200V
	200V~400V

2.Other Technical Parameters

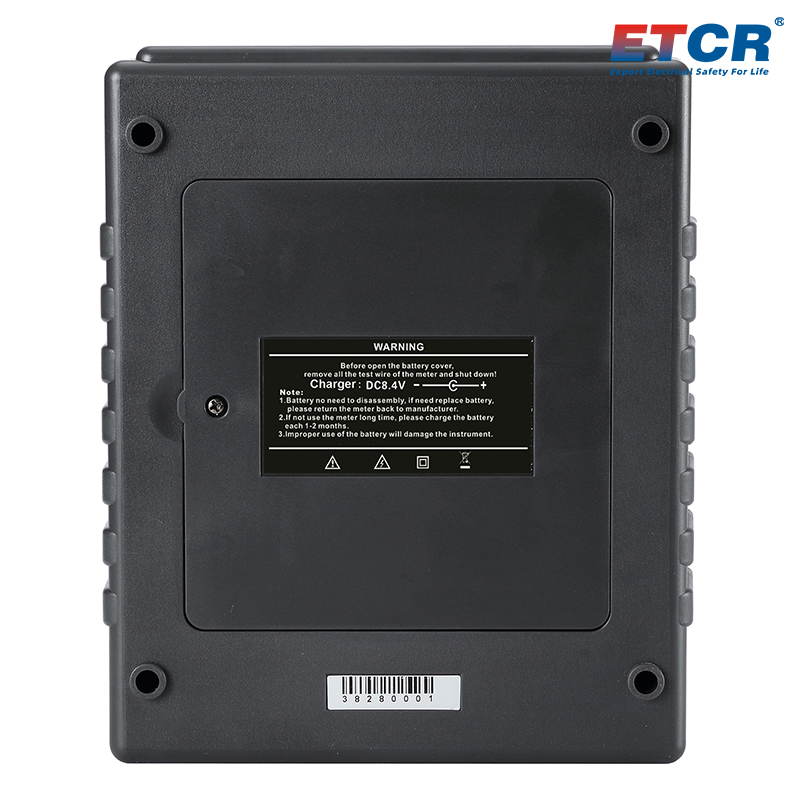

Power Supply	Rechargeable lithium battery: 7.4V, 2600mAh
Display Method	5 inch true-color touch screen
Voltage Measurement Range	0V~400V
Memory	Each gear can store 1000 pieces test record
Test Record Query	Support query and operate of test record.
Short Circuit Protection	Stop output when short circuit occur on the tester to protect the safety of self and operators.

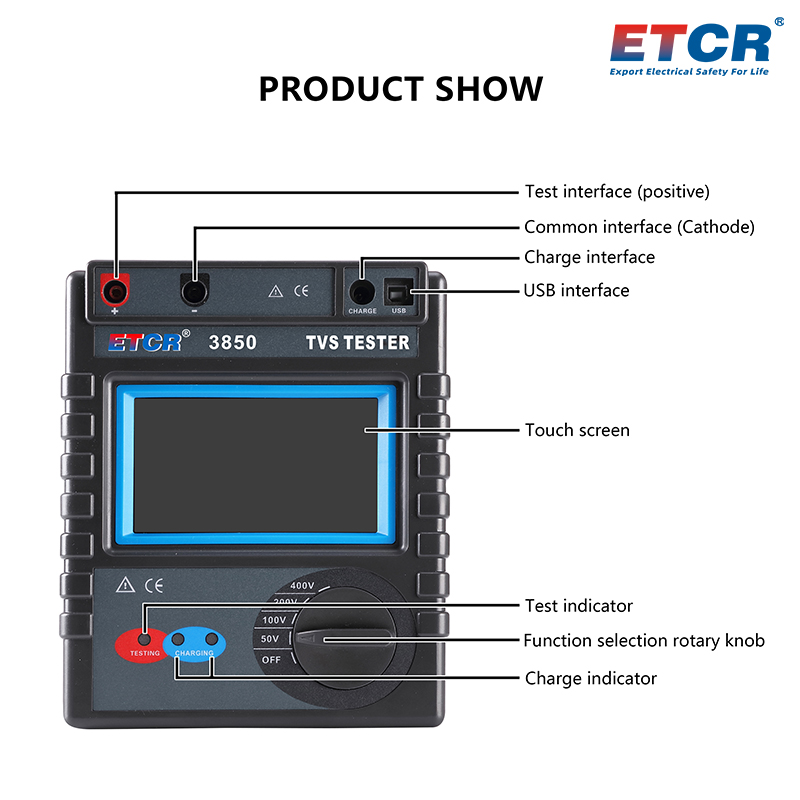

LCD Display Content	Display real-time voltage, current data, and display test result after testing, display test record, battery level and other information.
CHARGE Light	Charge indicator light, red lights up when charging, green lights up when full charged.
Working Indicator Light	When user click the START button on the screen, the tester start to output voltage and the blue indicator lights up, lights off after completing testing.
Communication Method	USB communication interface
Host Size	215mm×178mm×83mm

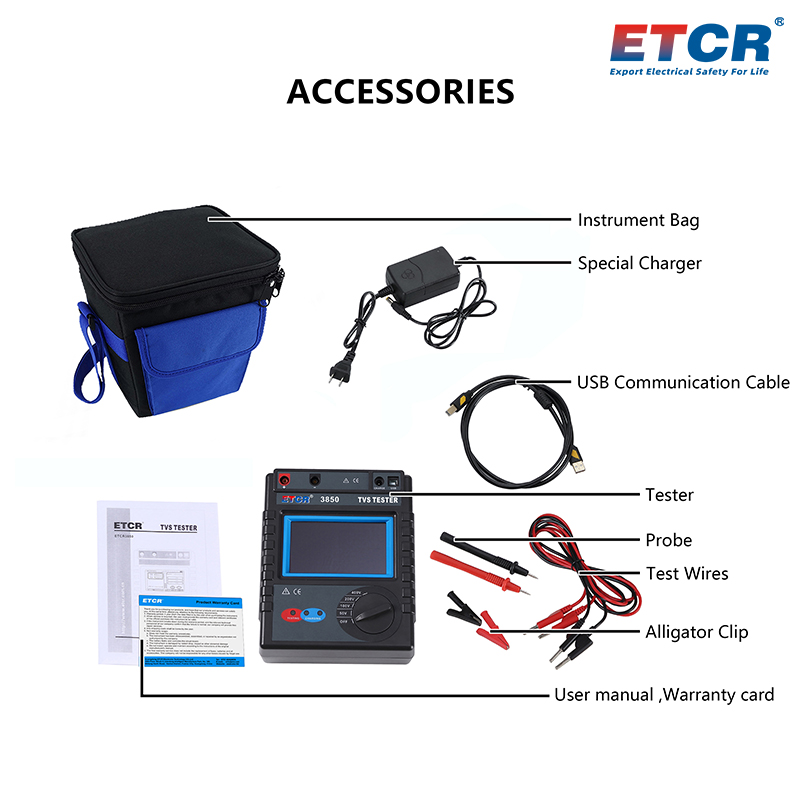

Weight	Host: 964g; Total weight: 2.09kg (include accessories)
Working Temperature & Humidity	-20℃~40℃; below 80%RH
Store Temperature & Humidity	-20℃~60℃; below 70%RH

Model comparison

Data download

Download：

ETCR3850 Transient Voltage Suppressor Tester
