Split Type Leakage Current Sensor Series

Main Functions

It is used for on-line detection of AC leakage current, phase, electrical energy, power, power factor, and harmonics, and on-line detection of leakage current of transformer ground wire.
Products comply with RoHS environmental protection requirements
Products meet CE requirements
Can output current signal or voltage signal
Accept customer customization

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

Performance characteristics of separate leakage current transformer series products：

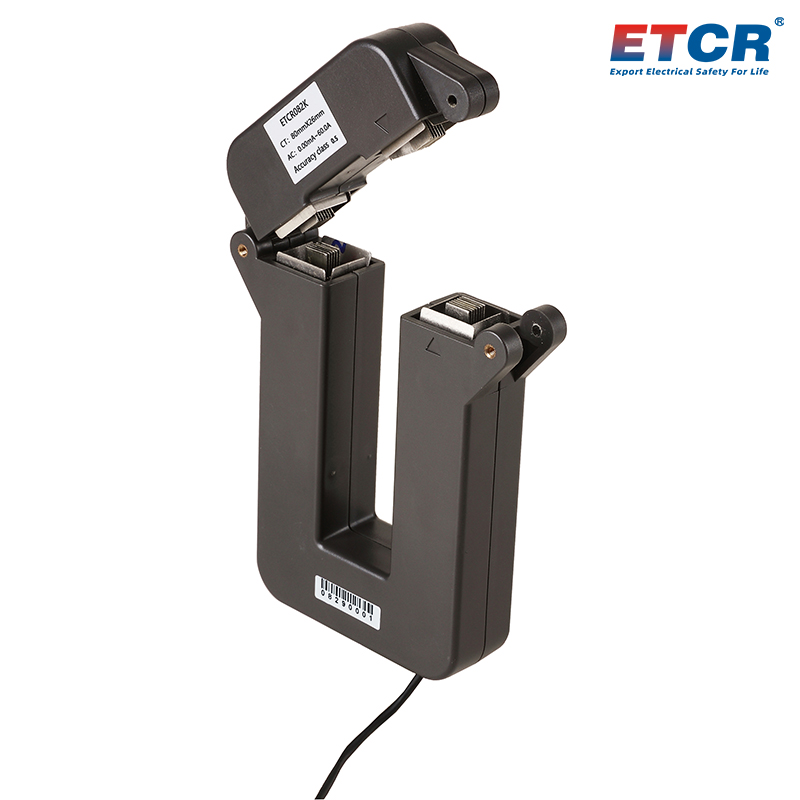

1. The open-and-close structure does not require power failure and does not need to disconnect the line under test. The installation is fast, safe and reliable, especially suitable for online installation.
2. It adopts permalloy iron core and double-layer shielding technology, with stable performance and high precision, strong anti-interference ability, and is suitable for complex interference environments.
3. The firewire and zero wire can be clamped together at the same time to measure the leakage current of cables and electrical equipment.

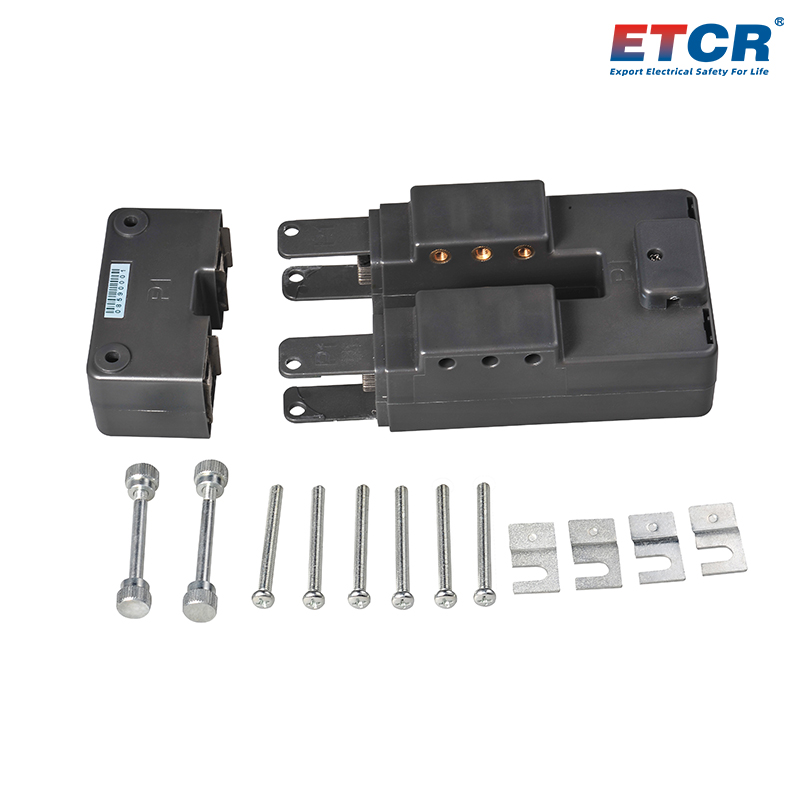

4. Screw fixing method, especially suitable for testing the leakage current of grounding flat steel.
5. Output interface: terminal block (S1, S2 coil tap terminal, GND shielded terminal) or 2-core shielded wire output
6. The range, turn ratio, output interface, etc. of the transformer can be customized according to customer requirements.
7. Safety level: CATⅢ600V.
8. Working temperature: -15°C～50°C

Product Model	Product Picture	Measurement Parameters	Reference Load	Clamp Jaw Size	Dimensions	Weight

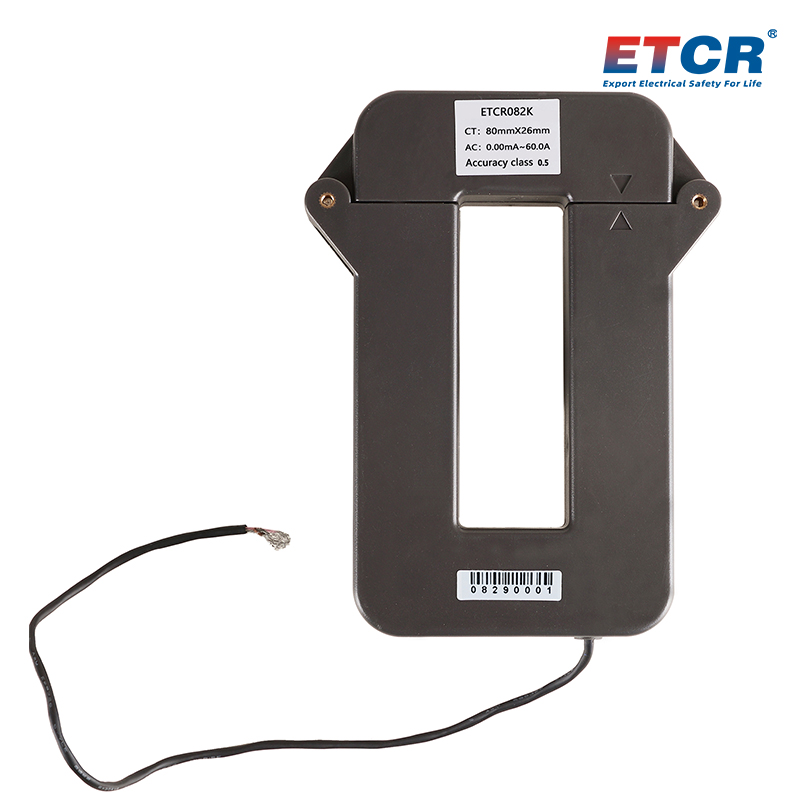

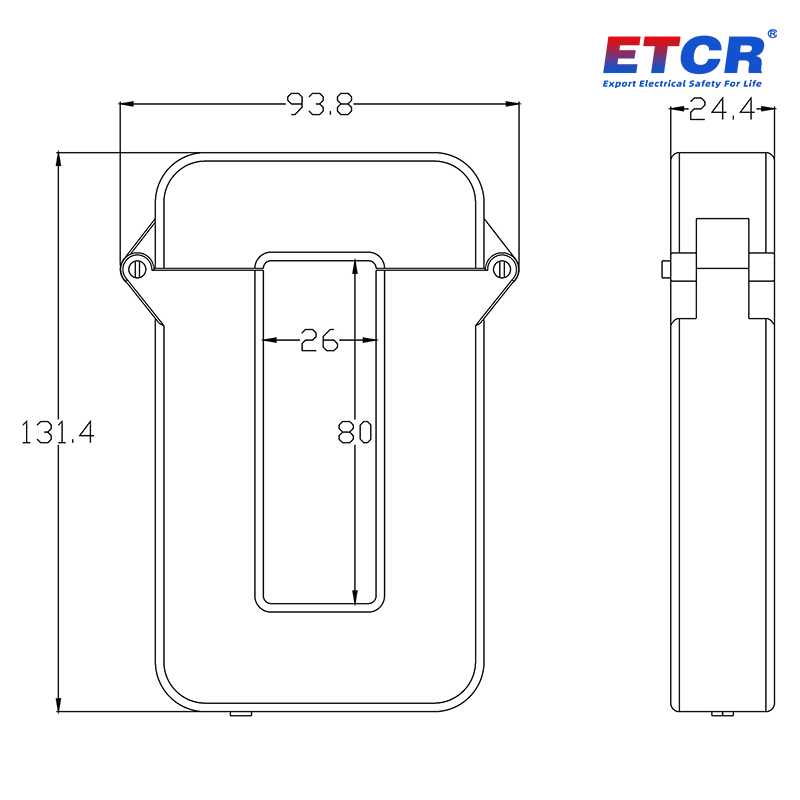

ETCR082K		Range: 0.00mA～60A Accuracy level: 0.5 Phase error: ≤1° Variable ratio: 1000:1 Working frequency: 10Hz～100kHz	0～600mA≤300Ω 0～6A≤30Ω 0～60A≤3Ω	80mm×26mm	132mm×101mm×25mm	800g

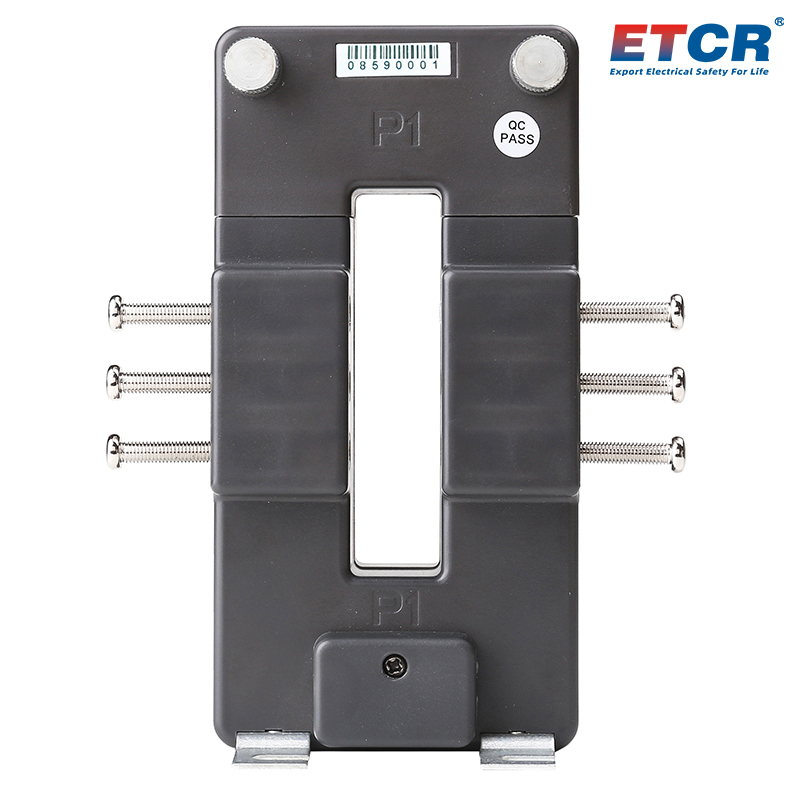

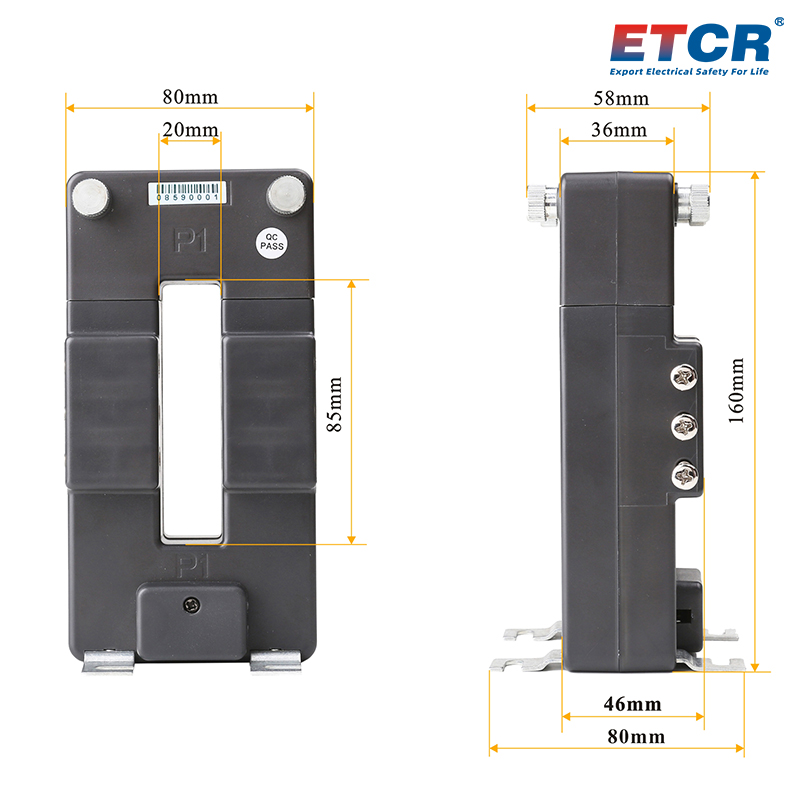

ETCR085K		Range: 0.00mA～60A Accuracy level: 0.5 Phase error: ≤1° Variable ratio: 1000:1 Working frequency: 10Hz～100kHz	0～600mA≤300Ω 0～6A≤30Ω 0～60A≤3Ω	85mm×20mm	160mm×80mm×58mm	810g

Technical Parameter

Model comparison

Product Picture	Product Model Name	Clamp Jaw Size	Current Range	Precision Level	Others
	Split Type Leakage Current Sensor Series	Φ10mm/Φ25mm/Φ25mm/Φ40mm/Φ80mm	AC 0.00mA～20A/30A/60A	0.5	Accept Customization
	Split Type DC Leakage Current Sensor Series	Φ10mm/Φ25mm	DC 0.0mA～100mA	3.0	±12VDC, Accept Customization
	Microampere Level Split Leakage Current Sensor Series	Φ22mm/Φ45mm/80mm×21mm/Φ90mm	AC 0uA～10A	0.5	Accept Customization
	Split Type Leakage Current Sensor Series	80×26mm/85×20mm	AC 0.00mA～60A	1.0	Accept Customization
	Flat Port Leakage Current Sensor Series	145×40m/200×40mm	AC 0.00mA～60A	1.0	Accept Customization

Data download

Download：
