ETCR8340 Multichannel Current & Voltage Online Tester

Main Functions

It is used for online monitoring and recording of 1 to 6 AC leakage currents, currents, and 1 to 3 voltages.Troubleshooting circuit insulation faults, monitoring intermittent leakage faults, transformer core grounding current monitoring, cable grounding circulation monitoring and other line current and voltage monitoring.
Current range: 0.0mA/20A/600A/3000A
Voltage range: 0.0V～600V AC
Communication method: RS485

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

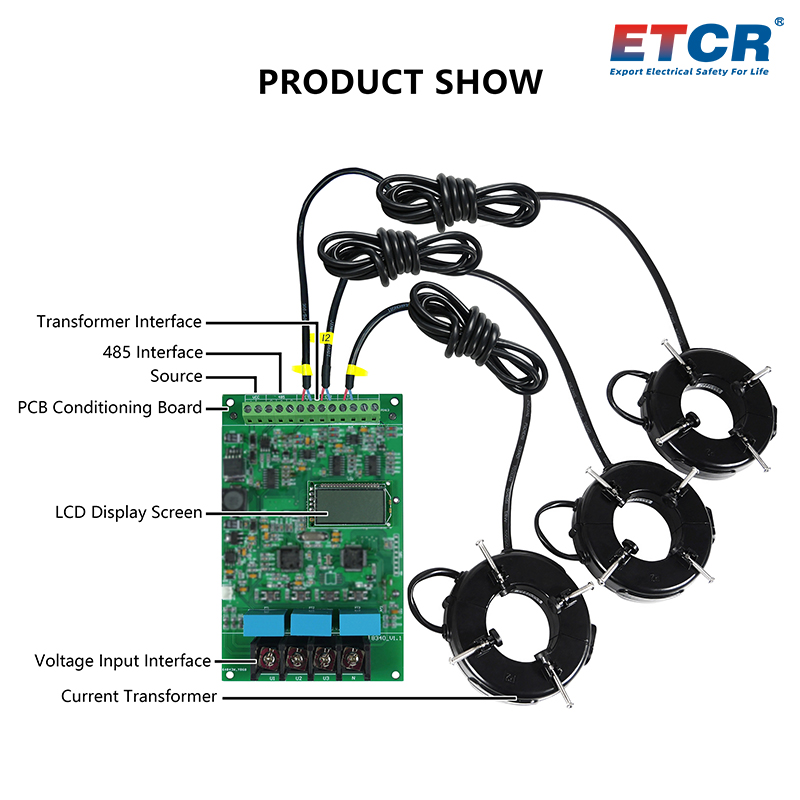

ETCR8340 Multichannel Current & Voltage Online Tester is used for on-site online real-time monitoring and recording of multi-channel AC current and AC voltage.Troubleshooting circuit insulation faults, monitoring intermittent leakage faults, transformer core grounding current monitoring, cable grounding circulation monitoring and other line current and voltage monitoring.The tester is composed of a collector module, an open transformer, etc.The collector module can be connected to 3 current transformers and 3 voltages.The collector module has an RS485 interface and provides a MODBUS communication protocol to facilitate users' secondary development.The transformer has a variety of styles such as round, flat mouth, and waterproof type for users to choose from. The open structure eliminates the need for power outages and disconnects the cables during on-site installation, which is convenient and safe to install.It can be widely used in the online monitoring of AC current, ground circulation, and AC voltage of electrical installations, and provides safe, accurate, and convenient power testing instruments for power inspectors.
1. Provide current transformers and PCB conditioning boards to facilitate users to develop online monitoring systems for the second time, and background systems can also be developed according to user requirements.
2. Monitor the current and voltage of multiple loops online at the same time, and the number of loops can be customized according to user requirements.
3. For different application scenarios, a variety of current transformers are provided for users to choose from, and the range can be customized according to user requirements.
4. It can meet the wide voltage power supply of 6~24V.
5. The LCD screen can be configured to view the current AC current value or AC voltage value on site.
6. Provide RS485 communication, users can carry out secondary development, form a network, and realize remote multi-point online monitoring according to the MODBUS communication protocol.

Technical Parameter

CT Model	8340-040K	8340-060J	8340-060P	8340-6416B	8340-100F

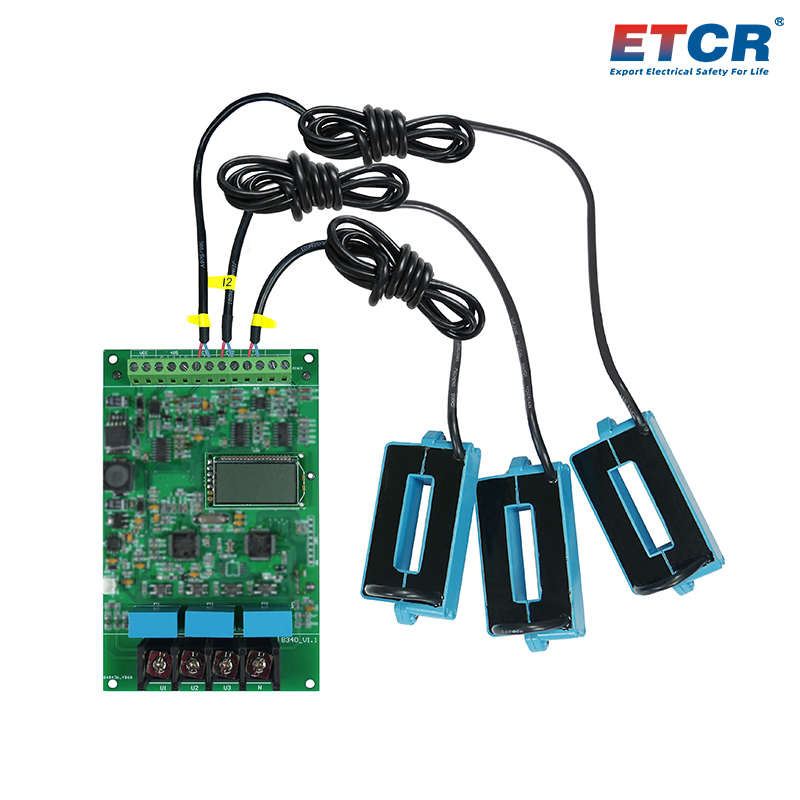

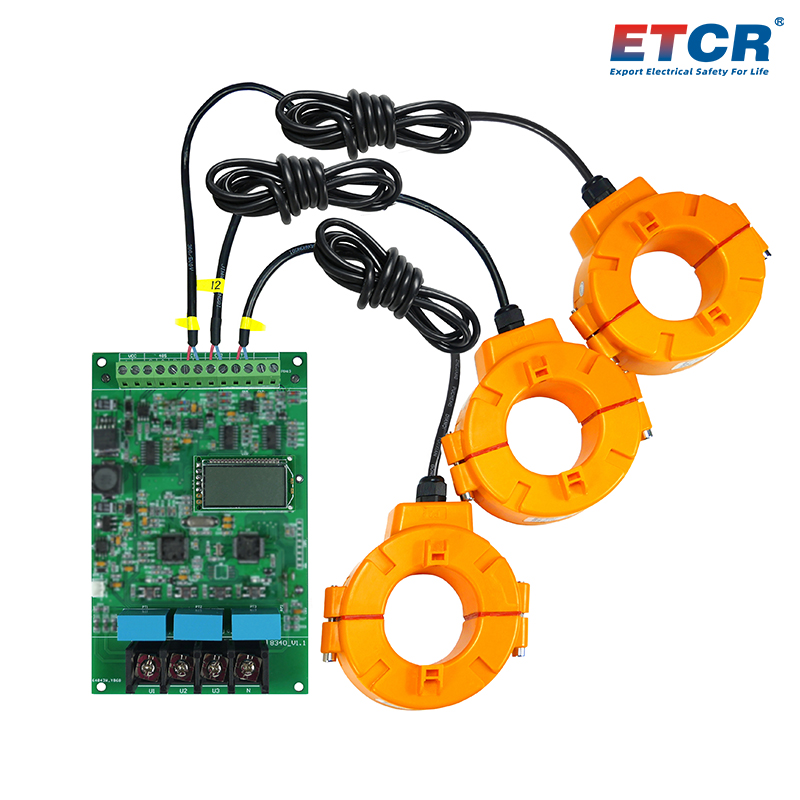

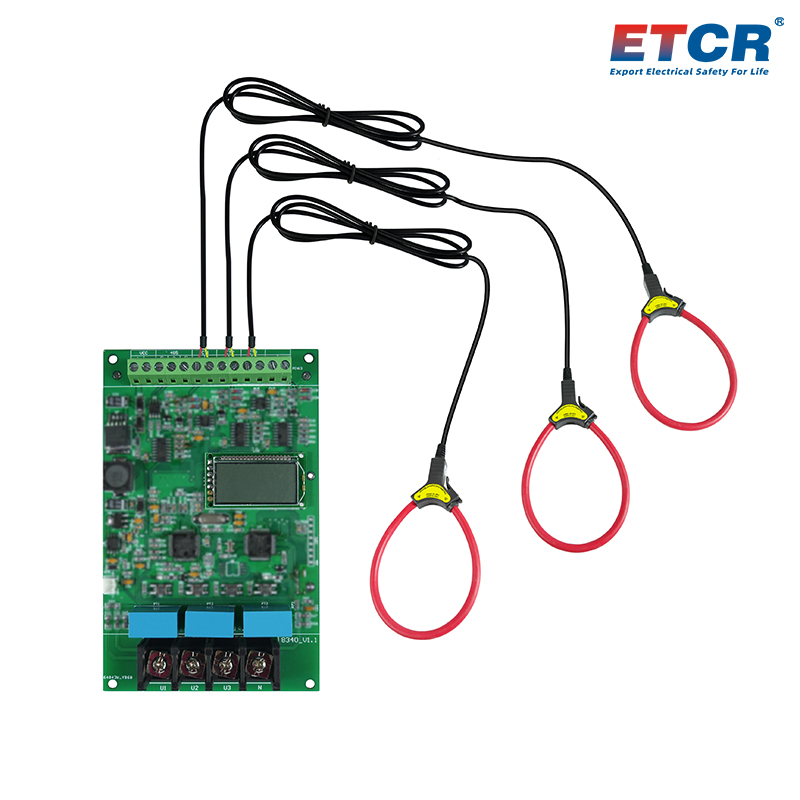

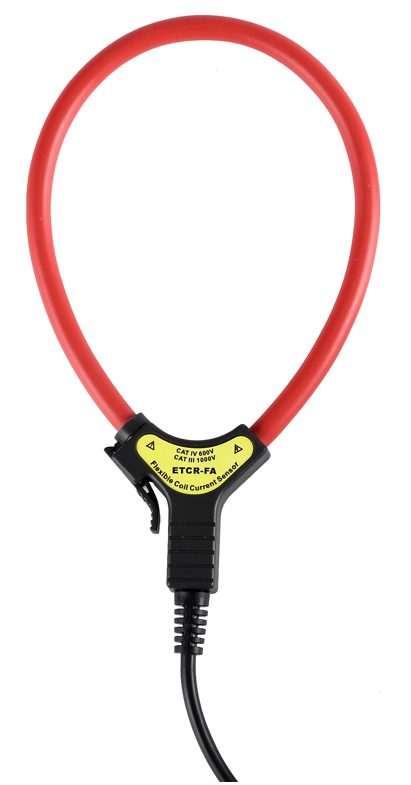

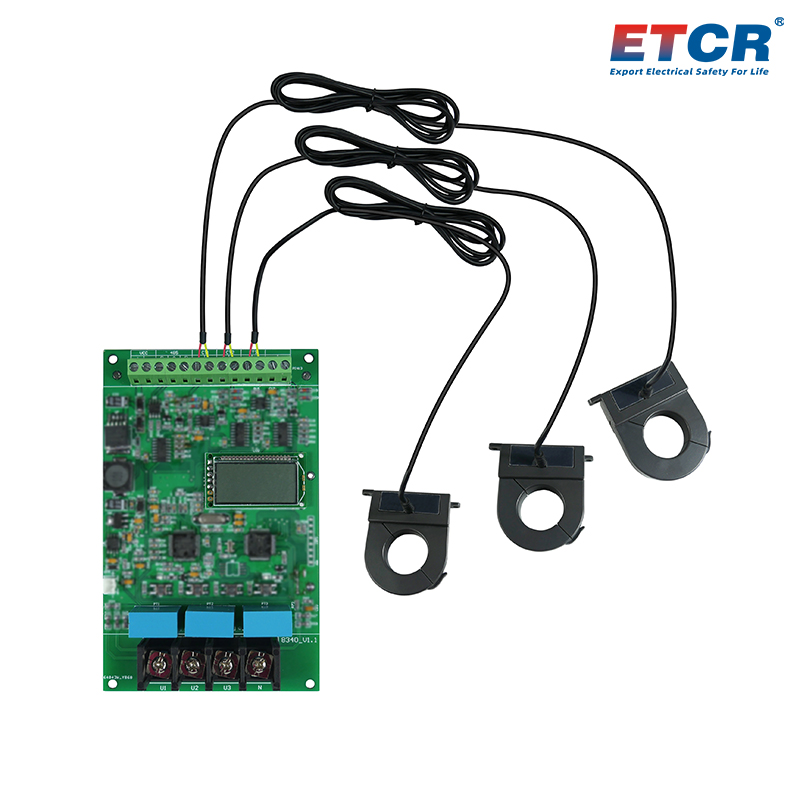

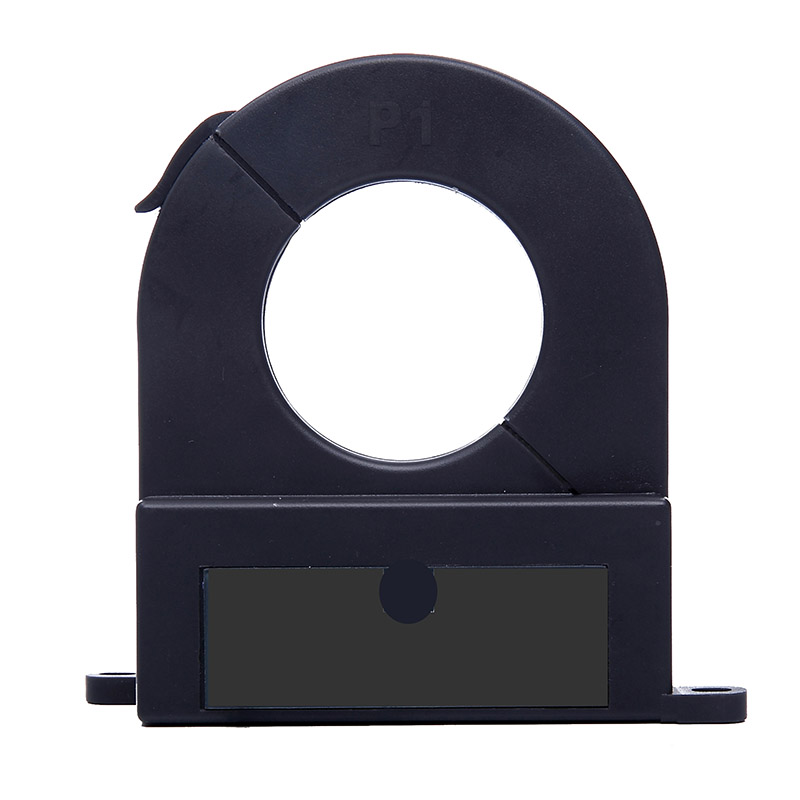

CT Name	Snap-in Leakage Current Sensor	Snap-in Current Sensor	Waterproof Current Sensor (IP67)	Flat-port Current Sensor	Flexible Coil (Only 1 to 3 Channels Can Be Selected)
CT Picture
Current Range	0.00mA~20A	0.0A~600A	0.0A~600A	0.0A~600A	0A~3000A
Current Resolution	0.01mA	0.1A	0.1A	0.1A	1A
Current Test Accuracy	0.5Level	0.5Level	0.5Level	0.5Level	1.0Level
CT Caliber	Φ40mm	Φ60mm	Φ60mm	64mm*16mm	Φ100mm
CT Dimensions	95mm×98mm×31mm	123mm×123mm×33mm	136mm×135mm×50mm	133mm×45mm×64mm	160mm×100mm×13mm
Voltage Range	0.0V～600V AC
Voltage Resolution	0.1V
Voltage Test Accuracy	0.5 level
Power Supply	6VDC～24VDC，50mA Max. (external power supply)
Conditioning Board Size	144mm×110mm×22mm
PCB Interface	Power input interface, 485 communication input interface, current transformer input interface, voltage transformer input interface
Communication Method	RS485 (support MODBUS-RTU communication protocol)
Shift Gears	Fully automatic gear shift
Line Voltage	Suitable for line testing below AC600V
Working Temperature & Humidity	-10℃～40℃; below 80%RH
Storage Temperature & Humidity	-10℃～60℃; below 70%RH
