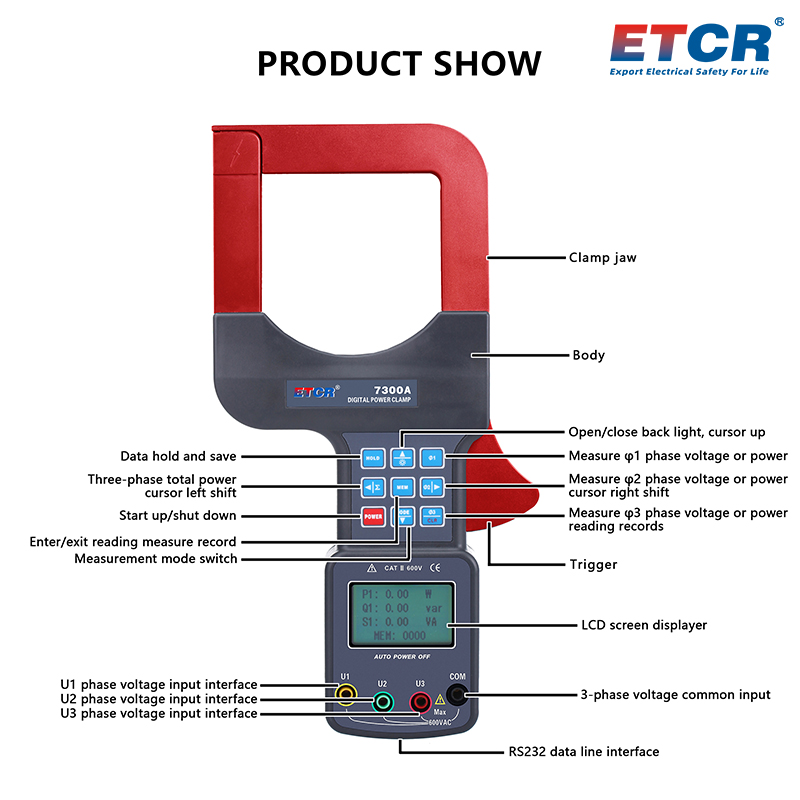

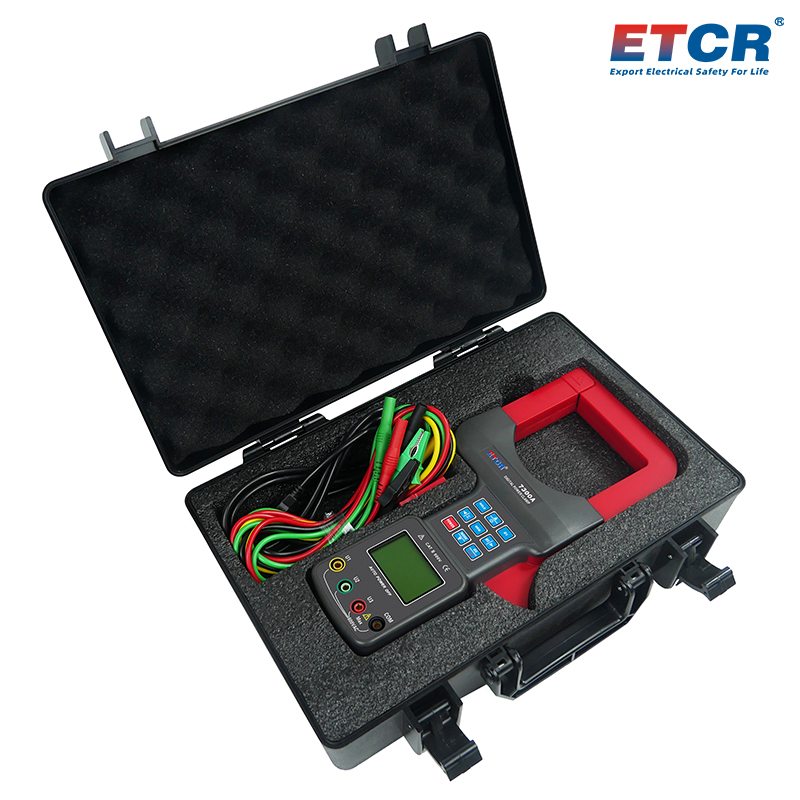

ETCR7300A Large Caliber Three Phase Power Tester

Main Functions

Measurement of AC current, voltage, phase; active power, reactive power, apparent power, power factor, total power, frequency, phase sequence, electrical energy and other parameter measurement.
Current measurement range: AC 0.0A~2000A
Voltage measurement range: 0.00V~600V
Phase measurement range: 0.0°~360°
Clamp jaw size: 80mm×80mm
Memory: data storage 200 groups
USB communication interface

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

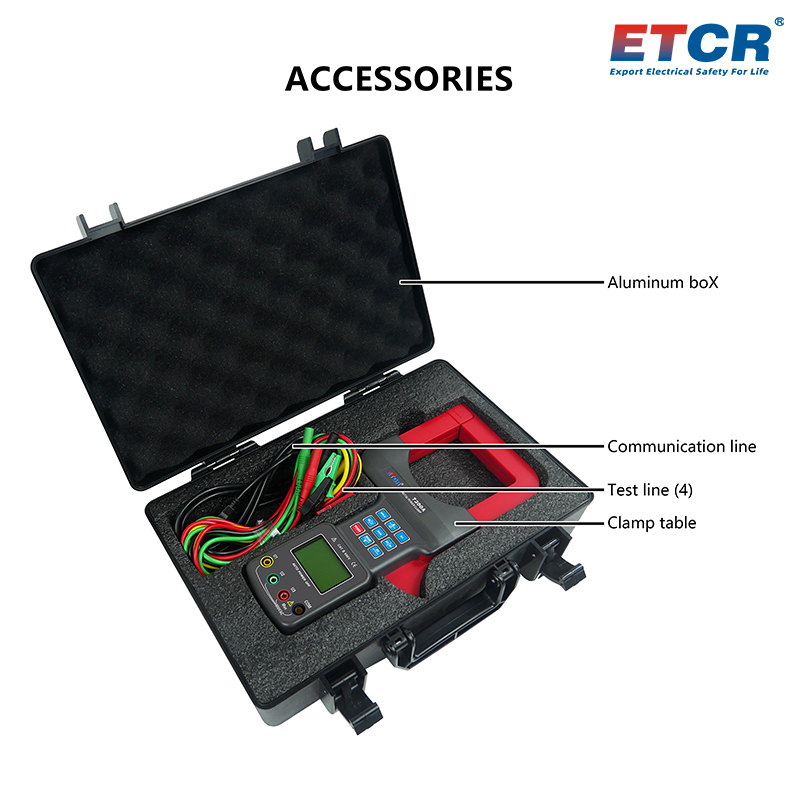

ETCR7300A Large Caliber Three Phase Clamp Power Meter, also known as clamp type power meter, super large caliber clamp type power meter, three phase clamp type power meter, which is used for measurement of AC Voltage, current, voltage phase, phase between voltage and current, frequency, phase sequence, , electrical energy ; active power, reactive power, apparent power, power factor, total power and other parameter measurement.

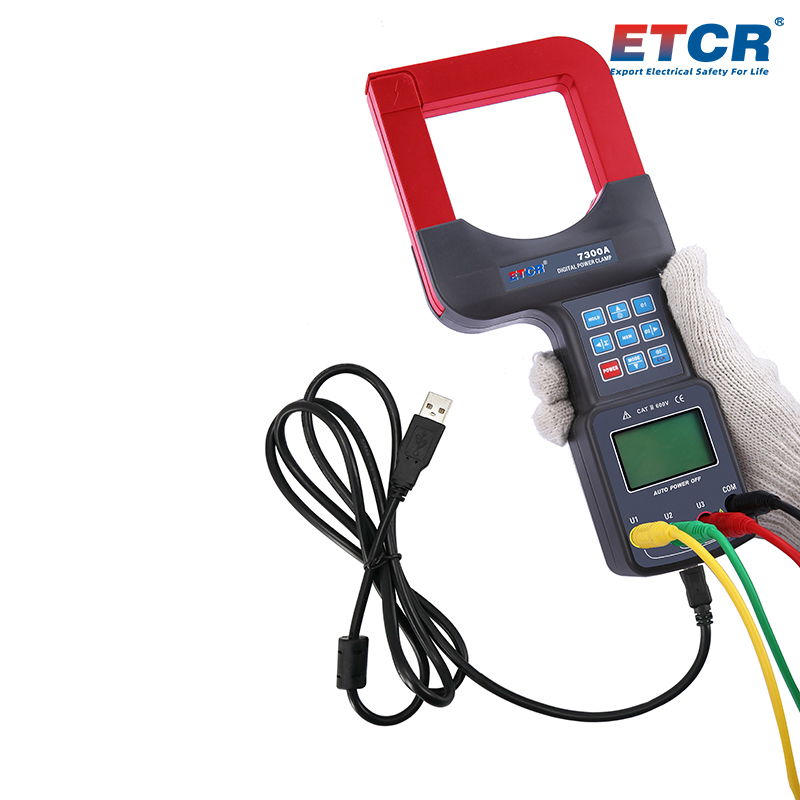

ETCR7300A Large Caliber Three Phase Clamp Power Meter with high precision, good stability. Large caliber clamp(80mm×80mm) is exceedingly useful, the meter can store 200 groups data and the storage data can be uploaded to computer via USB interface and system software, which achieving reading, saving, printing and other functions of historical data.

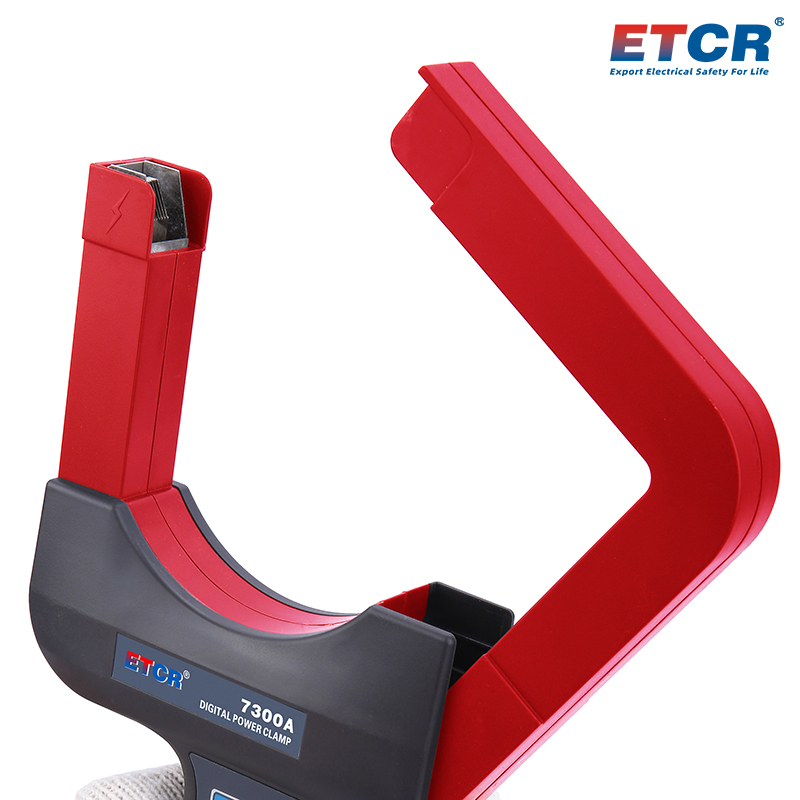

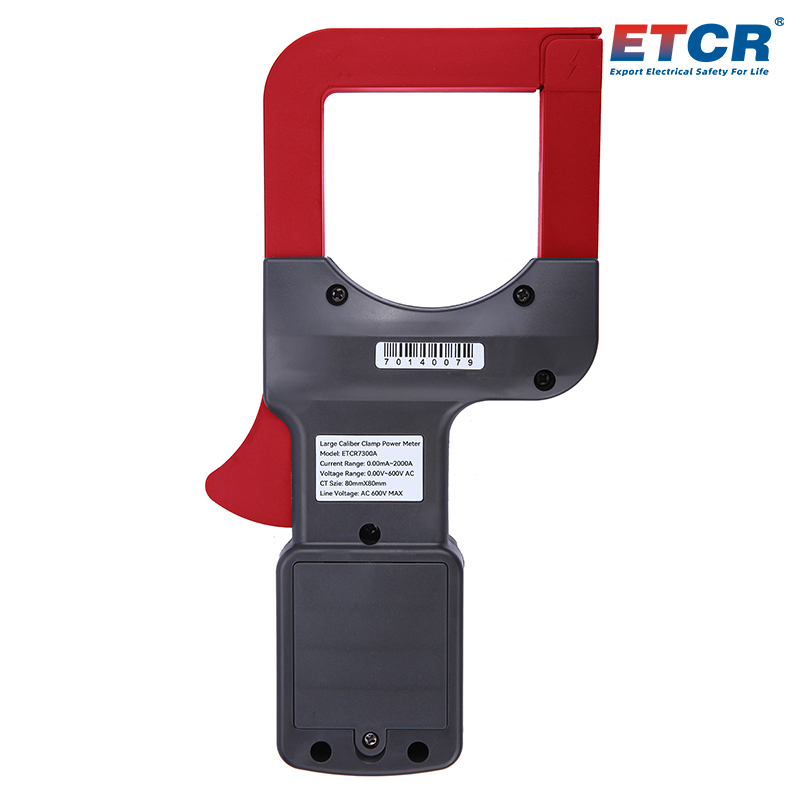

1.Large caliber clamp jaw 80mm×80mm (can clamp φ80mm electrical cable, or 96mm×4mm flat steel ground wire), convenient to use.
2.Suitable for measurement of Max. Current(2000A).
3.Memory: data storage 200 groups.
4.USB communication interface.

Technical Parameter

1.Measurement Range & Accuracy

Measurement Function	Measurement Range	Accuracy	Solution
AC Voltage	0.00V~600V	±(1.5%rdg+5dgt)	0.01V
AC Current	0.0A~99.9A	±(2.0%rdg+5dgt)	0.1A
	100A~1199A	±(2.0%rdg+5dgt)	1A
	1200A~2000A	±(2.5%rdg+5dgt)	1A
Frequency	25Hz~100Hz	±(0.5%rdg+5dgt)	0.1Hz
Active Power	0.10kW~9.99kW	±(3%rdg+5dgt)	0.01kW
	10.0kW~99.9kW	±(3%rdg+5dgt)	0.1kW
	100kW~719kW	±(3%rdg+5dgt)	1kW
	720kW~1200kW	±(4%rdg+5dgt)	1kW
	0.10kVA~9.99kVA	±(3%rdg+5dgt)	0.01kVA
	10.0kVA~99.9kVA	±(3%rdg+5dgt)	0.1kVA
	100kVA~720kVA	±(3%rdg+5dgt)	1kVA
	720kVA~1200kVA	±(4%rdg+5dgt)	1kVA
	0.10kvar~9.99kvar	±(3%rdg+5dgt)	0.01kvar
	10.0kvar~99.9kvar	±(3%rdg+5dgt)	0.1kvar
	100kvar~719kvar	±(3%rdg+5dgt)	1kvar
	720kvar~1200kvar	±(4%rdg+5dgt)	1kvar
Power Factor	0.3~1.0(Capacitive or inductive)	±(0.02+5dgt)	0.001
Phase Angle	0.0°~360.0°	±(1.5°+5dgt)	0.1°
Electric Energy	0.0000kWh~9.9999kWh	±(4%rdg+5dgt)	0.0001kWh
	10.000kWh~99.999kWh	±(4%rdg+5dgt)	0.001kWh
	100.00kWh~999.99kWh	±(4%rdg+5dgt)	0.01kWh
	1000.0kWh~9999.9kWh	±(4%rdg+5dgt)	0.1kWh
	10000kWh~72000kWh	±(4%rdg+5dgt)	1kWh

2.Basic Specifications

Power Supply	6V DC(LR6×4 sections Alkaline dry battery)
Display Mode	LCD：128dots×64dots; display area: 43mm×29mm
Measurement Method	Clamp CT, integration method
Clamp Jaw Size	80mm×80mm(can clamp φ80mm wire,or 96mm×4mm grounding flat steel)
Wire Position	The measured wire is in the center position of the clamp.
Memory	200 groups . flash display “FULL" symbol indicate storage full
Communication Interface	With USB interface, storage data can be uploaded to computer, convenient to data analyze.
Frequency	50Hz/60Hz Automatic identification
Shift Gear	Fully automatic shift
Sampling Rate	2 times/second
Line Voltage	Line measurement below AC 600V
Backlight	Yes, Press “*” key to control
Data Hold	Data hold function: “HOLD”symbol display
Overflow Display	Exceed measure range overflow function: “OL”symbol display
Automatic Shutdown	15 Minutes after power on, the meter shut down automatically without any operation to reduce battery consumption
Battery Voltage	While battery voltage decrease to about 5.2V,low battery voltage symbol display, and remind to replace the battery.
Meter Size	275mm×145mm×40mm
Weight	Meter: about 830g(include battery); total weight: about 1kg(include accessory)
Working Current	Backlight on: 50mA; Backlight off: 25mA
Insulation Length	AC 3700V/rms(between the core and outside shell)
Working Temperature & Humidity	-10℃~40℃; below 80%RH

Model comparison

Product Picture	Product Model Name	Clamp Jaw Size	Current Range	Voltage Range	Frequency	Power Rang	Electric Power Range	Communication Method
	ETCR7300 Large Caliber Three Phase Power Tester	80mm×80 mm	AC 0.00mA～1200A	AC 0.00V～600V	25.0Hz～100.0Hz	720kW	72000kWh	USB
	ETCR7300A Large Caliber Three Phase Power Tester	80mm×80 mm	AC 0.0A～2000A	AC 0.00V～600V	25.0Hz～100.0Hz	1200kW	72000kWh	USB
	ETCR7350 Flexible Clamp Power Tester	Φ200mm	AC 0mA～6000A	AC 0.00V～600V	25.0Hz～600.0Hz	3600kW	360000kWh	USB
	ETCR7350B Flexible Clamp Power Tester	Φ300mm	AC 0mA～6000A	AC 0.00V～600V	25.0Hz～600.0Hz	3600kW	360000kWh	USB
