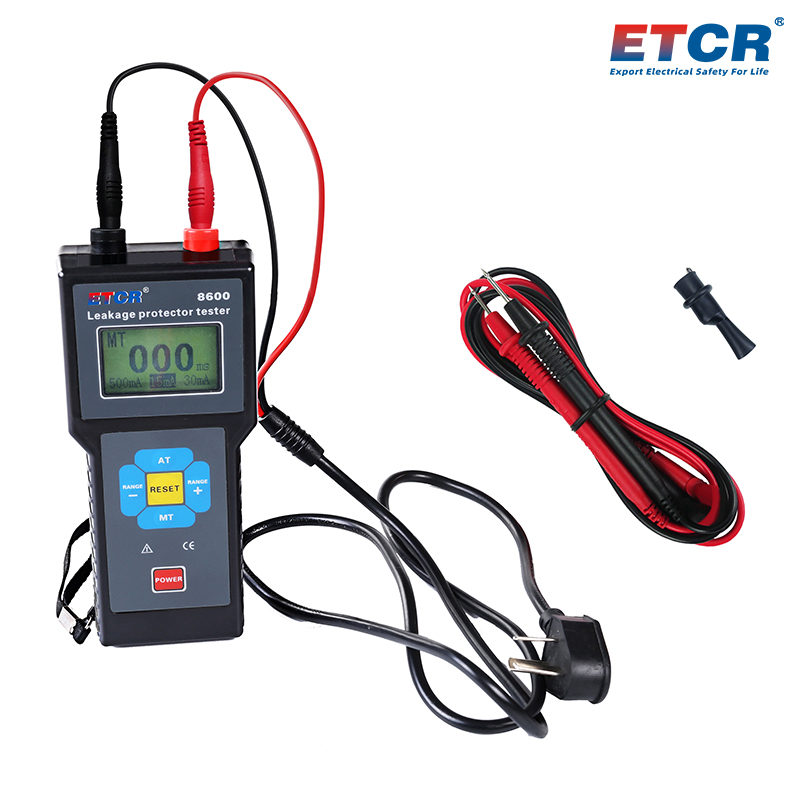

ETCR8600 Portable Leakage Protector Tester

Main Functions

Used for measure various leakage protector of leakage operating time.
Test current: 15mA~500mA (10 gears)
Test range of leakage current operating time: 0~999ms
Rated voltage: AC 220V

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR8600 Portable Leakage Protector Tester, also known as leakage switch tester and leakage switch characteristic tester, which is used for on-site measure various leakage protector of leakage operating time, test current is divided into ten gears from 15~500mA (15, 30, 50, 75, 100, 150, 200, 250, 300, 500mA). Test range of leakage current operating time is 0~999ms, adopting with 128dots×64dots LCD to display, convenient and intuitive. The tester is easy to operate, small in size, light in weight, portable, which is an ideal tool for various leakage protectors on site or indoor detection.
1.Ten gears test current 15mA, 30mA, 50mA, 75mA, 100mA, 150mA, 200mA, 250mA, 300mA, 500mA.
2.Test range of leakage current operating time is 0~999ms.

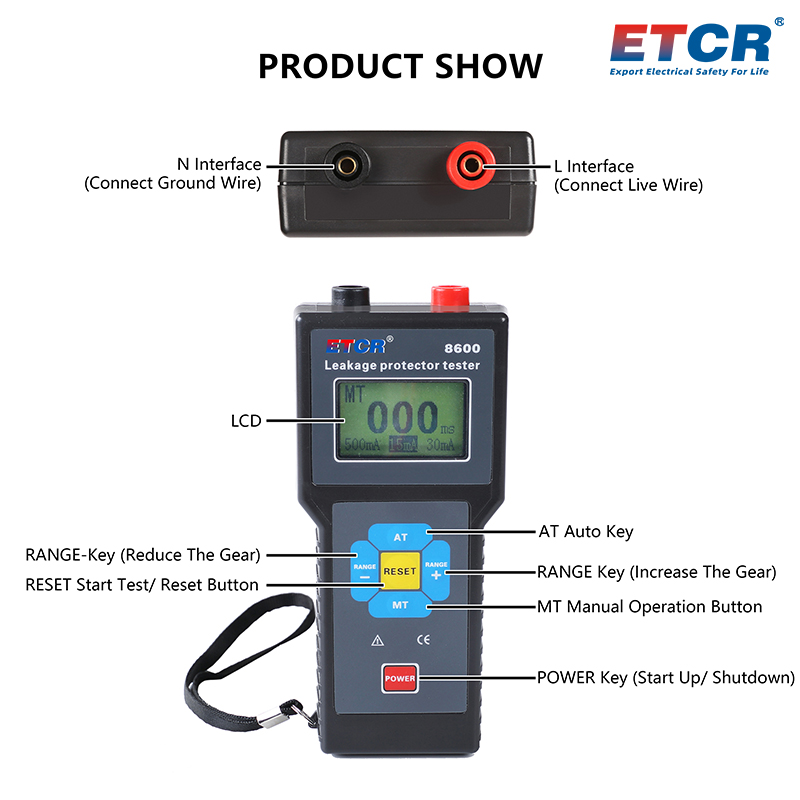

3.Two measurement mode: manual and automatic.
4.The tester is easy to operate, small in size, light in weight, portable, especially suitable for on-site detection of leakage protector.

Technical Parameter

Power Supply	DC6V alkaline dry battery LR6 1.5V×4
Display Mode	LCD: 128dots×64dots
LCD Size	Display area: 44mm×27mm

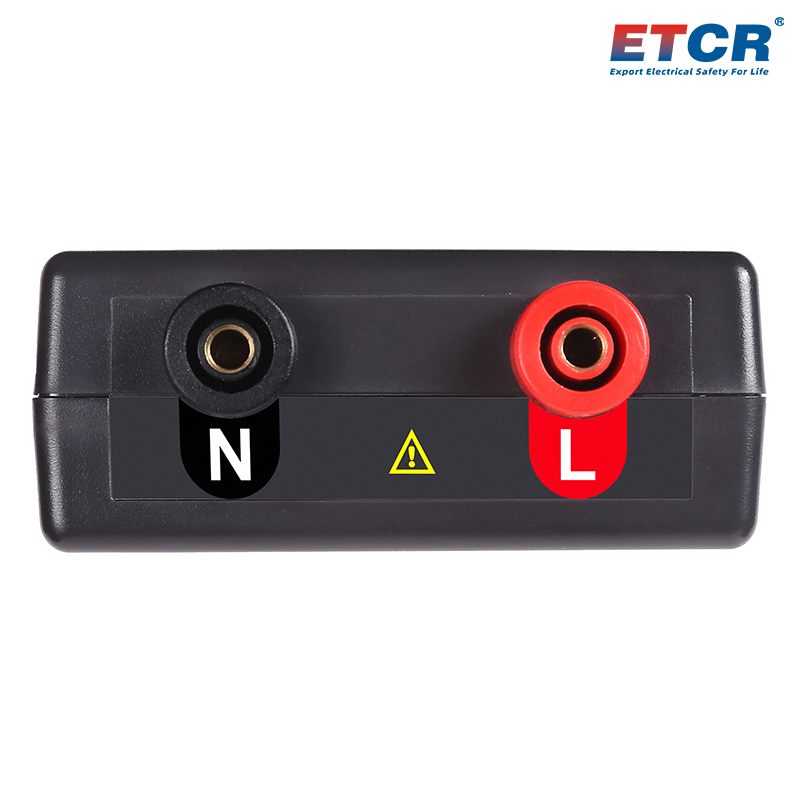

Rated Voltage	AC 220V (During leakage protection switch testing, between instrument interface)
Test Line Voltage	220V/380V
Leakage Current Gear	15mA, 30mA, 50mA, 75mA, 100mA, 150mA, 200mA, 250mA, 300mA, 500mA
Gear Current Accuracy	±10%rdg+2dgt
Test Range Of Leakage Current Operating Time	0~999ms
Display Accuracy Of Leakage Operating Time	±5%rdg±3dgt
Failure Message Indication	LCD display “fault” failure information indication, indicates that tested rated operating current gear is low or leakage protector has fault.
Length of test line	1.5m
Test Mode	Manual or automatic
Tester Size	170mm×75mm×30mm
Weight	About 290g (include battery); Total weight: about 350g(include package)
Battery Voltage	When the battery voltage drops to 4.8V, the low battery voltage symbol is displayed to remind the battery to be replaced.The measured data at this time is also accurate.
Working Current	40mA Max
Insulation Withstand Voltage	100MΩ or greater, AC2kV/rms(between the housing and screw)
Suitable Safety Standard	IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V) IEC61326(EMC Standard)
Working Temperature & Humidity	-10℃~40℃; below 80%RH
Store Temperature & Humidity	-10℃~60℃; below 70%RH

Model comparison

Product Picture	Product Model Name	Test Current	Leakage Current Operating Time Range	Voltage Range	Display Mode	Power Supply
	ETCR8600 Portable Leakage Protector Tester	15mA~500mA, 10 gears	0ms~999ms	--	LCD Screen	Dry Battery
	ETCR8600A Leakage Protector Tester	3mA~500mA, 18 gears	0ms~999ms	AC 0~600V	Large LCD Screen	Dry Battery
	ETCR8600B Leakage Protector Tester	5mA~1000mA, 16 gears	0ms~999ms	AC 0~600V	Color Touch Screen	Lithium Battery
