Flat Port Leakage Current Sensor Series

Main Functions

Used for online detection of AC leakage current, phase, electrical energy, power, power factor, and harmonics
Products comply with RoHS environmental protection requirements
Products meet CE requirements
Can output current signal or voltage signal
Accept customer customization

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

Performance characteristics of flat port leakage current transformer series products：
1. The open-and-close structure does not require power failure and does not need to disconnect the line under test. The installation is fast, safe and reliable, especially suitable for online installation.
2. The use of permalloy iron core, stable performance, high precision, strong anti-interference ability, suitable for complex interference environments.
3. The zero-wire or three-phase four-wire of the firewire can be clamped at the same time, and the leakage current of the cable and electrical equipment can be measured.
4. The range, turn ratio, output interface, etc. of the transformer can be customized according to customer requirements.
5. Safety level: CATⅢ600V.
6. Working temperature: -15°C～50°C

Product Model	Product Picture	Measurement Parameters	Reference Load	Clamp Jaw Size	Dimensions	Weight

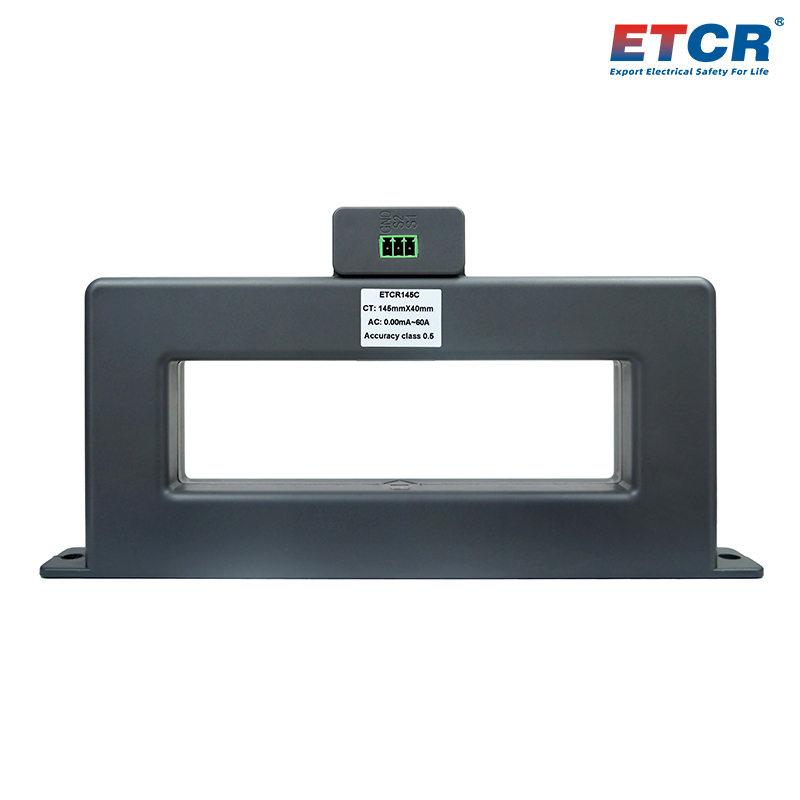

ETCR145C		Range: 0.00mA～60A Accuracy level: 0.5 Phase error: ≤2° Variable ratio: 800:1 Working frequency: 10Hz～100kHz	0～100mA≤300Ω 0～1A≤30Ω 0～10A≤3Ω	145mm×40mm	230mm×117.4mm×26mm	400g

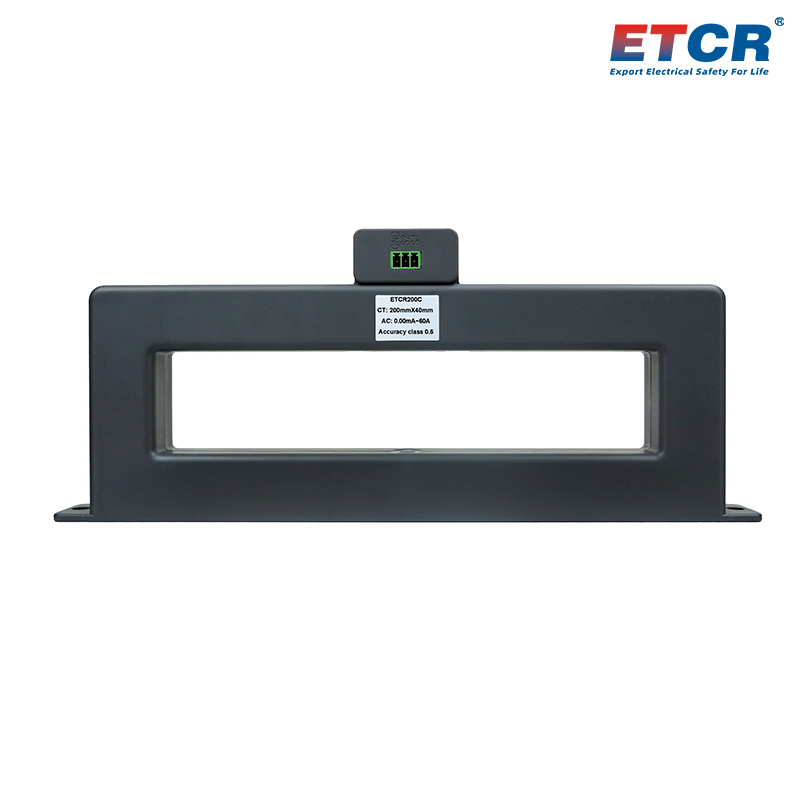

ETCR200C		Range: 0.00mA～60A Accuracy level: 0.5 Phase error: ≤2° Variable ratio: 800:1 Working frequency: 10Hz～100kHz	0～100mA≤300Ω 0～1A≤30Ω 0～10A≤3Ω	200mm×40mm	285mm×117.4mm×26mm	550g

Technical Parameter

Model comparison

Product Picture	Product Model Name	Clamp Jaw Size	Current Range	Precision Level	Others
	Split Type Leakage Current Sensor Series	Φ10mm/Φ25mm/Φ25mm/Φ40mm/Φ80mm	AC 0.00mA～20A/30A/60A	0.5	Accept Customization
	Split Type DC Leakage Current Sensor Series	Φ10mm/Φ25mm	DC 0.0mA～100mA	3.0	±12VDC, Accept Customization
	Microampere Level Split Leakage Current Sensor Series	Φ22mm/Φ45mm/80mm×21mm/Φ90mm	AC 0uA～10A	0.5	Accept Customization
	Split Type Leakage Current Sensor Series	80×26mm/85×20mm	AC 0.00mA～60A	1.0	Accept Customization
	Flat Port Leakage Current Sensor Series	145×40m/200×40mm	AC 0.00mA～60A	1.0	Accept Customization

Data download

Download：

Guangdong ETCR Electronic Technology CO.,Ltd
Our corporate focuses on the research, development, and production of intelligent power testing and control instruments; and also provides OEM service.
