ETCR-FA FB Rogowski Flexible Coil Current Sensor

Main Functions

Used for detection of AC current, high-order harmonic current, complex waveform current, transient inrush current, start-up current, phase, electrical energy, power, power factor, etc.
Current range: AC 0A～10000A
Signal output: AC 0～1V
Response frequency: 0.1Hz～1MHz
Coil wire diameter:Ф7.5
Products meet CE requirements
Accept customer customization

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

Product Picture	Coil Model	Coil Inner Diameter	Coil Length	Coil Weight	Coil Diameter

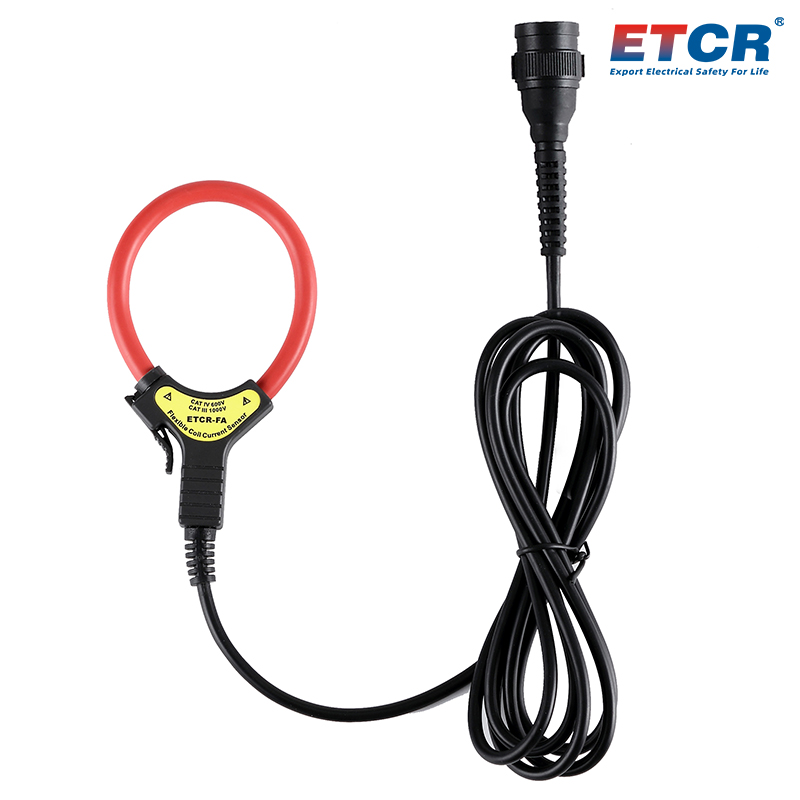

	ETCR50FA	Ф50mm	160mm	80g	Ф7.5mm

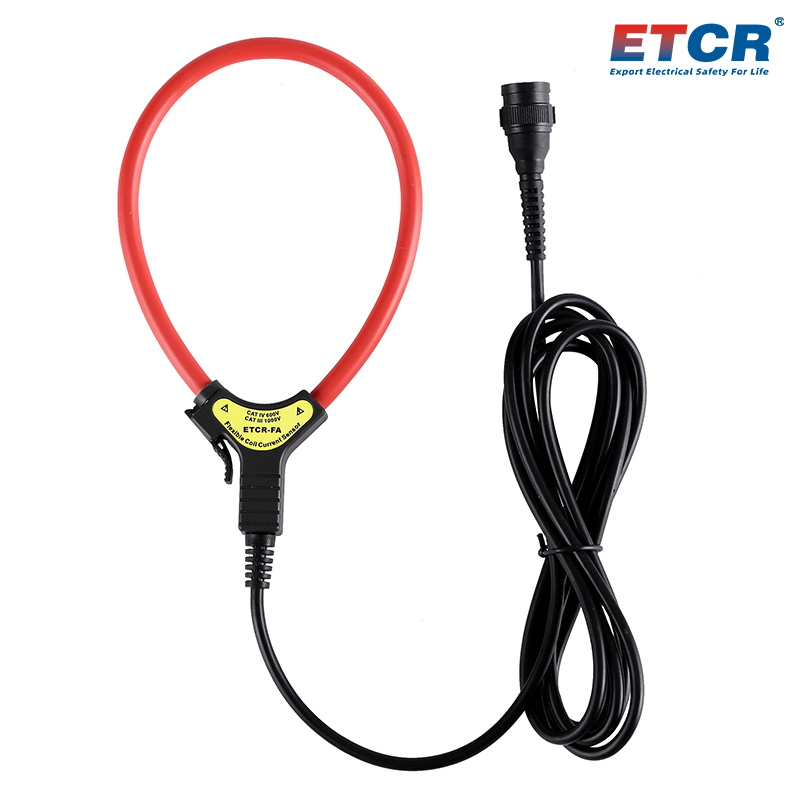

	ETCR100FA	Ф100mm	320mm	90g
	ETCR150FA	Ф150mm	480mm	100g

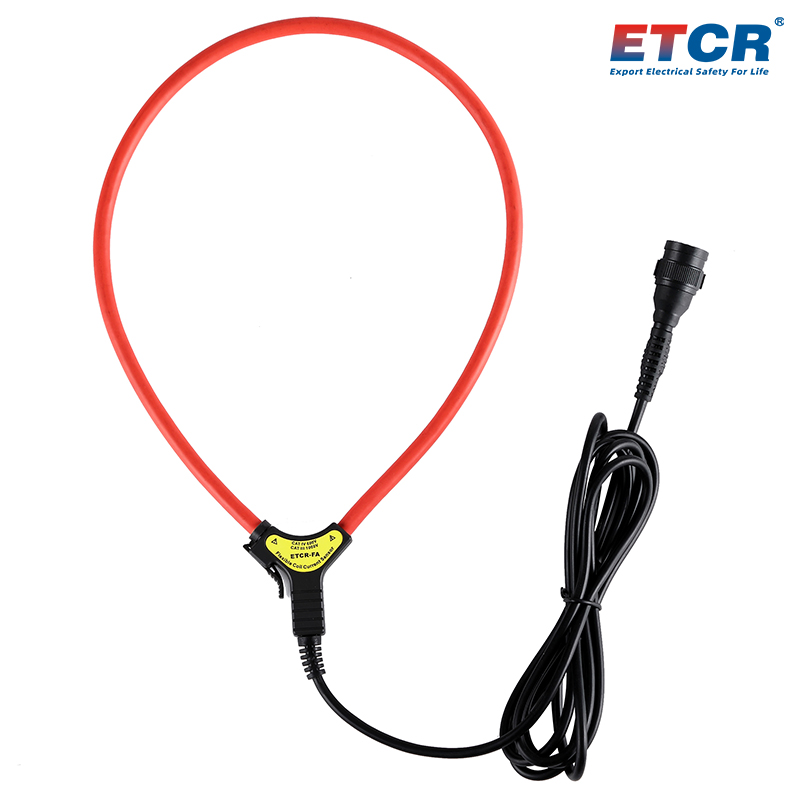

	ETCR200FA	Ф200mm	640mm	110g

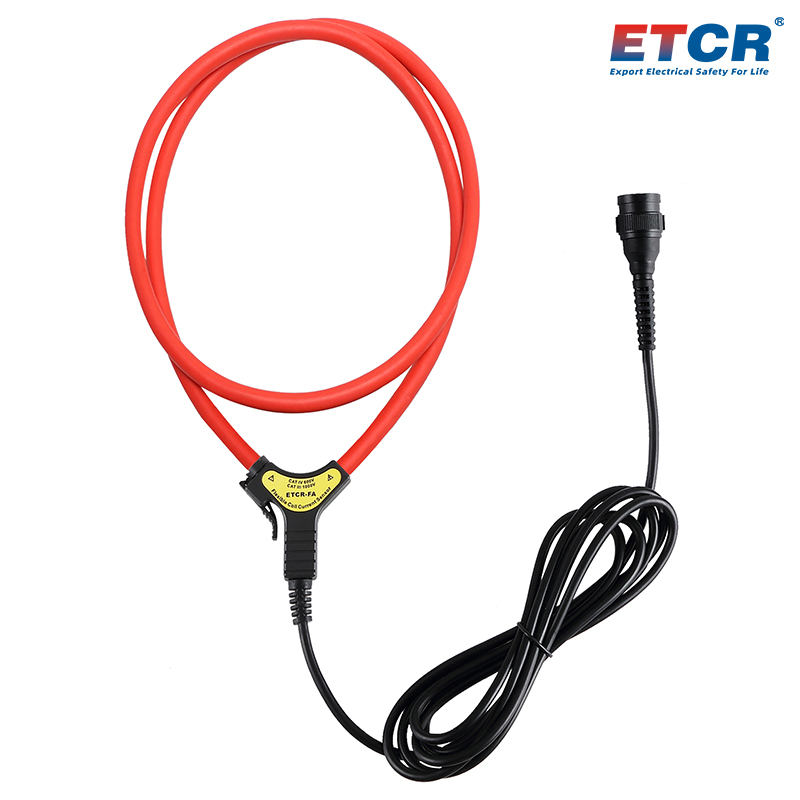

	ETCR300FA	Ф300mm	950mm	132g
	ETCR500FA	Ф500mm	1580mm	170g
	ETCR1000FA	Ф1000mm	3150mm	290g
	ETCR1500FA	Ф1500mm	4720mm	390g

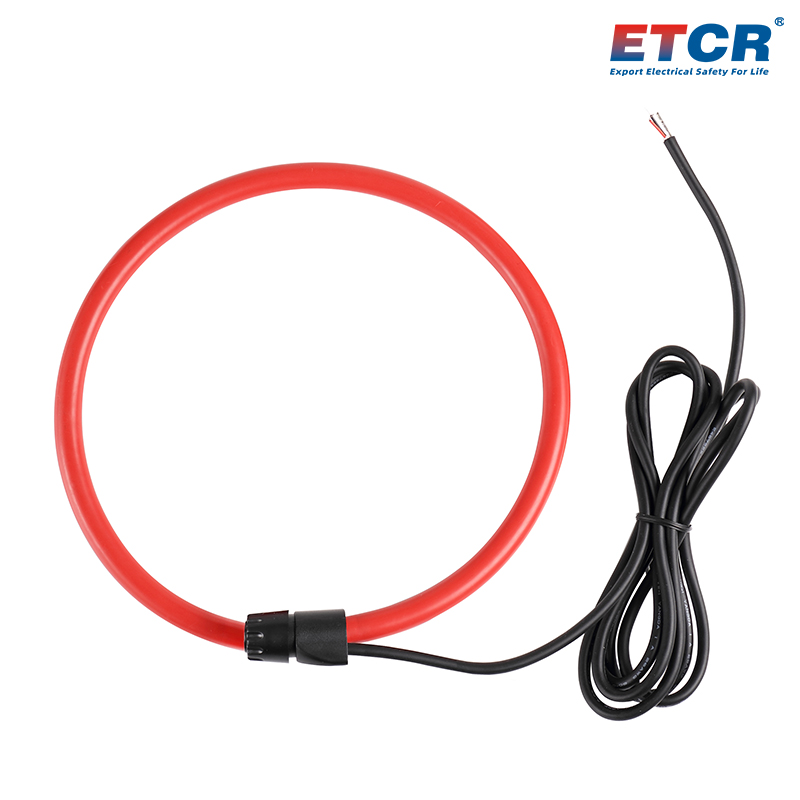

	ETCR200FB	Ф200mm	640mm	212g	Ф12mm

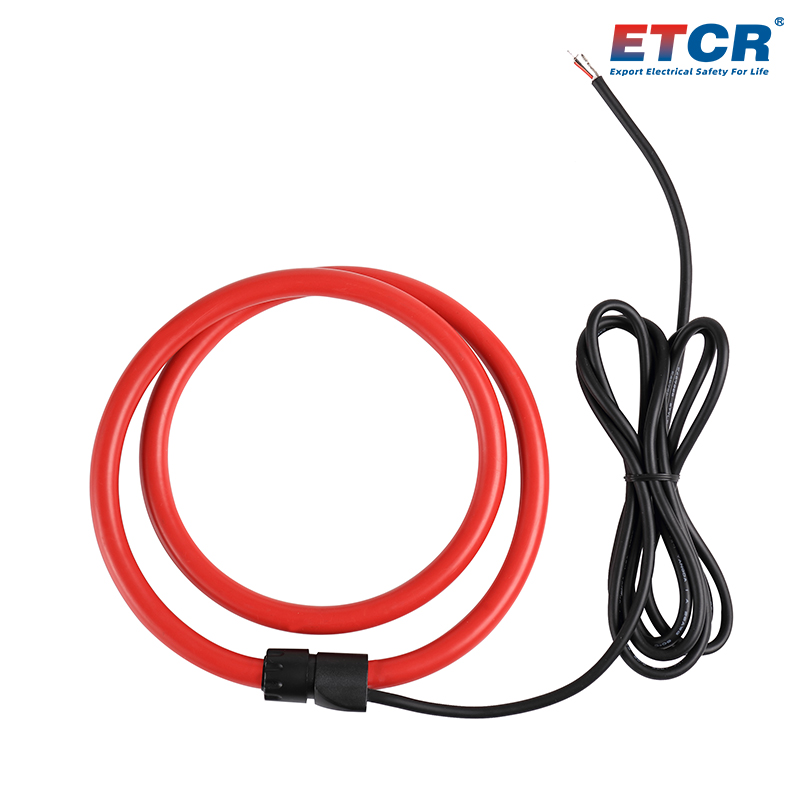

	ETCR300FB	Ф300mm	950mm	274g

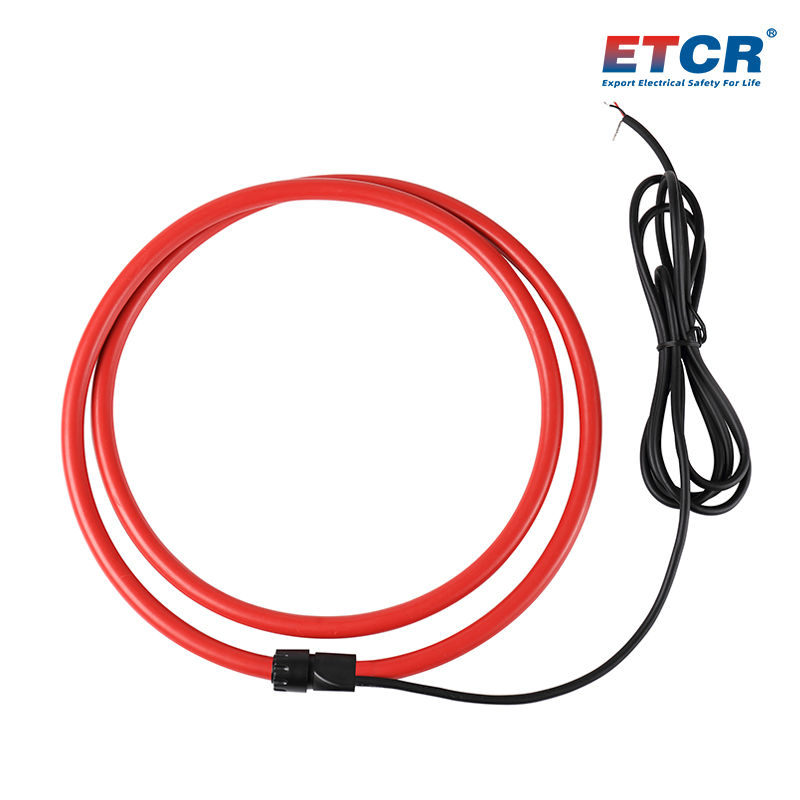

	ETCR500FB	Ф500mm	1580mm	400g
	ETCR1000FB	Ф1000mm	3150mm	715g
	ETCR2000FB	Ф2000mm	6290mm	1340g
	ETCR3000FB	Ф3000mm	9420mm	1970g

Technical Parameter

Model comparison

Product Picture	Product Model Name	Cable Diameter	Coil Length	Current Range	Precision Level	Others
	Flexible Coil sensor With Integrator(Separate)	Φ7.5mm/Φ12mm	Accept Customization	AC 300A/3000A/6000A/10000A	±1.0%FS	With Integrator
	Flexible Coil Sensor With Integrator(integral)	Φ7.5mm	Accept Customization	AC 300A/3000A/6000A/10000A	±1.0%FS	With Integrator
	Rogowski Flexible Coil Current Sensor	Φ7.5mm/Φ12mm	Accept Customization	AC 0～10000A	±1.0%FS	--

Data download

Download：
