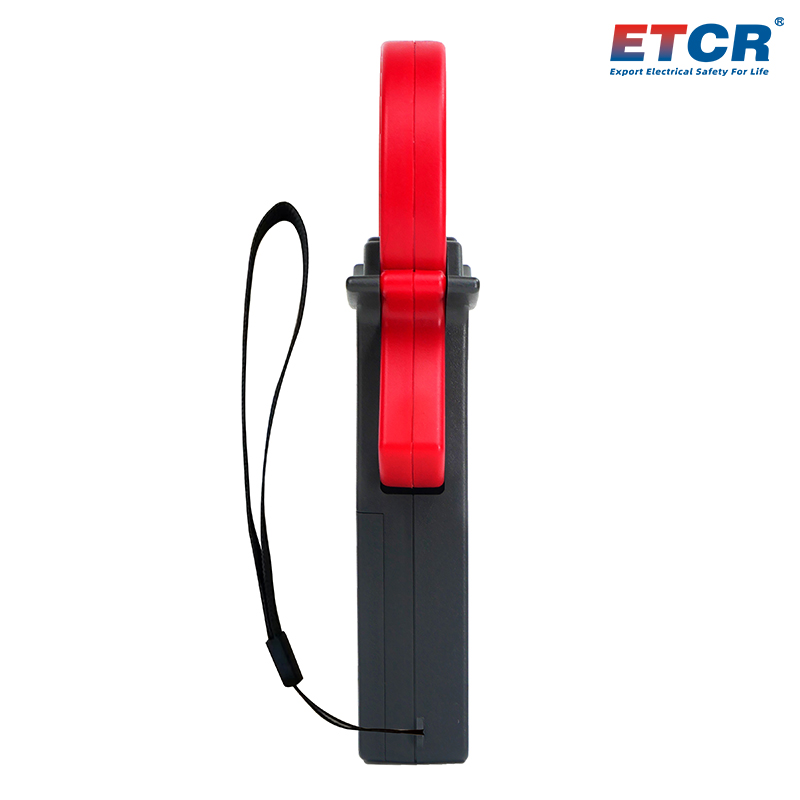

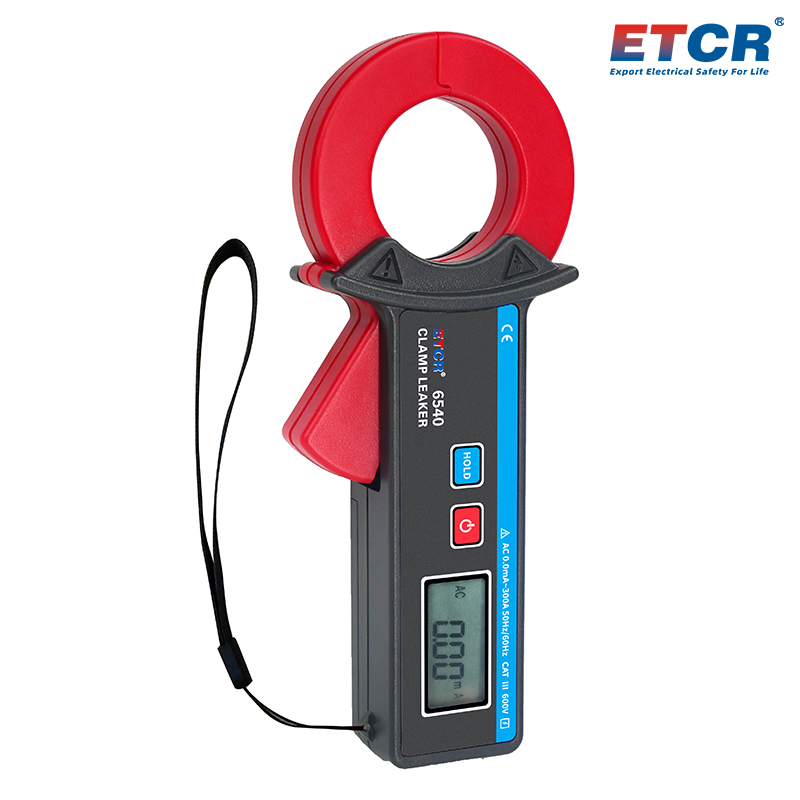

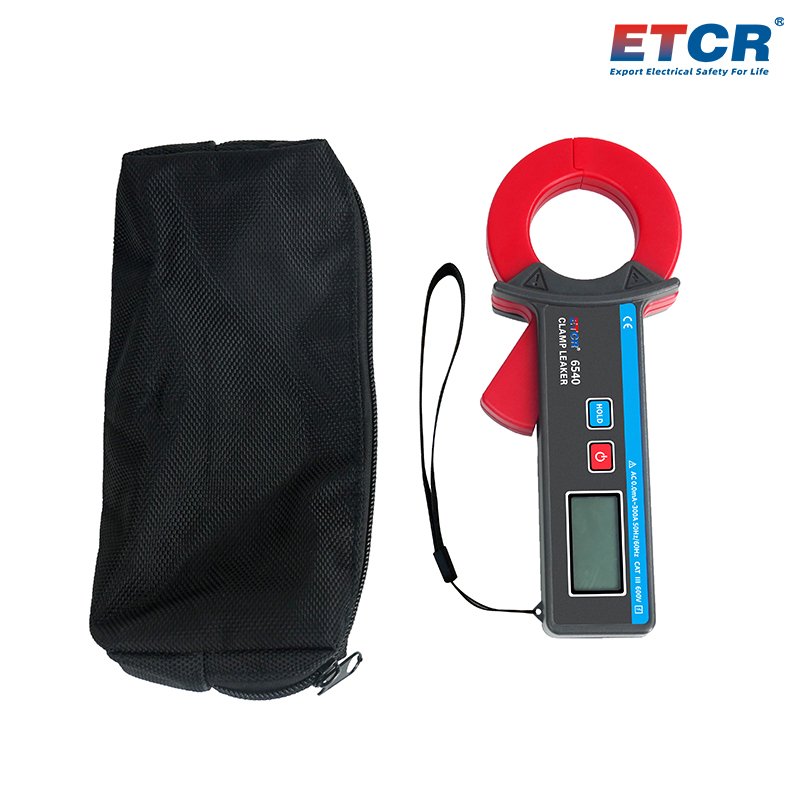

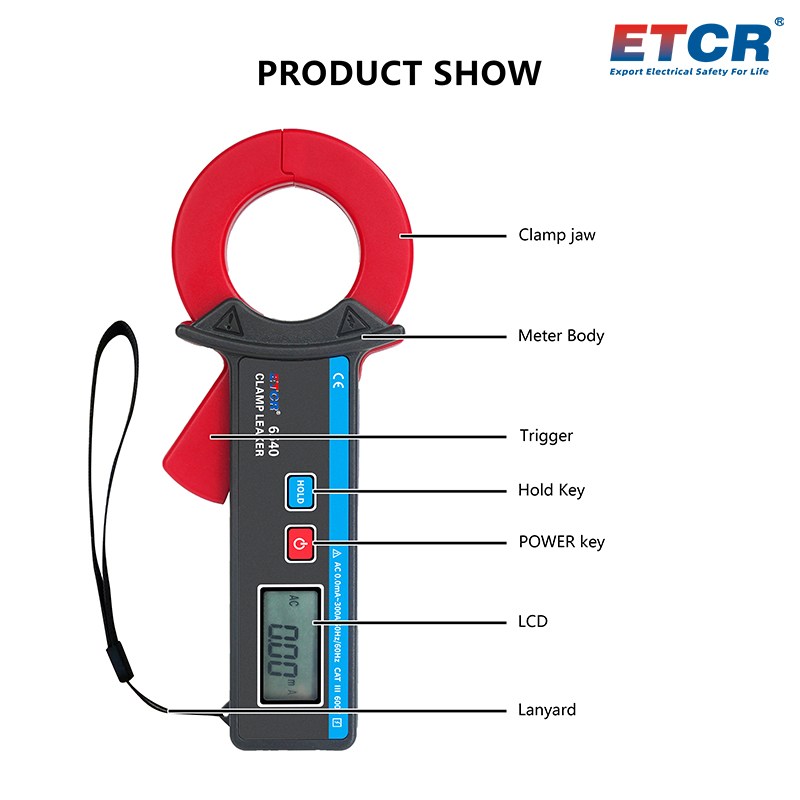

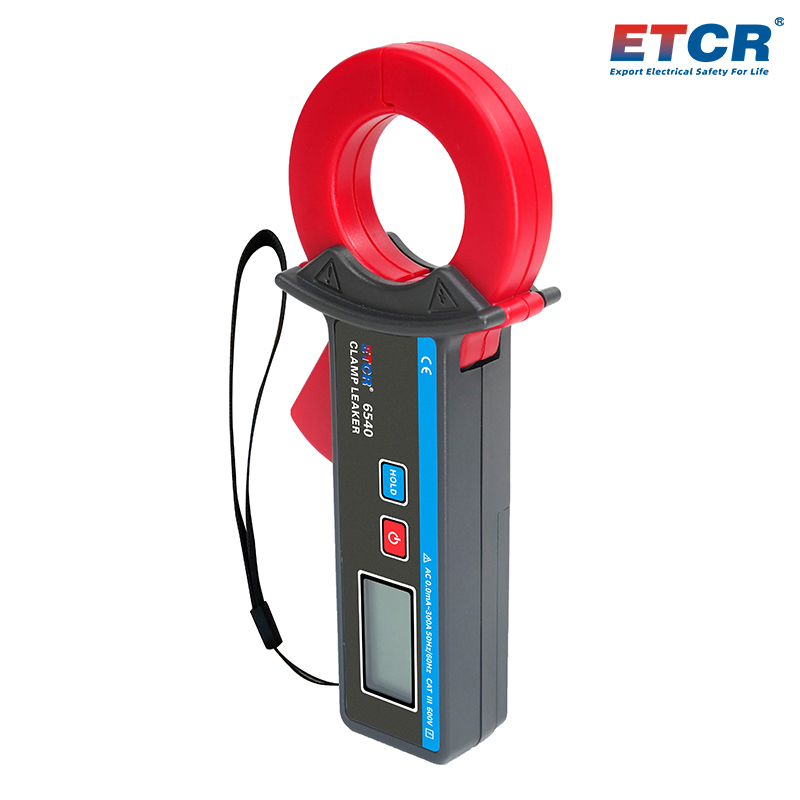

ETCR6540 Mini Clamp Leakage Current Meter

Main Functions

Measurement of AC leakage current, AC current
Current range: AC 0.00mA~300.0A
Clamp jaw size: Φ40mm
Memory: data storage 99 groups
Peak hold function

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR6540 Mini Clamp Leakage Current Meter, also known as clamp type leakage current tester, high accuracy clamp type current meter, which is used for Measurement of AC leakage current, AC current. The iron core of meter adopts slope film alloy technology and double-layer shielding technology, almost unaffected by the external magnetic field, ensuring high precision, high stability and high reliability of uninterrupted measurement all year, which is widely used in fields of electricity, communication, meteorology, railway, oil field, construction, metrology, scientific research and teaching unit, industrial and mining enterprise, etc.
ETCR6540 Mini Clamp Leakage Current Meter with peak hold, data hold, data storage and other functions.
1.The clamp meter has small volume, easy to carry, making it an essential tool for electrical safety testing.
2.Double-layer shielding technology, high accuracy, strong anti-interference ability and 10uA solution.
3.Peak hold function.
4.Memory function.

Technical Parameter

Power Supply	Alkaline dry battery 7# 2 PCS
Display Mode	4 digits LCD display
LCD Size	35mm×21.5mm; display area: 32mm×15mm
Measurement Range	0.00mA~300.0A
Solution	10uA
Measurement Accuracy	0~60A: ±1.5%rdg±5dgt
Measurement Accuracy	60A~300A: ±2%rdg±5dgt
Clamp Jaw Size	Φ40mm
Meter Size	180mm×72mm×32mm
Weight	Meter: about 200g(include battery); total weight: about 0.31kg(include accessory)
Test Mode	Clamp CT, integration method
Sampling Mode	about 2 times/second
Frequency	50Hz, 60Hz Automatic identification
Shift Gear	Fully automatic shift
Line Voltage	Line measurement below DC 600V
Memory	99 groups, flicker to display ”FULL” symbol indicate storage full
Peak Hold	Peak capture and hold function, long press HOLD key and not release can display peak value in measurement.
Data Hold	Data hold function: “DH”symbol display
Overflow Display	Exceed measure range overflow function: “OL”symbol display
Auto Shut Down	5 Minutes after power on, the meter shut down automatically without any operation to reduce battery consumption
Battery Voltage	While battery voltage decrease to about 2.8V,low battery voltage symbol display, and remind to replace the battery.
Working Current	5mA
Insulating Strength	AC2kV/rms(between the core and outside shell)
Suitable Safety Standard	IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)
Working Temperature & Humidity	0℃~40℃; below 80%RH
Storage Temperature & Humidity	-10℃~60℃; below 70%RH

Model comparison

Product Picture	Product Model Name	Clamp Jaw Size	Current Range	Communication Method	Others
	ETCR6300 High Precision Clamp Leakage Current Meter	25mm×30 mm	AC 0.000mA~60.0A	USB
	ETCR6540 Mini Clamp Leakage Current Meter	Φ40mm	AC 0.00mA~300A	--
	ETCR6640 Clamp Leakage Current Meter	Φ40mm	AC 0.00mA~300A	Bluetooth	True vitrual value Harmonics Flashlight
	ETCR6670 High Precision Clamp Leakage Current Meter	Φ70mm	AC 0.00mA~1200A	Bluetooth	True vitrual value Harmonics Flashlight
	ETCR6680 Large Caliber Clamp Leakage Current Meter	80mm×80mm	AC 0.00mA~2000A	Bluetooth	True vitrual value Harmonics Flashlight
	ETCR7100 Super Large Caliber Clamp Leakage Current Meter	108mm×148mm	AC 0.0mA~3200A	USB
	ETCR7100A Super Large Caliber Clamp Current Meter	108mm×148mm	AC 0.0A~4000A	USB
