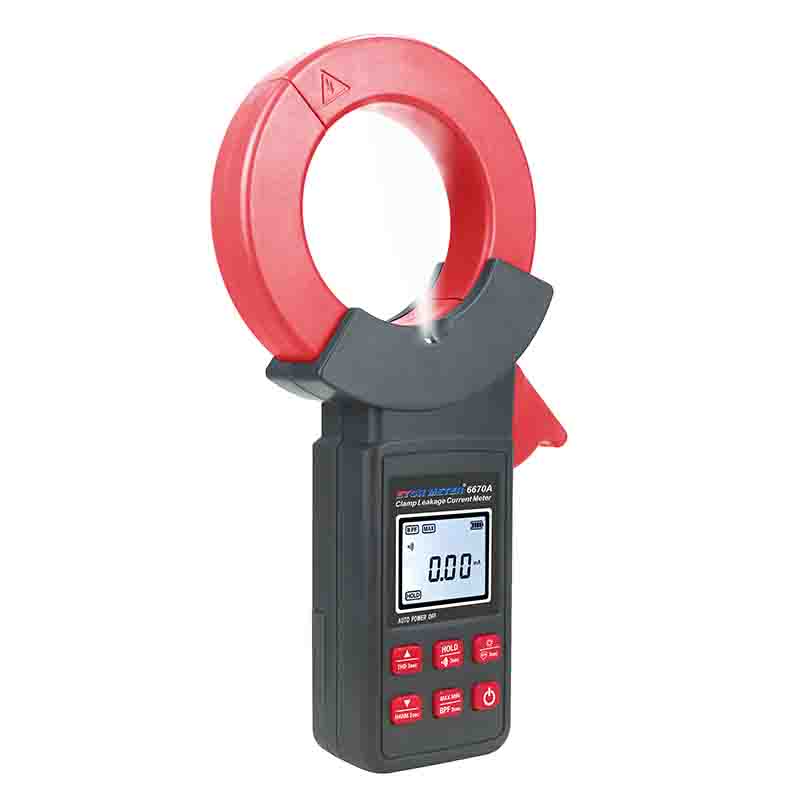

ETCR6670A High Precision Clamp Leakage Current Meter

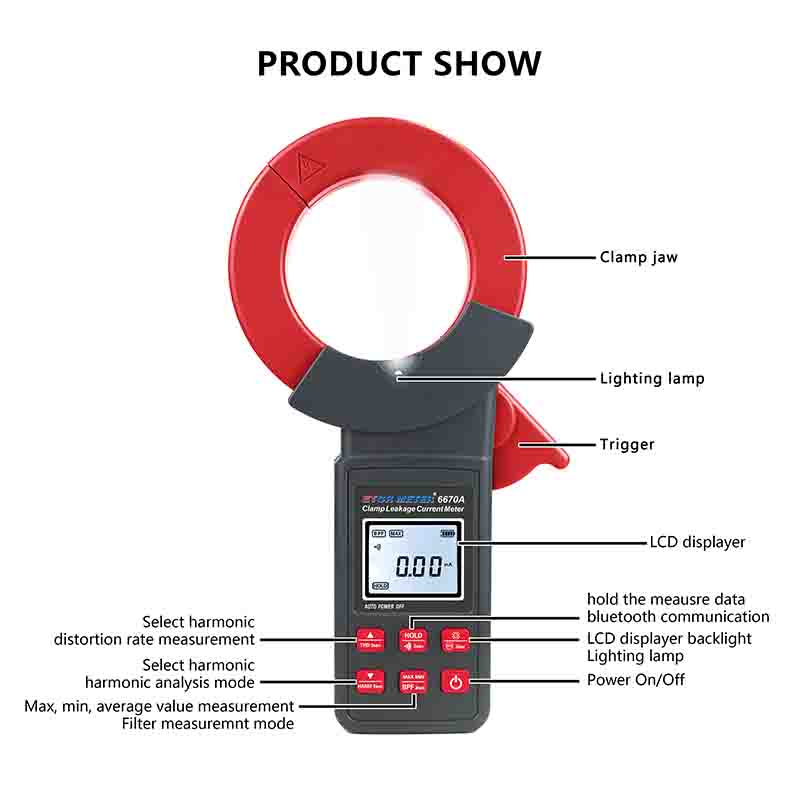

Main Functions

Measurement of AC leakage current, AC current, true effective value, filtering, maximum/minimum/average value, harmonics, distortion rate, etc.
Current range: AC 0.00mA~1200A
Harmonic Analysis: 21times
Clamp jaw size: Φ70mm
Memory: data storage 2000 groups
Bluetooth communication function
Flashlight function
Alkaline dry battery

Consult Immediately

Product Introduction
Technical Parameter
Model comparison
Data download

Product Introduction

ETCR6670A High Precision Clamp Leakage Current Meter, also known as clamp type leakage current tester, clamp current meter, multifunctional clamp type leakage current meter, down lead current tester, which is used for measurement of AC leakage current, AC current. The meter has test functions of true effective value, filtering, maximum/minimum/average value, harmonics, distortion rate, etc. The iron core of meter adopts slope film alloy technology and double-layer shielding technology, almost unaffected by the external magnetic field, ensuring high precision, high stability and high reliability of uninterrupted measurement all year, which is widely used in fields of electricity, communication, meteorology, railway, oil field, construction, metrology, scientific research and teaching unit, industrial and mining enterprise, etc.

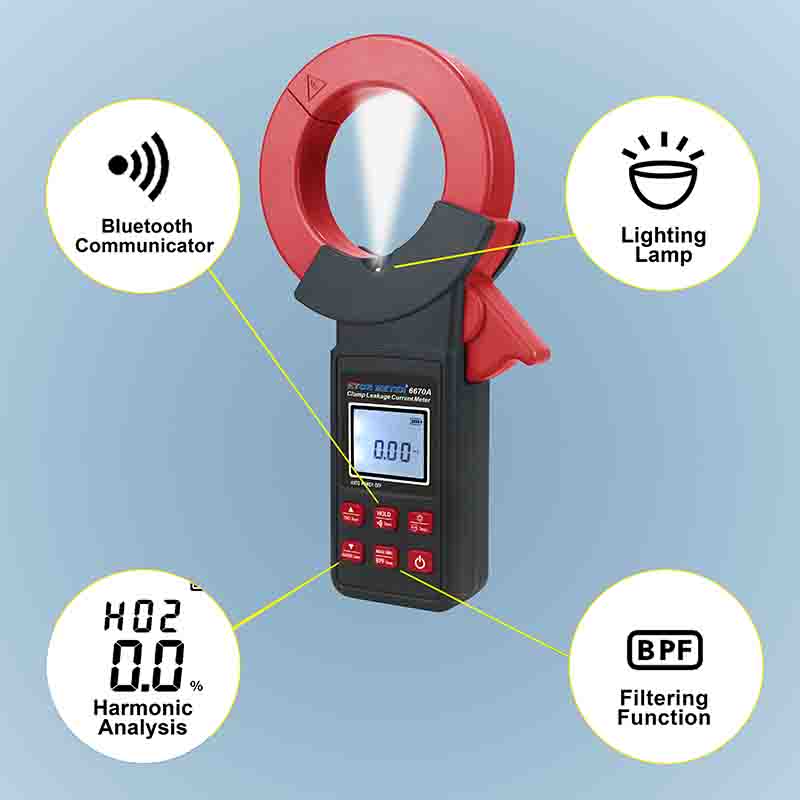

ETCR6670A High Precision Clamp Leakage Current Meter can test current in the frequency range of 40Hz~1kHz. The meter with backlight, flashlight, data storage, Bluetooth communication, etc. And use Alkaline dry battery.
1.Wide frequency, can test current in the frequency range of 40Hz~1kHz, which is essential tool for electrical safety testing.
2.Double-layer shielding technology, high accuracy, strong anti-interference ability and 10uA solution.
3.The meter has test functions of true effective value, filtering, maximum/minimum/average value, harmonics, distortion rate, etc.
4.Memory: data storage 2000 groups.
5.Bluetooth communication function.
6.Flashlight function.
7.DC9V, Alkaline dry battery (6LR61 9V).

Technical Parameter

Power Supply

DC9V, Alkaline dry battery (6LR61 9V)

LCD Size

43mm×38mm; display area: 36.5mm×29mm

LCD Backlight

Yes

Measurement Range

0.00mA~1200A

Solution

10uA

Measurement Accuracy

0.00mA~999mA ±1.5%rdg±5dgt

1.00A~300A ±1.5%rdg±5dgt

300A~599A ±2.0%rdg±5dgt

600A~1199A ±2.5%rdg±5dgt

1200A~2000A ±2.5%rdg±5dgt

Clamp Jaw Size

Φ70mm

Meter Size

237mm×131mm×40mm

Weight

About 0.78g (include battery);

Flashlight

Yes

Filter Function

Filter open: 40Hz~70Hz; Filter close: 40Hz~1kHz

Harmonic Analysis

21 times (above 10mA)

Distortion Rate

Yes (above 10mA)

Max/Min Value

Yes

Average Value

Yes

Data Hold

Yes

Memory

2000 groups (storage through APP)

Overflow Display

Exceed measure range overflow function: “OL”symbol display

Bluetooth Communication

Yes, can test or view the test result on mobile after install the App

Automatic Shutdown

5 Minutes after power on, the meter shut down automatically without any operation to reduce battery consumption.

Battery Level

4-cell battery display

Sampling Rate

2 times/second

Working Current

20mA (turn on flashlight 40mA)

Line Voltage

Line testing below AC600V

Insulating Strength

AC 3700V/rms(between the core and outside shell)

Suitable Safety Standard

IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)

Working Condition

-10℃~50℃; below 80%RH

Storage Condition

-20℃~60℃; below 70 %RH

Model comparison

Product Picture	Product Model Name	Clamp Jaw Size	Current Range	Communication Method	Others
	ETCR6300 High Precision Clamp Leakage Current Meter	25mm×30 mm	AC 0.000mA~60.0A	USB
	ETCR6540 Mini Clamp Leakage Current Meter	Φ40mm	AC 0.00mA~300A	--
	ETCR6640A Clamp Leakage Current Meter	Φ40mm	AC 0.00mA~300A	Bluetooth	True vitrual value Harmonics Flashlight
	ETCR6670A High Precision Clamp Leakage Current Meter	Φ70mm	AC 0.00mA~1200A	Bluetooth	True vitrual value Harmonics Flashlight
	ETCR6680A Large Caliber Clamp Leakage Current Meter	80mm×80mm	AC 0.00mA~2000A	Bluetooth	True vitrual value Harmonics Flashlight
	ETCR7100 Super Large Caliber Clamp Leakage Current Meter	108mm×148mm	AC 0.0mA~3200A	USB
	ETCR7100A Super Large Caliber Clamp Current Meter	108mm×148mm	AC 0.0A~4000A	USB

Data download

Download：

ETCR6670A High Precision Clamp Leakage Current Meter
